Overview

Official PN：781344-01

NI WSN‑3212 is an industrial wireless sensor network node dedicated to distributed temperature measurement, compliant with 2.4 GHz IEEE 802.15.4 mesh wireless standardNI. It integrates 4 independent 24‑bit delta‑sigma thermocouple input channels with built‑in cold junction compensation, supporting J/K/R/S/T/N/B/E all standard thermocouple types and ±73 mV low‑voltage signal acquisition. Equipped with 4 configurable bidirectional digital I/O, each channel can be set as input, sinking or sourcing output for switch and relay control. The node works as end device or mesh router to extend network coverage; one WSN gateway supports up to 36 nodes in mesh topology, line‑of‑sight transmission distance up to 300 m outdoorsNI. Dual power supply modes: 9–30 V external DC or 4 AA batteries with automatic power switching, ultra‑low power design for long‑term field deployment. Programmed via LabVIEW WSN toolkit, widely used for factory equipment thermal inspection, environmental multi‑point temperature logging and remote equipment monitoring.

Core Specifications

Analog Input: 4 channel 24-bit ADC, built-in CJC, compatible with all mainstream thermocouples, CMRR 95 dB @50/60Hz
Digital I/O: 4 bidirectional DIO, single channel max 0.5 A drive, multi-mode configurable input/output logic
Wireless RF: 2.4GHz 802.15.4 DSSS modulation, RP-SMA antenna port, receiver sensitivity -102 dBm
Power Supply: 9–30 VDC external power / 4×AA batteries auto-switch, low-power sleep mode
Network Topology: Star / mesh, supports mesh routing to expand node quantity & transmission range
Environmental Rating: Industrial wide temperature, anti-shock/vibration, ±30 V overvoltage protection for all channels
Software: LabVIEW WSN module, wireless network management, real-time temperature data upload & storage

Application Scenarios

Factory production line distributed temperature monitoring, machinery equipment long-term thermal trending test, building energy efficiency multi-point temperature collection, aerospace component remote thermal inspection, university wireless sensor network teaching experiments.

Standard Package Contents

WSN-3212 wireless thermocouple node, omnidirectional RP-SMA antenna, terminal wiring cable, quick start guide, safety datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

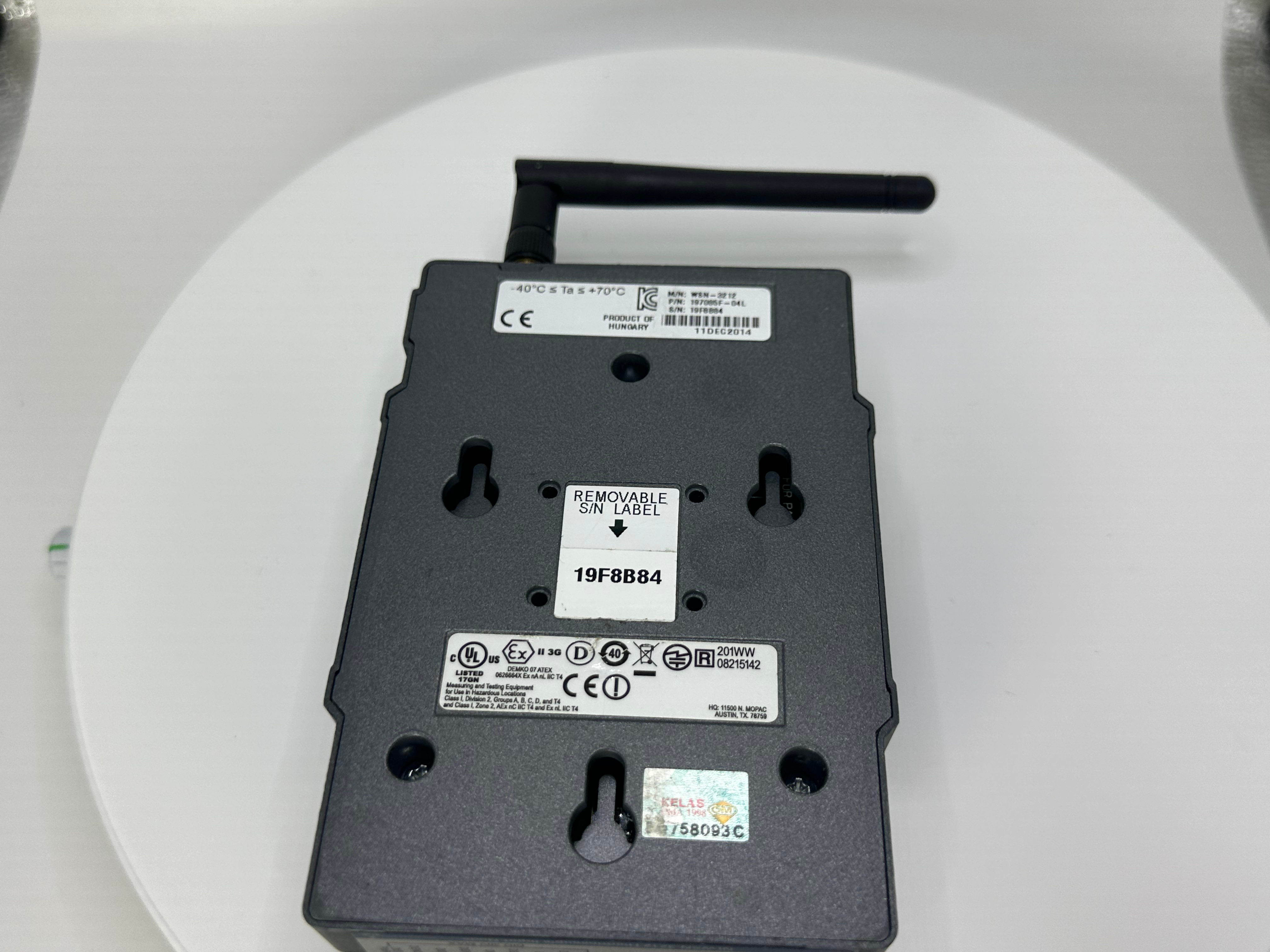

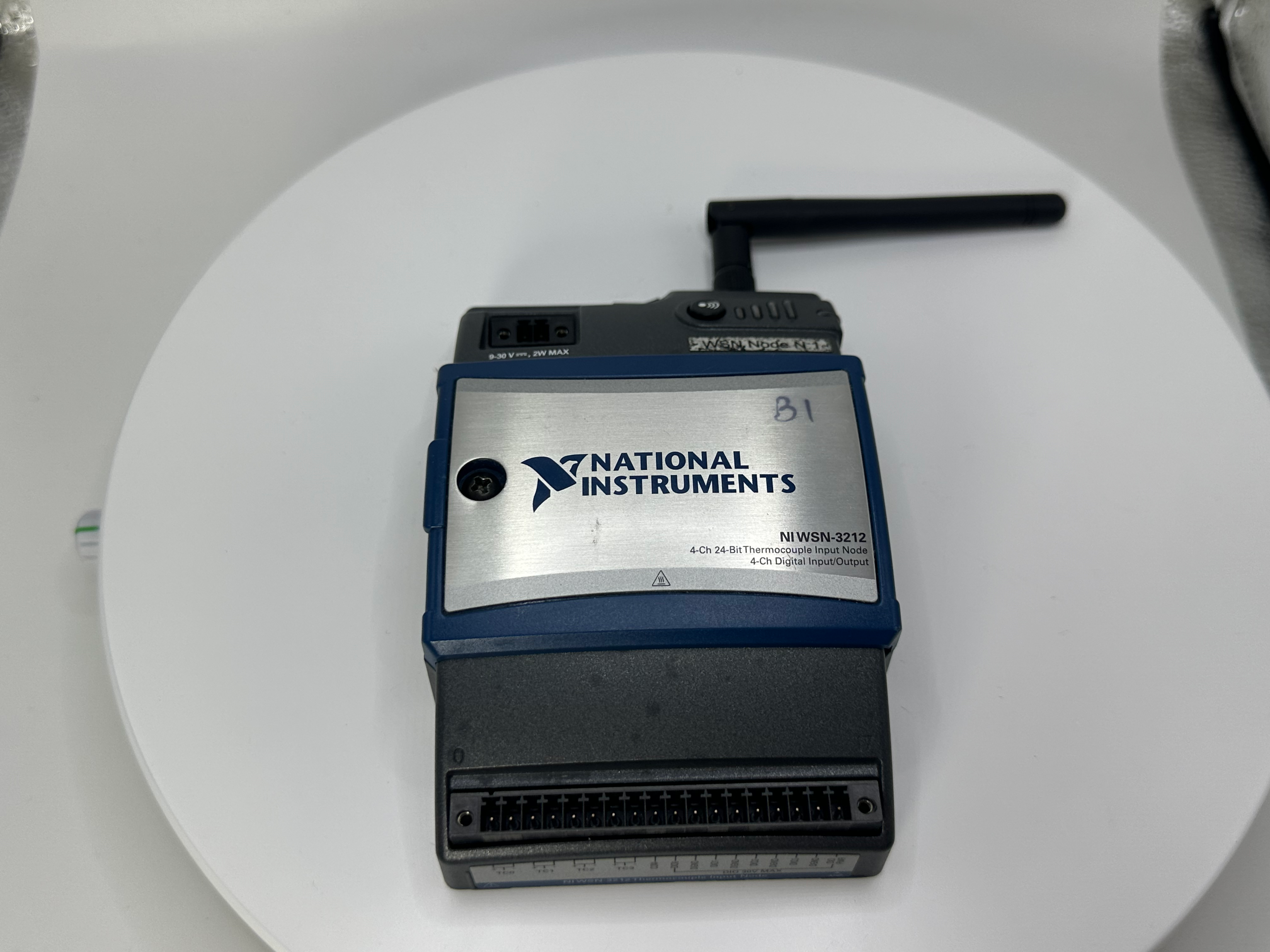

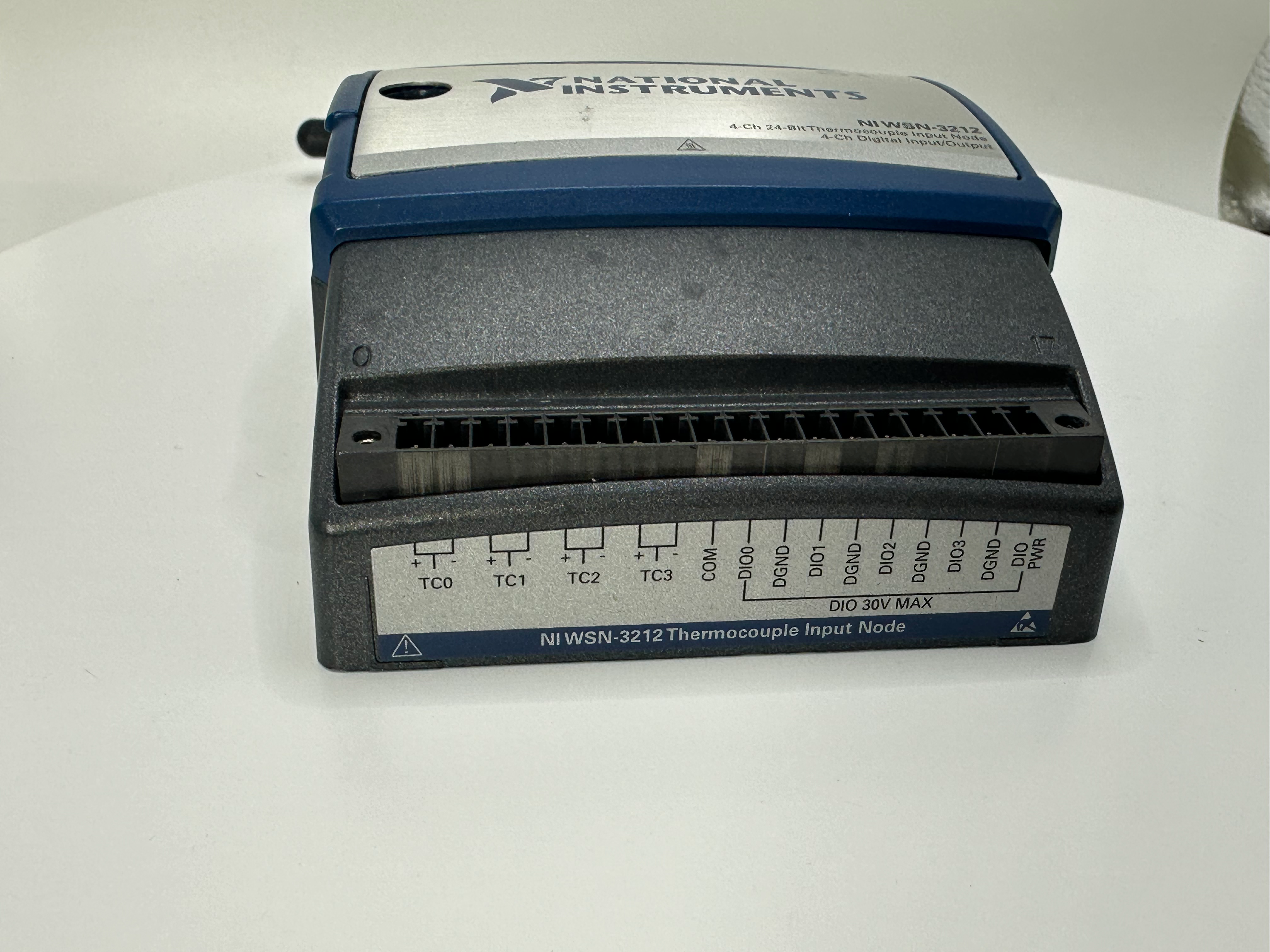

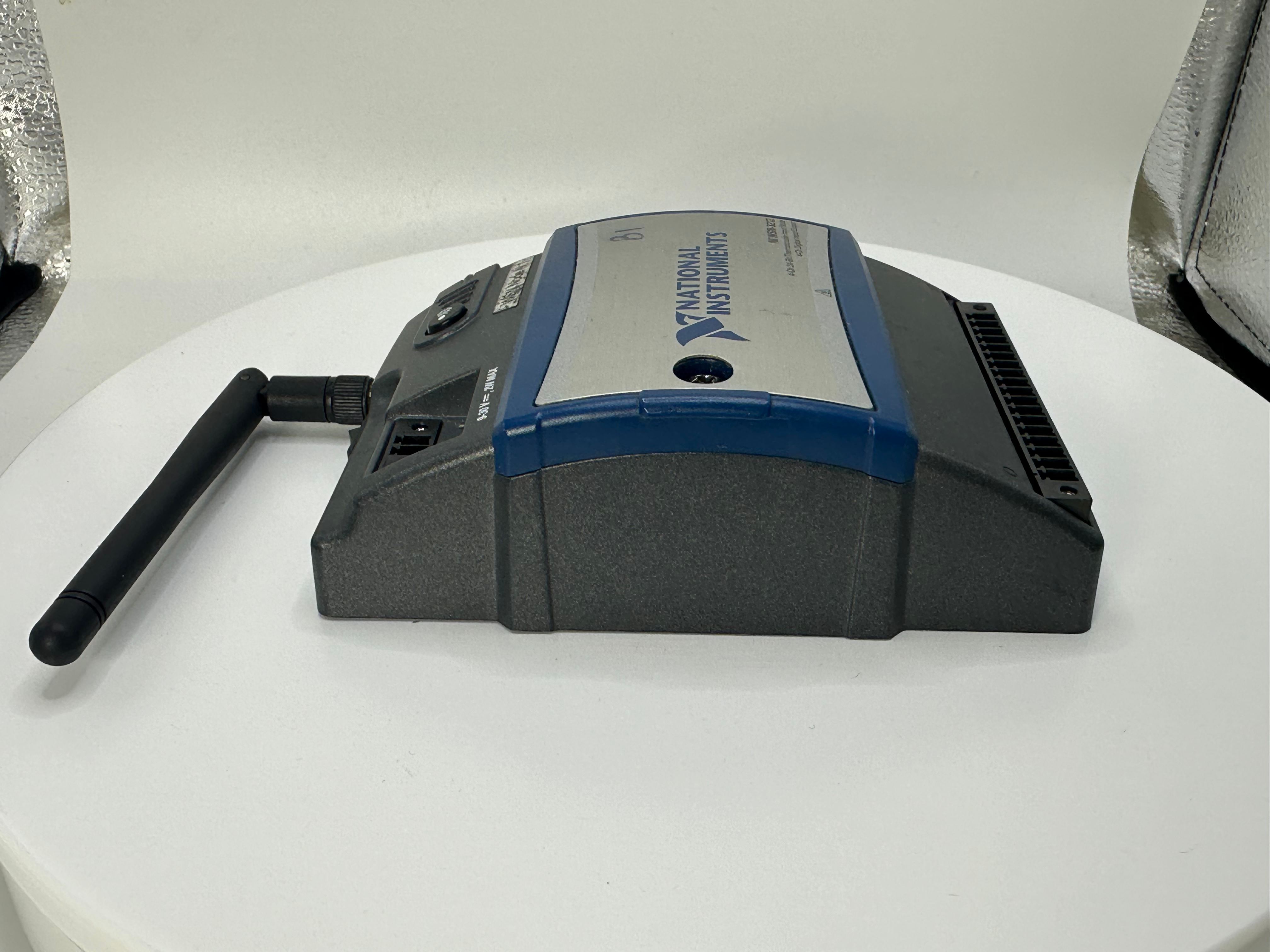

NI WSN-3212 4-Ch 24-Bit Thermocouple Wireless Sensor Node PN:781344-01
