Overview

Official PN：783555-10（中国 220V 国标电源线版本）、783555-01/02/06 为各国电压版本

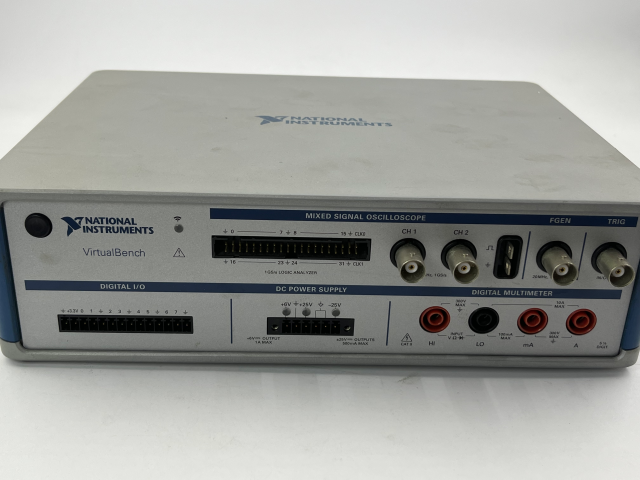

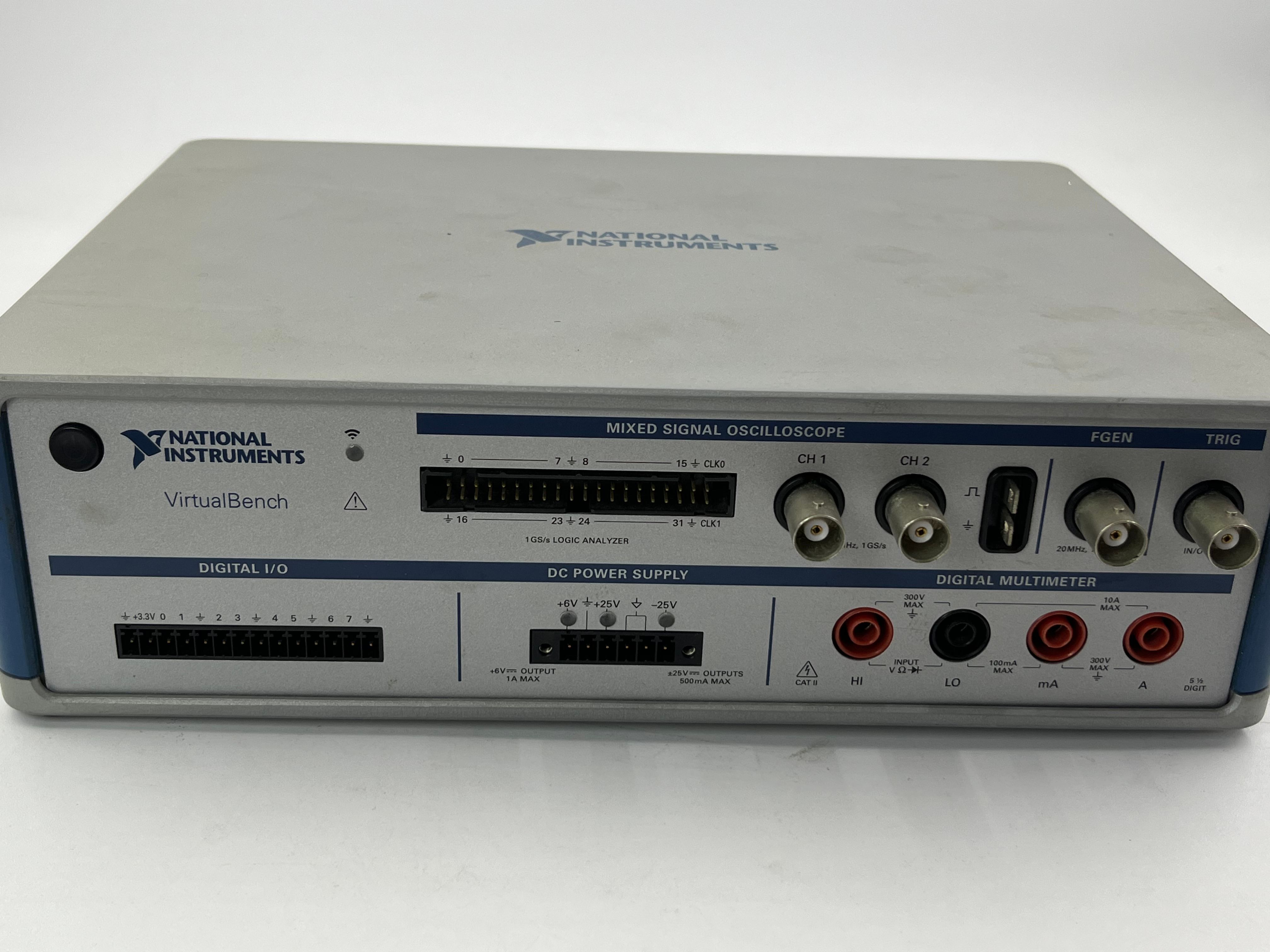

NI VB‑8012 is a compact 5-in-1 VirtualBench integrated desktop test instrument, discontinued legacy educational bench equipment. It integrates a 2-channel 100 MHz mixed-signal oscilloscope with serial protocol decode, 20 MHz arbitrary waveform generator, 6.5-digit digital multimeter, triple isolated programmable DC power supply and 8-channel TTL digital I/O in one lightweight chassisNI. It supports USB wired and WiFi wireless connection to Windows PC or iPad, unified virtual software for all measurement functions, free firmware upgrade. Tightly integrated with LabVIEW for automated circuit test sequences, widely adopted in university electronics labs, small R&D circuit verification and portable field fault debugging.

Core Specifications

Oscilloscope: 2 analog channels,100 MHz bandwidth,1 GS/s max sampling rate,1 MS memory depth, mixed-signal logic analysis
Signal Generator: 20 MHz arbitrary waveform output, multiple standard signal modulation modes
DC Power Supply: 3 isolated channels:0~6V/1A,0~+25V/0.5A,0~-25V/0.5A
Aux I/O: 8-channel digital I/O (5V TTL input /3.3V LVTTL output), external trigger port
Connection Mode: Hi-Speed USB 2.0 + 2.4GHz WiFi, no built-in screen, controlled by PC software
Mechanical & Power: Desktop portable design, 31W power consumption, 3-year factory warranty
Software Compatibility: VirtualBench App, LabVIEW, support programmatic automated testing

Application Scenarios

University electronic circuit teaching laboratory, small product hardware prototype debugging, sensor circuit performance verification, student competition embedded equipment testing, portable field electronic fault troubleshooting.

Standard Package Contents

VB-8012 main unit, Chinese standard 220V power adapter, USB data cable, BNC test probes, quick start manual, safety compliance datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI VB-8012 VirtualBench 2-Ch 100MHz All-in-One Test Instrument PN:783555-10
