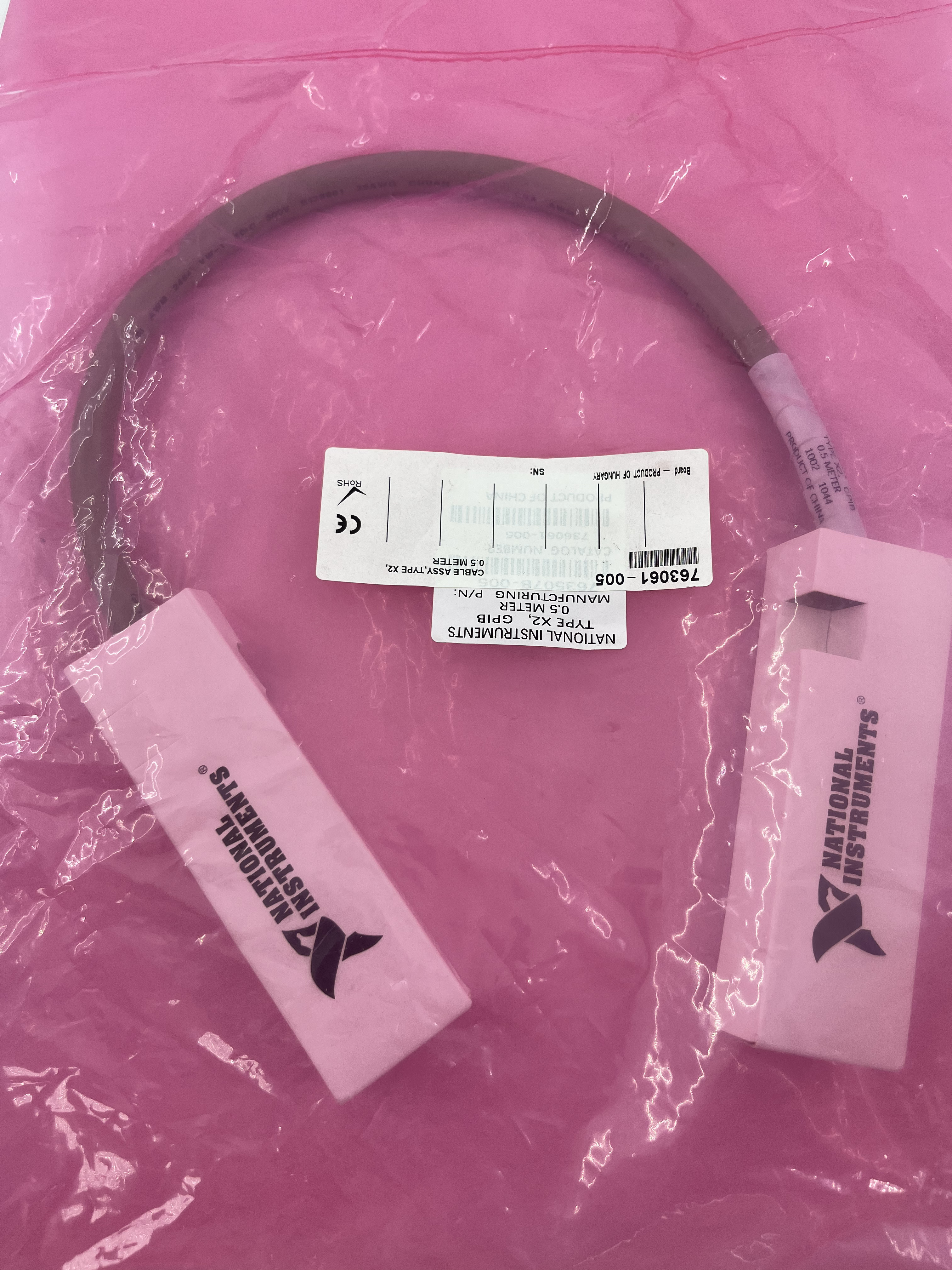

NI 763061-005 is factory-assembled X2 series stackable double-shielded GPIB cable compliant with IEEE 488 instrument bus standard, ultra-short length 0.5 meters for compact cabinet internal wiring. Equipped with integrated 24-pin male/female hybrid stackable connectors, supporting direct daisy-chaining oscilloscopes, power supplies, signal generators without extra adapters. Triple-layer shielding structure (double foil inner + outer copper braid) fully blocks lab EMI interference, maintaining stable HS488 high-speed instrument communication without packet lossNI. All-metal nickel-plated connector shells improve grounding and corrosion resistance; molded strain relief at both ends prevents wire fracture under frequent plugging and cabinet vibration. Fully compatible with NI USB-GPIB, PCIe-GPIB, GPIB-ENET controllers, RoHS & REACH certified, widely used for dense multi-instrument compact test benches and desktop portable measurement stations.

Core Specifications

Bus Standard: IEEE 488.2 universal instrument control bus
Connector Type: 24-pin X2 stackable male/female integrated plug & receptacle
Cable Length: 0.5 meter (500mm) gray round triple full-shielded cable
Anti-Interference: 3-layer composite shielding, ultra-low signal crosstalk & capacitance
Mechanical Design: Corrosion-resistant nickel-plated metal shell, dual-end molded strain relief
Hardware Compatibility: All NI GPIB controllers & IEEE488 bench test instruments
Compliance Standard: RoHS3 & REACH certified, indoor laboratory compact layout use

Application Scenarios

Compact desktop multi-instrument automatic measurement stations, dense rack-mounted GPIB instrument cascading, portable field calibration equipment short-distance wiring, semiconductor small test bench bus control, university instrument control compact teaching platforms.

Standard Package Contents

763061-005 X2 GPIB cable assembly, cable specification datasheet, GPIB pinout reference guide.
