Official PN Specification

783702-02：Standard uncoated version
783702-03：Conformal coated rugged industrial version
Model Name：TRC-8546

Overview

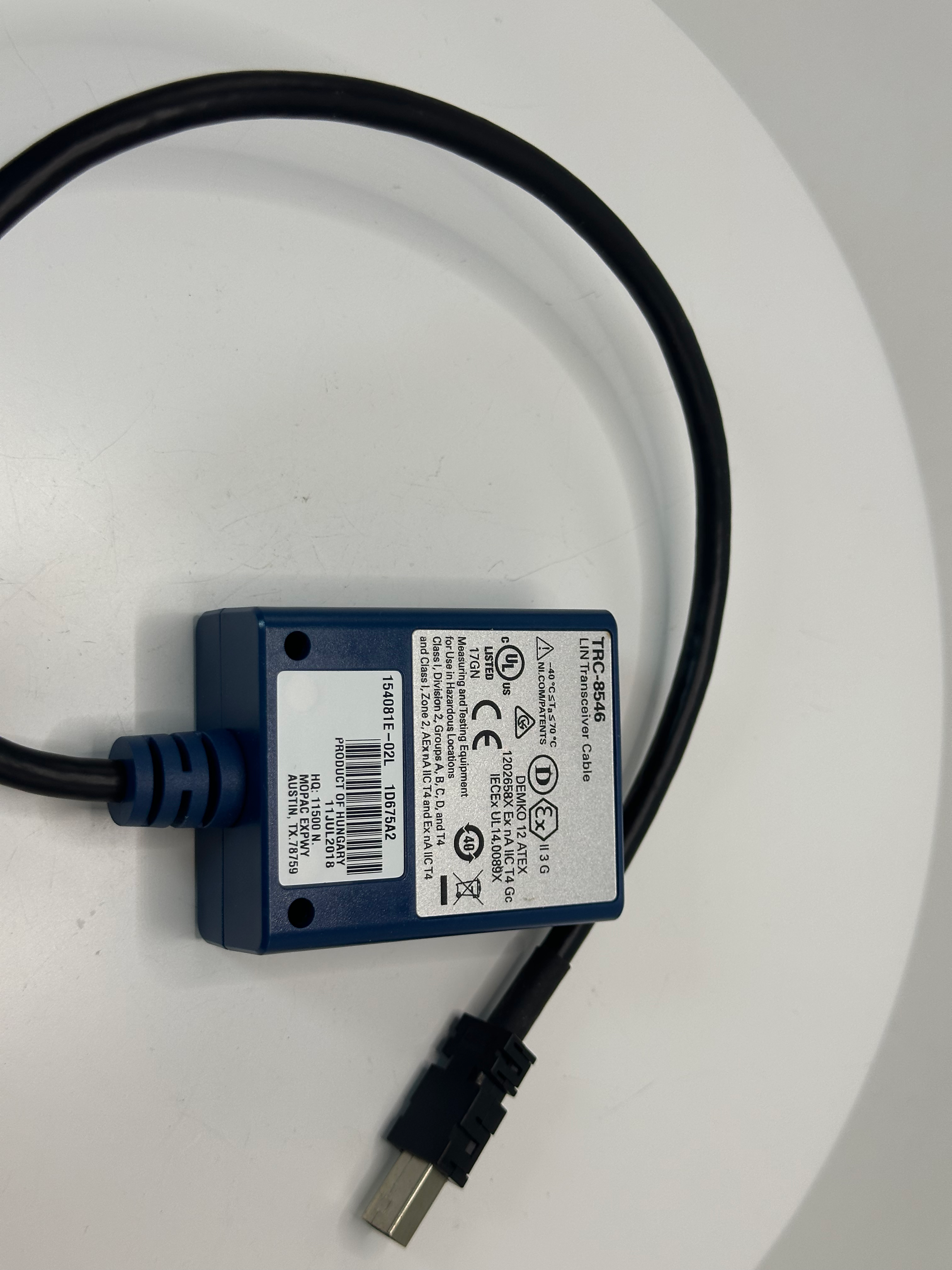

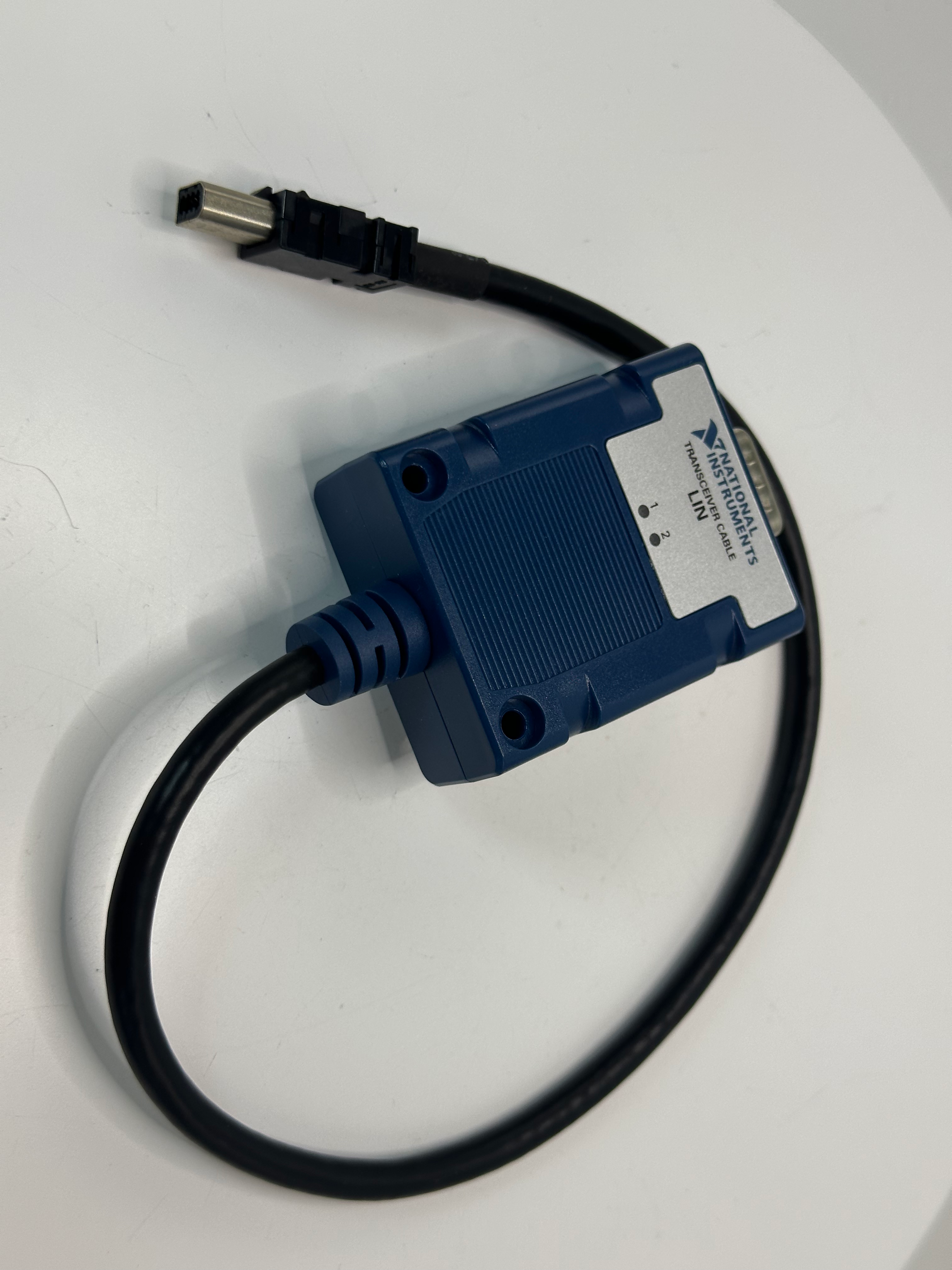

NI TRC-8546 is an isolated LIN 2.2 transceiver cable accessory designed for NI-XNET CAN/LIN bus hardware, total length 18 inches. It integrates built-in isolated LIN physical layer transceiver, converting native NI-XNET host port signal to standard LIN bus signal via a 9-pin male D-SUB connector for direct connection to automotive ECUs and LIN sensor networks. It draws basic power from the XNET host interface, while requiring external 8–18 VDC vehicle power on the VSUP pin to drive LIN bus communication. Full electrical isolation suppresses ground loop noise and voltage surge damage, effectively protecting PXIe-8510, NI-9860, cDAQ-9134/9135 controllers. Compatible with NI-XNET driver suite, supporting LIN signal logging, ECU simulation, fault injection and bus diagnosis. The conformal coated variant (783702-03) resists dust, moisture and vibration for harsh vehicle bench environments, RoHS certified, widely applied to automotive body electronics, intelligent seat & lighting LIN bus test benches.

Core Specifications

Supported Protocol: LIN 2.2 standard automotive single-wire bus
Cable Length: 18 inches (0.457m)

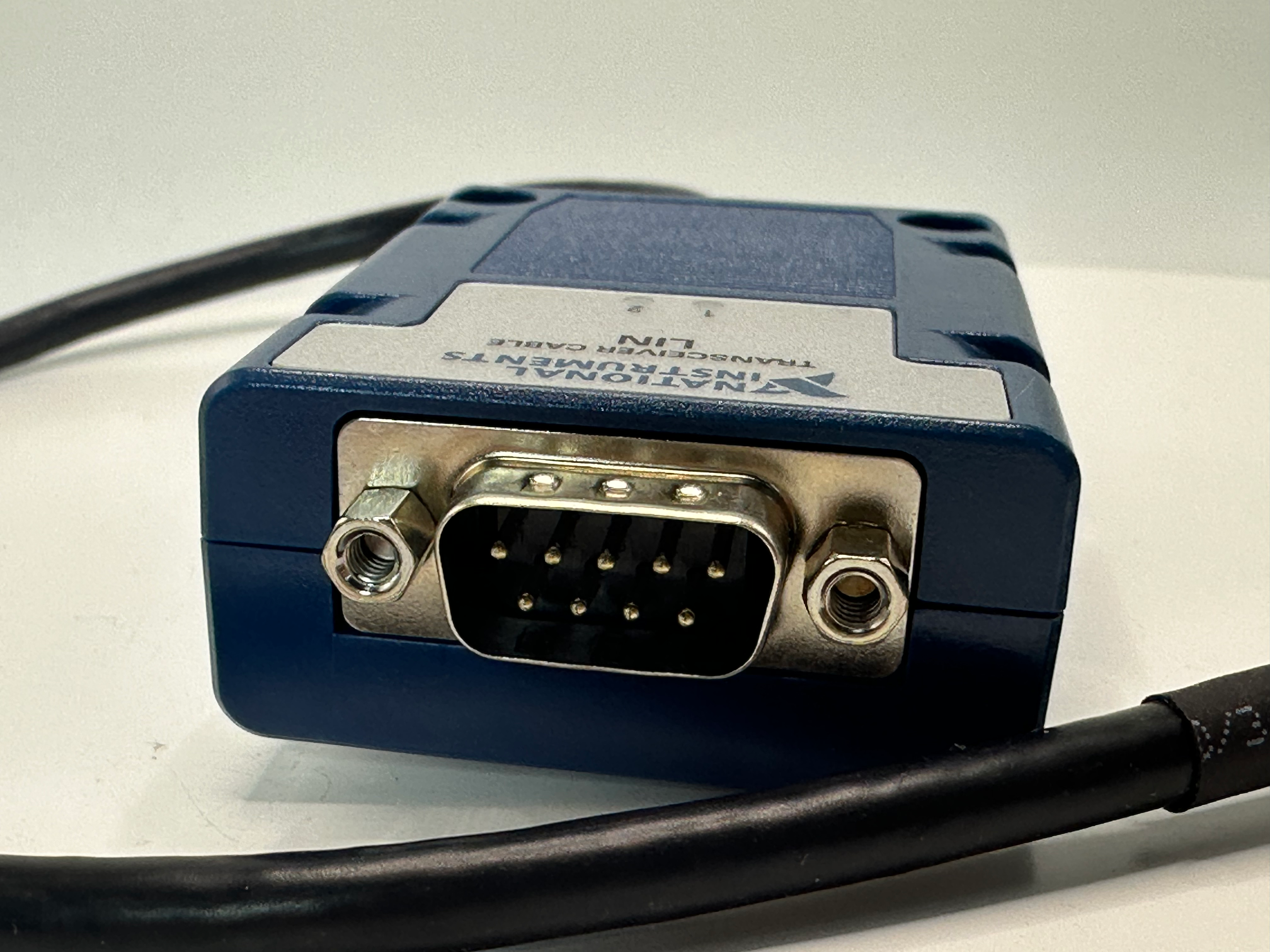

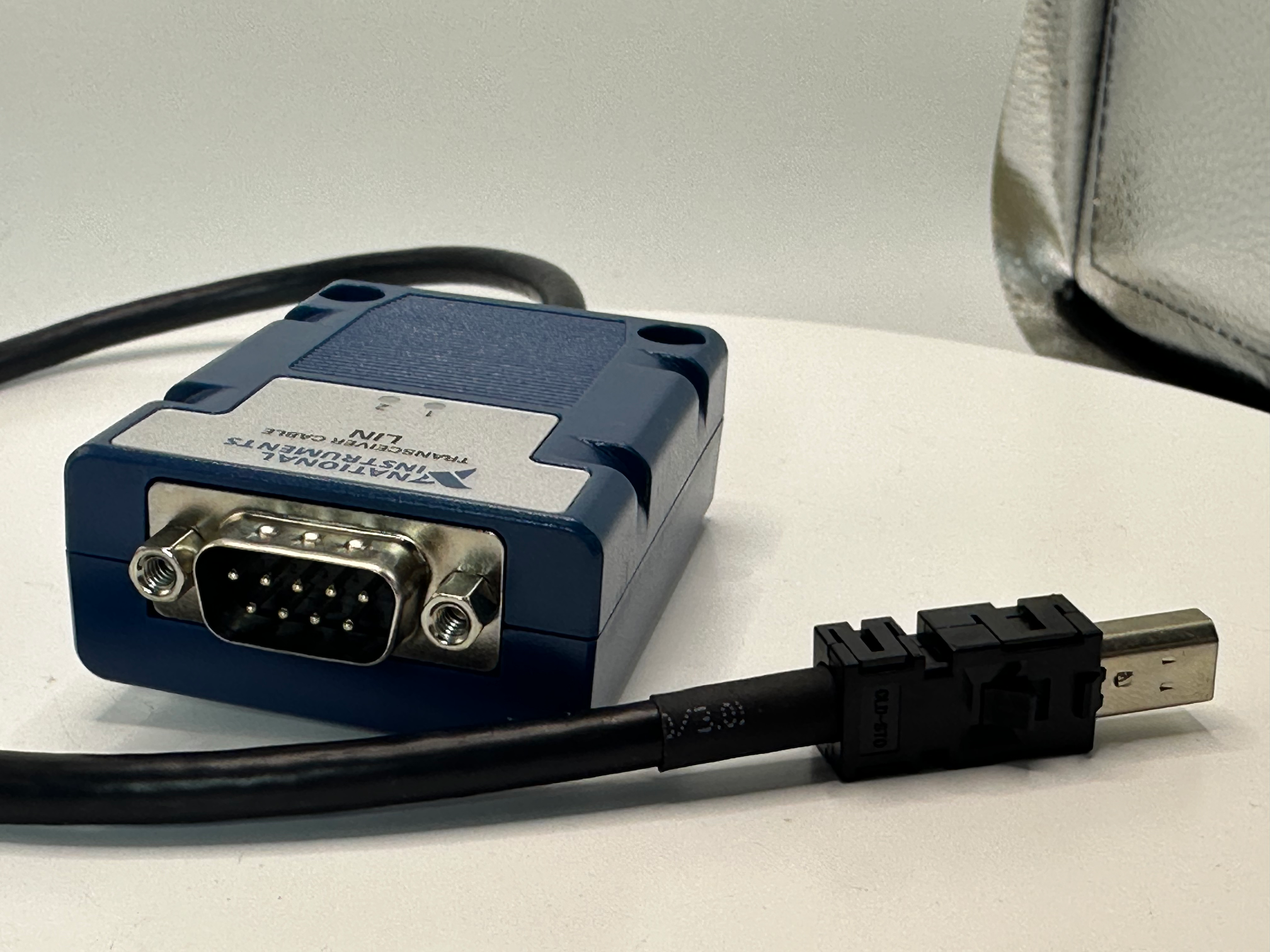

Connector: Host-side dedicated XNET plug, bus-side 9-pin male DB9
Isolation Performance: Galvanic isolation between host port and LIN bus
Power Requirement: Host auxiliary power + external VSUP 8–18 VDC vehicle supply
Compatible Hardware: PXIe-8510, NI-9860, cDAQ-9134, cDAQ-9135 NI-XNET controllers
Two Versions: Standard (783702-02) / Conformal coated rugged (783702-03)

Application Scenarios

Automotive body LIN bus signal monitoring, intelligent car seat/light ECU simulation test, vehicle LIN network fault diagnosis, new energy vehicle auxiliary electrical control verification, university automotive bus communication teaching platforms.

Standard Package Contents

TRC-8546 LIN transceiver cable assembly, pinout wiring guide, product datasheet.
