Overview

Official PN：786985-01

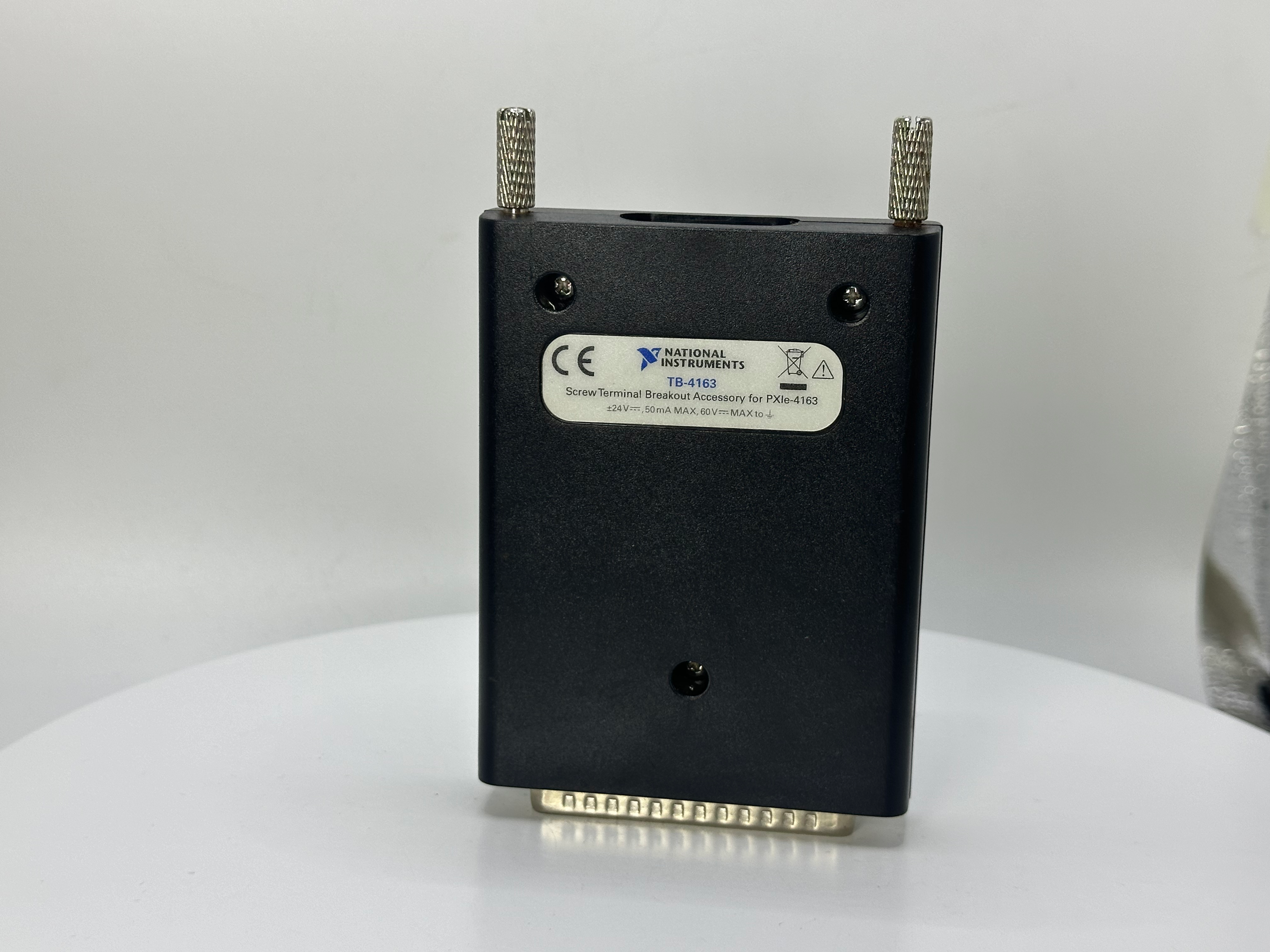

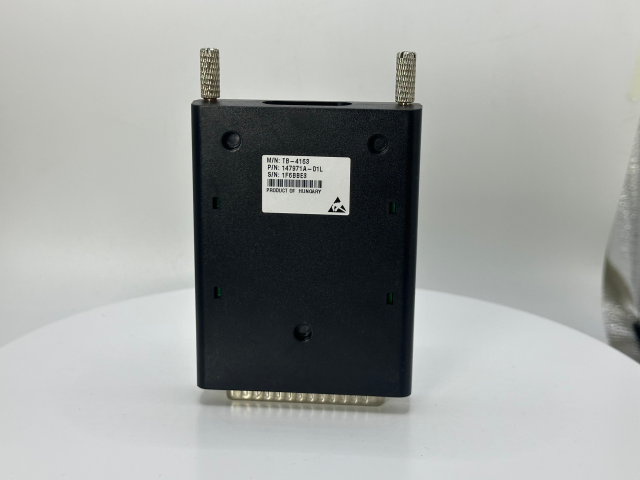

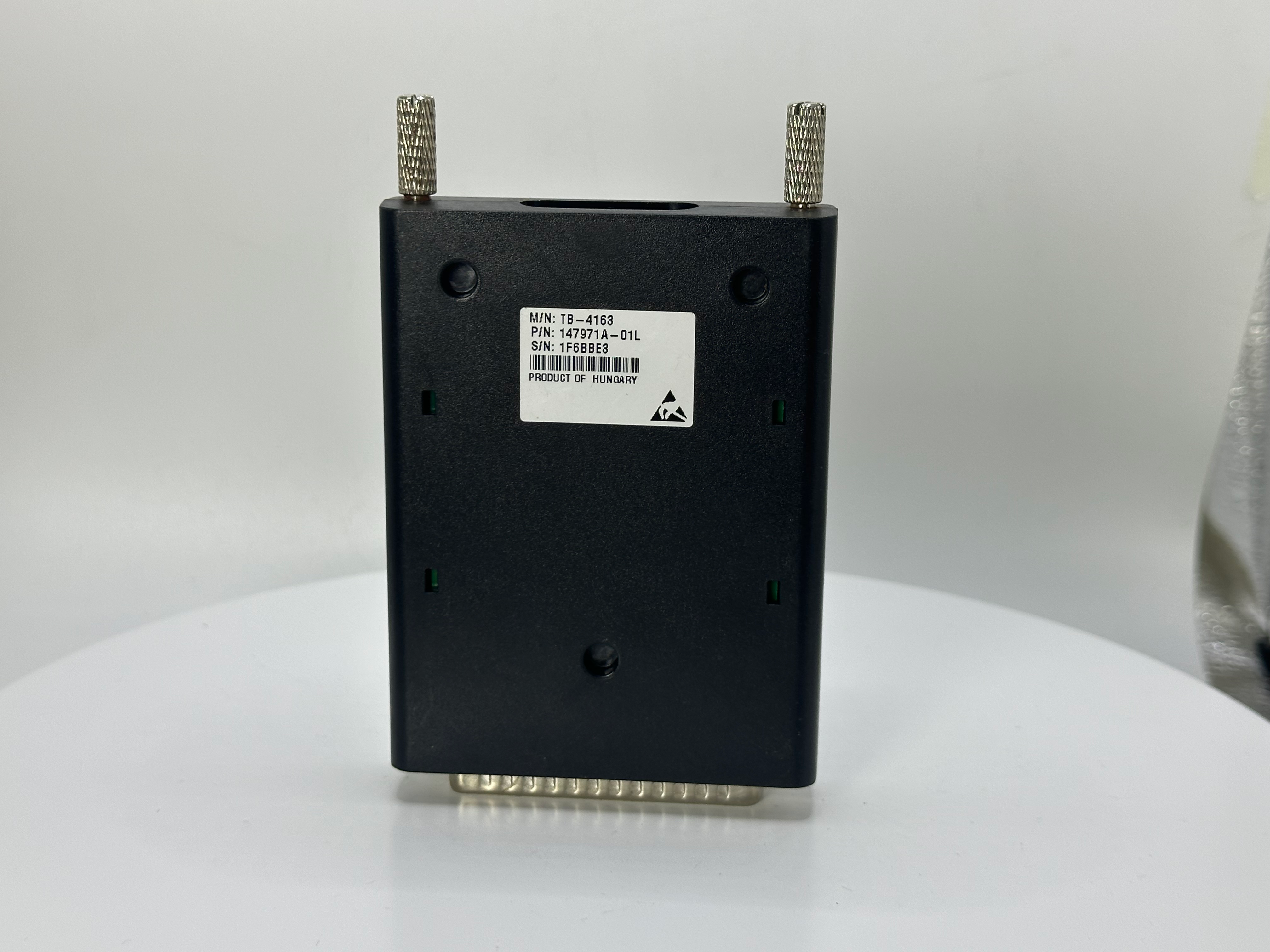

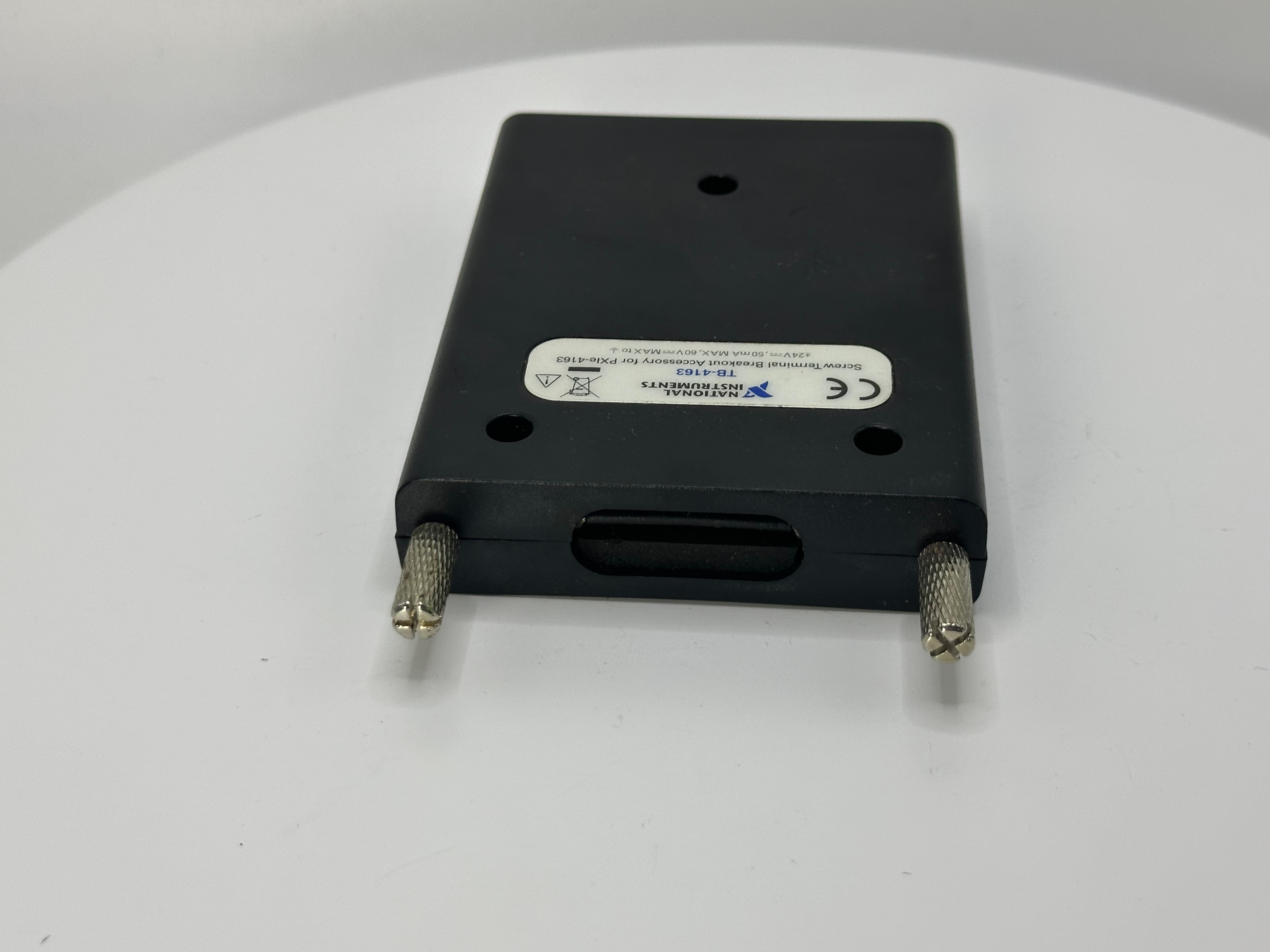

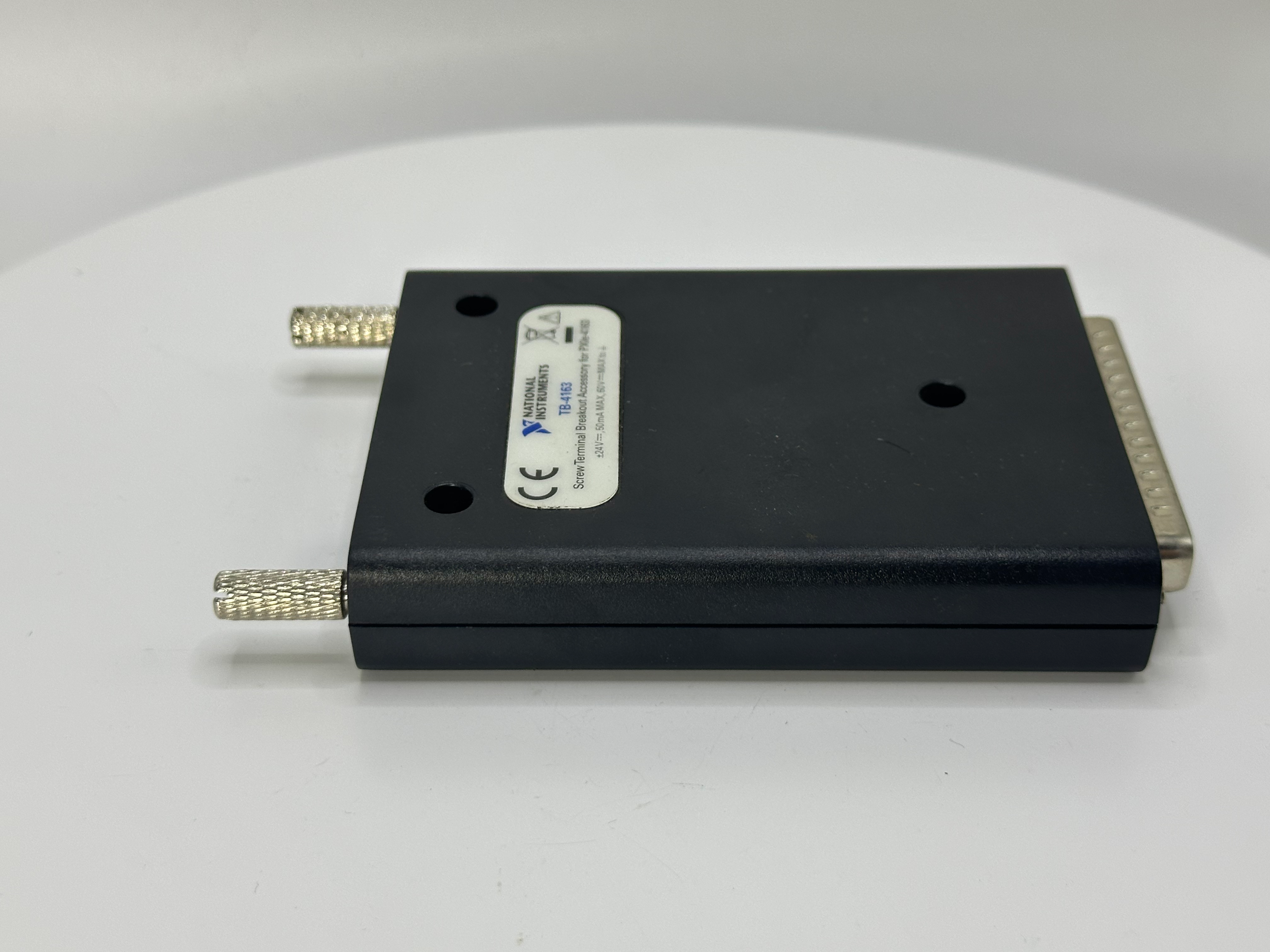

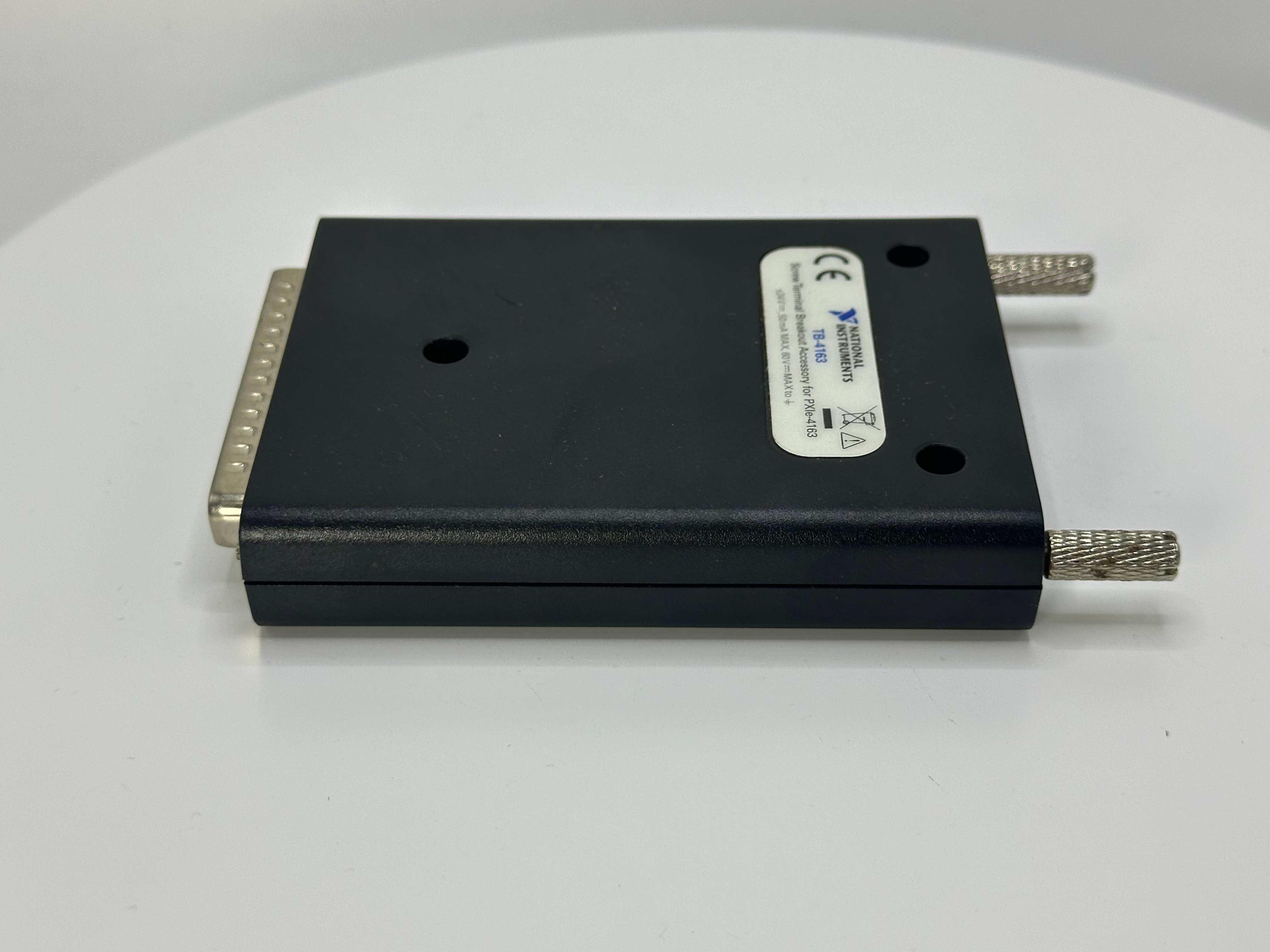

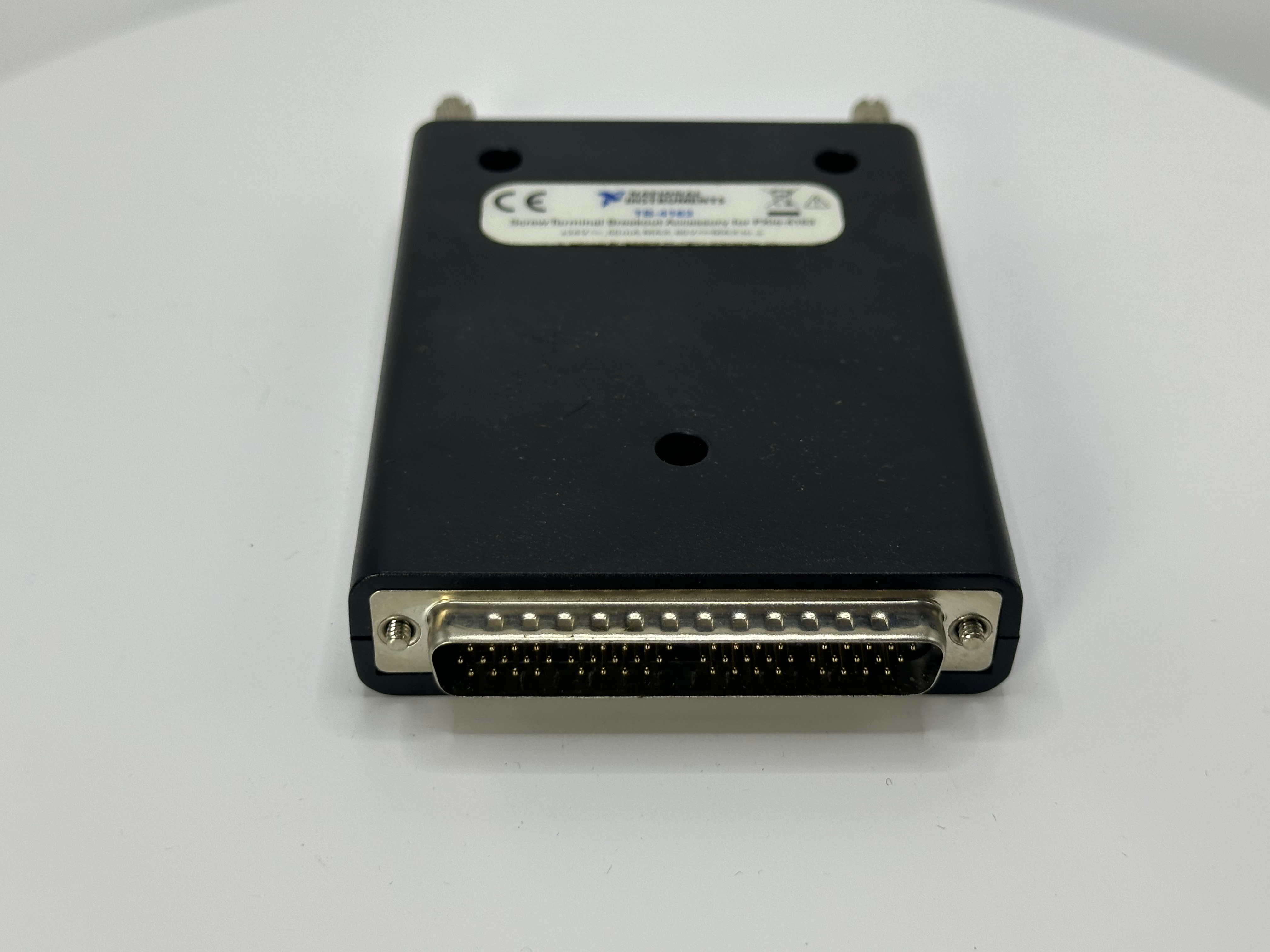

TB‑4163 is an exclusive front breakout screw terminal block matched with NI PXIe‑4163 24‑channel ±24 V / 50 mA source measure unit (SMU)NI. It converts the high-density D-SUB connector of the SMU module to independent screw terminals for each of the 24 measurement channels, simplifying secure bare wire connection without custom cables. Equipped with integrated strain relief structure to prevent wire loosening from vibration; supports 28–24 AWG signal wires and 20 AWG ground wires, with standardized screw torque specification for consistent contact impedance. Compact snap-on front mounting design preserves full signal integrity of low-level IV measurement, complies with CE and RoHS standards, widely deployed for semiconductor diode, transistor, passive component multi-channel I-V curve automatic testing.

Core Specifications

Compatible Hardware: PXIe‑4163 24-channel multi-channel source measure unit
Wiring Spec: 28–24 AWG signal conductors, 20 AWG ground wire, screw torque 0.3 N·m
Mechanical Structure: Integrated strain relief cable fixing cover, overall dimension 122×74×18 mm, weight 138 gNI
Signal Performance: Zero signal attenuation, maintains SMU low leakage precision for microampere-level testing
Installation: Direct front snap mounting on PXIe‑4163, no extra connecting cables required
Environmental Rating: Operating temperature 0~55 ℃ indoor cabinet environment, anti-vibration structure
Compliance: CE electromagnetic compatibility, China RoHS & EU WEEE environmental certification

Application Scenarios

Semiconductor discrete device multi-channel I-V characteristic batch testing, LED micro-current forward voltage screening, passive resistor/capacitor leakage current measurement, power semiconductor low-voltage parametric validation, university semiconductor characterization laboratory platforms.

Standard Package Contents

TB-4163 terminal breakout block, wiring torque guide, user installation manual, safety compliance datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI TB-4163 Screw Terminal Breakout Block for PXIe-4163 24-Ch SMU PN:786985-01
