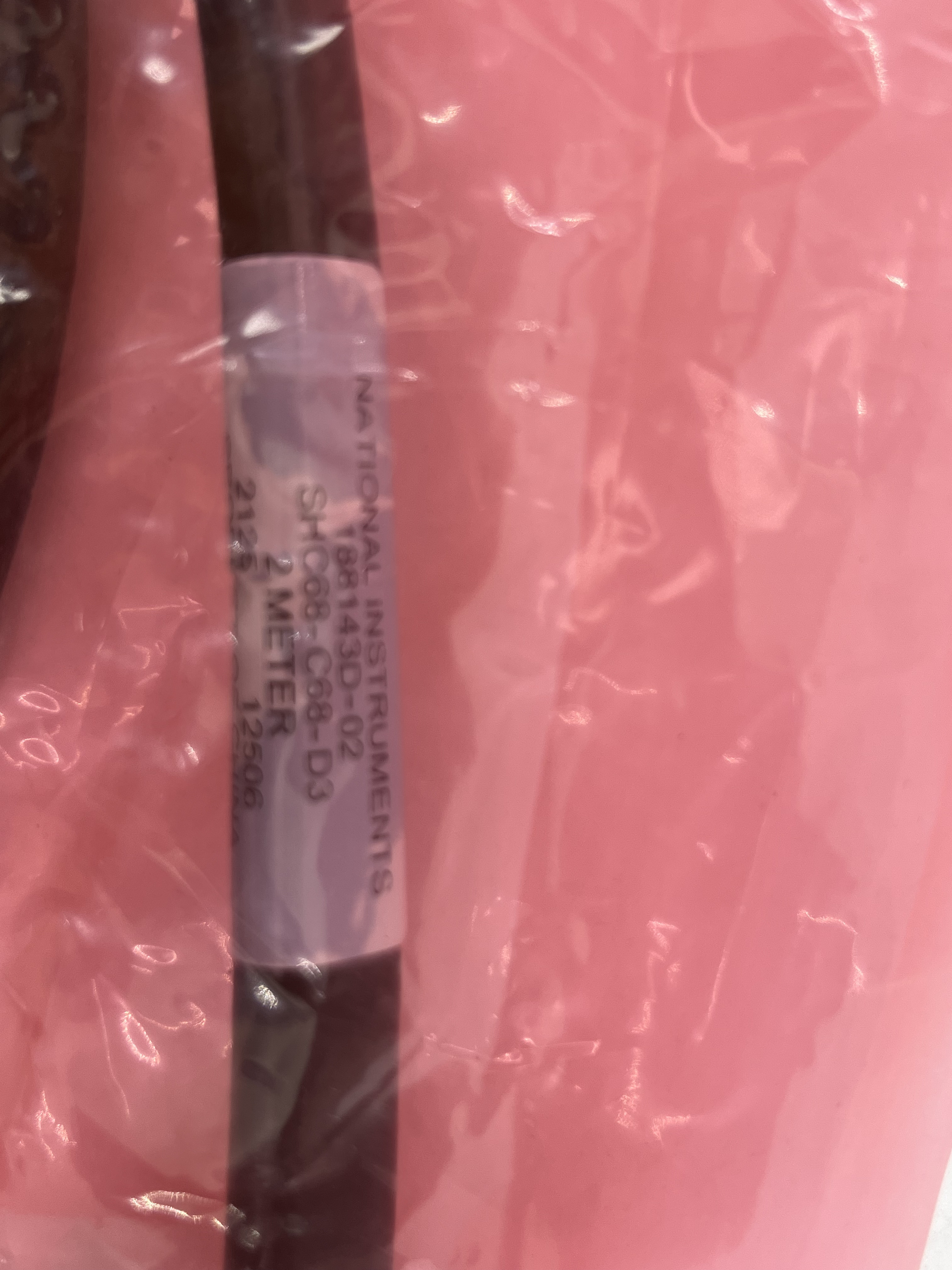

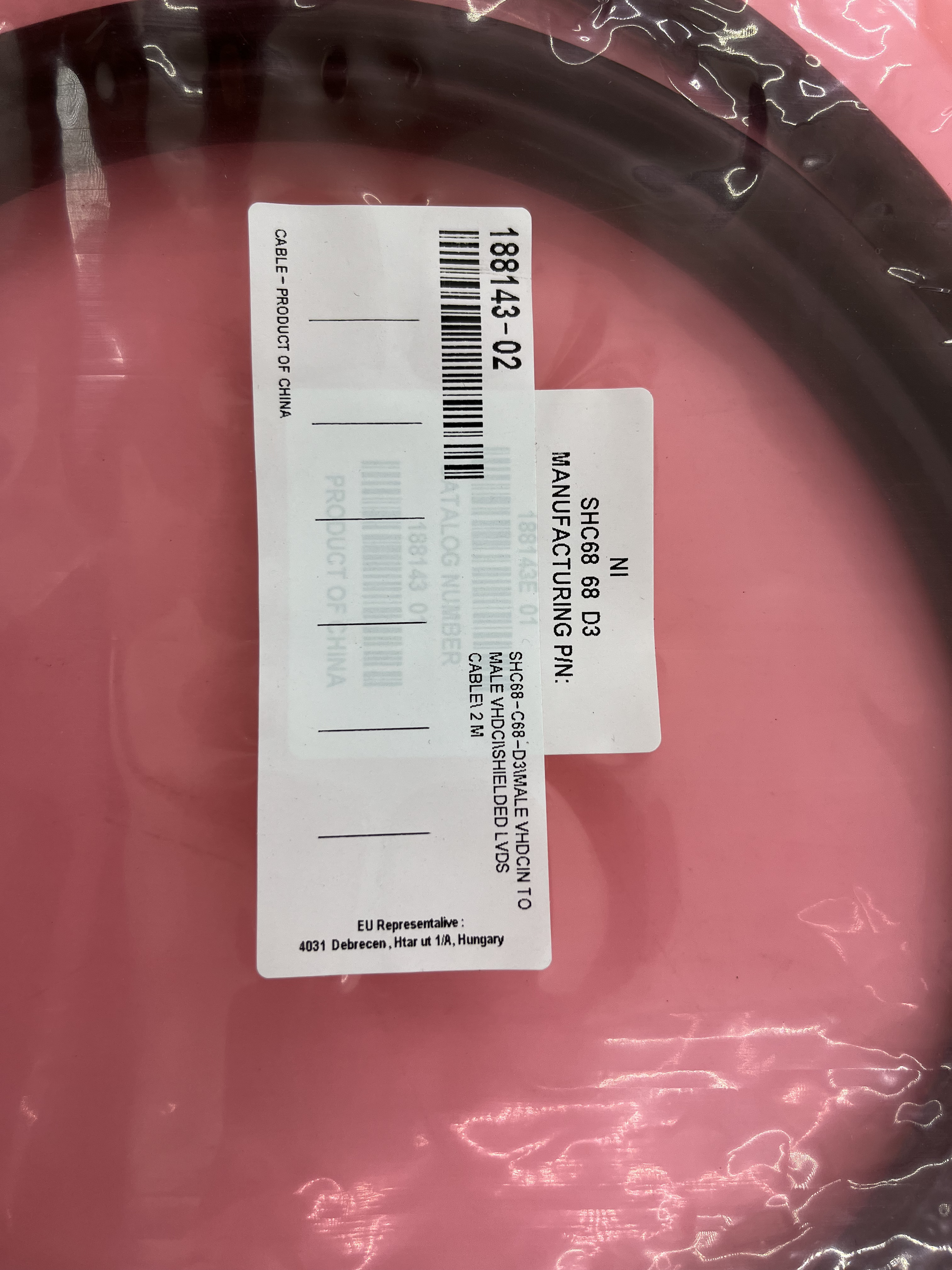

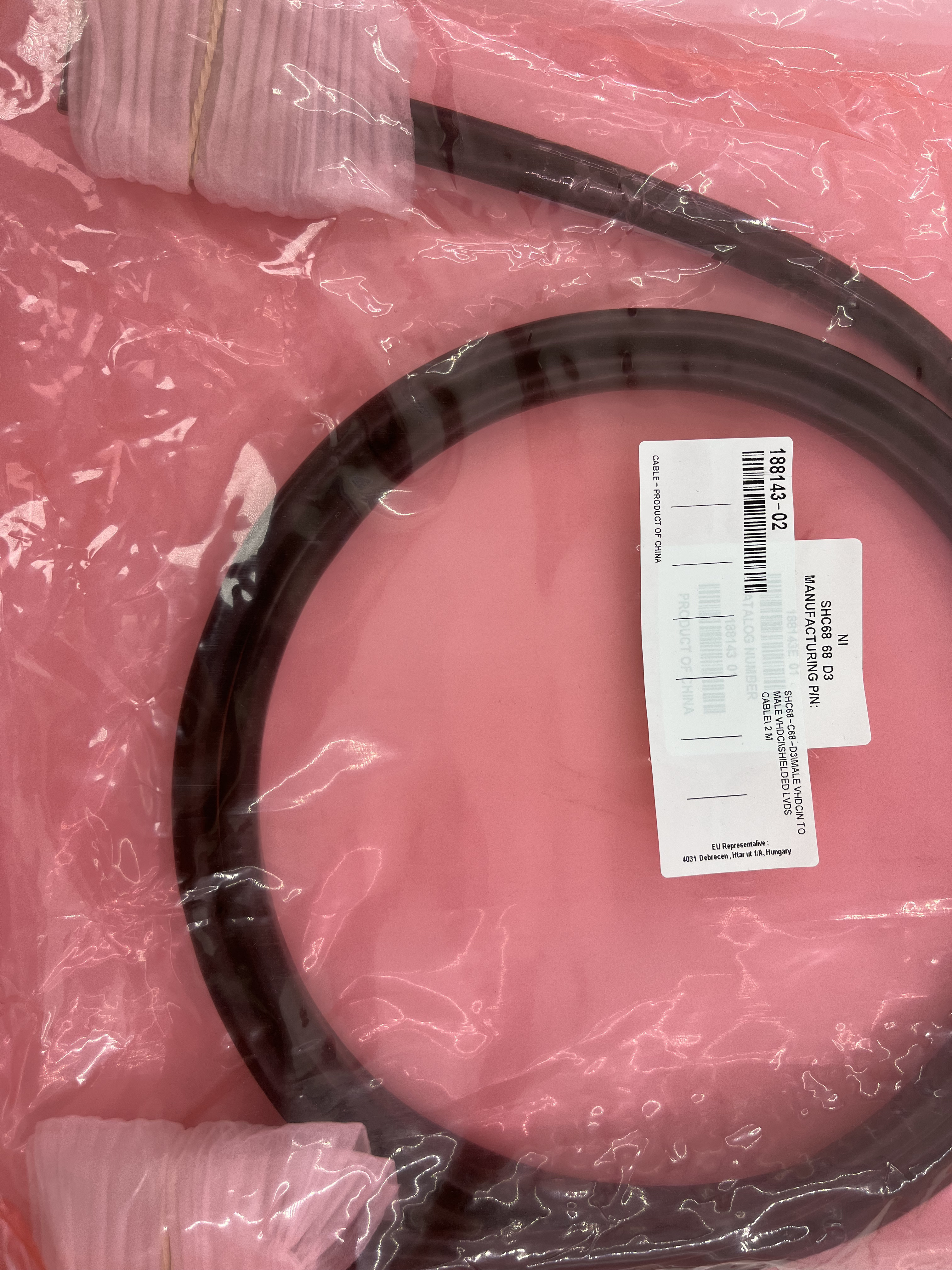

NI SHC68-C68-D3 (188143-02) is double-shielded LVDS differential signal cable assembly equipped with dual 68-pin VHDCI male connectors, total length 2 meters, specially designed for high-speed digital DDC (Digital Data Control) and LVDS signal transmission. It adopts double-layer full metal shielding and 100Ω differential characteristic impedance, effectively suppressing EMI noise and inter-channel crosstalk, maintaining signal integrity for high-speed differential pulse, clock and waveform signals. Mainly matched with FlexRIO high-speed digital I/O adapters, PXI waveform generators and LVDS signal breakout terminal blocks. Molded integrated strain relief on both VHDCI plugs prevents internal wire breakage under cabinet vibration and frequent bending. RoHS & REACH certified, compatible with LabVIEW FPGA and high-speed digital test systems for semiconductor and aerospace measurement.

Core Specifications

Connector: Dual 68-pin VHDCI male high-density compact connectors
Cable Length: 2 meters, double full-shielded round industrial LVDS wire
Electrical Property: 100Ω differential impedance, max ±30 VDC signal voltage rating
Shielding Structure: Double-layer foil shielding, optimized twisted differential pairs for LVDS
Mechanical Design: Molded strain relief on two ends, anti-fracture for long-term cabinet layout
Compatible Hardware: FlexRIO NI-6585 LVDS adapter, PXI waveform generators, high-speed DIO modules
Software Support: LabVIEW FPGA Module, FlexRIO driver suite, digital waveform measurement toolkits

Application Scenarios

Semiconductor high-speed LVDS digital logic testing, aerospace FlexRIO FPGA real-time signal acquisition, arbitrary waveform generator differential clock transmission, high-speed digital DDC bus signal breakout, university high-speed differential signal measurement labs.

Standard Package Contents

188143-02 SHC68-C68-D3 LVDS cable assembly, cable specification datasheet, VHDCI pinout reference guide.
