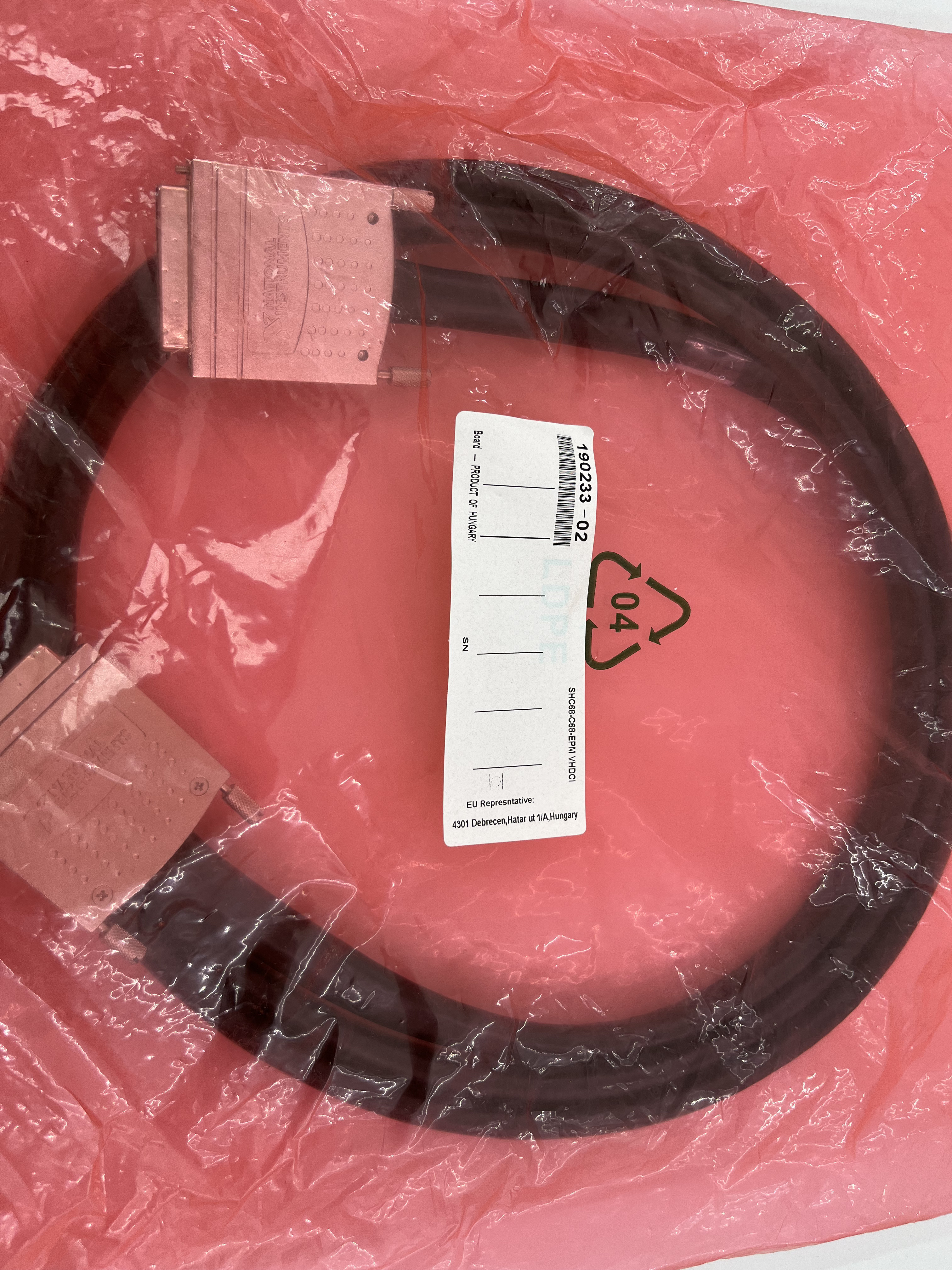

NI 190233-02 is high-performance noise-reduction shielded multifunction DAQ cable with dual 68-pin VHDCI male connectors, total length 2 meters. It adopts layered isolation design: independent shielded twisted pairs for analog input/output signals, grouped twisted digital lines, fully separated analog & digital wire sections to drastically cut crosstalk and industrial EMI interference. Optimized for low-level voltage, thermocouple and strain gauge weak signal acquisition, far superior noise suppression over standard EP cables. Compatible with NI M/X Series PCI/PXI/USB DAQ (62xx/63xx series), SCB-68A, BNC-2110, SCC-68 terminal blocks and signal conditioning accessoriesNI. Molded strain relief at both plugs prevents wire fracture under cabinet vibration and frequent bending, RoHS compliant, widely deployed in laboratory precision measurement and industrial automated test benches.

Core Specifications

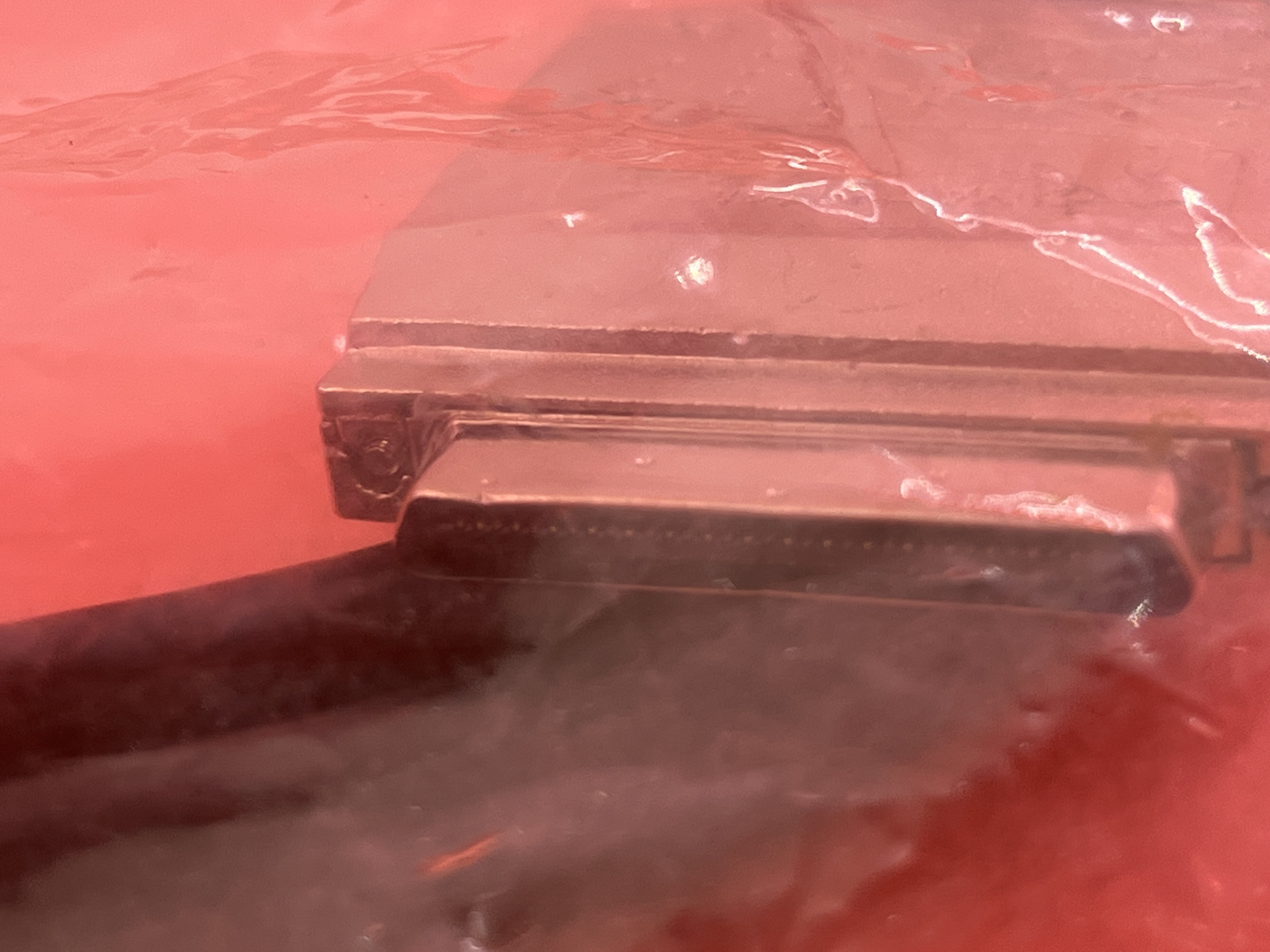

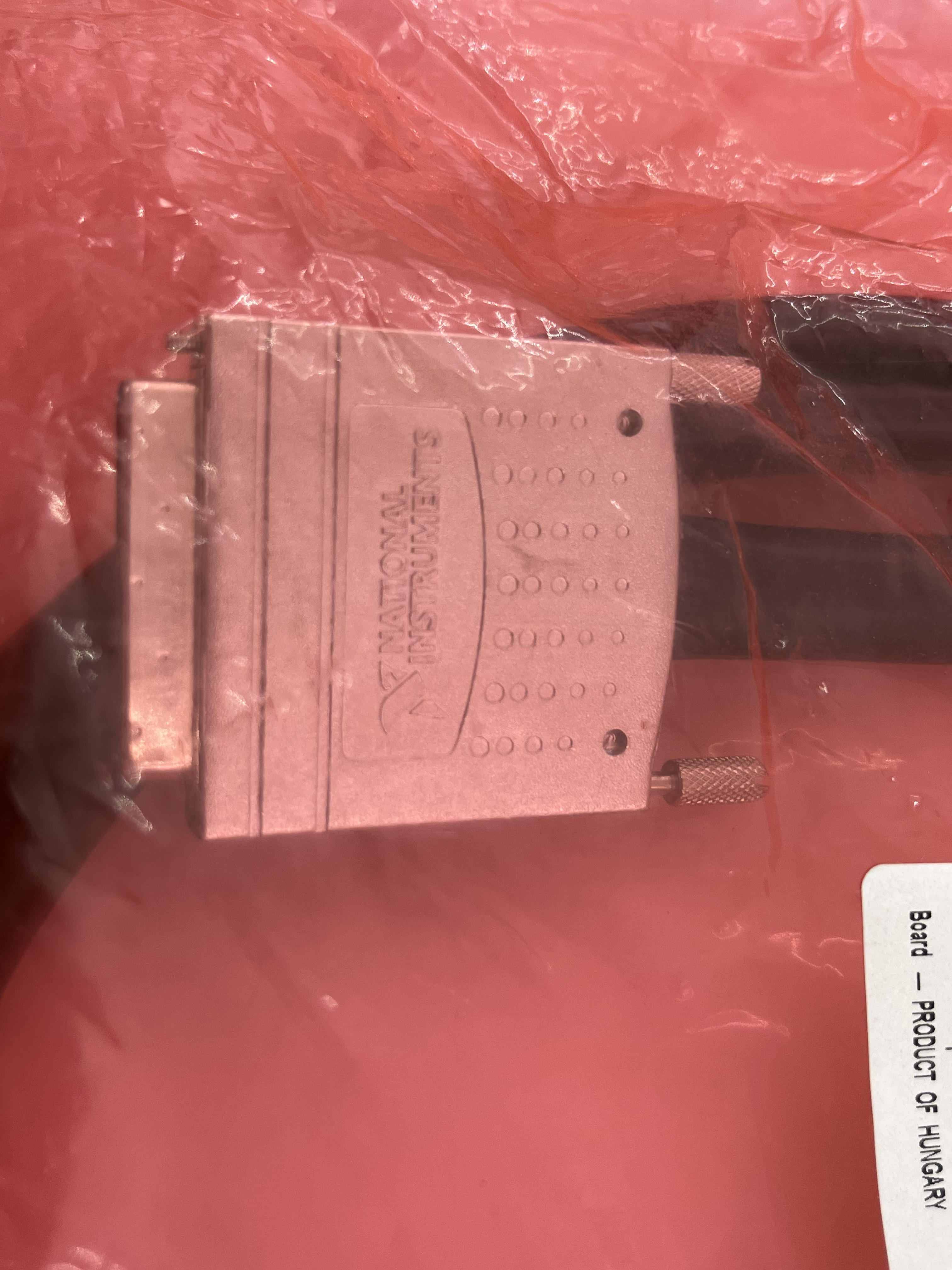

Connector: Dual 68-pin VHDCI compact male-male plug with jackscrew lock
Cable Length: 2 meters round industrial multi-layer shielded cable
Internal Wiring: Separated analog/digital zones; individually shielded analog twisted pairs
Wire Gauge: 30 AWG signal conductors, 26 AWG +5V power linesNI
Electrical Performance: Ultra-low channel mutual capacitance, minimal signal distortion for microvolt analog signals
Compatible Hardware: NI M/X Series multifunction DAQ, SCB-68A, BNC-21xx, SCC-68 signal terminal accessories
Software Support: Fully matched with NI-DAQmx driver and LabVIEW measurement module

Application Scenarios

Laboratory microvolt weak signal precision testing, thermocouple multi-channel temperature logging, strain gauge load cell static/dynamic measurement, industrial low-voltage analog parameter acquisition, university precision DAQ teaching labs.

Standard Package Contents

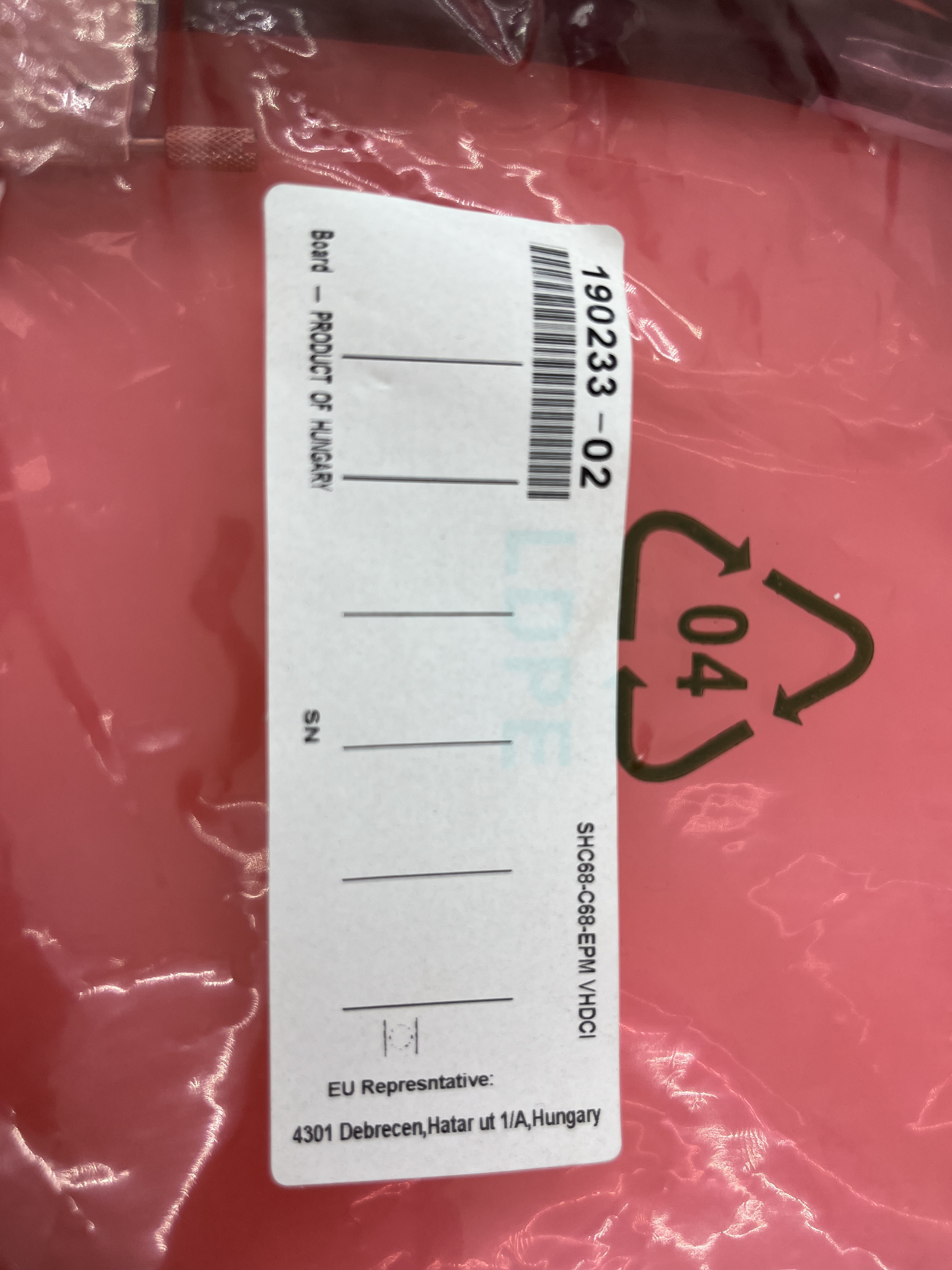

190233-02 EPM DAQ cable assembly, official datasheet, VHDCI pinout wiring reference guide.
