Overview

Official PN：777767-01

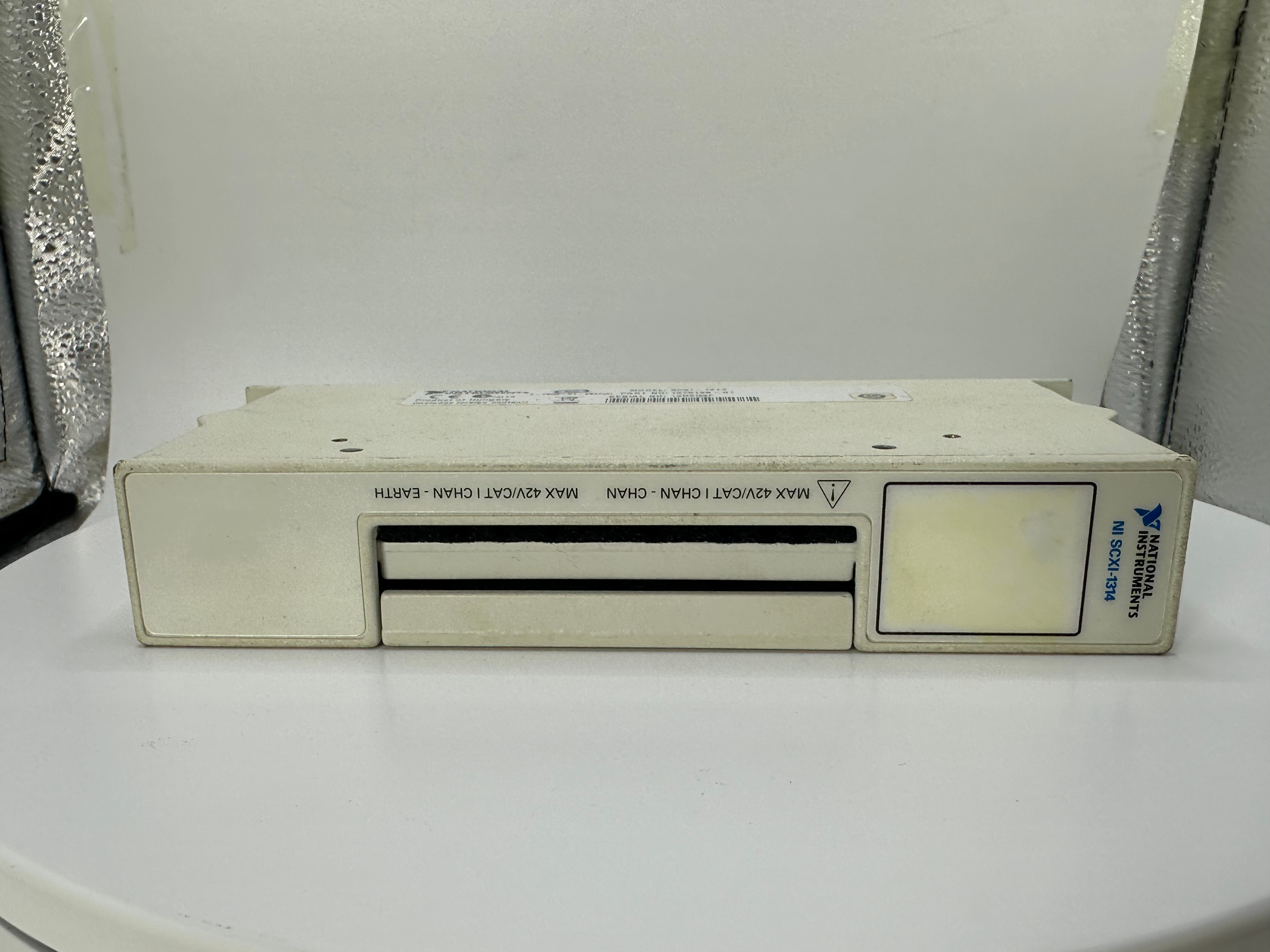

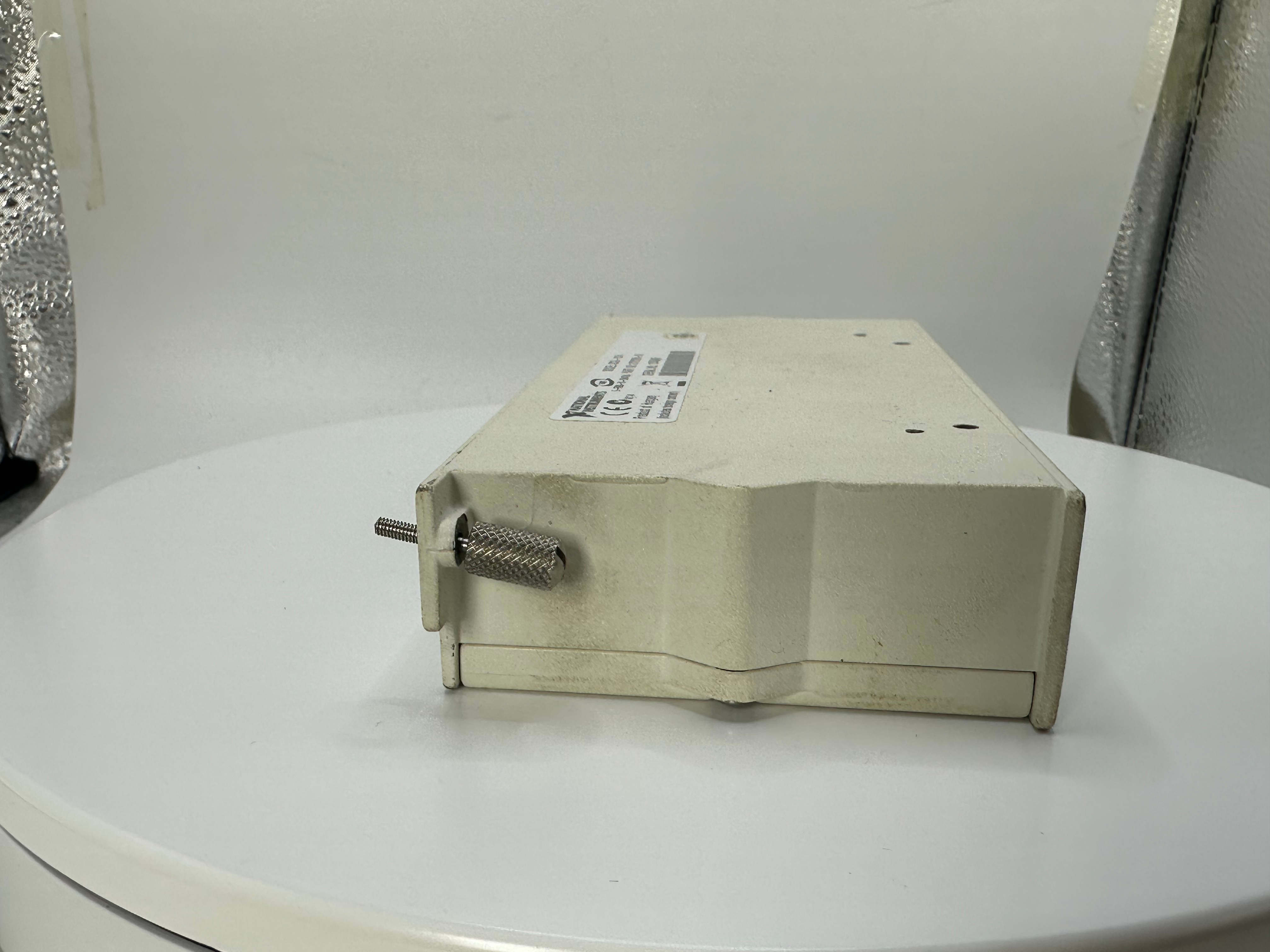

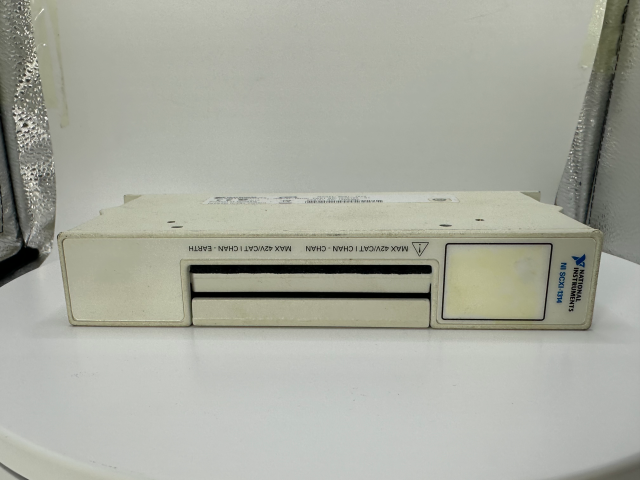

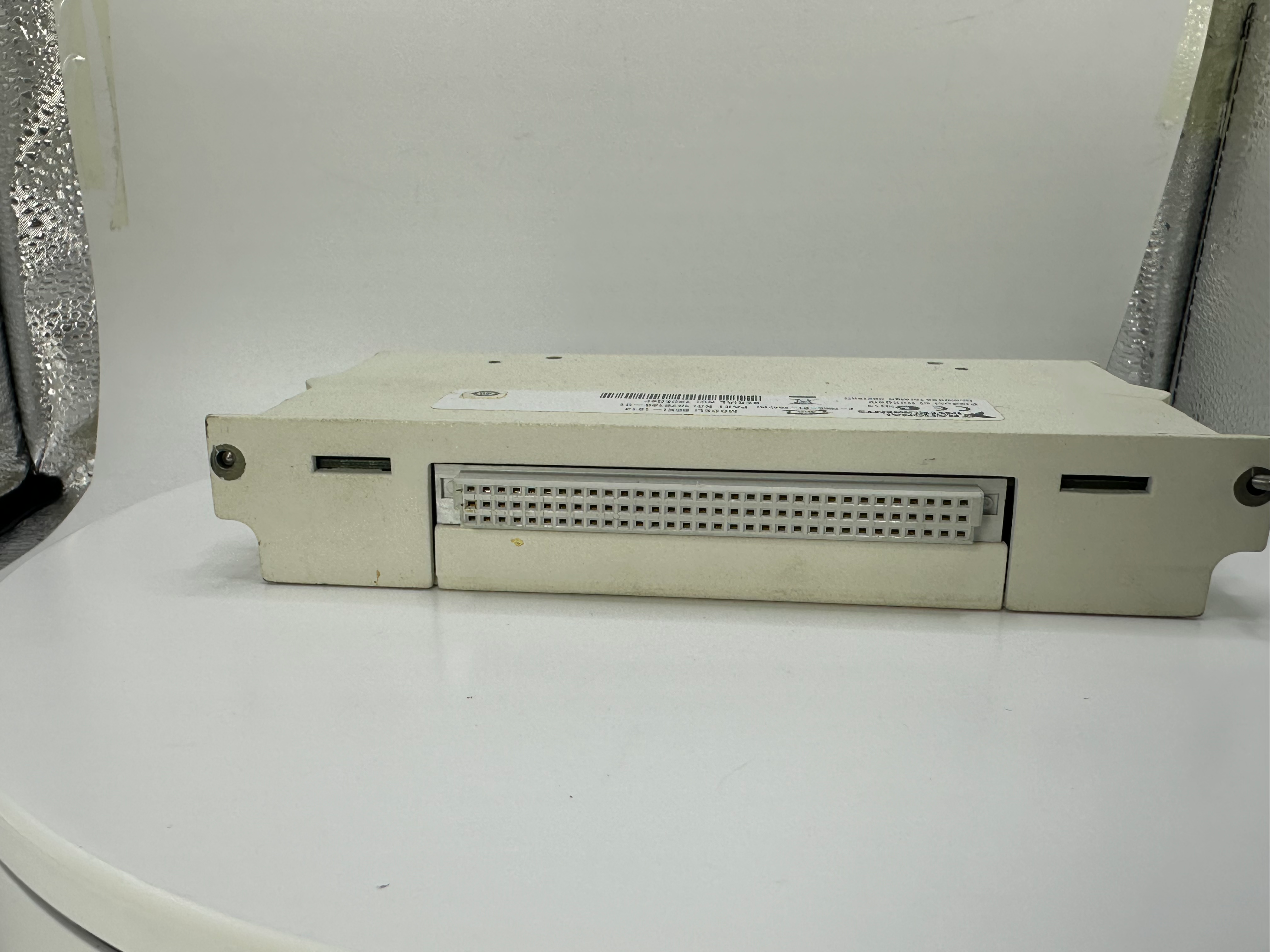

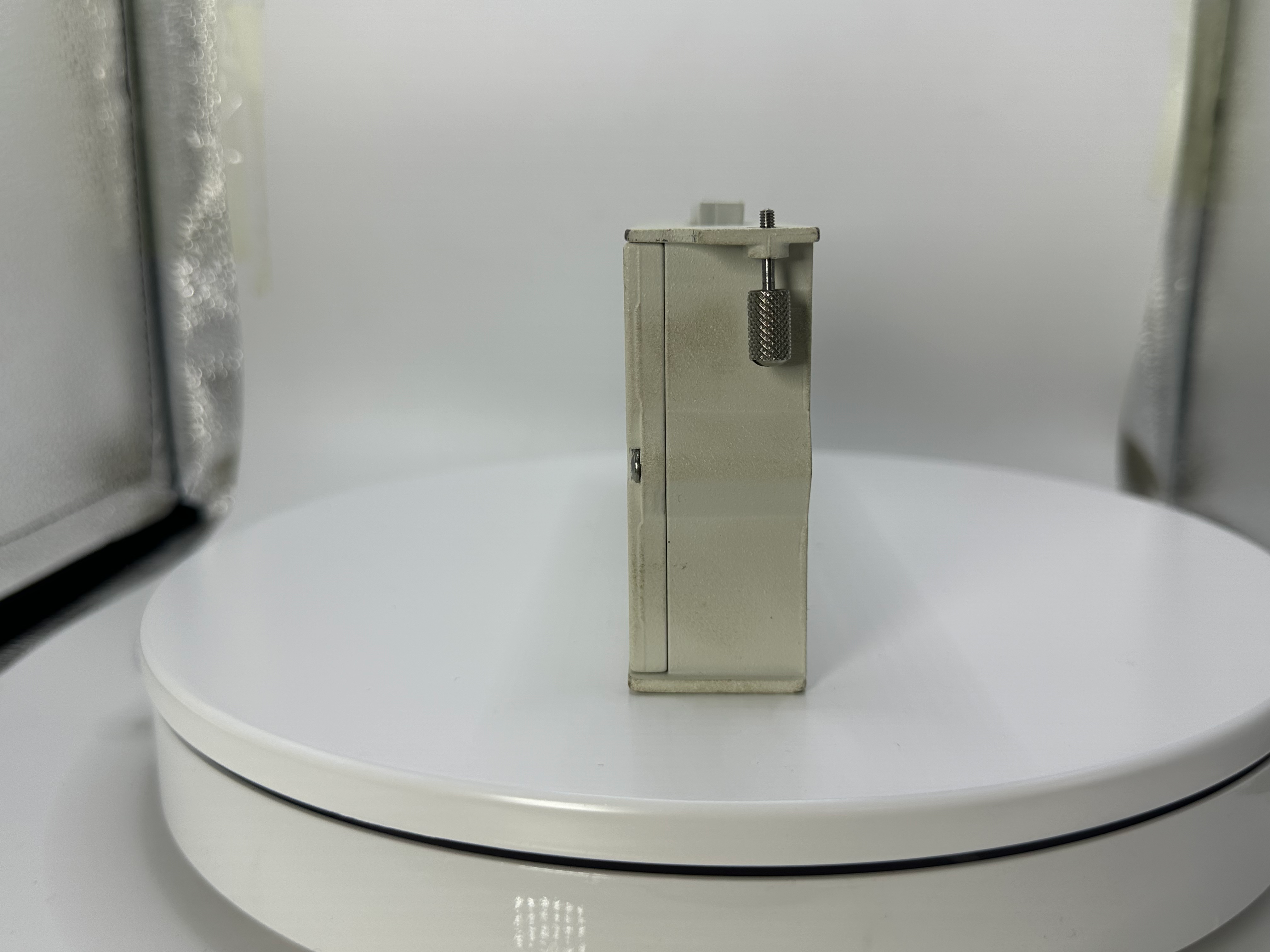

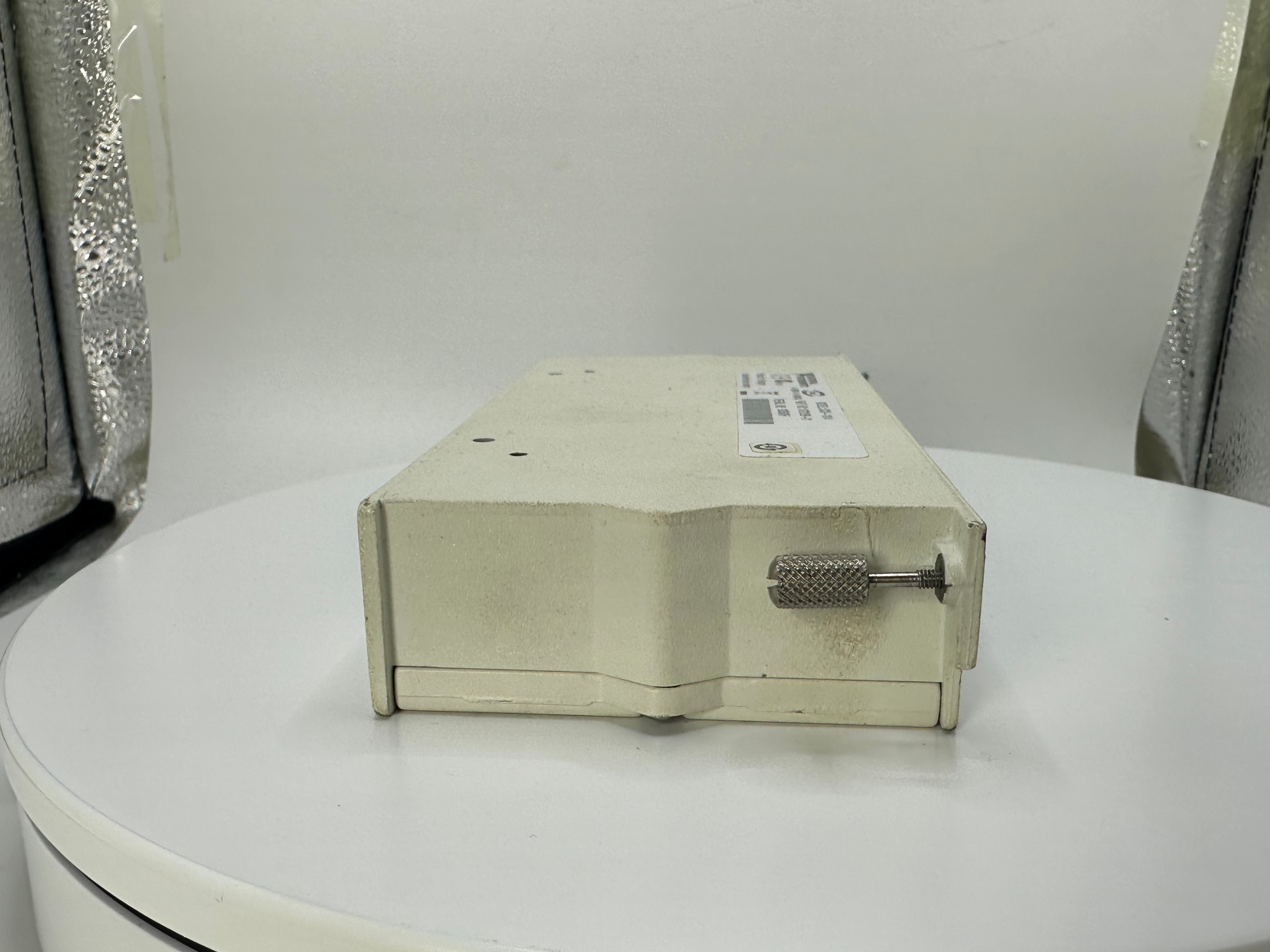

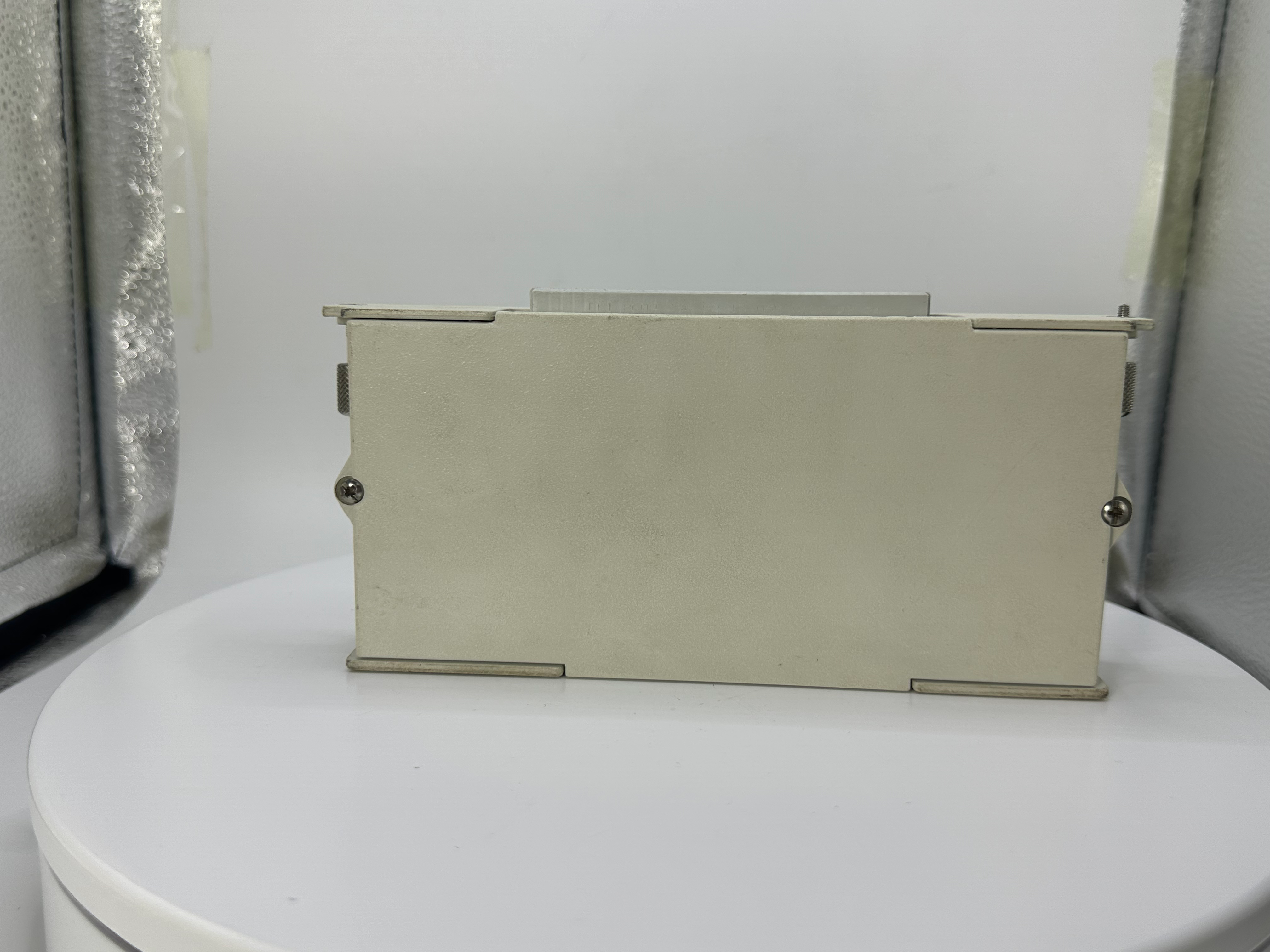

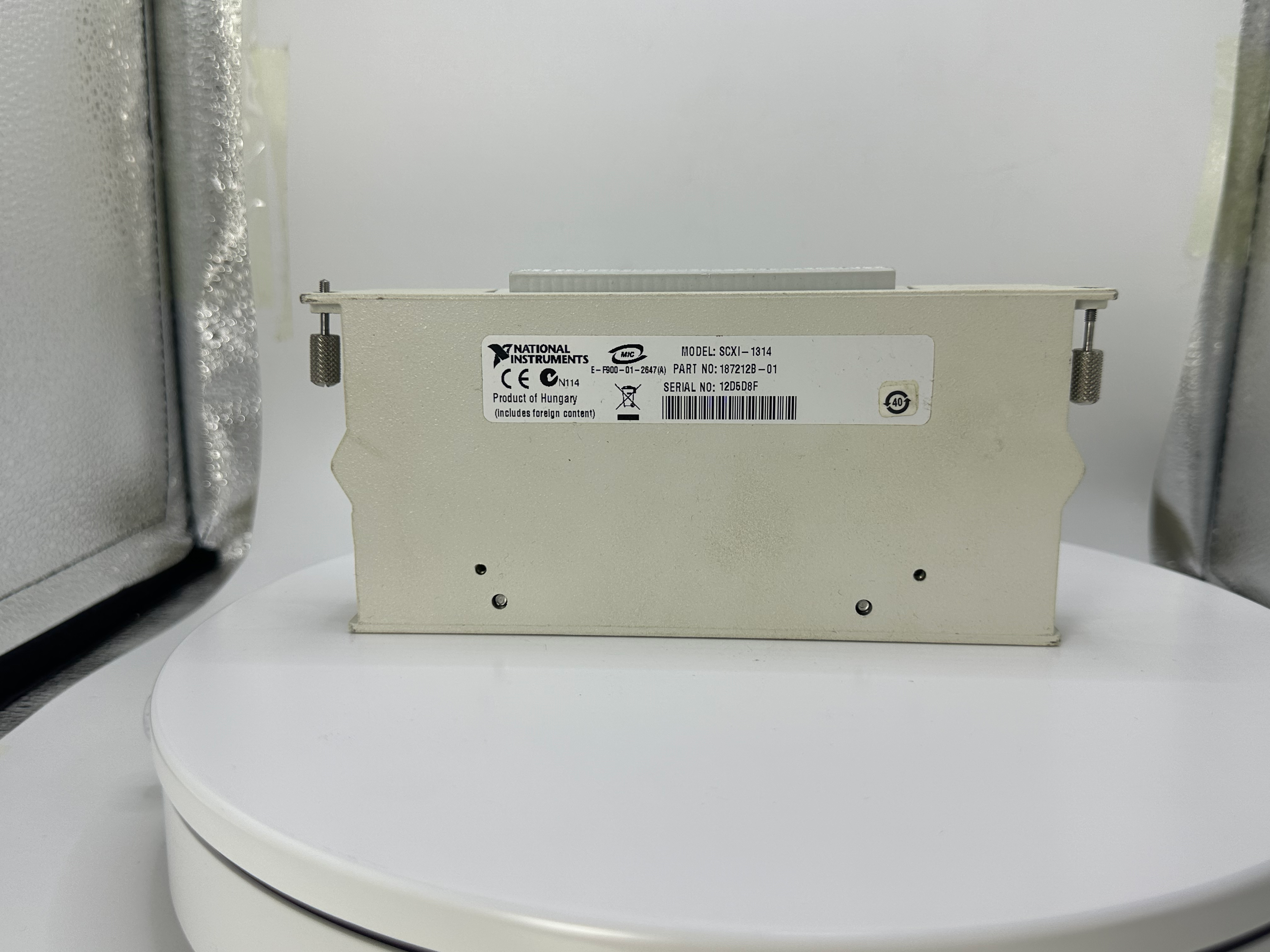

SCXI‑1314 is a universal strain gauge terminal block exclusively matched with NI SCXI‑1520 8-channel strain/bridge conditioning module. It contains 8 independent measurement channels with dense screw terminals for direct connection of quarter, half and full-bridge strain sensors. Each channel integrates precision 120 Ω / 350 Ω quarter-bridge completion resistors and dual 100 kΩ shunt calibration resistors (tolerance ±0.1%, low temp coefficient) to simplify bridge configuration and on-board calibration without external components. Equipped with remote sense terminals to eliminate excitation wire voltage drop, and integrated temperature sensor for thermal drift correction. Snap-on front mounting design, compatible with SCXI-1000/1001/1002 chassis, widely used for automotive component stress, aerospace structural fatigue and mechanical vibration strain testing.

Core Specifications

Compatible Module: SCXI‑1520 8-channel universal strain/bridge signal conditioning module
Channel Layout: 8 fully independent strain measurement screw terminal groups
Precision Onboard Resistors: 120Ω & 350Ω quarter-bridge resistors; dual 100kΩ shunt calibration resistors, ±0.1% tolerance
Wiring Support: Quarter / half / full bridge strain gauge topologies, remote sense for long cable compensation
Electrical Rating: Max excitation voltage 10 V, signal input ±100 mV, overvoltage protection ±30 V per channel
Mechanical & Env: Front snap installation, operating temp 0~50℃, storage -20~70℃, indoor cabinet use only
Software Compatibility: Fully supported by NI-DAQmx, LabVIEW, transparent strain bridge calibration workflow

Application Scenarios

Automotive powertrain & chassis structural stress testing, aerospace composite material fatigue strain monitoring, mechanical equipment vibration deformation measurement, civil engineering component load testing, university strain measurement teaching laboratories.

Standard Package Contents

SCXI-1314 strain terminal block, terminal wiring diagram, installation quick guide, safety compliance datasheet.
