Official PN

Standard SCB-100A Part Number：785024-01

Overview

NI SCB-100A is the upgraded second-generation fully shielded 100-pin screw terminal breakout block, successor to legacy SCB-100, optimized for NI 100-pin digital I/O and timer/counter DAQ hardwareNI. It converts compact 100-pin 0.050 SCSI female connector to 100 independent accessible screw terminals for simple sensor, relay and encoder wiring. Equipped with magnetic removable cover, built-in quick-reference pinout label for fast wiring lookup. Supports three mounting methods: desktop flat placement, wall panel installation and DIN rail mounting (with NI-9913 kit). Full metal shielding suppresses EMI interference for stable digital pulse, discrete switch and counter signal transmission. Rated max 60 VDC signal voltage, independent current limits for signal and power pins, RoHS compliant, widely deployed for multi-channel digital matrix, encoder acquisition and industrial automated test benches.

Core Specifications

Interface: Rear 100-pin 0.050 shielded SCSI female, front 100 screw terminals full pin mapping
Electrical Rating: Max 60 VDC /30 Vrms; 0.5A per signal pin, 1A for dedicated power pins
Wiring Range: Accepts 14–30 AWG stranded/solid wires
Mounting Options: Desktop, wall panel, DIN rail (requires NI-9913 mounting accessory)
Mechanical Feature: Magnetic snap-on protective cover, built-in pinout reference sticker
Compatible Hardware: NI 6509/6515/6528 digital I/O boards, NI-6624 counter/timer DAQ, PCI-DIO-96
Environmental: Operating temperature 0~70℃, all-metal shielding for low-noise digital signal transmission

Application Scenarios

Multi-channel relay matrix digital signal switching, incremental encoder high-speed pulse capture, industrial proximity/limit switch state monitoring, semiconductor digital parametric test stations, university digital counter & DIO measurement teaching labs.

Standard Package Contents

SCB-100A shielded terminal block, pinout reference label, user guide, safety specification datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

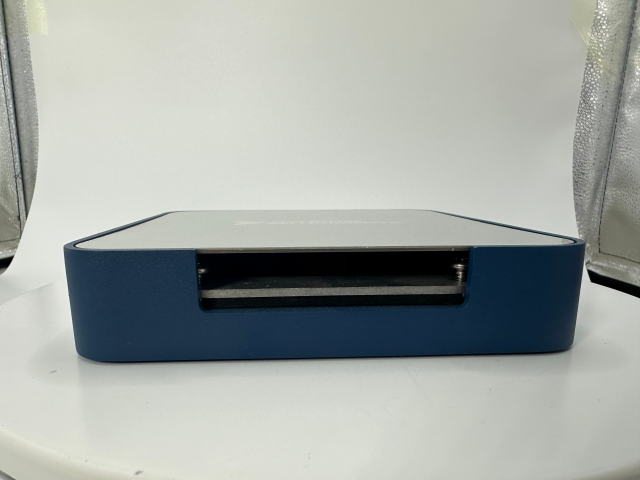

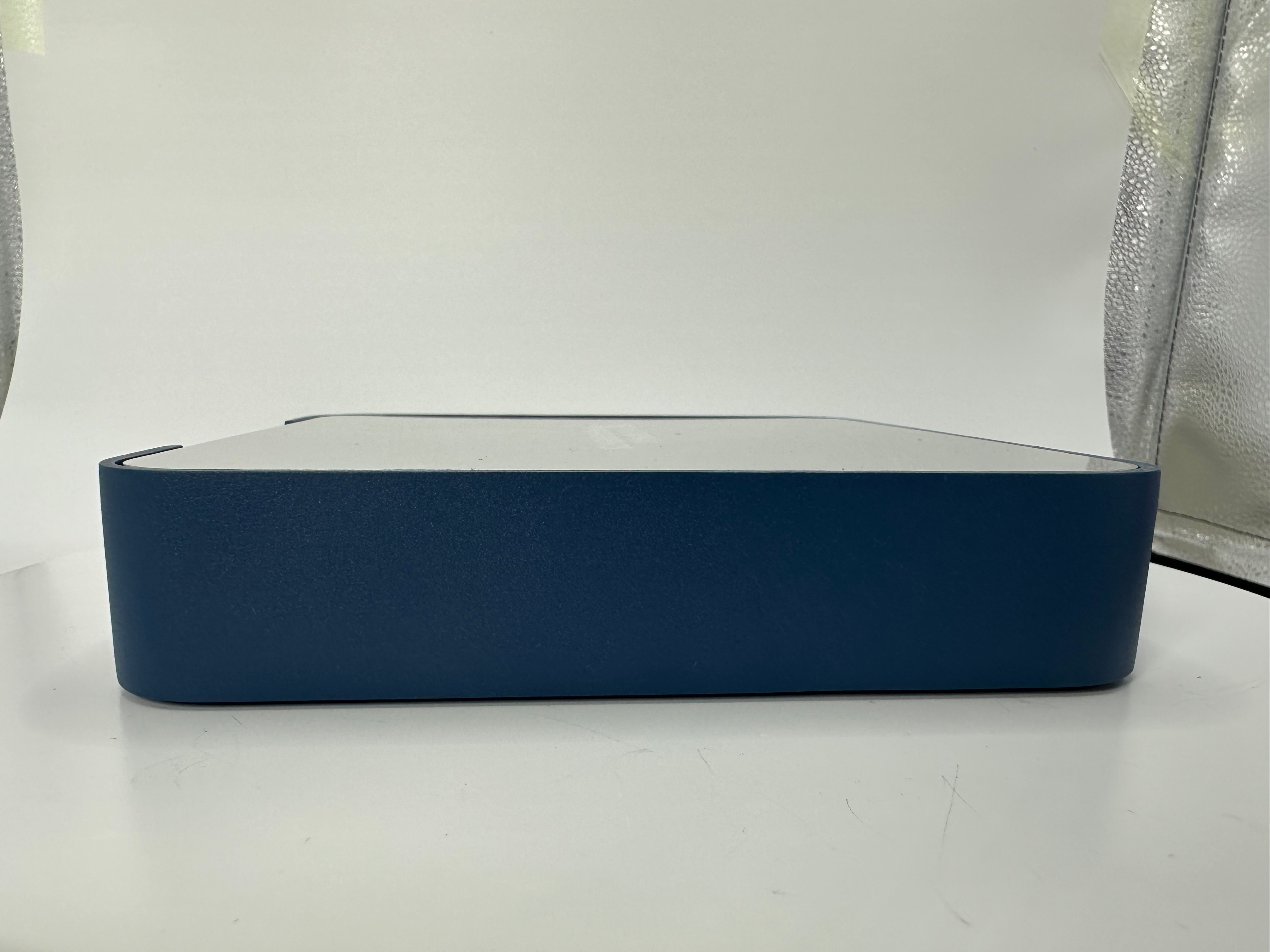

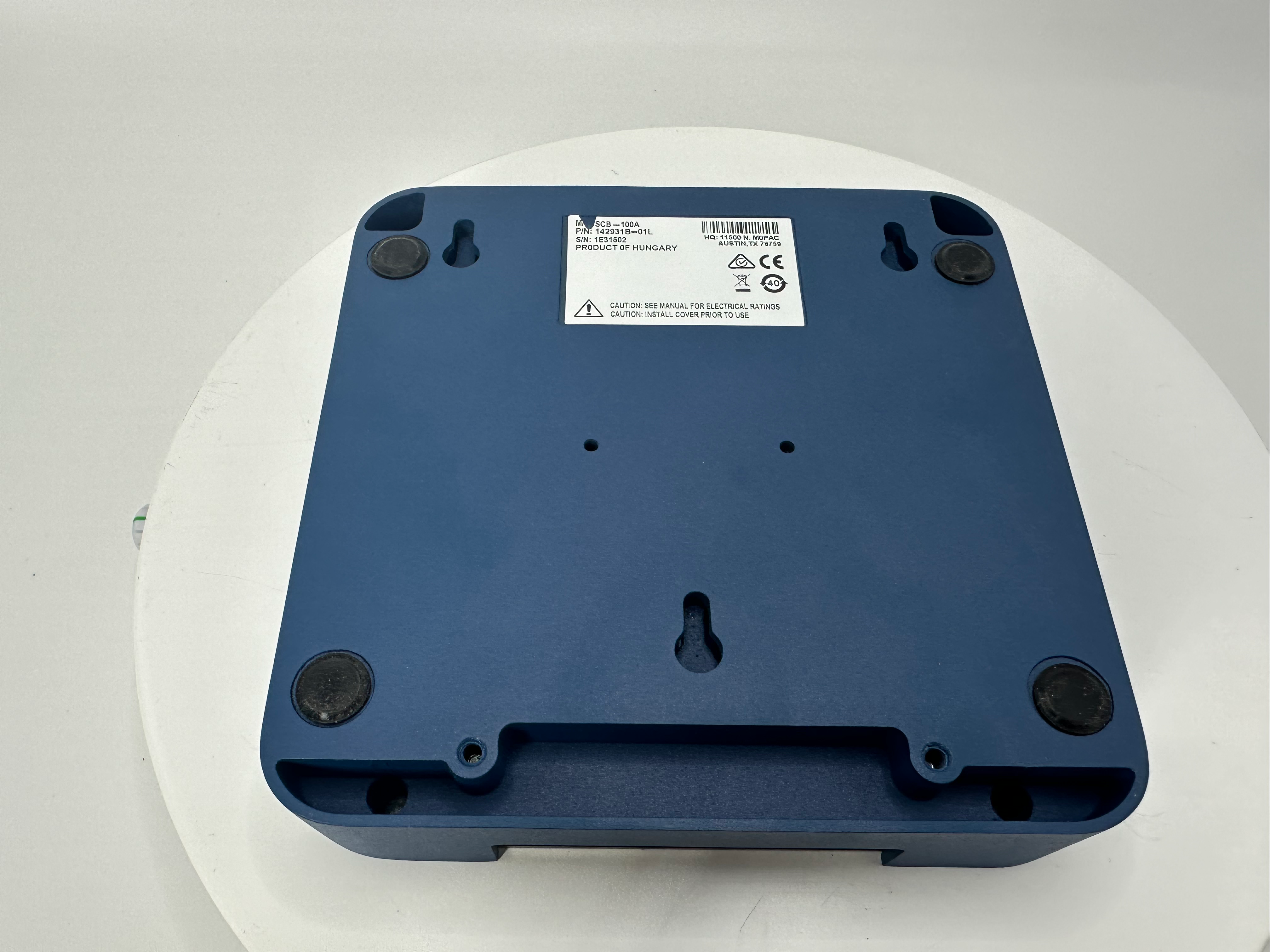

NI SCB-100A Shielded 100-Pin Digital DAQ Screw Terminal Block PN:785024-01
