Overview

Official PN：780461-01

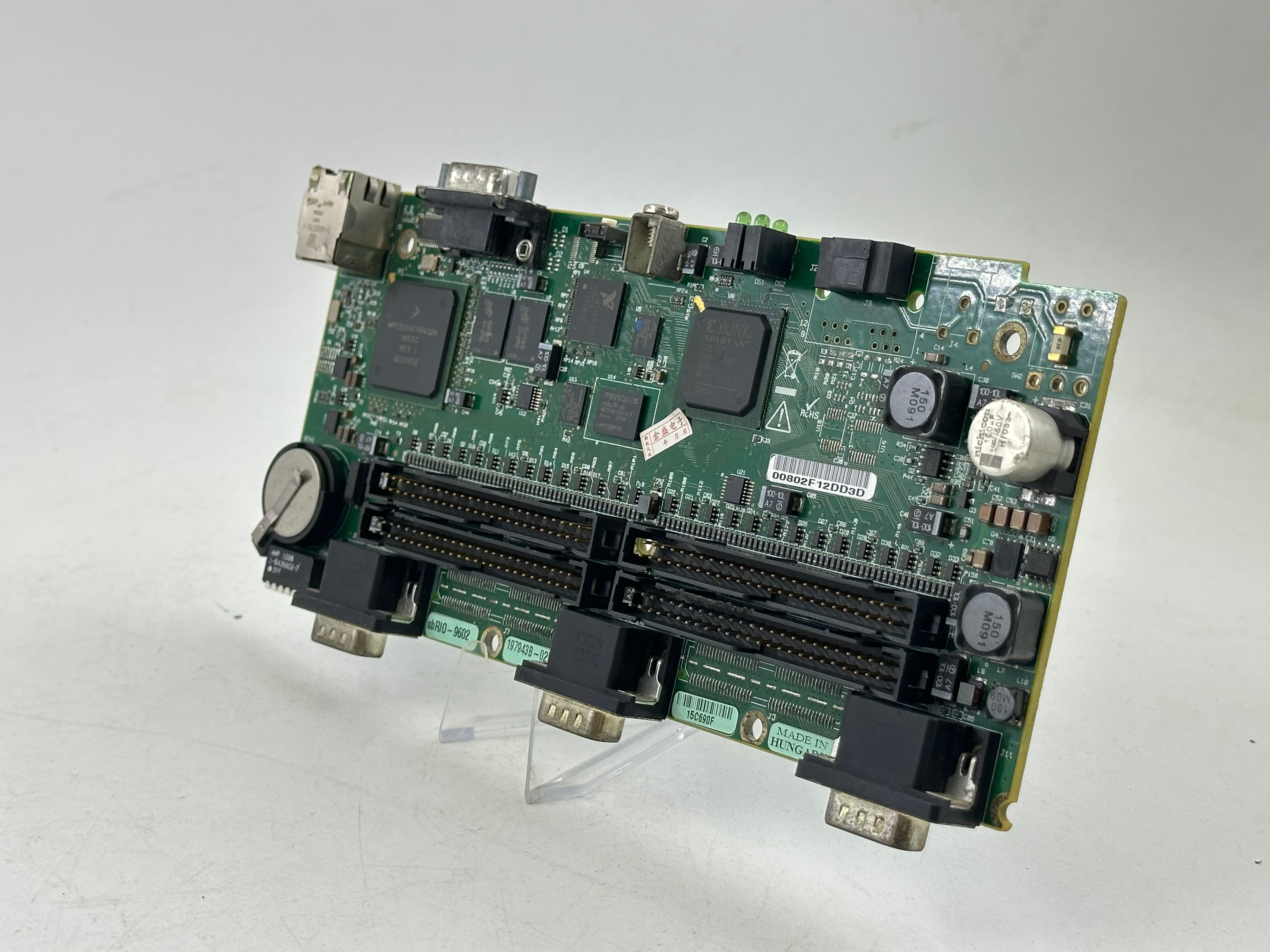

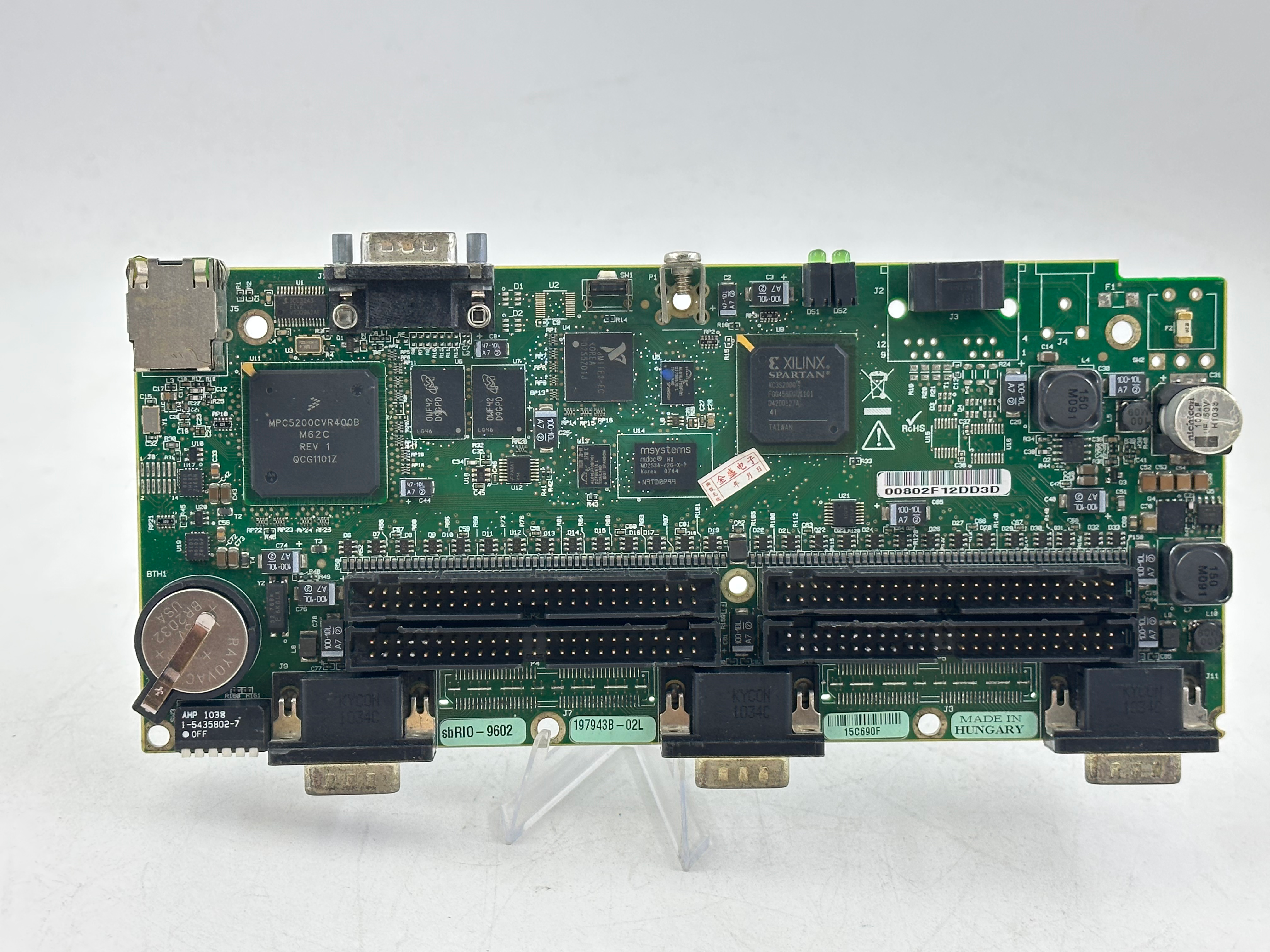

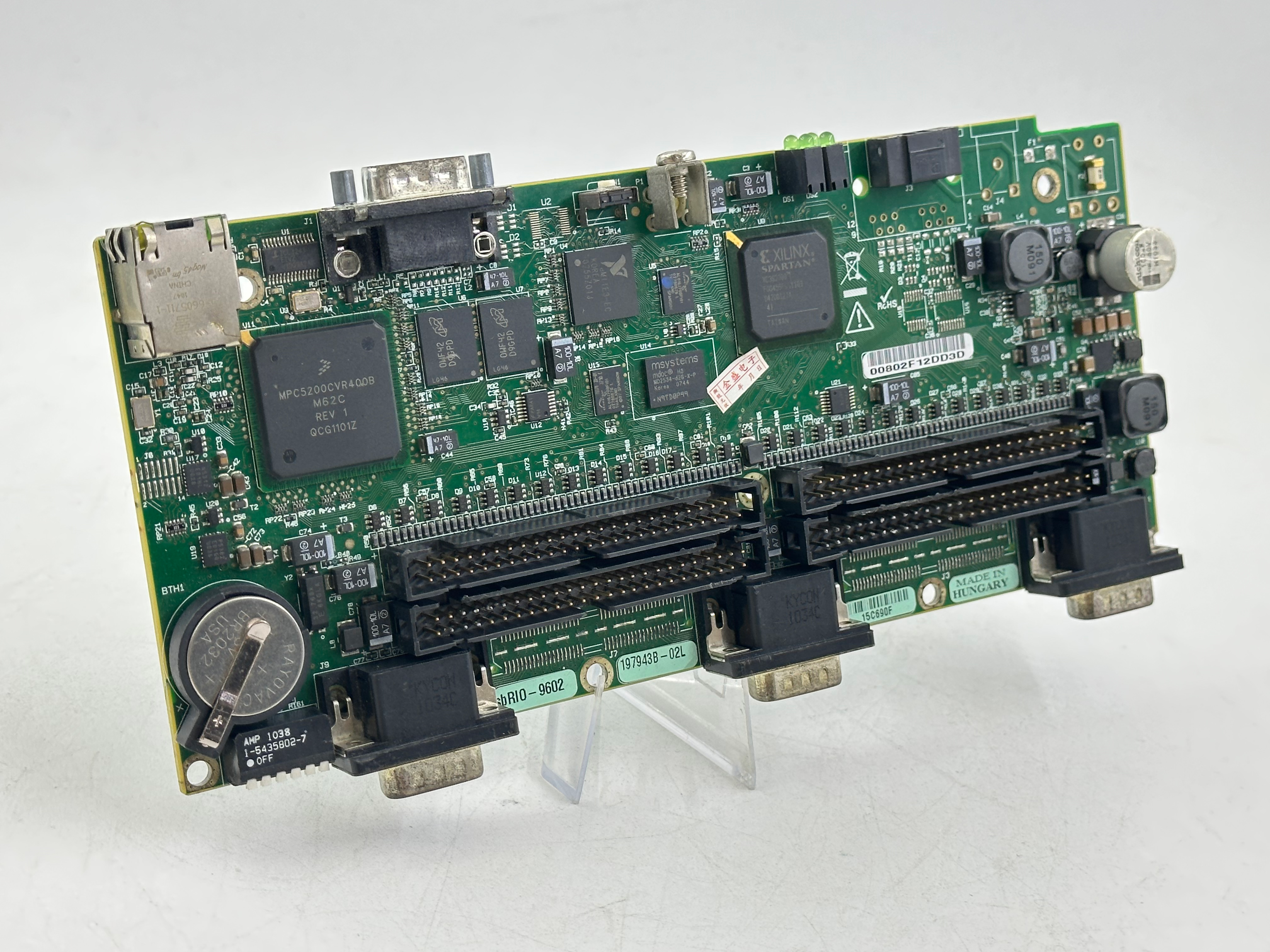

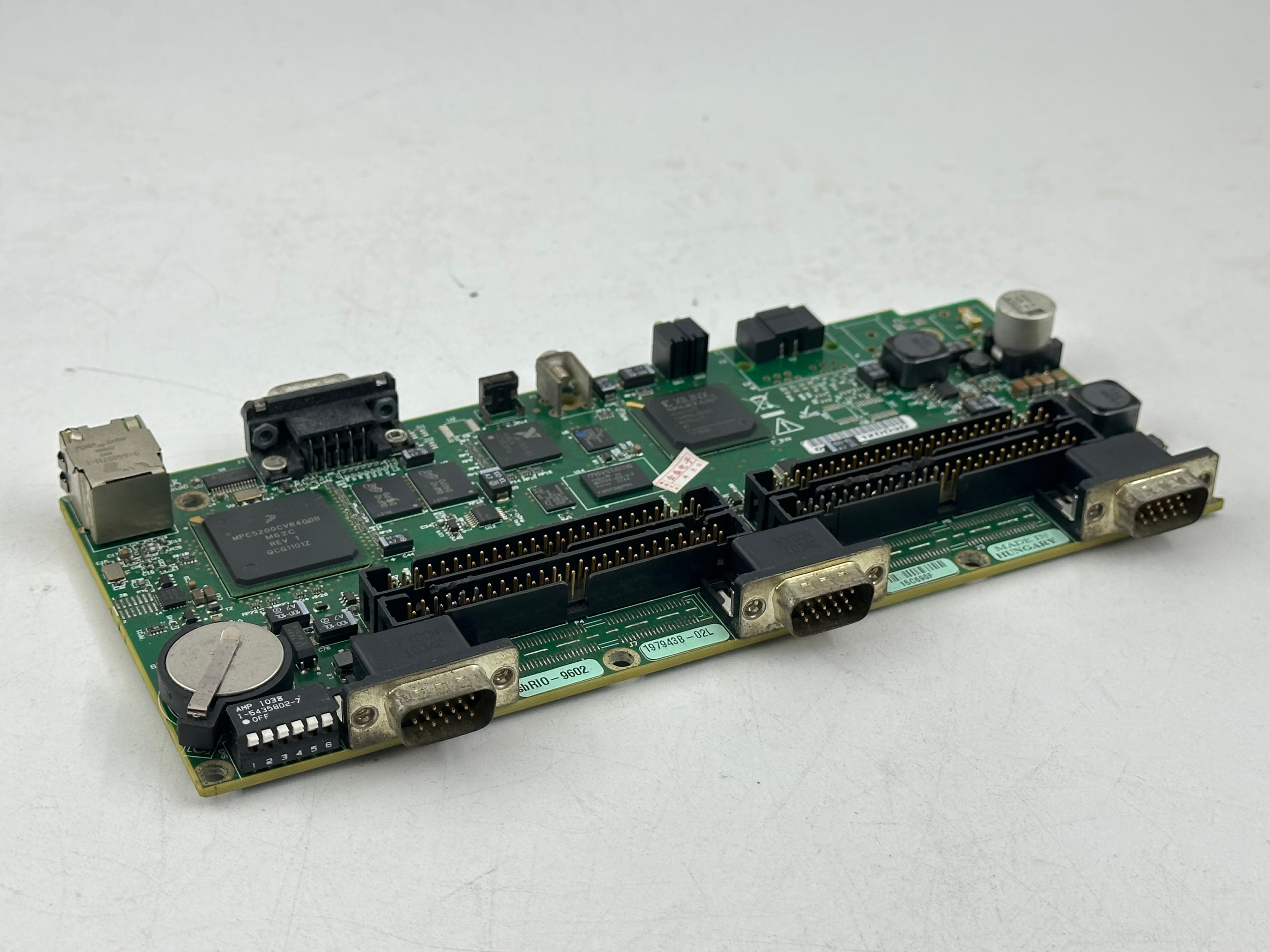

NI sbRIO‑9602 is a discontinued OEM Single-Board RIO embedded controller built on CompactRIO architecture, integrating a 400 MHz MPC5200 real-time CPU, Xilinx Spartan‑6 2 million-gate reconfigurable FPGA, and native digital I/O on a bare PCB without enclosureNI. It carries 110 bidirectional 3.3 V digital lines, three mezzanine connectors for board-only C Series signal conditioning modules, 10/100 Ethernet and RS232 serial communication ports. Equipped with 128 MB DRAM + 256 MB nonvolatile storage, powered by 19–30 VDC wide industrial voltage, operating temperature -20 ℃ ~ 55 ℃. Programmed via LabVIEW Real-Time & FPGA modules for deterministic closed-loop control, targeted at mass-volume OEM machinery, test equipment and automated industrial systems.

Core Specifications

Core Hardware: 400 MHz Freescale real-time processor, Spartan-6 2M gate user-programmable FPGA
Memory Resource: 128 MB DRAM, 256 MB onboard nonvolatile flash storage
Native I/O: 110-channel bidirectional 3.3 V TTL digital I/O, no onboard analog channels
Expansion: 3 slots for unhoused C Series analog/digital/temp modules
Communication: 10/100BASE-TX Ethernet, RS232 serial port for field device linkage
Power & Env: 19–30 VDC input, operating temp -20~55℃, bare PCB OEM embedded design
Software: LabVIEW RT + LabVIEW FPGA, VxWorks real-time OS, NI-RIO driver stack

Application Scenarios

High-volume OEM automated test equipment, small industrial machinery digital motion control, distributed industrial digital monitoring nodes, vehicle test bench embedded logic control, university embedded FPGA control teaching platforms.

Standard Package Contents

sbRIO-9602 bare single-board controller, hardware pinout datasheet, OEM integration manual, safety compliance specification.
