Overview

Official PN：783210-01（roboRIO 2.0 FRC 竞赛标准版）

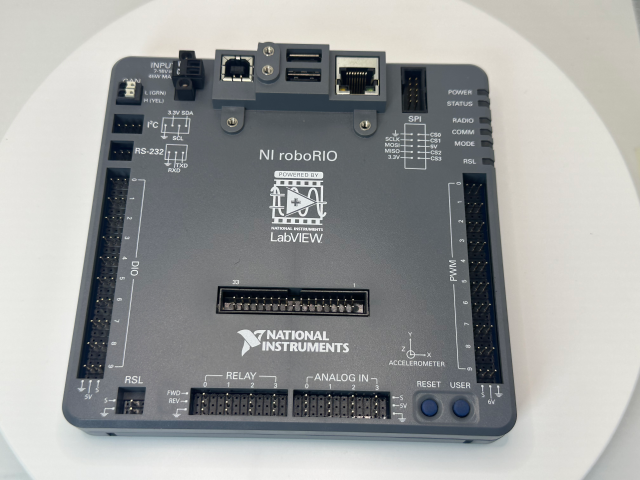

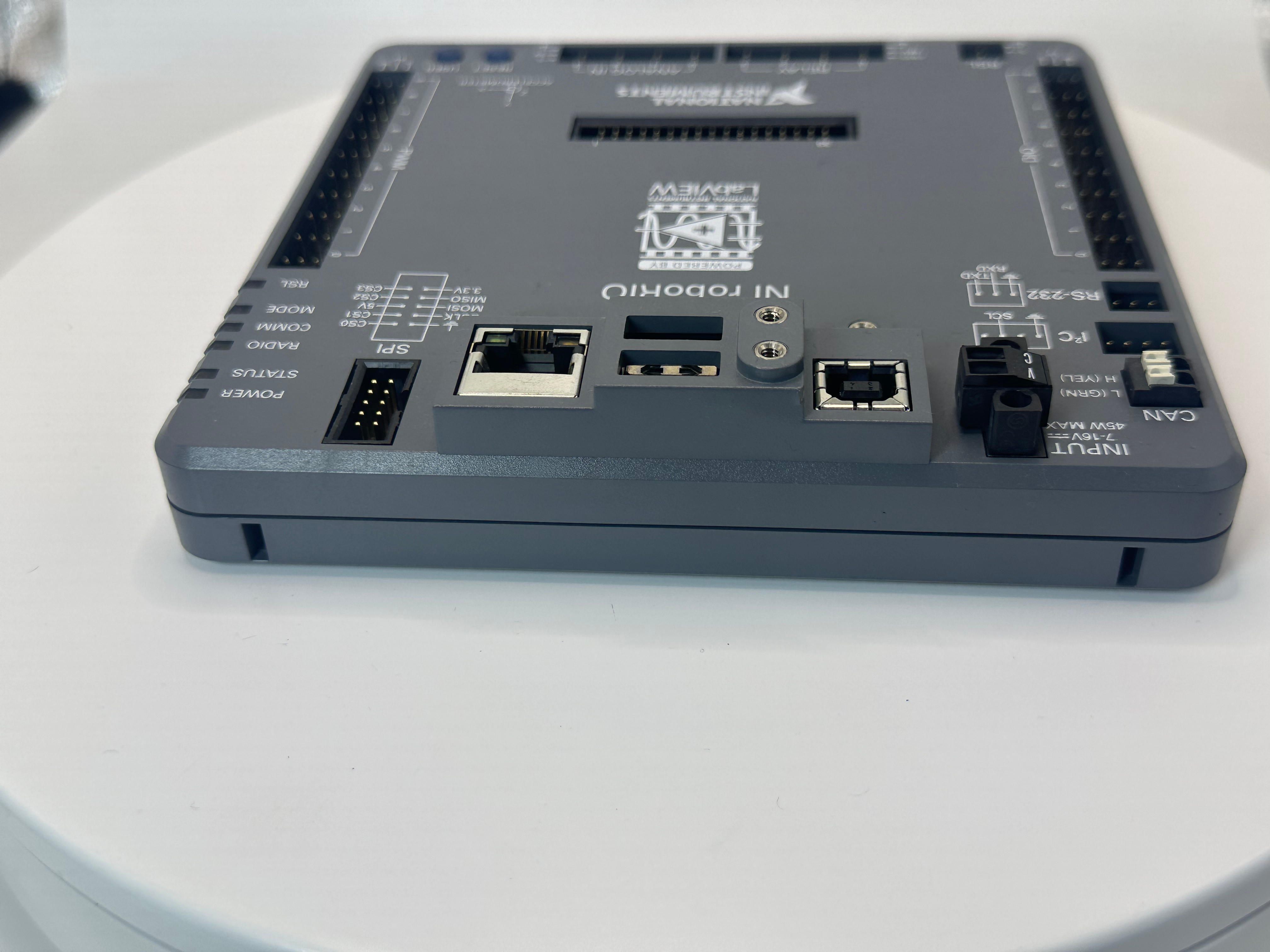

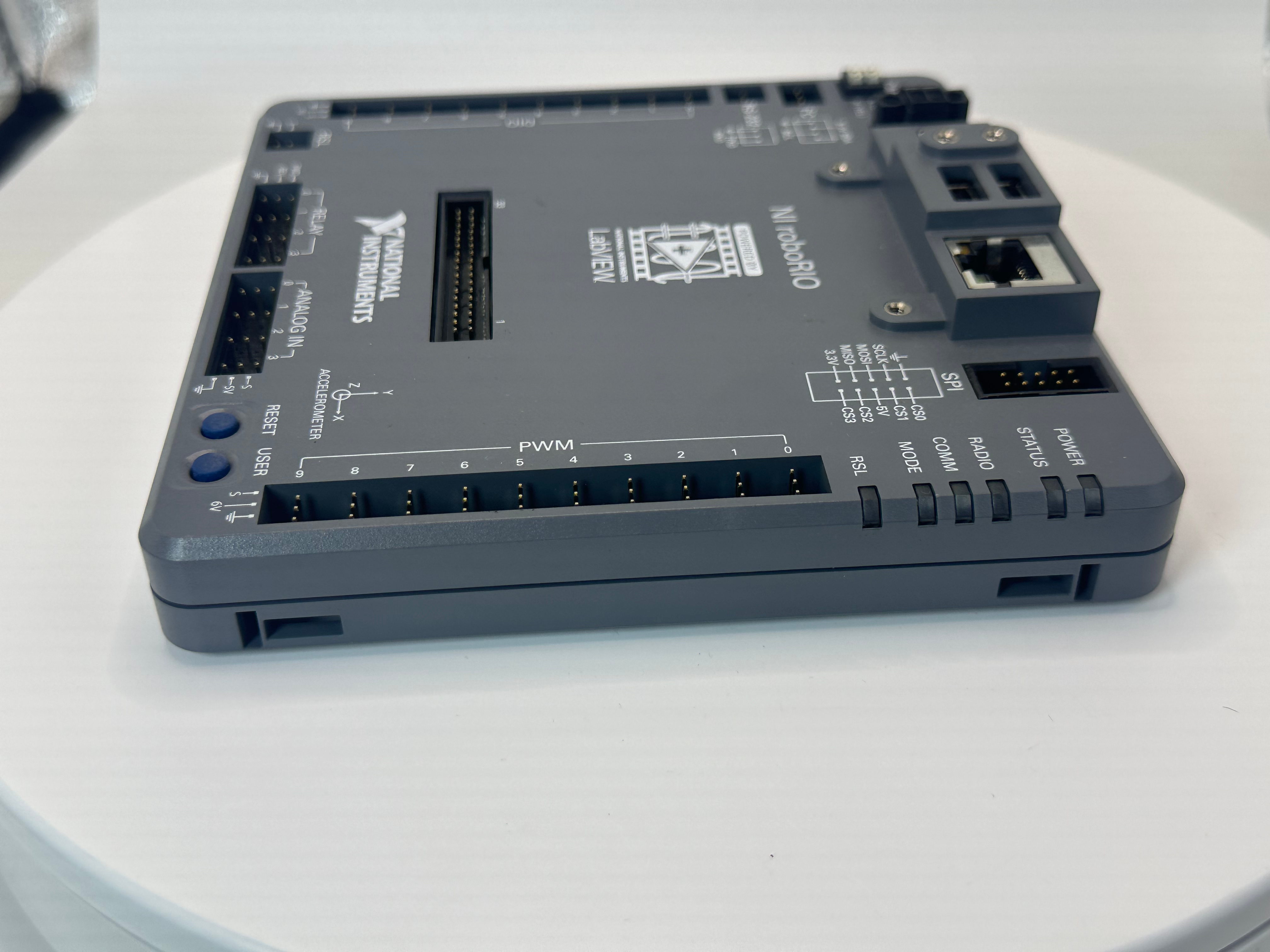

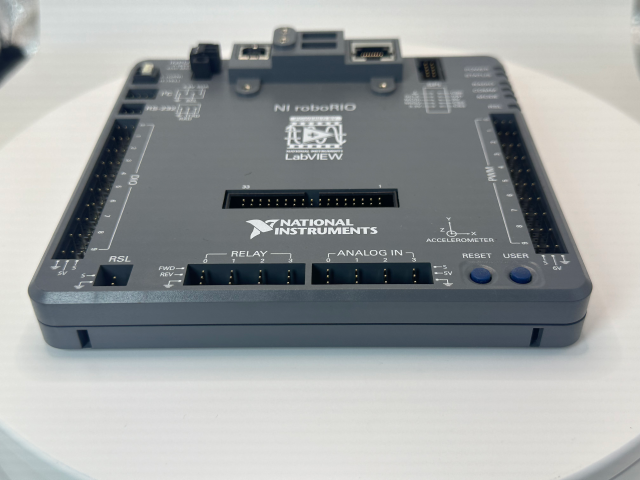

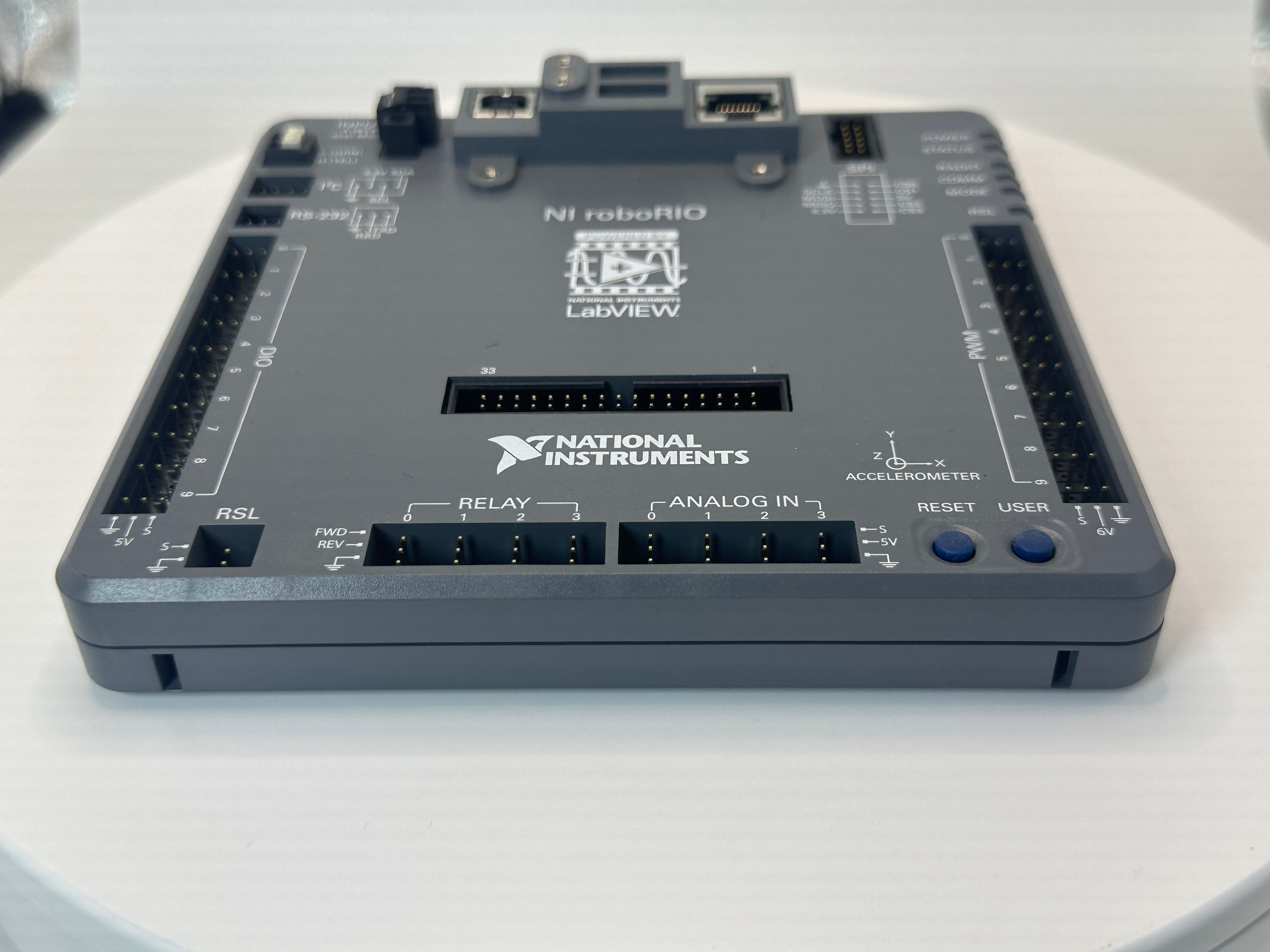

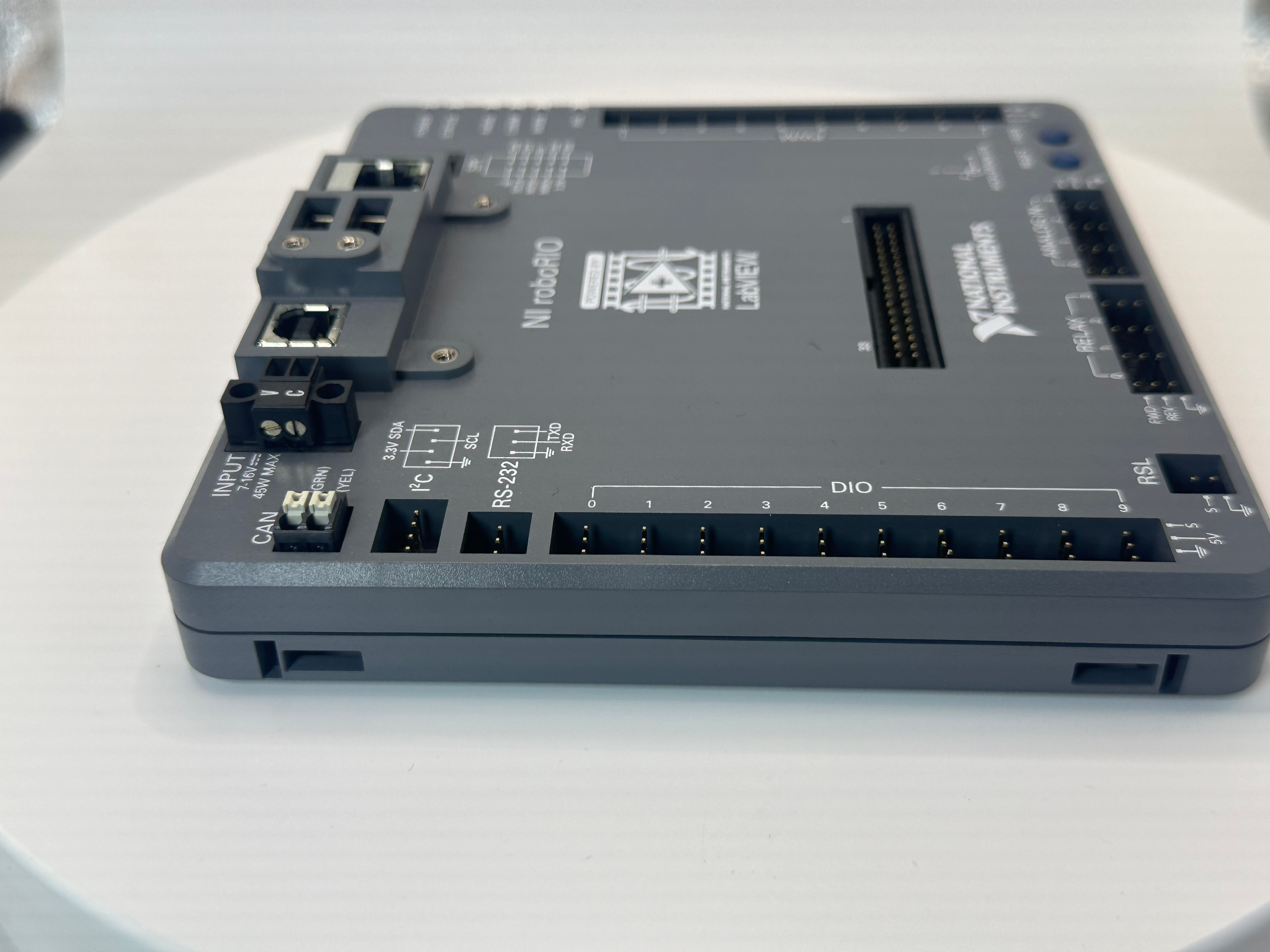

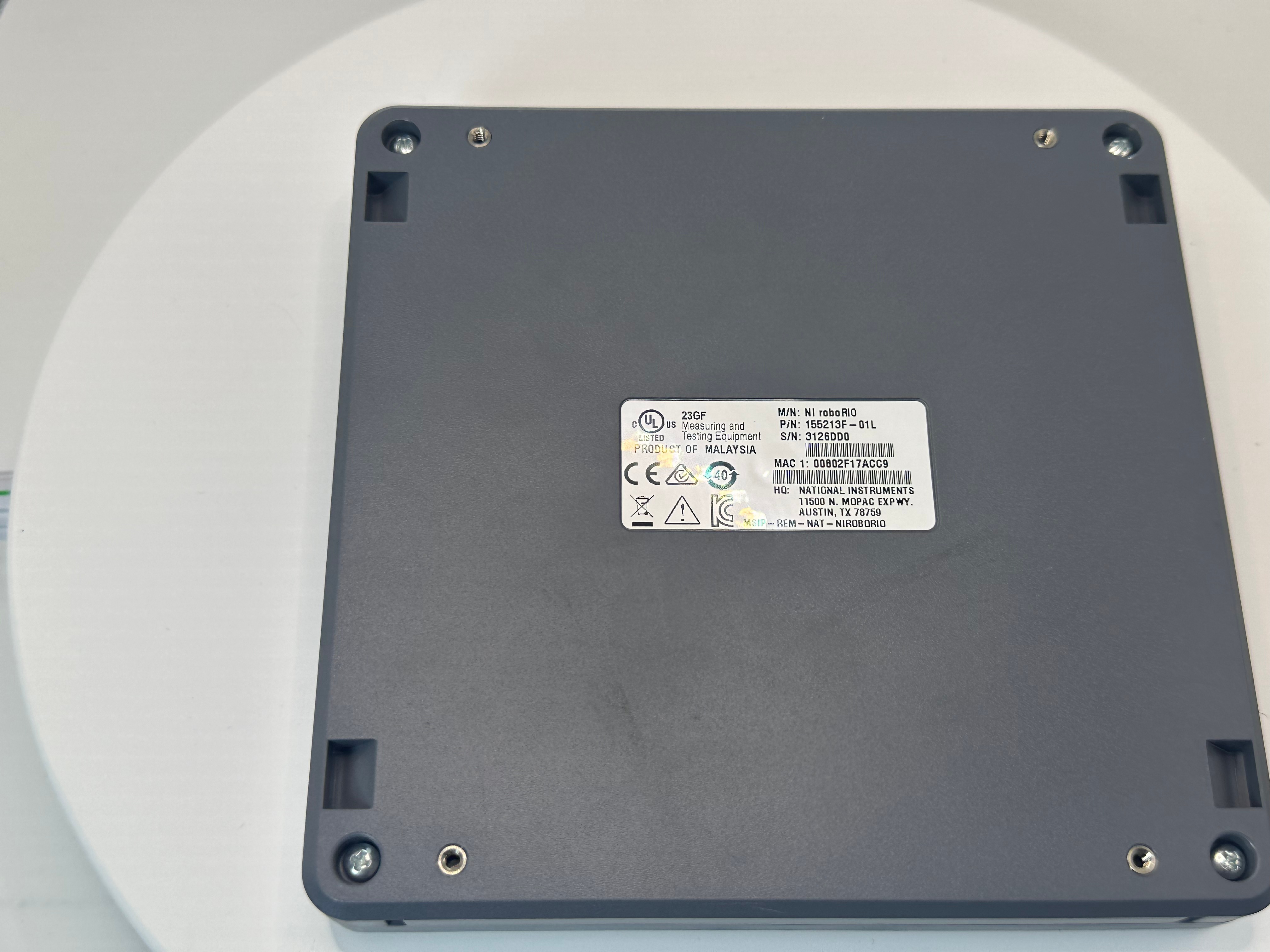

NI roboRIO 2.0 is a rugged Zynq-based real-time FPGA controller exclusively designed for FIRST Robotics Competition (FRC). Built on Xilinx Z-7020 SoC integrating dual 667 MHz ARM Cortex-A9 real-time CPU and Artix‑7 FPGA, it carries robot-dedicated native I/O without external expansion modules. It integrates 16 motor PWM channels, 32 general DIO, 4 single-ended analog inputs, dual CAN bus, 10/100 Ethernet, USB host/device, SPI/I2C/RS232 serial ports, plus MXP expansion port for extra sensors. Powered by 7–16 V robot battery, with full overvoltage/short-circuit protection and industrial shock/vibration resistance. Runs NI Linux Real-Time OS, supports LabVIEW, C++ and Python programming for autonomous robot motion, sensor fusion and communication logic, widely used for student competitive robotics teams.

Core Specifications

Core Chip: Xilinx Zynq Z-7020, Dual ARM A9 @667 MHz + Artix-7 FPGA, 256MB DDR3 / 512MB Flash
Robot I/O Resources: 16 PWM motor outputs, 32 DIO, 4 AI (0–5 V), dual CAN 2.0B, Ethernet, dual USB2.0 Host
Serial Interfaces: SPI, I2C, RS232, MXP expansion port for additional analog/digital sensors
Power Input: 7–16 VDC robot battery supply, built-in reverse polarity & surge protection
Software Support: LabVIEW FRC Suite, C++, Python, NI Linux Real-Time standalone operation
Mechanical & Env: Rugged plastic chassis, operating temp 0~55℃, impact resistant for competition robots
Official Use Case: Standard control hardware certified for FIRST FRC robot competitions worldwide

Application Scenarios

FIRST FRC competitive robot autonomous navigation, DC servo motor closed-loop motion control, multi-sensor fusion ranging/gyro measurement, robot CAN bus actuator communication, university robotics competition training platforms.

Standard Package Contents

roboRIO 2.0 main controller, terminal wiring pigtails, mounting bracket, quick start guide, safety compliance datasheet.
