Official Main PN Classification

786636-01：4-core Xeon, Windows 10 IoT Enterprise (main mainstream PN)
787805-33：8-core Xeon, NI Linux Real-Time RT version
787806-01：8-core Xeon Windows version; 787807-01：18-core top configuration

Overview

NI PXIe-8881 is a high-end 4-wide 3U PXI Express embedded controller powered by Intel Xeon scalable processors (4/8/18-core options). Occupies 1 system slot + 3 expansion slots of PXIe chassis, delivering maximum 24 GB/s total backplane throughput for high-throughput RF waveform generation, real-time HIL simulation and multi-channel high-speed DAQ. Front panel integrates abundant I/O: 2×Thunderbolt3 Type-C, dual Gigabit Ethernet (support IEEE1588 timing sync), 2×USB3.0, 4×USB2.0, DP1.2 video, RS232 serial, mini-GPIB and SMB trigger port. Standard equipped with 512GB NVMe SSD, 16/32/64GB DDR4 RAM expandable up to 64GB, supports Windows 10 IoT and NI Linux Real-Time OS. Rugged fan-cooled design works stably 0~55℃, fully compatible with all PXIe analog, digital, RF and bus interface modules, ideal for processor-intensive automated test benchesNI.

Core Specifications

Processor: Intel Xeon, optional 4-core(4.1GHz)/8-core(3.9GHz)/18-core(3GHz)

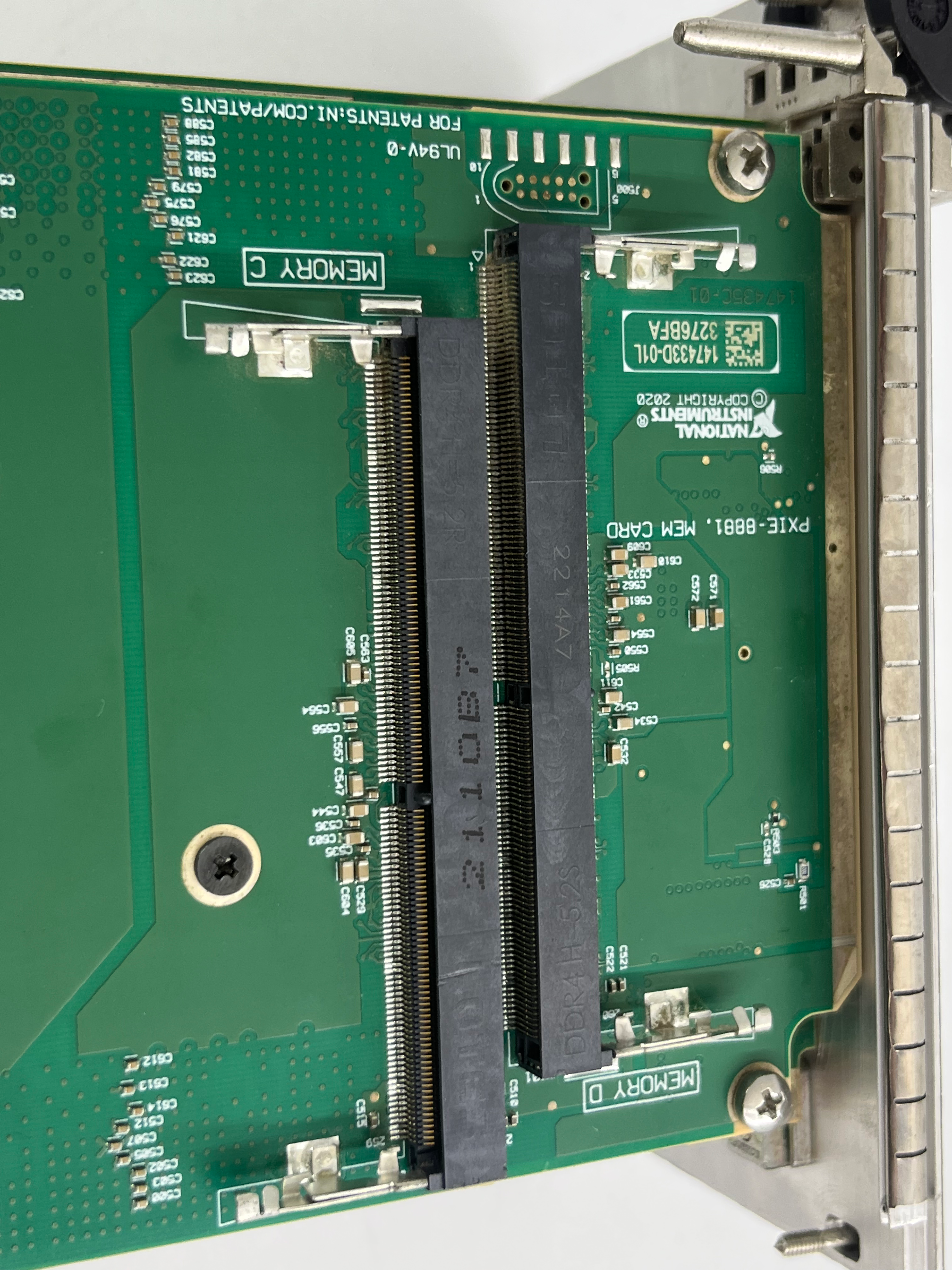

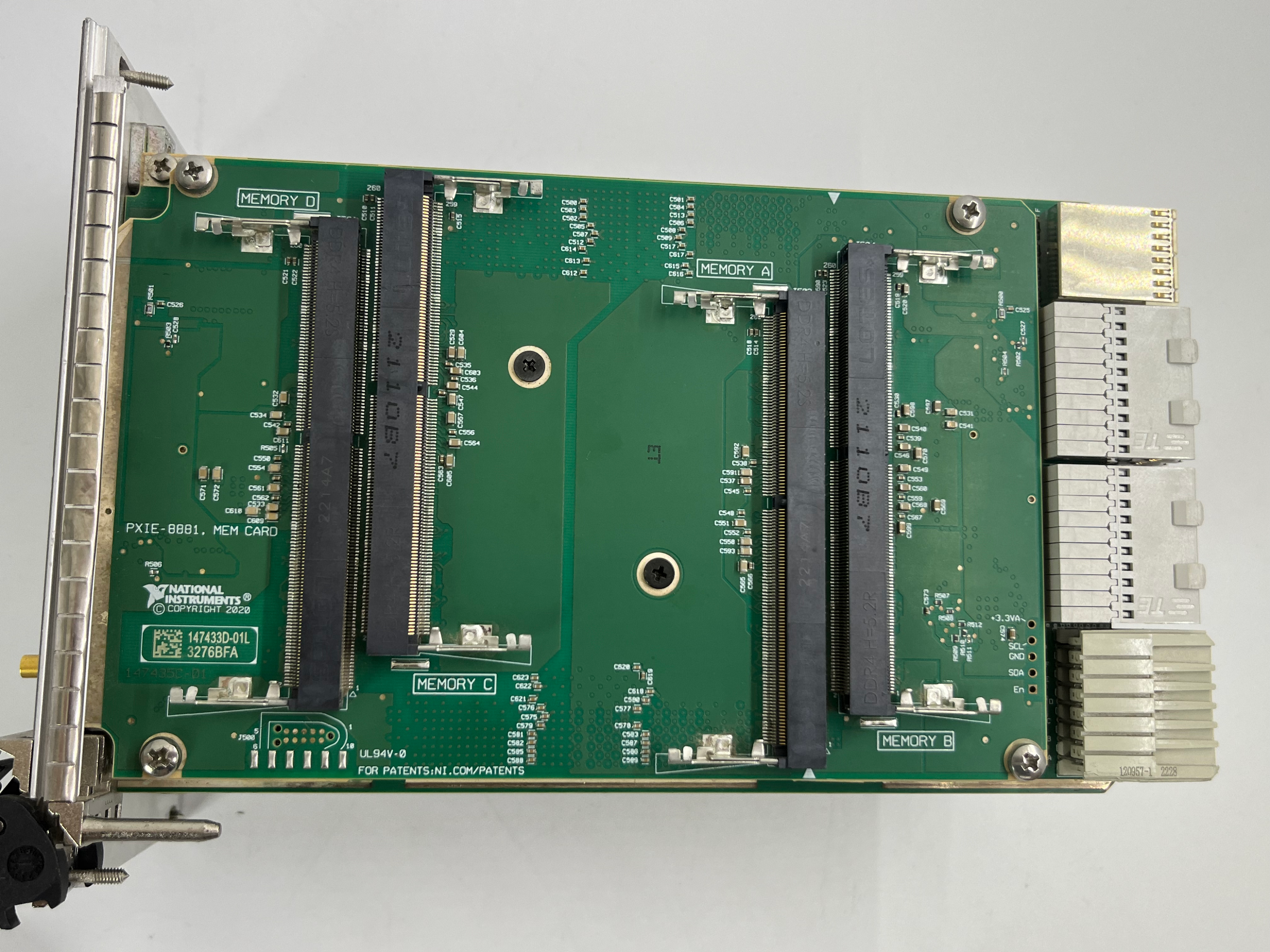

Memory & Storage: DDR4 quad-channel RAM (max 64GB); 512GB M.2 NVMe SSD standard

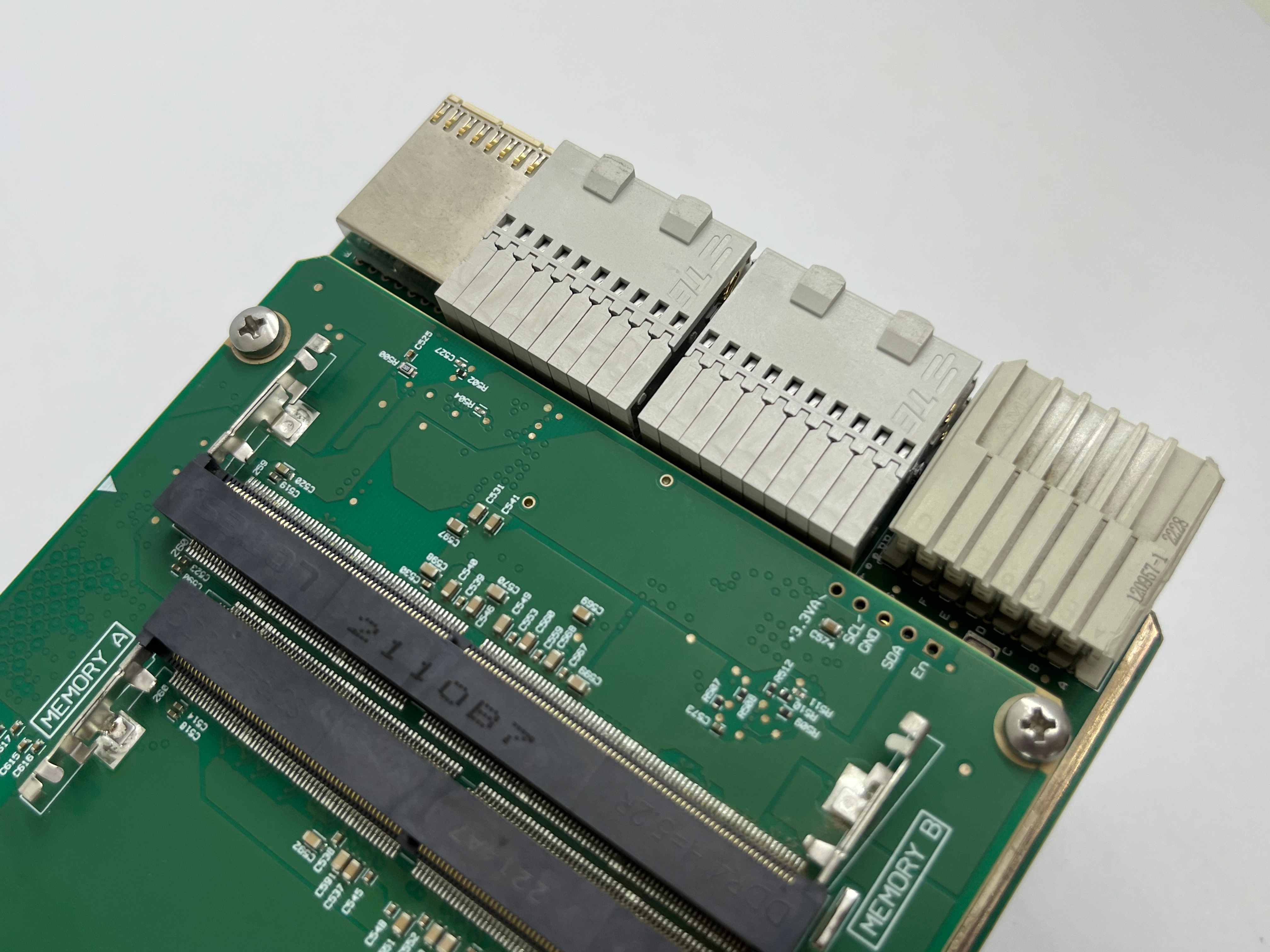

Backplane Performance: Max 24 GB/s system bandwidth, multi x4 PCIe links

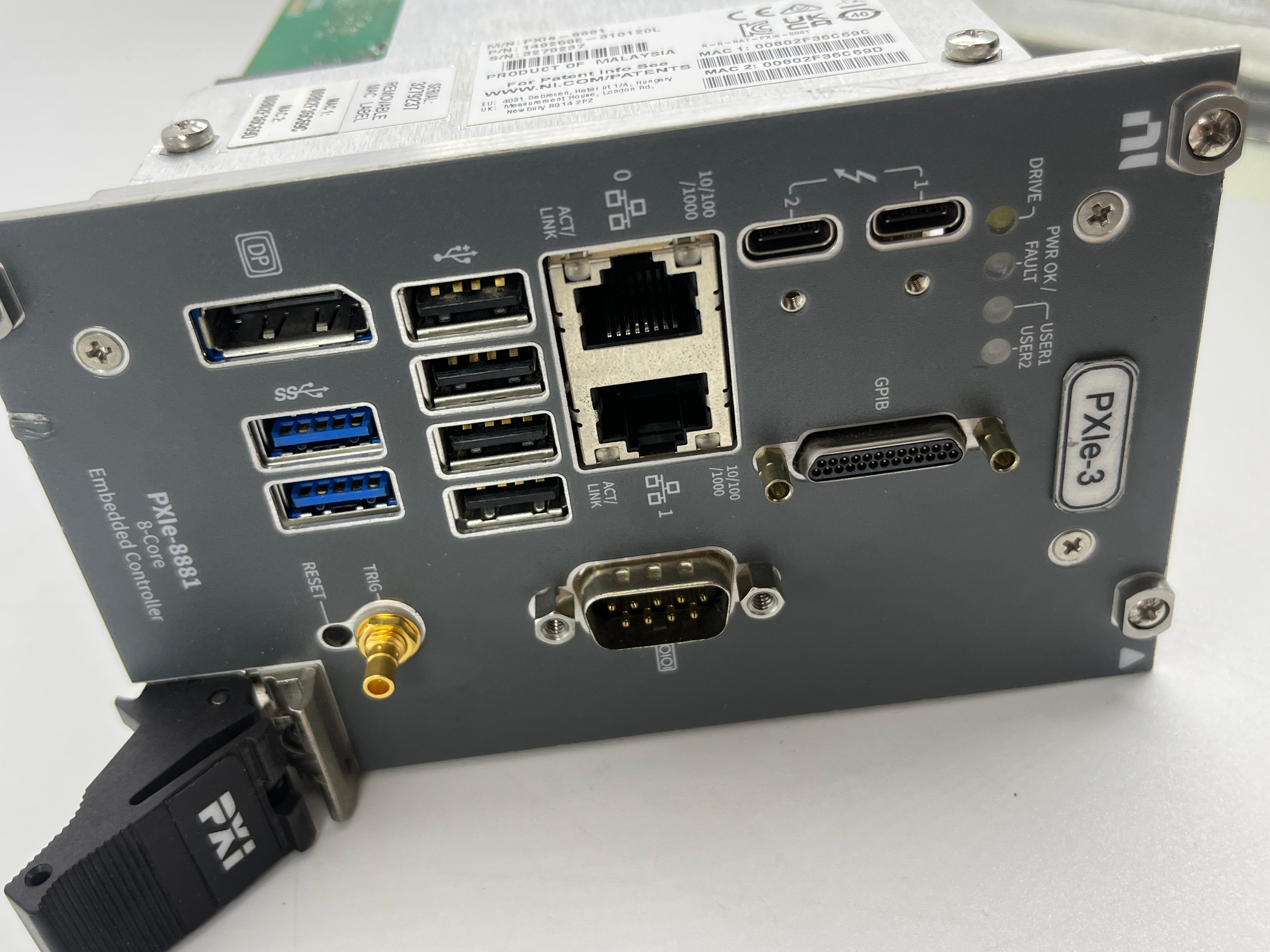

Front Panel Interfaces: 2×Thunderbolt3, dual GigE, USB3.0×2, USB2.0×4, DP, RS232, mini-GPIB, SMB trigger
Form Factor: 4-slot 3U PXIe module, operating temperature 0~55℃
Supported OS: Windows 10 IoT Enterprise / NI Linux Real-Time
Cooling: Active fan cooling, requires chassis with ≥82W per slot heat dissipation capacity

Application Scenarios

Aerospace high-channel RF signal acquisition & analysis, automotive multi-ECU hardware-in-the-loop real-time simulation, semiconductor high-speed digital parametric test stations, radar & wireless communication modular instrument measurement, high-performance LabVIEW real-time control platforms.

Standard Package Contents

PXIe-8881 embedded controller, DP-to-VGA adapter cable, OS recovery media, user manual, safety datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI PXIe-8881 Xeon High-Performance 4-Slot PXIe Embedded Controller PN:786636-01
