Official PN

Standard Windows version PN：782920-04

Real-Time RT variant PN：782920-33

Internal hardware PN：154911A-012L

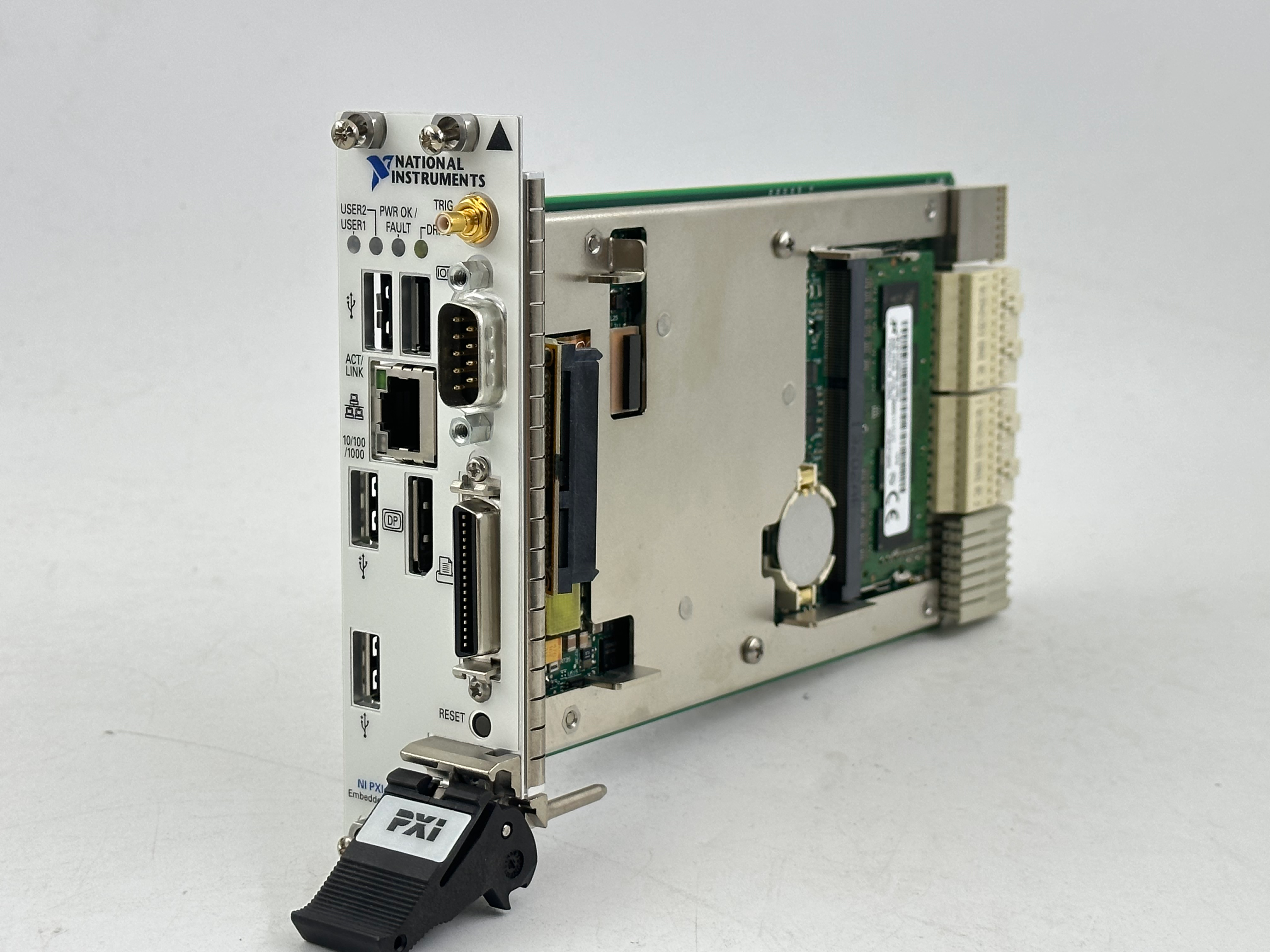

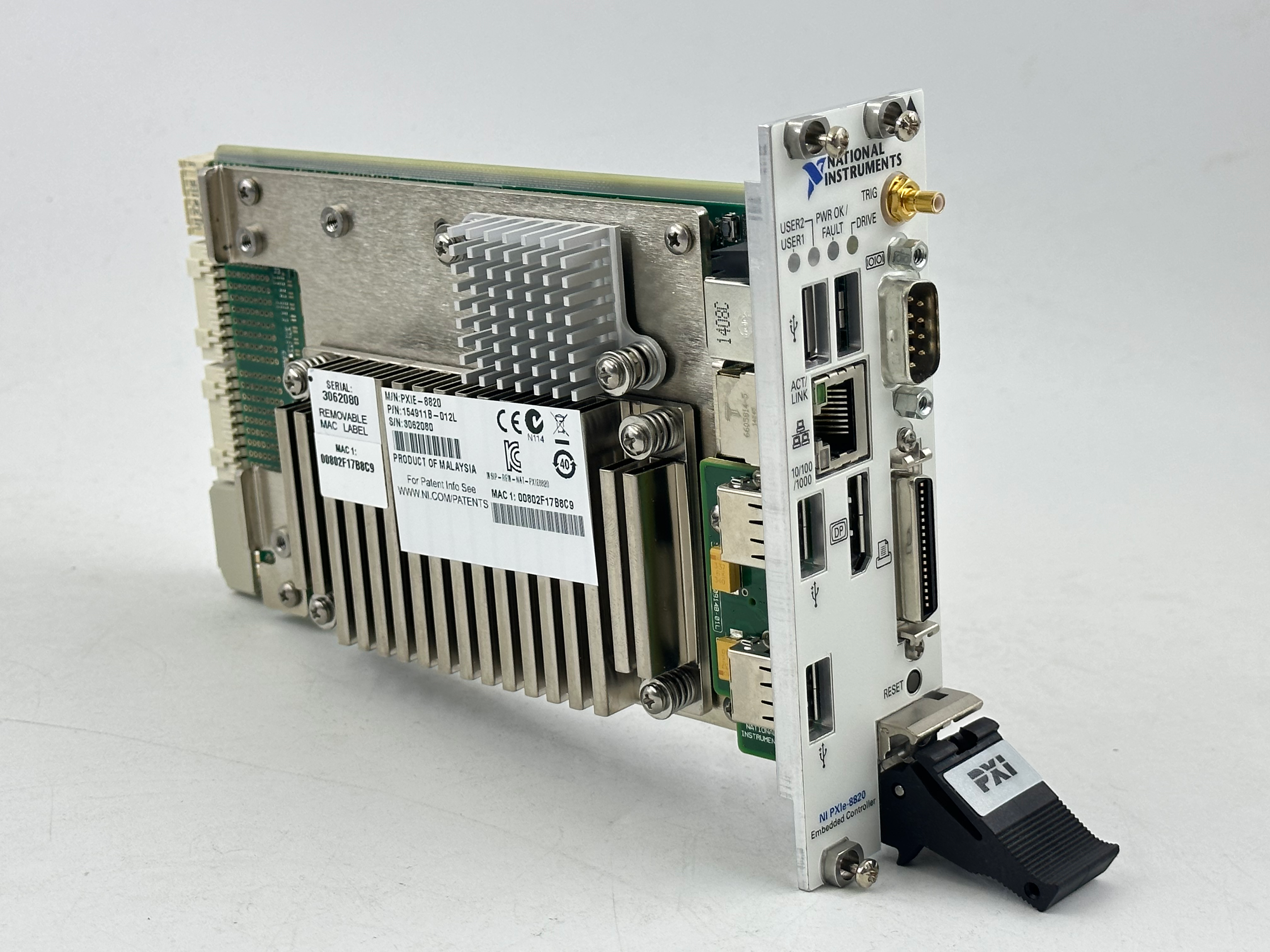

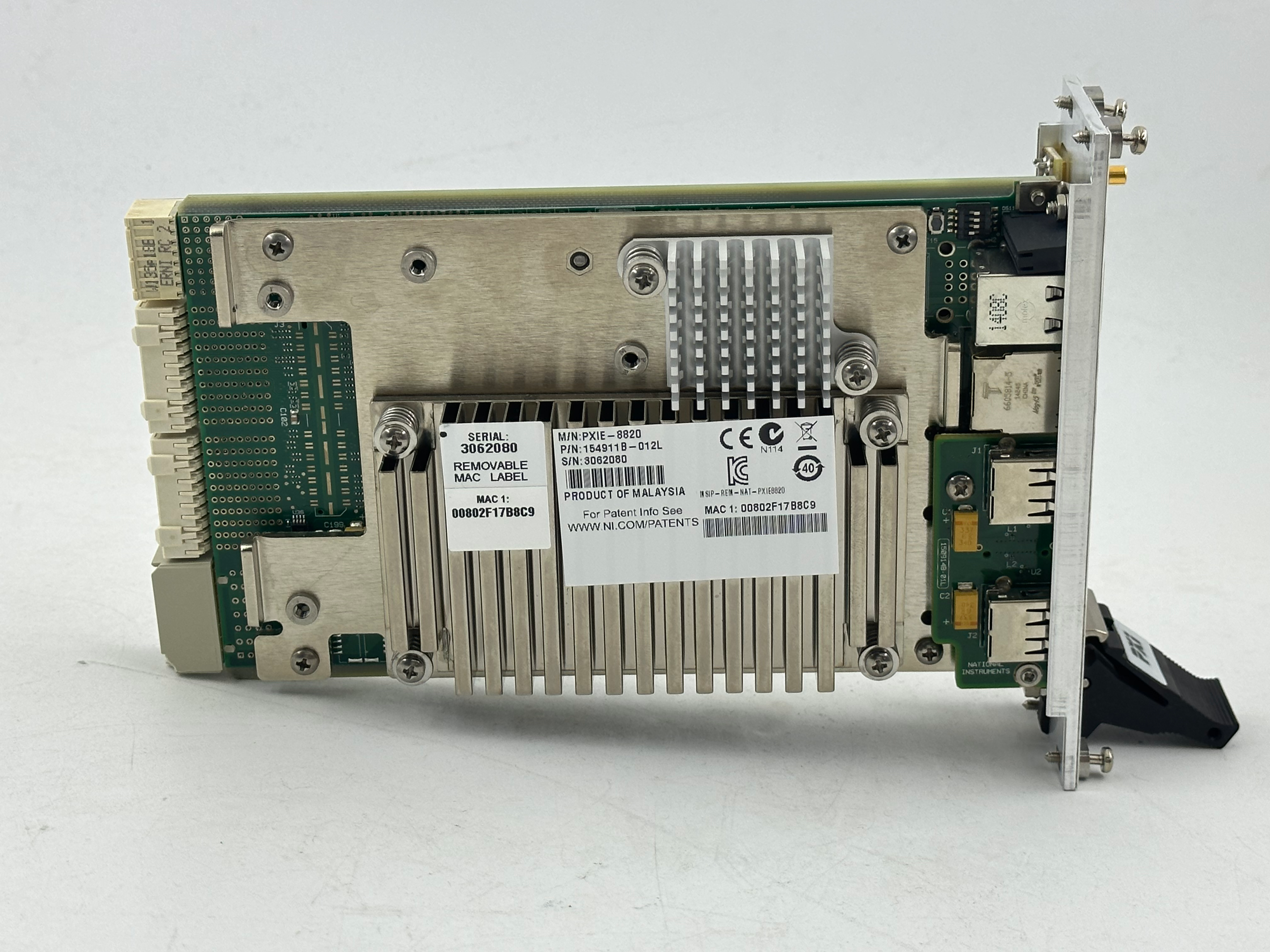

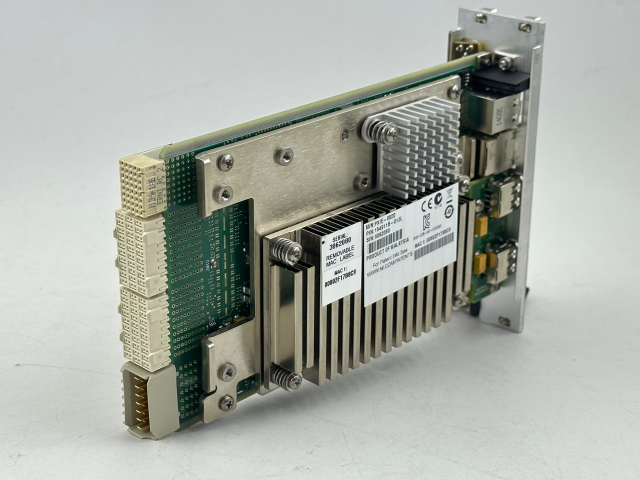

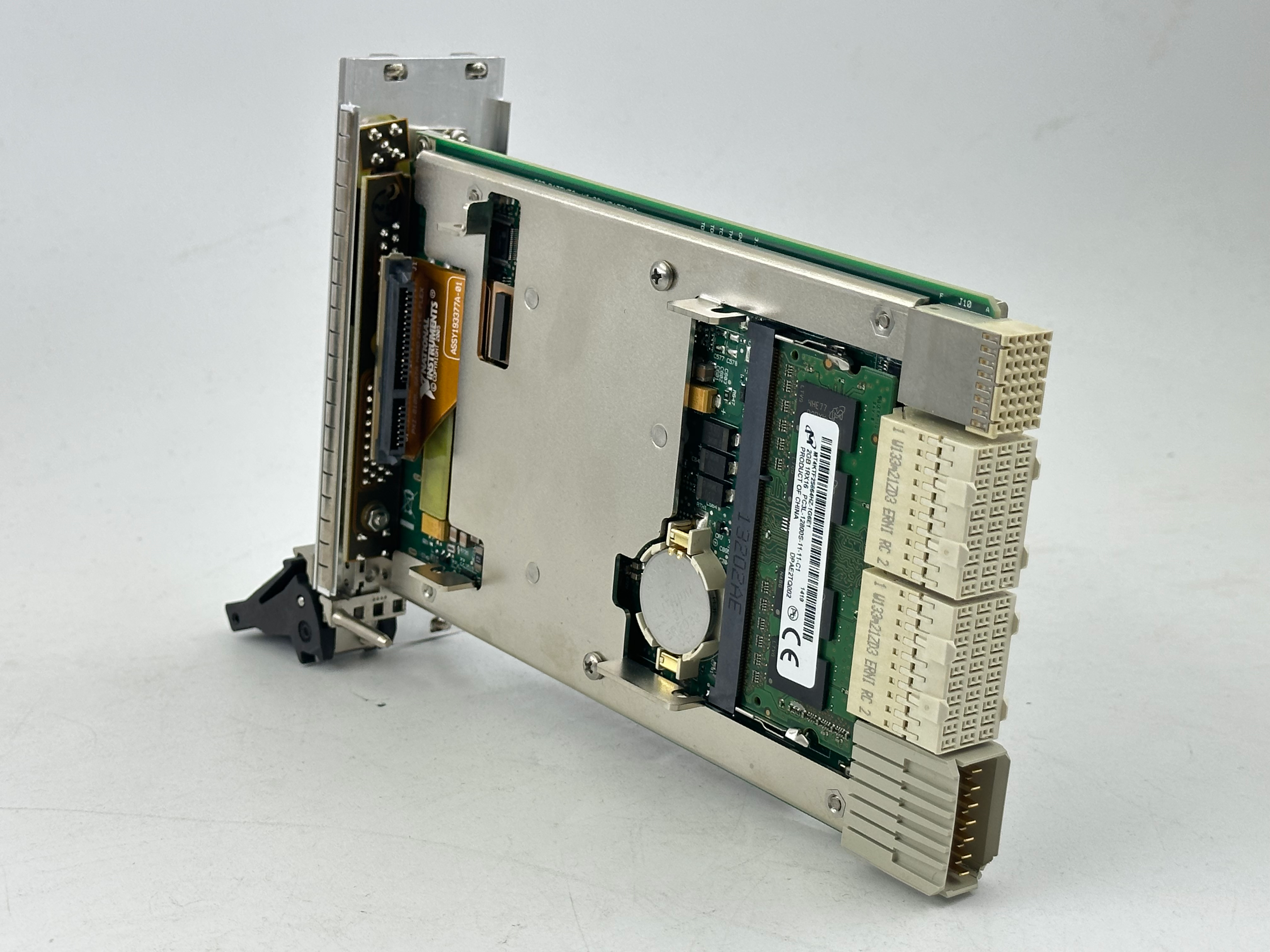

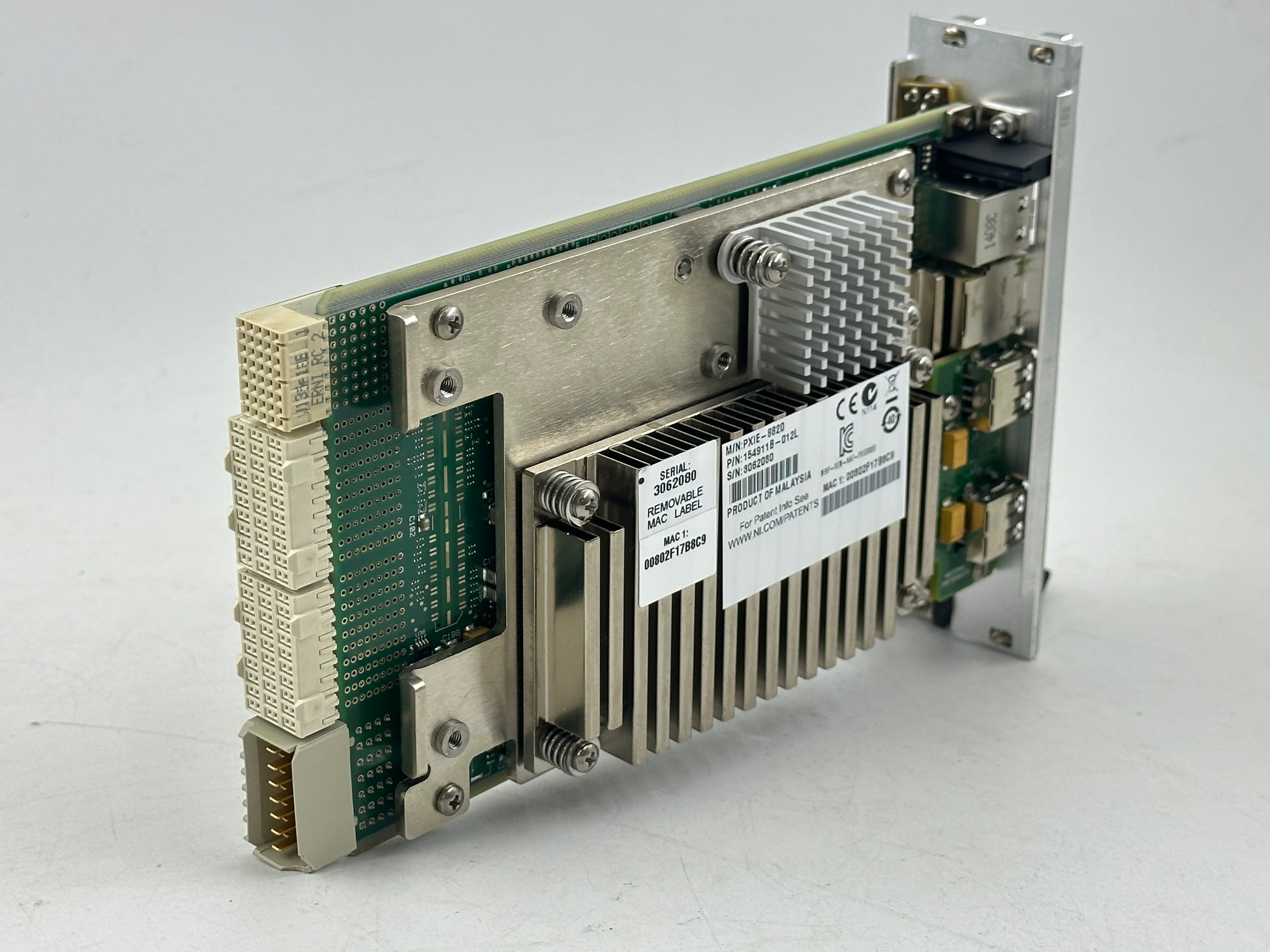

NI PXIe-8820 is a discontinued 2-slot 3U PXI Express embedded system controller, built around Intel Celeron 1020E dual-core 2.2 GHz processor with 2 MB L2 cache. It eliminates external host PC by plugging directly into PXIe chassis backplane, delivering up to 1 GB/s total system bandwidth via four PCIe x1 links. Front panel integrated rich peripheral ports: 1×Gigabit Ethernet, 4×USB2.0, DisplayPort, RS232 serial, parallel port, system reset buttondownload.ni.com. Equipped with standard 2 GB DDR3L RAM (max expandable to 4 GB) and factory 250 GB SATA hard disk. Supports Windows 7 32-bit and LabVIEW Real-Time OS, passively cooled rugged design for 24-hour continuous lab measurement, industrial data acquisition and small HIL simulation benches. Fully compatible with all PXIe analog/digital/RF modules, RoHS certified.

Core Specifications

Processor: Intel Celeron 1020E dual-core 2.2 GHz, 2 MB L2 cache
Memory: Standard 2 GB DDR3L 1333 MHz, max 4 GB single channel
Storage: 250 GB SATA 5400 RPM built-in hard drive
Backplane Bandwidth: Total 1 GB/s system throughput, 250 MB/s per x1 slot

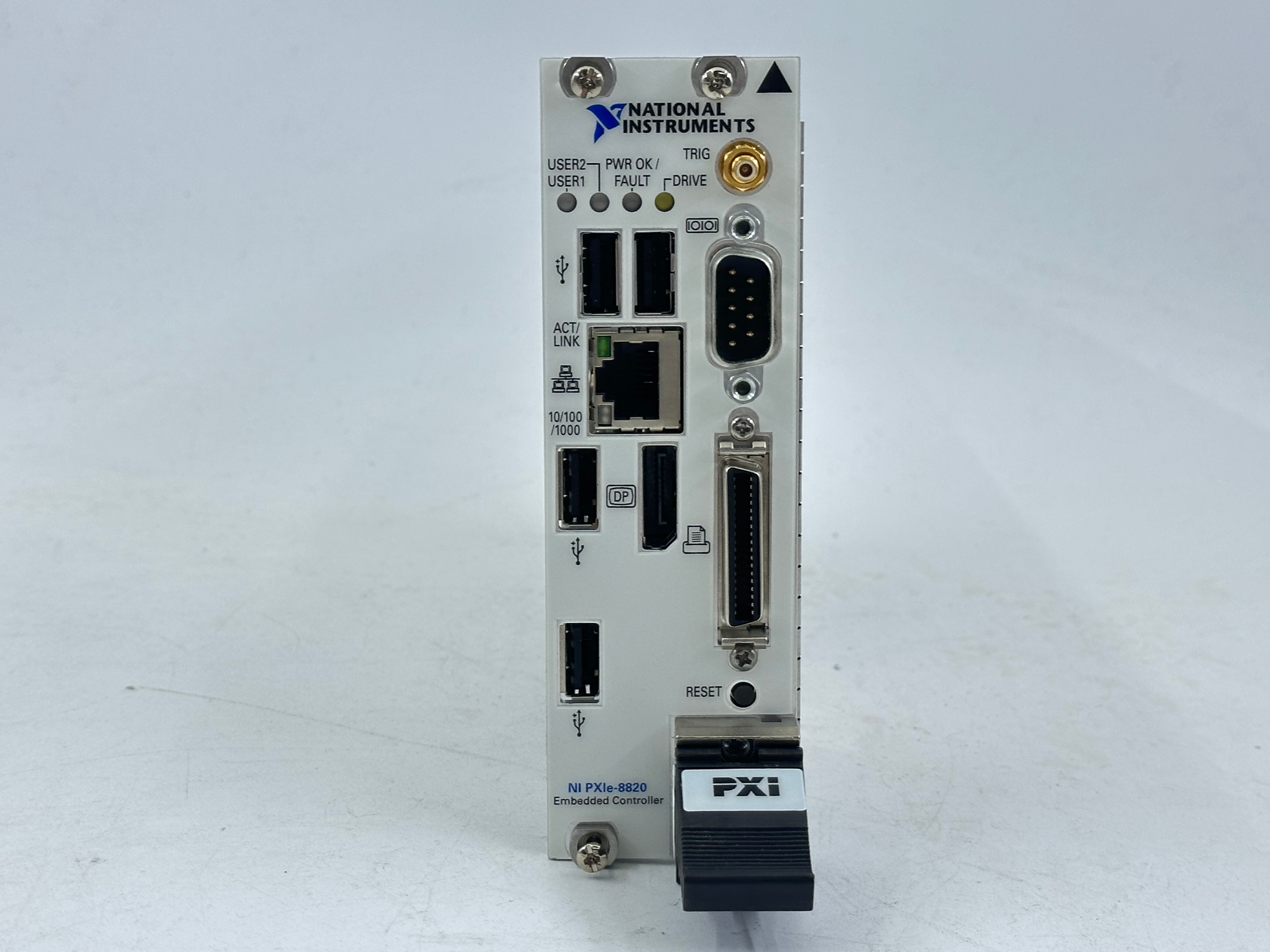

Front I/O: Gigabit LAN, 4×USB2.0, DP video, RS232, parallel port
Form Factor: 2-slot 3U PXIe module, passive cooling without fan
Supported OS: Windows 7 32-bit / NI Linux Real-Time

Application Scenarios

Compact multi-channel DAQ automated test stations, small automotive ECU hardware-in-the-loop simulation, semiconductor component parametric measurement, laboratory RF signal recording, educational PXI modular test teaching platforms.

Standard Package Contents

PXIe-8820 embedded controller, user manual, safety datasheet, driver recovery media.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI PXIe-8820 2-Slot PXIe Embedded Controller PN:782920-04
