Official PN

Standard production PN：781052-01NI

Overview

NI PXIe-6341 is single-slot 3U X Series PXI Express multifunction DAQ integrating analog input, analog output, digital I/O and four 32-bit counter-timers. It provides 16 single-ended / 8 differential 16-bit analog inputs with total 500 kS/s aggregate sampling rate, 2 analog outputs up to 900 kS/s update rate and 24 5V TTL bidirectional digital linesNI. Built-in NI-STC3 timing chip supplies independent analog/digital timing engines, retriggerable measurement and multi-card synchronous trigger via PXI backplane bus. Front VHDCI connector pairs with SHC68 shielded cables and SCB-68/TB-68 terminal blocks to suppress EMI for thermocouple, strain gauge low-level voltage measurement. Four 100 MHz counters support encoder acquisition, PWM generation, frequency counting and event capture, with full-channel overvoltage protection. Supported by NI-DAQmx and LabVIEW, RoHS compliant, widely used for laboratory data logging, component testing and mini motion control platformsNI.

Core Specifications

Analog Input:16 SE /8 DIFF,16-bit,500 kS/s total, ranges ±0.2 V ~ ±10 V
Analog Output:2 channels,16-bit, max 900 kS/s update speed
Digital I/O:24 bidirectional 5 V TTL digital channels
Counter-Timers:4×32-bit 100 MHz counters for PWM, encoder, frequency measurement

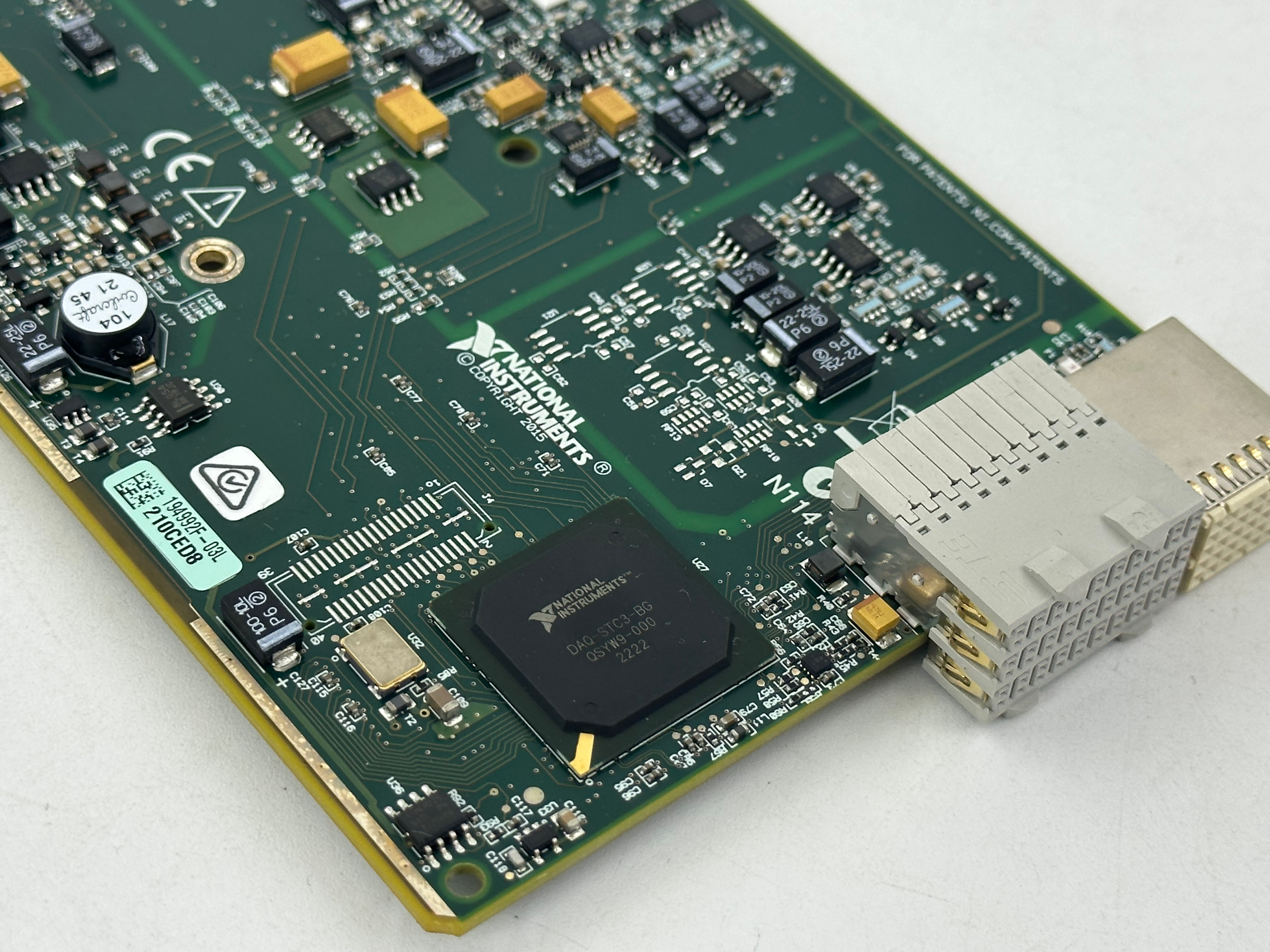

Timing Sync: NI-STC3, 10 ns timing resolution, PXI hardware multi-card trigger

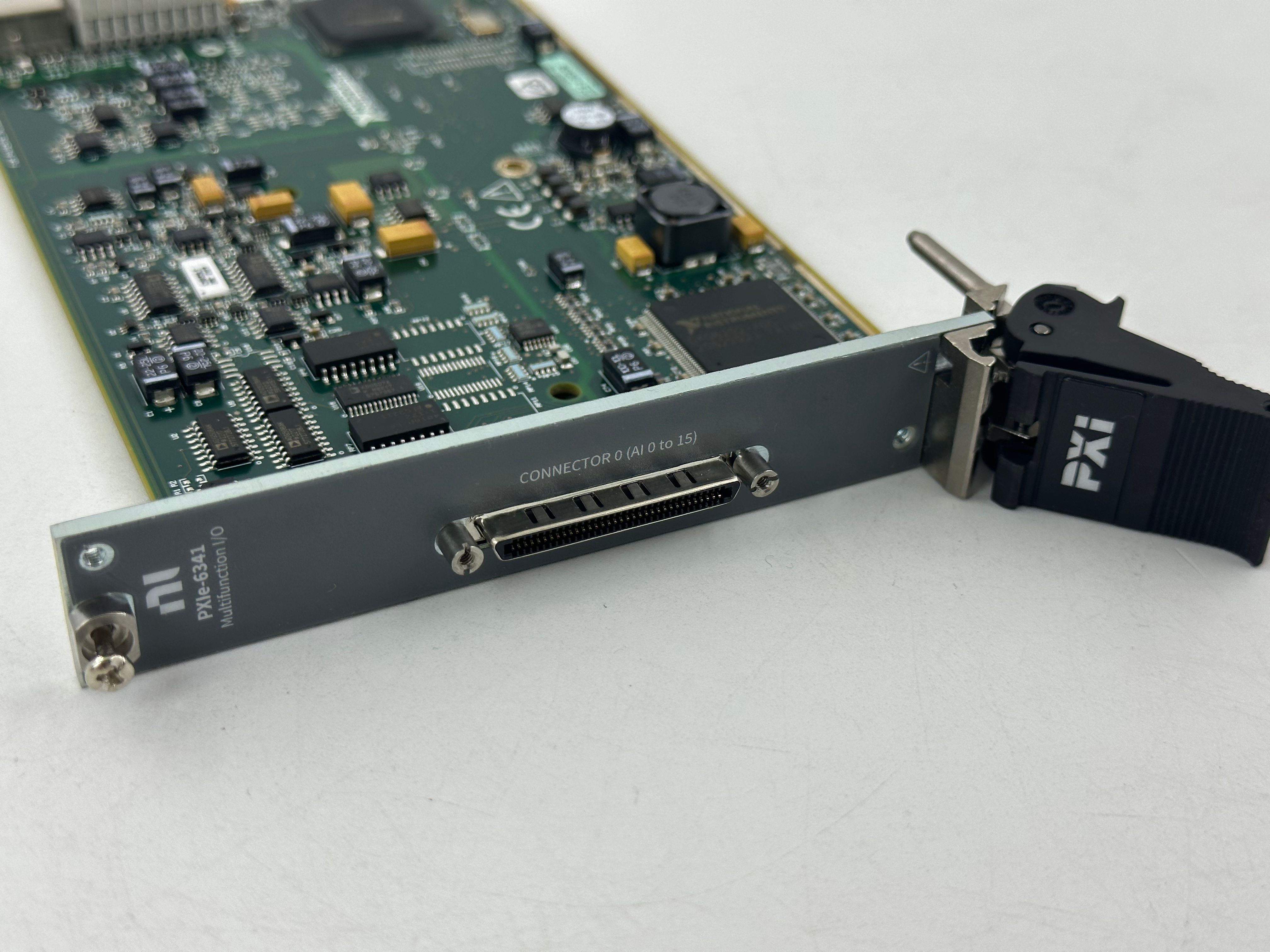

Form Factor: Single-slot 3U PXIe, front VHDCI connector
Operation Temp:0~55℃, lab and light industrial environment

Application Scenarios

Multi-channel thermocouple temperature continuous logging, strain gauge load cell static & dynamic testing, small servo closed-loop motion control, passive component voltage parameter scanning, university multifunction DAQ teaching test benches.

Standard Package Contents

PXIe-6341 DAQ module, NI-DAQmx driver media, user manual, safety datasheet, VHDCI pinout wiring diagram.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI PXIe-6341 X Series 16AI Multifunction PXIe DAQ Module PN:781052-01
