Overview

Official PN：781093-01

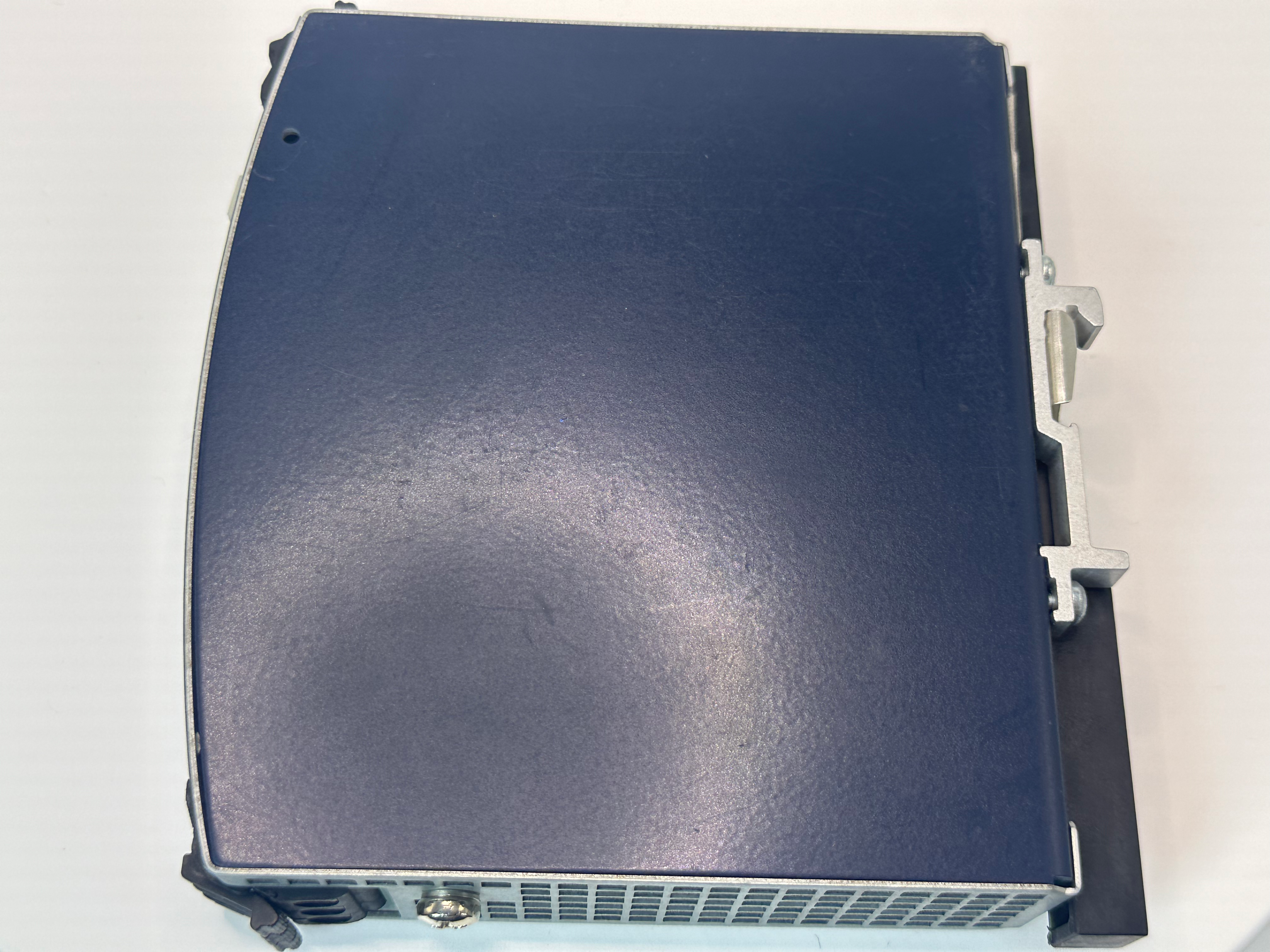

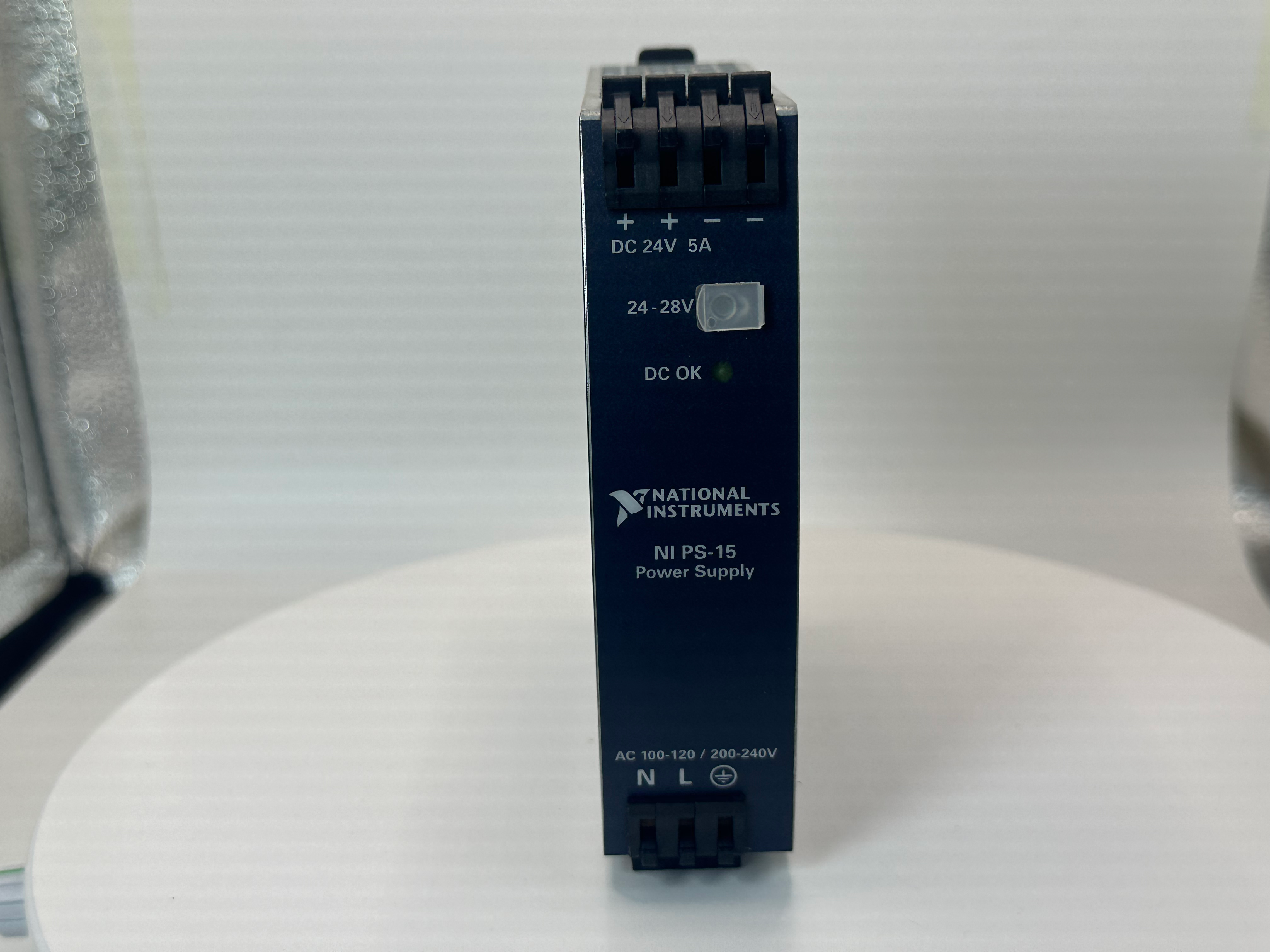

NI PS‑15 is a compact DIN rail industrial switching power supply tailored for NI test and measurement hardware, including CompactDAQ, CompactRIO single-board controllers, smart cameras and industrial touch panel PCs. It delivers adjustable 24 VDC ~ 28 VDC output with rated 5 A / 120 W power, supporting 20% continuous overload reserve below 45 ℃ ambient temperature. Equipped with tool-free spring-clamp wiring terminals and built-in DC OK status indicator LED, it accepts universal wide-range AC input (90–264 VAC). Rugged wide-temperature design (-25 ℃ ~ +60 ℃) with complete EMC surge/ESD protection supports series and parallel connection for multi-system power expansion, widely deployed in automotive HIL, factory automation and lab measurement cabinet setupsNI.

Core Specifications

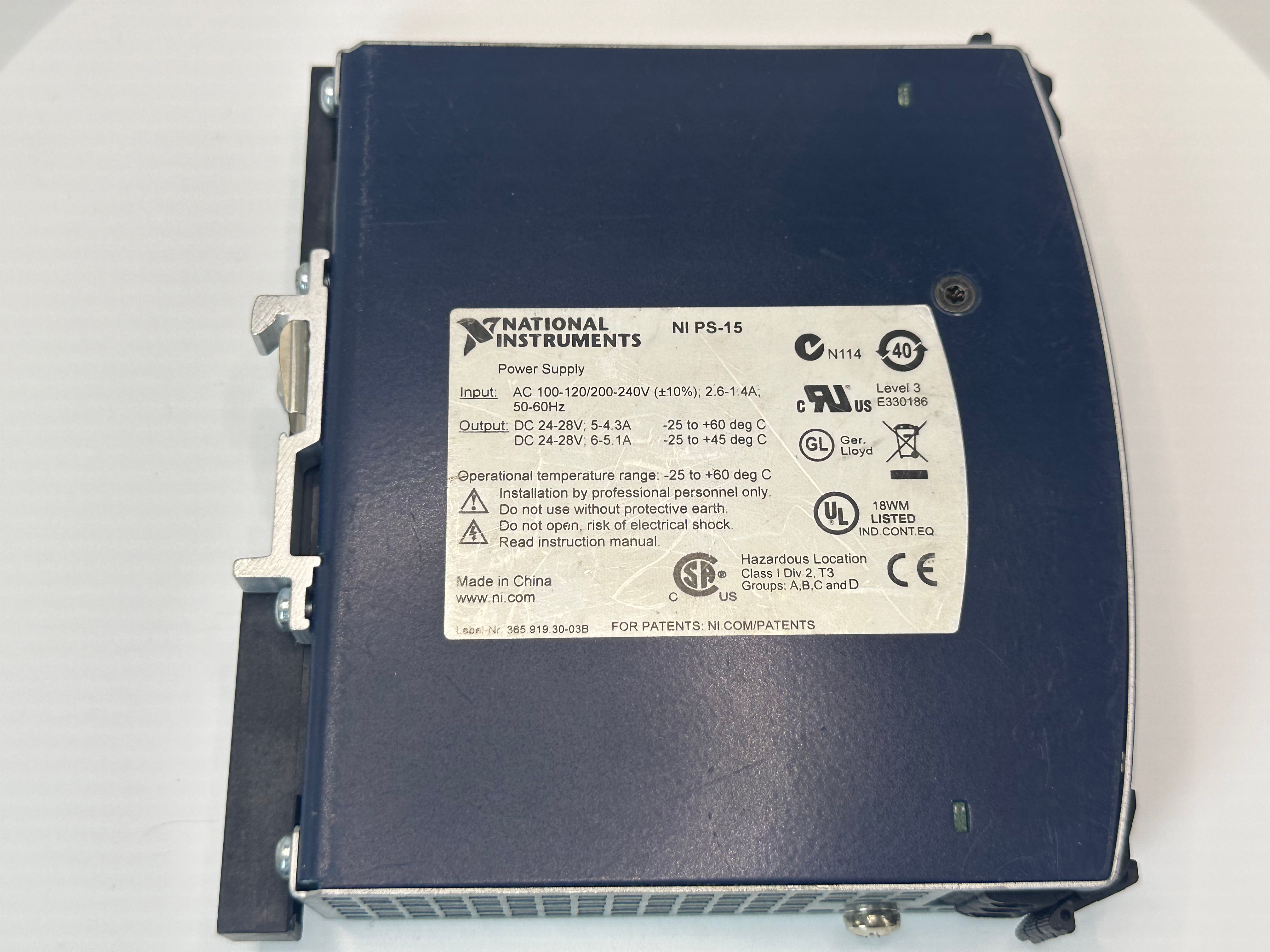

Electrical Output: 24–28 VDC adjustable, rated 5 A (120 W), max 6 A overload within 45 ℃ environment
AC Input: Universal 90–132 / 180–264 VAC single-phase, low inrush current

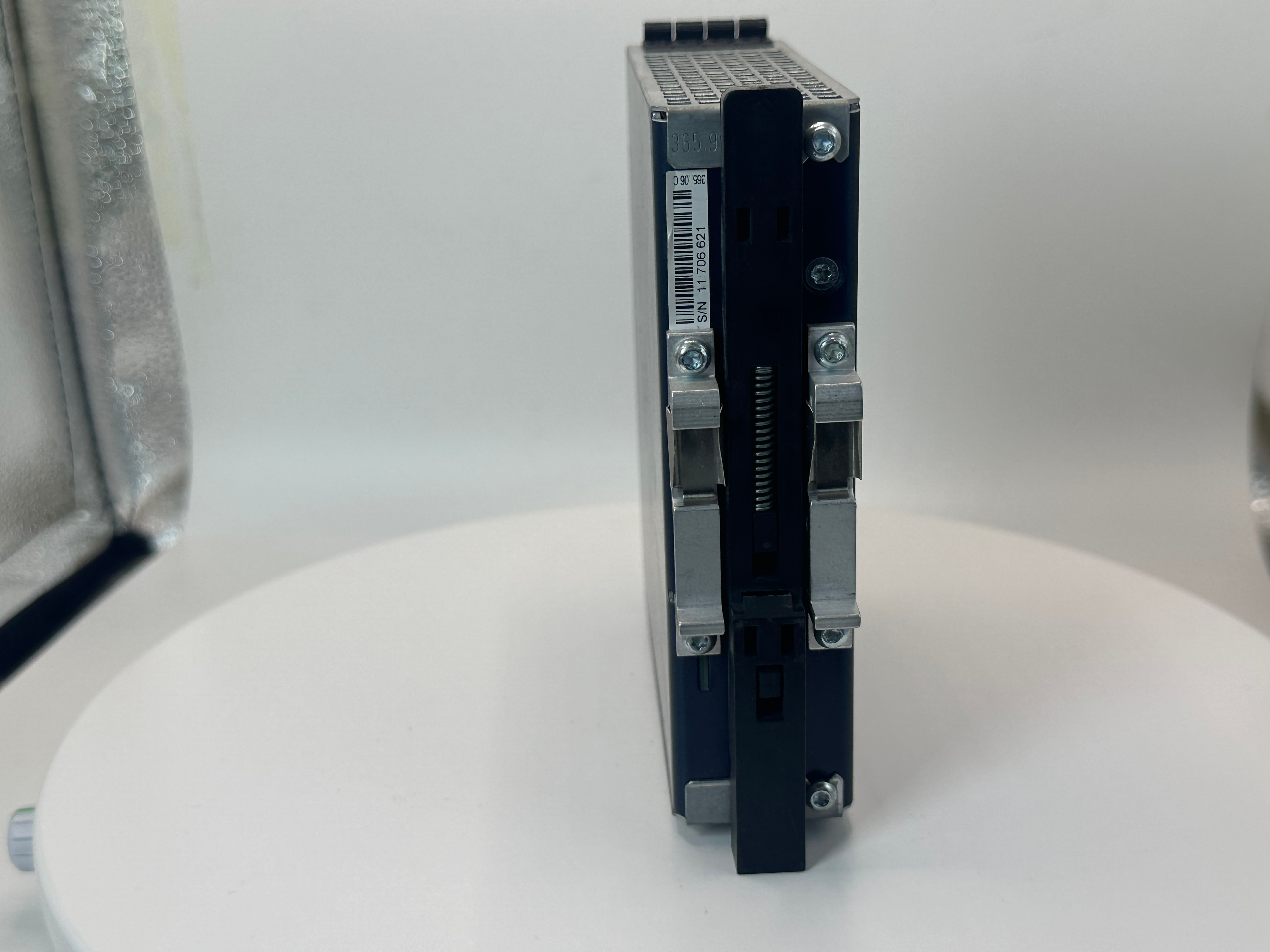

Terminals & Mount: Toolless spring-clamp terminals, standard DIN rail mounting bracket included; optional side/panel mount kits
Environmental Rating: Operating -25 ℃ ~ +60 ℃, storage -40 ℃ ~ +70 ℃, shock/vibration resistant for industrial cabinets
Protection Circuits: Overvoltage, overcurrent, short-circuit, thermal shutdown, MOV surge suppression
Certifications: UL safety, CE EMC compliant, meets EN 61000 industrial immunity standards
Compatibility: Official matched power source for all NI cDAQ, cRIO, vision and embedded real-time controllers

Application Scenarios

Automotive hardware-in-the-loop test cabinet power supply, distributed industrial DAQ system power, machine vision smart camera power feed, embedded real-time control system power, university measurement laboratory rack power distribution.

Standard Package Contents

NI PS-15 power supply unit, integrated DIN rail clip, quick installation guide, safety & compliance datasheet.
