NI 779500-03 is factory double-shielded Gen 1 x1 copper MXI-Express cable with total length of 3 meters, designed to link PCIe host controller cards and remote PXI/PXIe chassis, also supports daisy-chaining multiple PXI chassis to expand test channels. It adopts dedicated screw-locked MXI connectors to avoid disconnection caused by cabinet vibration; double-layer foil shielding cuts EMI interference and signal attenuation, maintaining steady bidirectional 250 MB/s PCIe Gen1 x1 bandwidth. Compatible with PCIe-8361, PXIe-8360, cRIO-9081 and all Gen1 MXI-Express host/chassis hardware. Molded strain relief at both ends prevents wire fracture after repeated bending, RoHS & REACH certified, widely applied in automotive HIL simulation, aerospace distributed testing and semiconductor multi-channel parametric measurement systems.

Core Specifications

Bus Protocol: MXI-Express Gen 1 x1, compliant with PCI Express 1.0a standarddownload.ni.com
Cable Length: 3 meters, double full-shielded copper round industrial cable
Connector: 18-pin MXI dedicated male-to-male jackscrew lock connector, anti-vibration fixed installationdownload.ni.com
Transmission Bandwidth: Continuous bidirectional 250 MB/s throughput
Hardware Compatibility: PCIe-8361, PXIe-8360, cRIO-9081 Gen1 MXI remote controller series
Mechanical Feature: Integrated strain relief, flexible wire for complex cabinet routing layout
Operating Condition: 0~55℃ working temperature, indoor lab & industrial measurement environment

Application Scenarios

Automotive ECU hardware-in-the-loop real-time simulation, aerospace multi-PXI chassis distributed signal acquisition, semiconductor component multi-channel parametric test stations, large industrial automated measurement platforms, university modular PXI teaching laboratories.

Standard Package Contents

779500-03 MXI-Express cable assembly, official datasheet, pinout wiring reference guide.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

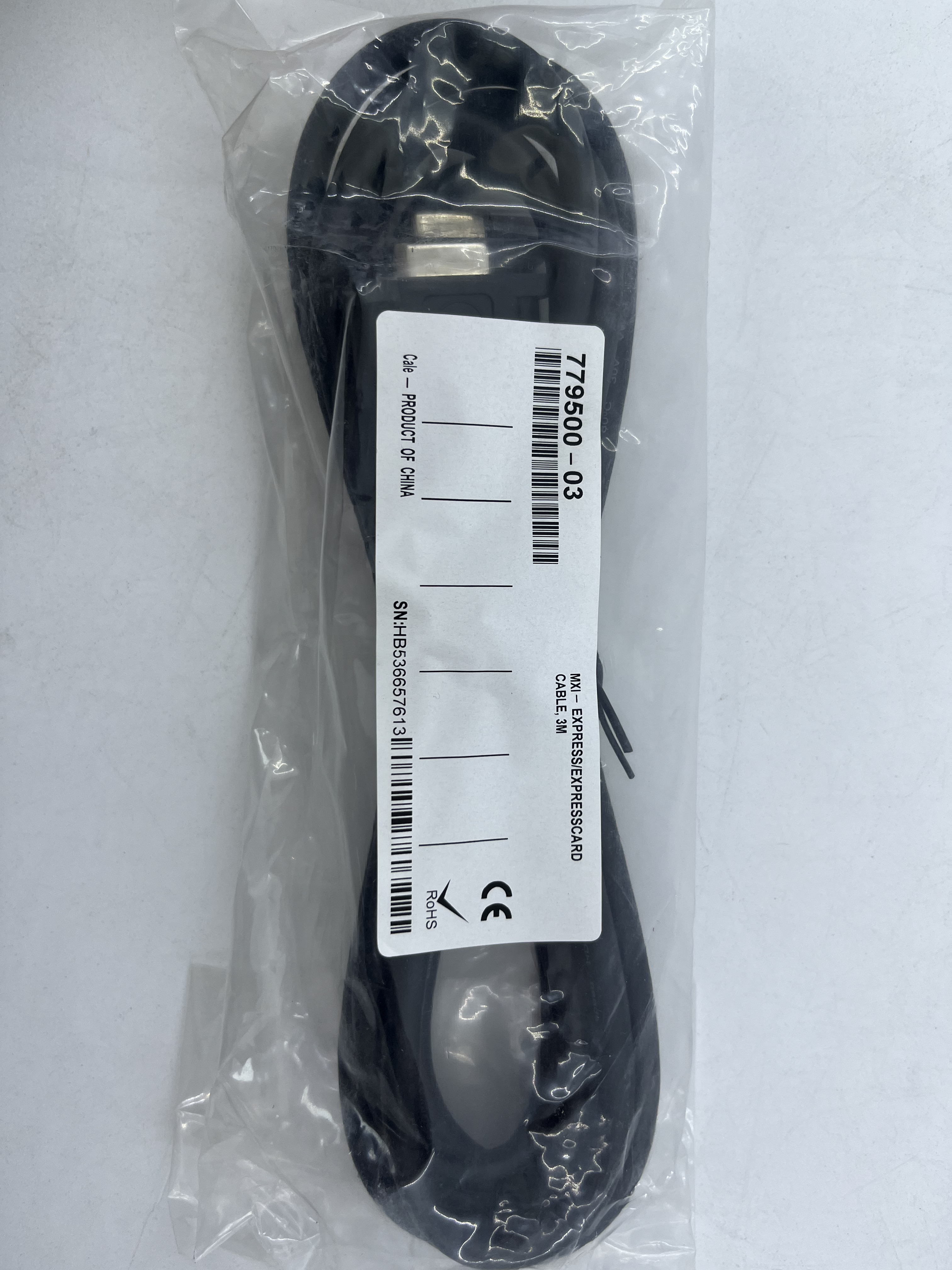

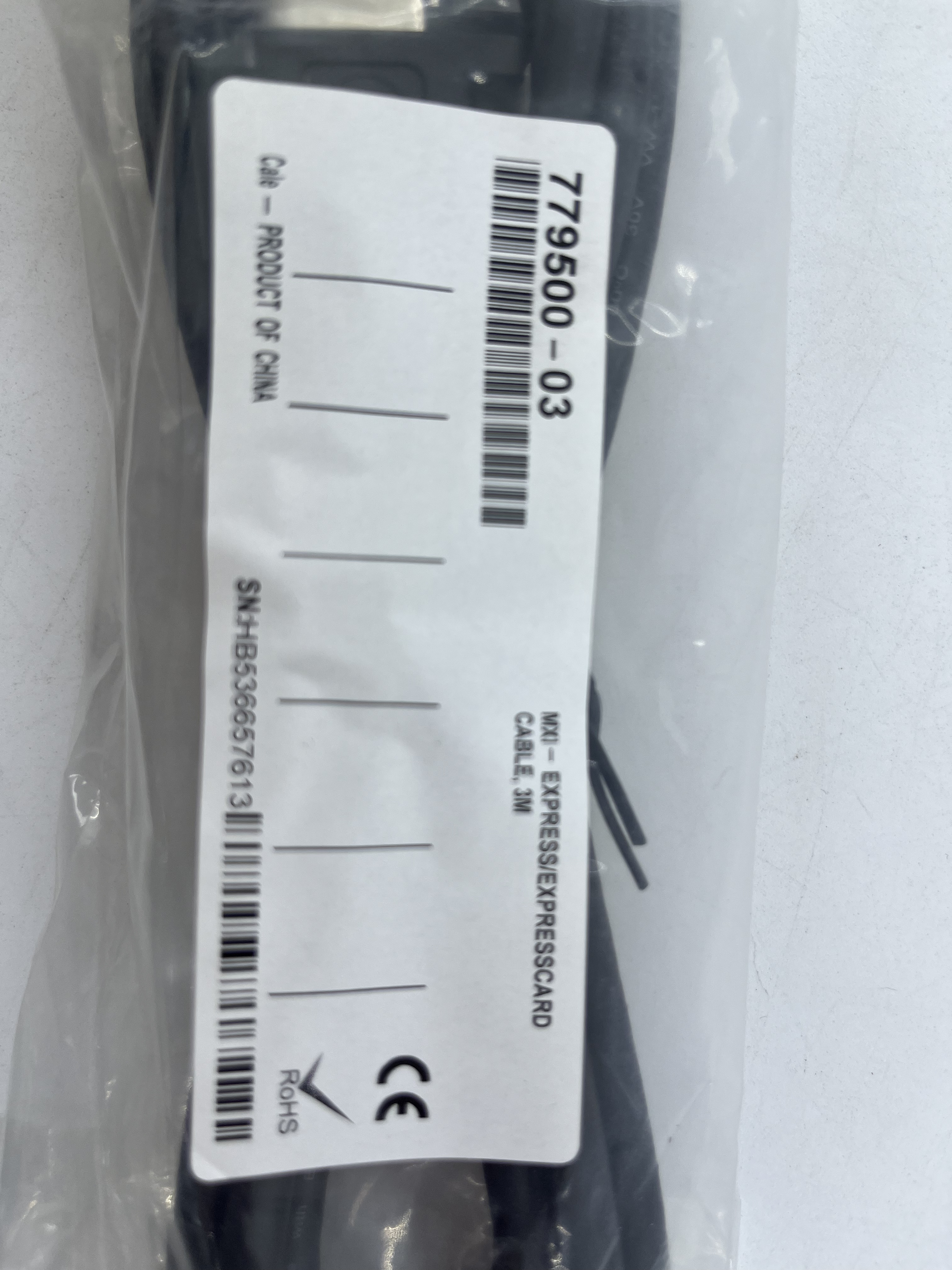

NI MXI-Express Gen1 x1 Copper Interconnect Cable 3m PN:779500-03
