Official PN

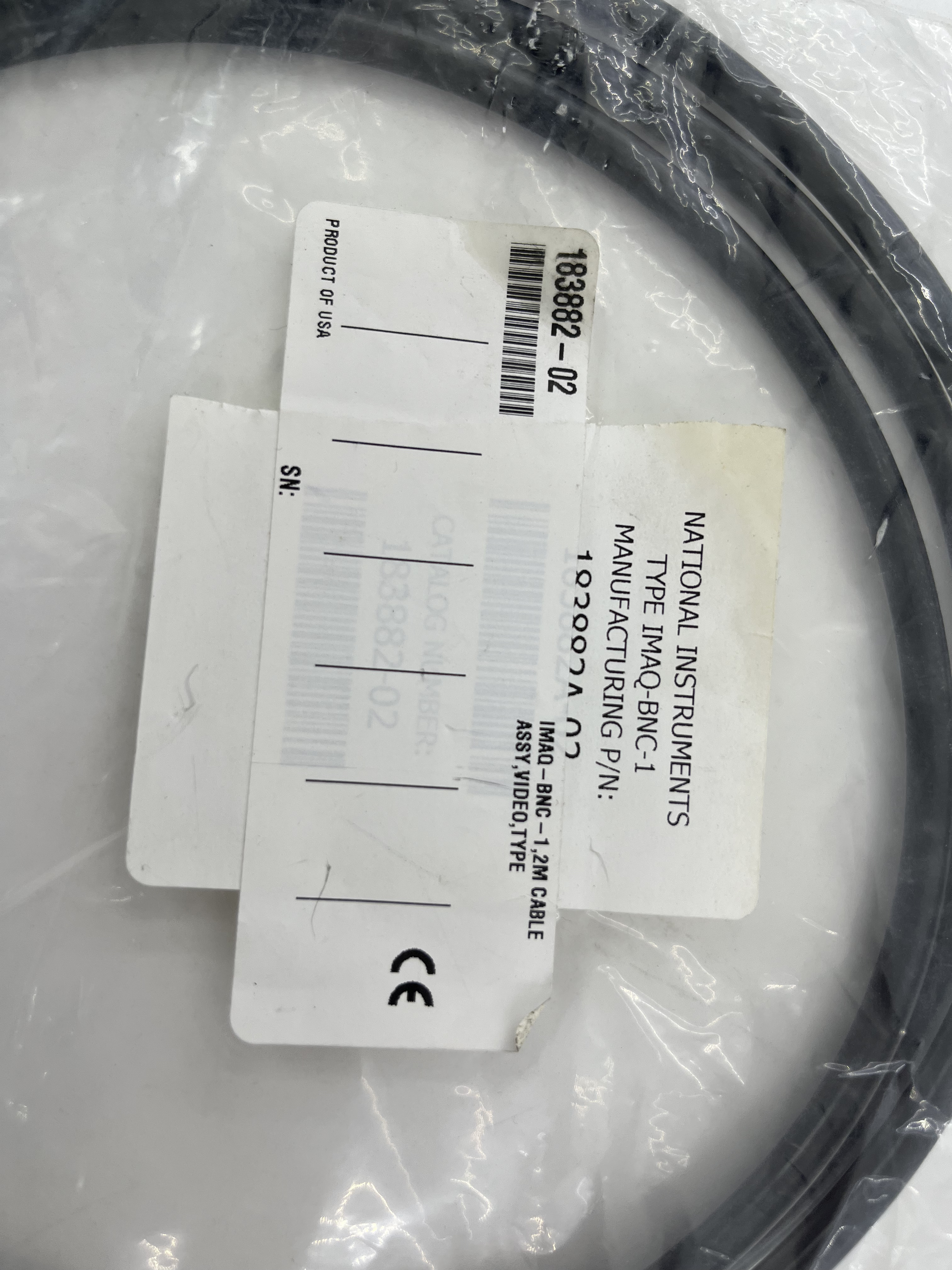

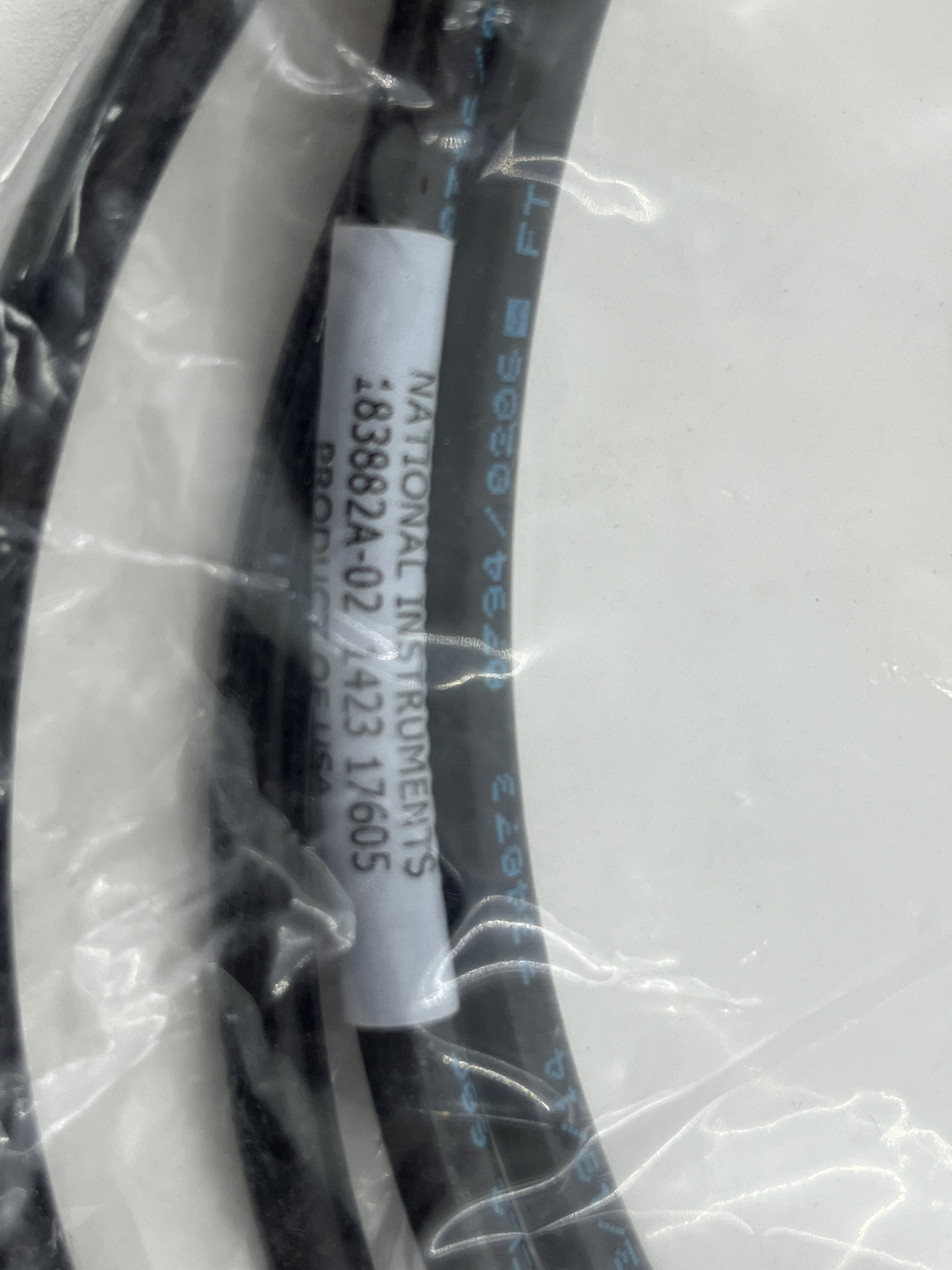

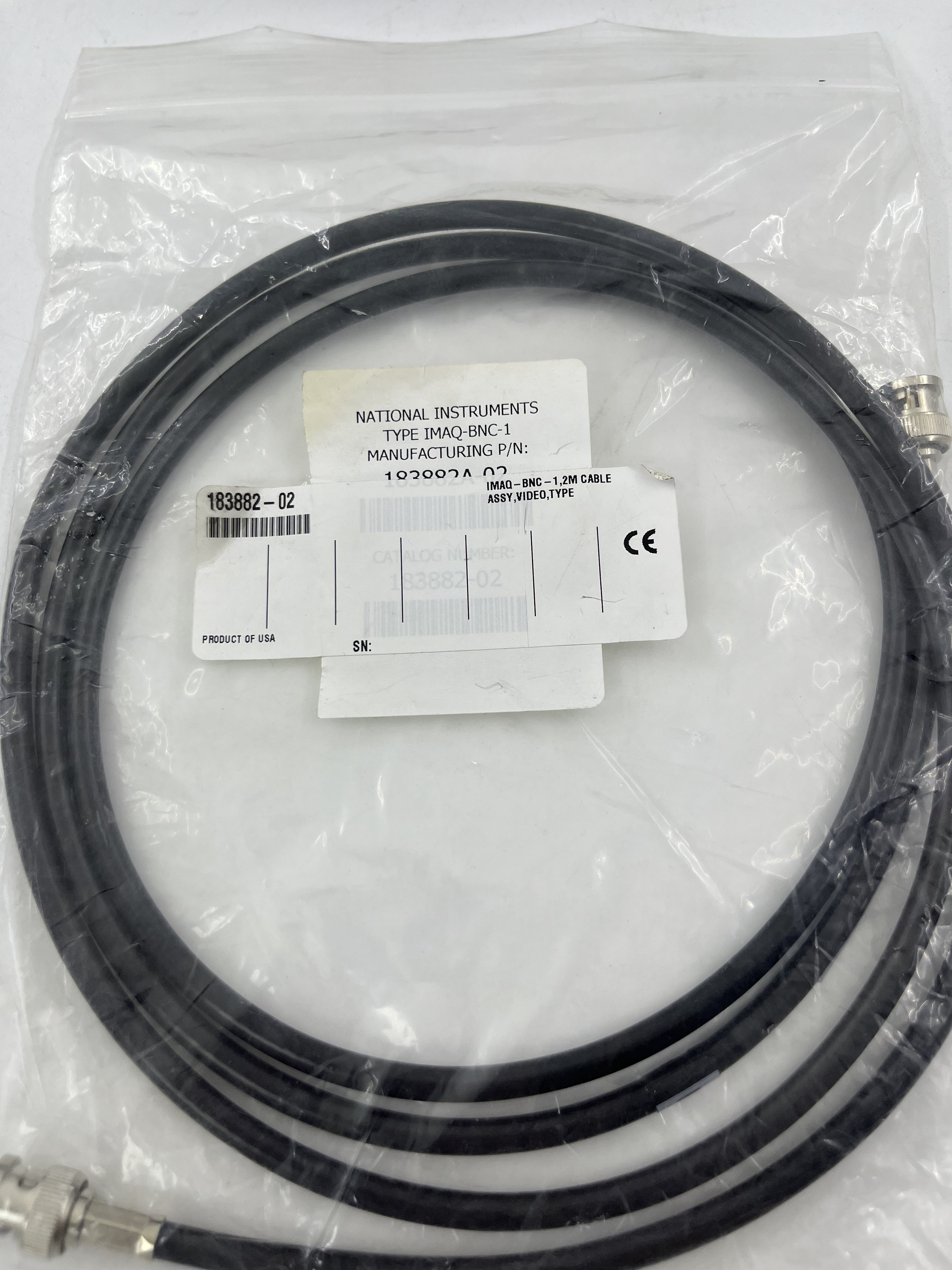

183882-02 (IMAQ-BNC-1 2m analog camera coaxial cable)

Overview

NI 183882-02 is factory-assembled 2-meter shielded coaxial BNC camera cable, also named IMAQ-BNC-1, exclusively for analog machine vision systems matched with NI IMAQ PCI/PXI frame grabbers. Double-ended female BNC connectors adopt standard 75Ω video impedance matching, internal full shielding suppresses EMI noise to eliminate video flicker and signal distortion. Compatible with JAI, Sony analog CCD/CMOS industrial cameras, transmits composite analog video signals stably over 2 meters distance. Molded integrated strain relief at both ends prevents core wire fracture under cabinet vibration and repeated plugging. RoHS compliant, paired with NI-IMAQdx driver software, widely deployed for industrial surface defect inspection, positioning measurement and laboratory vision testing platforms.

Core Specifications

Connector Type: Dual female BNC coaxial connectors
Cable Length: 2 meters, 75Ω characteristic impedance for analog video
Shielding Structure: Double-layer foil shielding to reduce electromagnetic interference
Compatible Hardware: NI IMAQ PCI-1410/1422/1424 frame grabbers, JAI/Sony analog industrial cameras
Mechanical Design: Molded strain relief on both BNC terminals, anti-breakage for long-term cabinet layout
Software Support: NI-IMAQ, IMAQdx, LabVIEW Vision Development Module
Compliance: RoHS & REACH certified, indoor industrial vision inspection environment

Application Scenarios

Industrial product surface defect visual inspection, automated assembly positioning measurement, semiconductor wafer analog image acquisition, laboratory analog camera vision algorithm verification, packaging machine visual quality monitoring.

Standard Package Contents

183882-02 IMAQ-BNC-1 coaxial camera cable assembly, cable specification datasheet, BNC wiring reference guide.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.
