Overview

Official PN：783848-01（标准版无 TSN）、784774-01（Sync 带 TSN 同步）

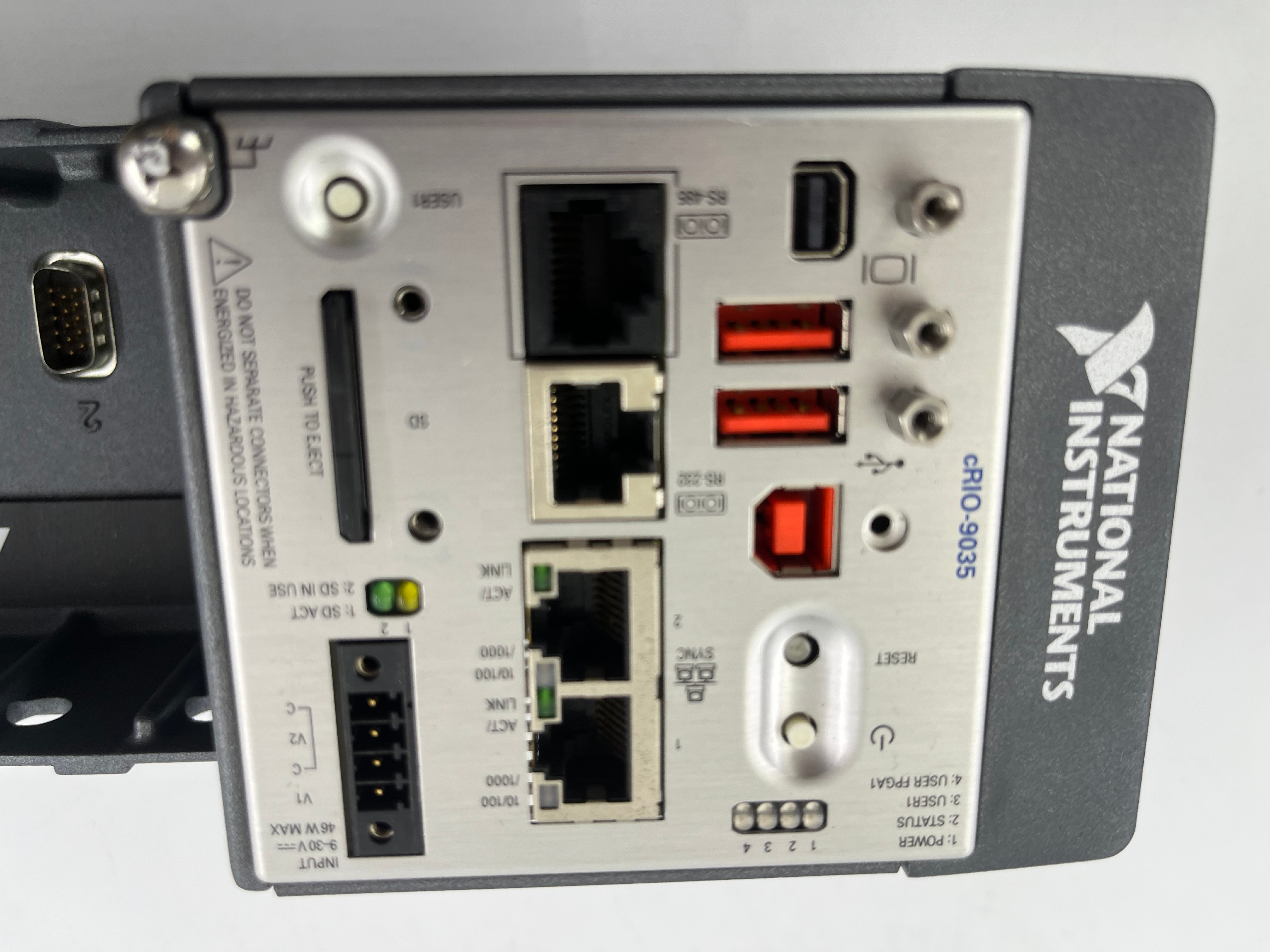

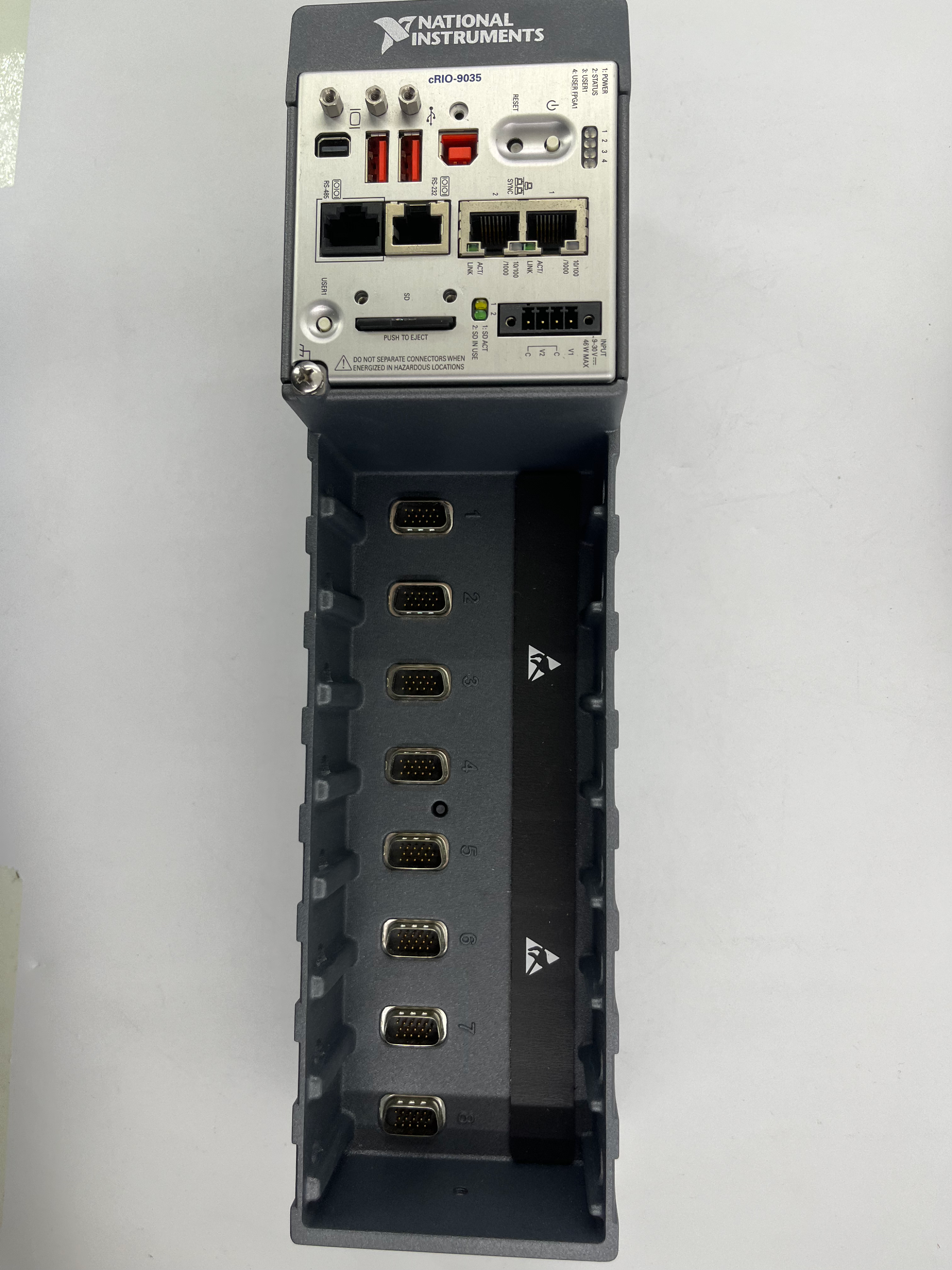

NI cRIO‑9035 is a fanless rugged 8-slot CompactRIO embedded controller integrating dual-core Intel Atom E3825 real-time CPU and Xilinx Kintex‑7 70T reconfigurable FPGA, running NI Linux Real-Time 64-bit OS. Equipped with 1 GB DDR3 RAM + 8 GB local storage, dual Gigabit Ethernet, dual USB Host, USB Device, two RS232 serial ports and Mini DisplayPort HMI outputNI. It supports hot-swappable C Series I/O modules for mixed sensor measurement, wide industrial temperature range -20 ℃ ~ 55 ℃, high shock/vibration resistance without cooling fans. Programmed via LabVIEW Real-Time & FPGA modules, deployed for autonomous machinery control, vehicle HIL, structural monitoring and industrial automation systems.

Core Specifications

Core Hardware: 1.33 GHz dual-core Atom E3825 CPU, Kintex‑7 70T FPGA,1GB DRAM + 8GB storage

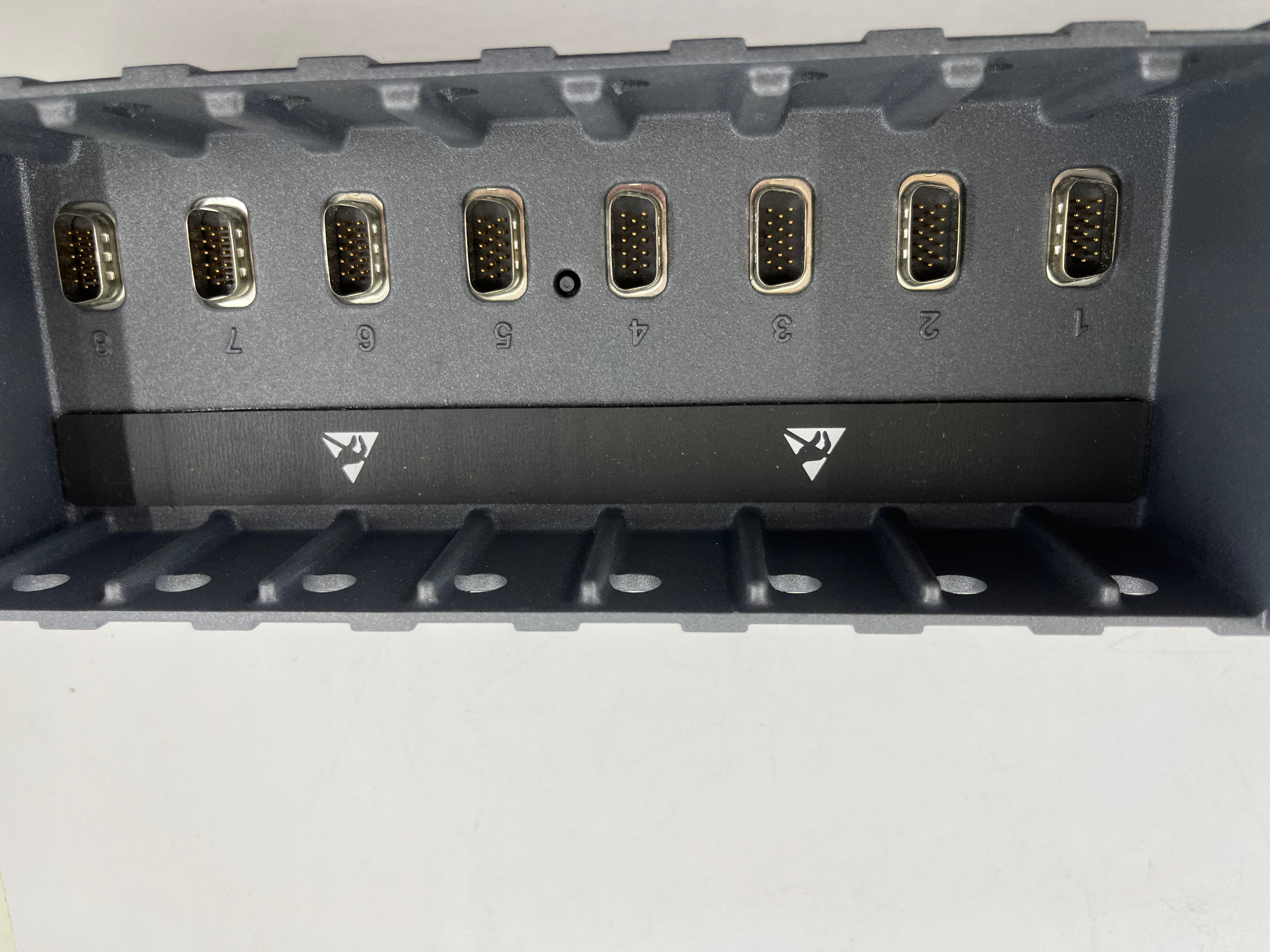

I/O Slot: 8 hot-swappable C Series signal conditioning module slots
Communication: Dual Gigabit Ethernet (TSN supported on 784774-01), USB, RS232, Mini DP, SDHC slot

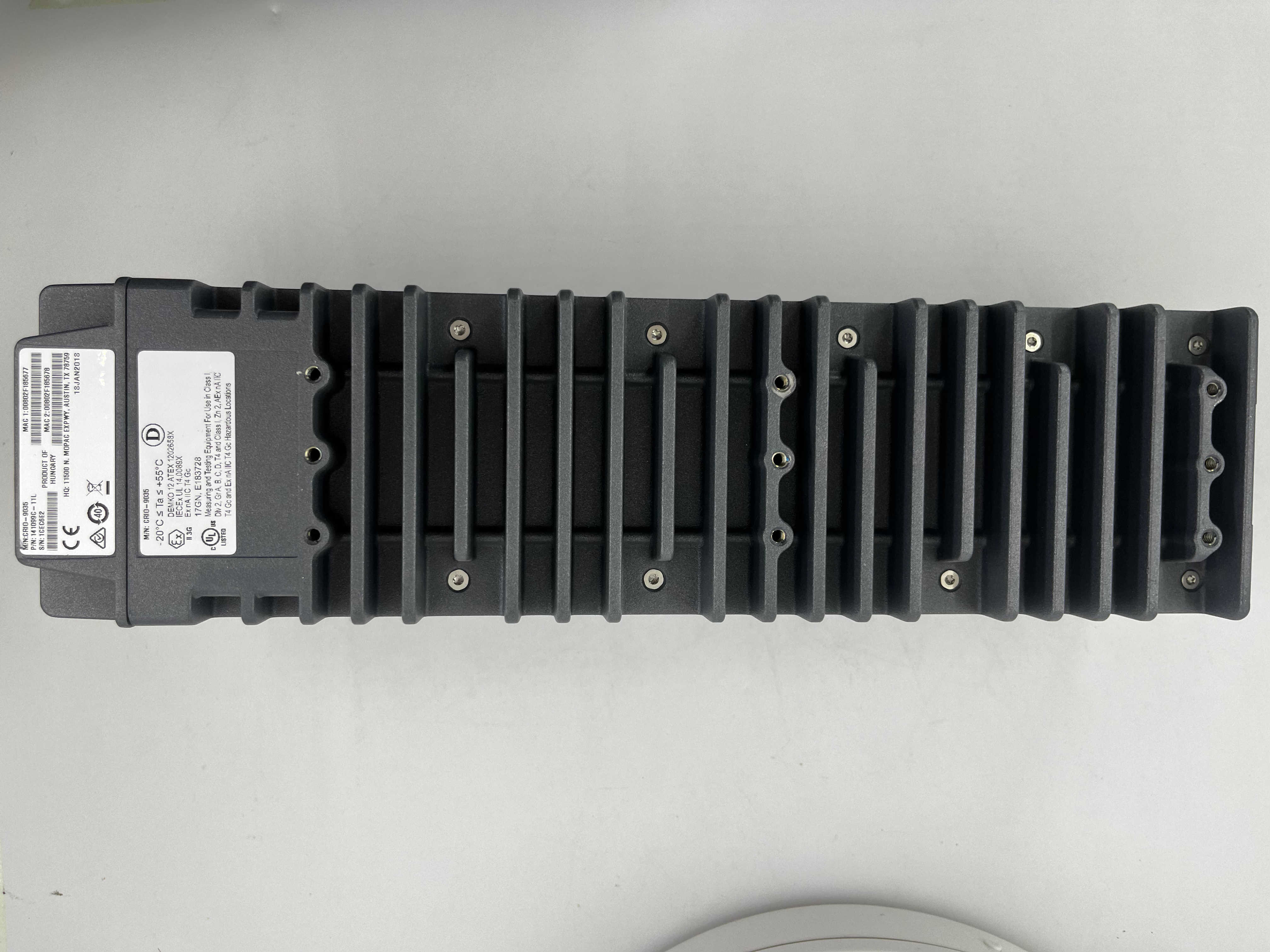

Environmental Rating: Fanless design, operating temp -20~55℃, industrial shock & vibration certified
Timing & Sync: Hardware FPGA deterministic timing, front I/O trigger bus for multi-unit synchronization
Software Stack: LabVIEW RT, LabVIEW FPGA, NI Linux Real-Time, C/C++ development support
Mounting: DIN rail & panel mount compatible, compact industrial cabinet form factor

Application Scenarios

Automotive hardware-in-the-loop test systems, industrial machinery closed-loop motion control, energy equipment multi-sensor monitoring, aerospace structural vibration strain testing, distributed industrial IoT real-time control platforms.

Standard Package Contents

cRIO-9035 controller unit, mounting hardware, installation guide, safety compliance datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI cRIO-9035 8-Slot Real-Time FPGA Industrial Controller PN:783848-01 /784774-01
