Overview

Official PN：781156-01NI

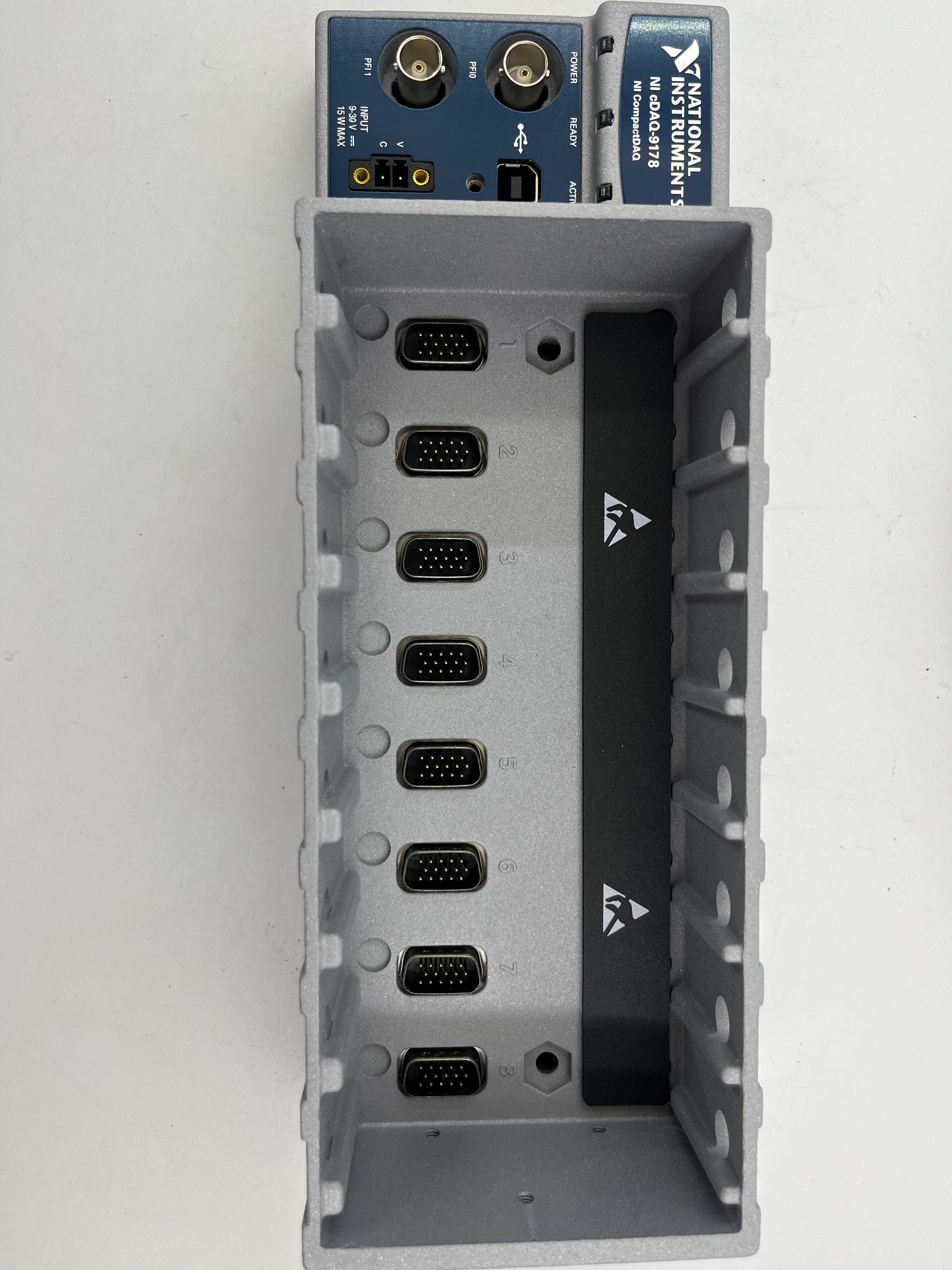

NI cDAQ‑9178 is an 8-slot Hi-Speed USB 2.0 CompactDAQ portable chassis compatible with all hot-swappable NI C Series I/O modules for mixed-signal measurement systemsNI. It integrates four onboard 32-bit counter/timers for encoder, frequency, pulse and PWM generation tasks, with two front-panel BNC ports supporting external clock & trigger signals up to 1 MHz. Timing resolution reaches 12.5 ns with 50 ppm clock accuracy, supports multiple independent hardware-timed tasks and separate sampling rates for different sensor typesdownload.ni.com. Operating temperature spans -20 ℃ ~ 55 ℃ industrial wide range, powered by included desktop AC-DC adapter (power cord sold separately). Fully supported by NI‑DAQmx, LabVIEW and FlexLogger, widely deployed for temperature, vibration, strain, 4–20mA and encoder portable test benches.

Core Specifications

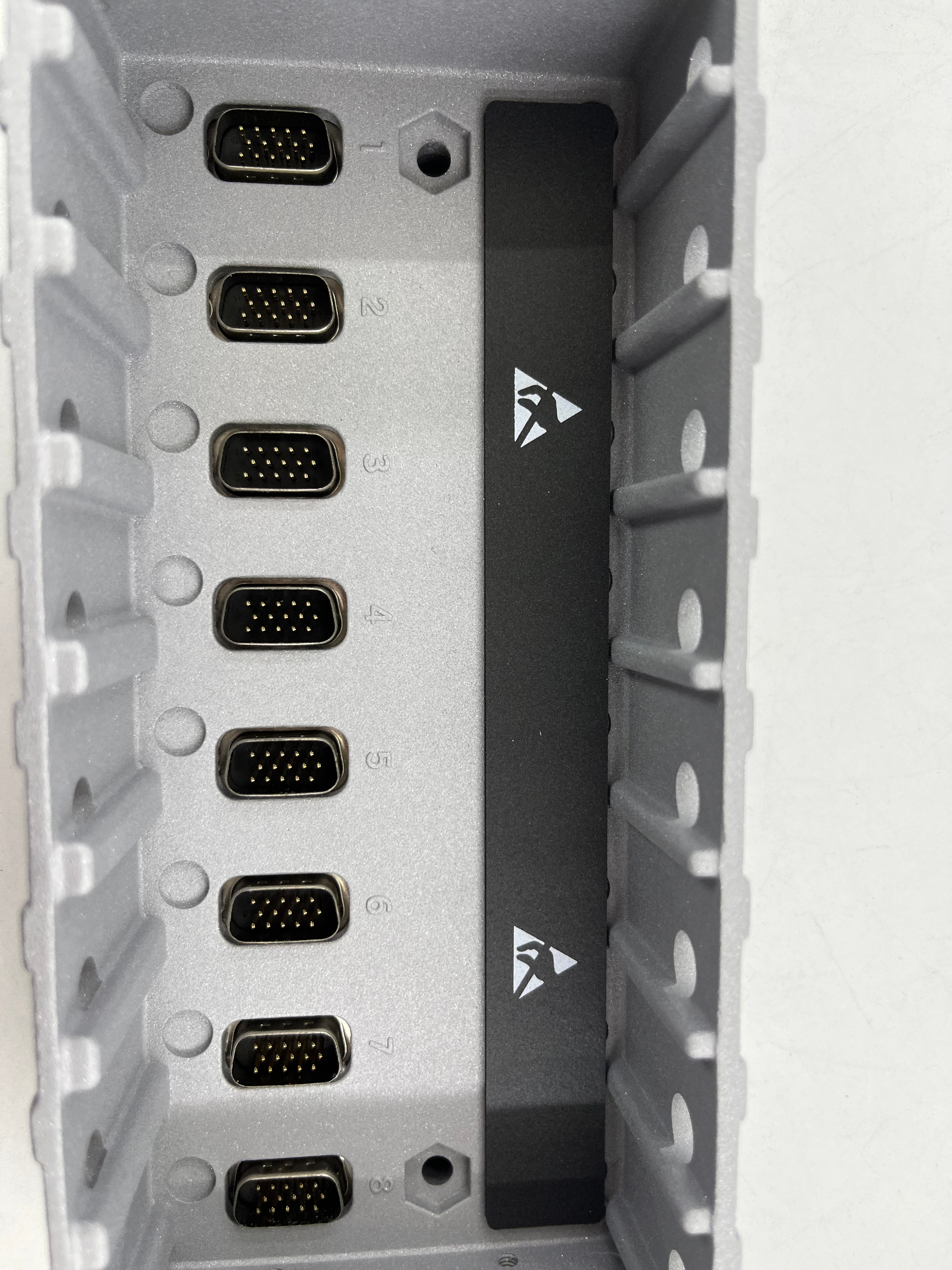

Slot Resource: 8 hot-swappable C Series mixed I/O slots (AI/AO/DIO/counter)
Communication: Hi-Speed USB 2.0 with thumbscrew lock USB cable for anti-loosening

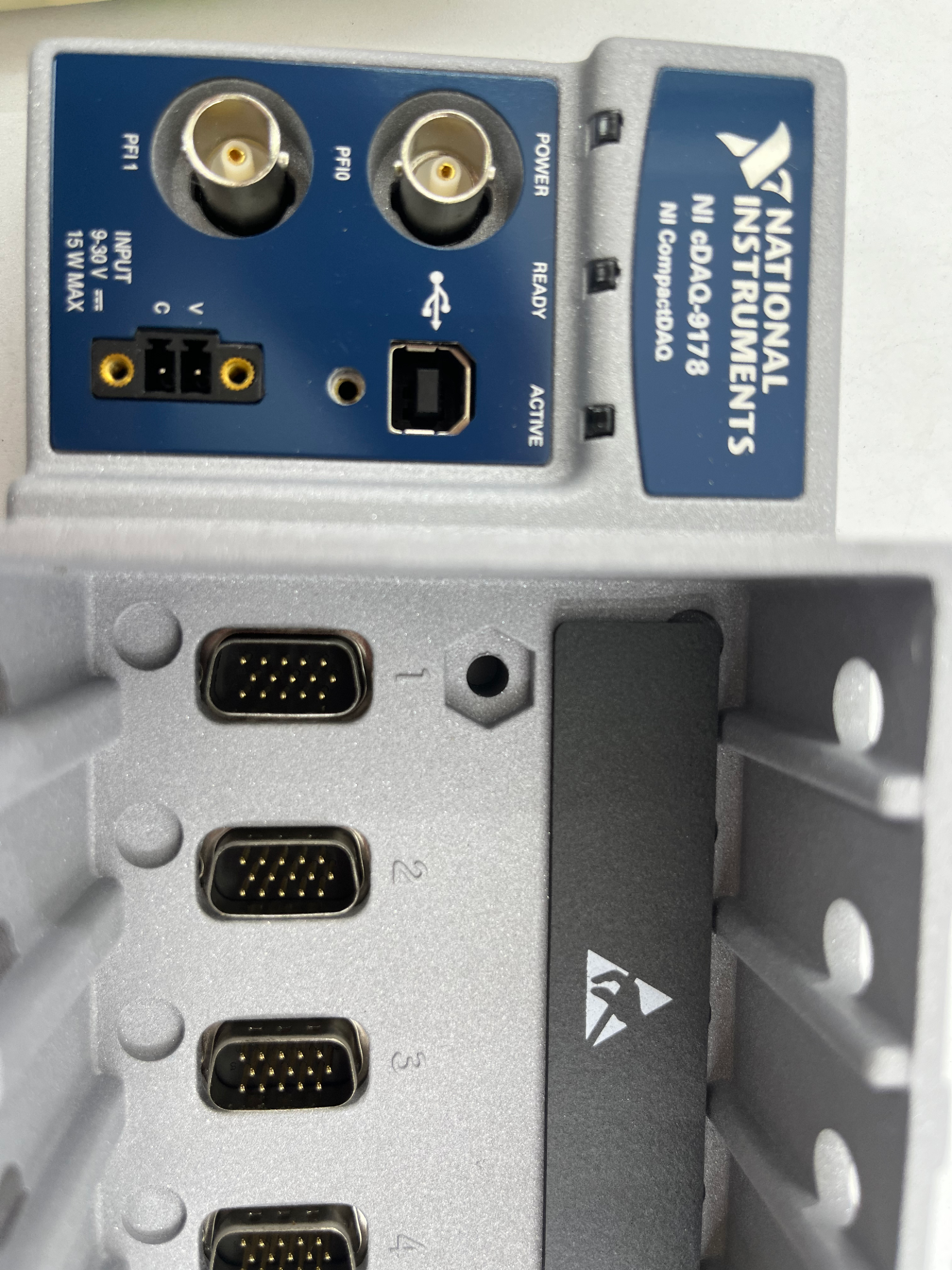

Timing & Counter: 12.5 ns timing resolution, 4×32-bit counters, dual BNC trigger/clock up to 1 MHz
Environmental Range: Operating -20~55℃, storage -40~85℃, industrial portable grade
Power Supply: Matched desktop AC-DC power adapter included, power cord not included
Mechanical Design: Compact desktop form factor, lightweight for field & lab portable measurement
Software Compatibility: NI‑DAQmx, LabVIEW, FlexLogger, LabWindows/CVI, Measurement Studio

Application Scenarios

Portable automotive multi-sensor component testing, mechanical vibration & IEPE acceleration monitoring, industrial field temperature/4–20mA data logging, structural strain & load cell measurement, university multi-channel mixed signal teaching laboratories.

Standard Package Contents

cDAQ-9178 8-slot USB chassis, desktop power adapter, lockable USB cable, installation quick guide, safety compliance datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI cDAQ-9178 8-Slot USB2.0 CompactDAQ Chassis with BNC Trigger PN:781156-01
