Overview

Official PN：781157-01

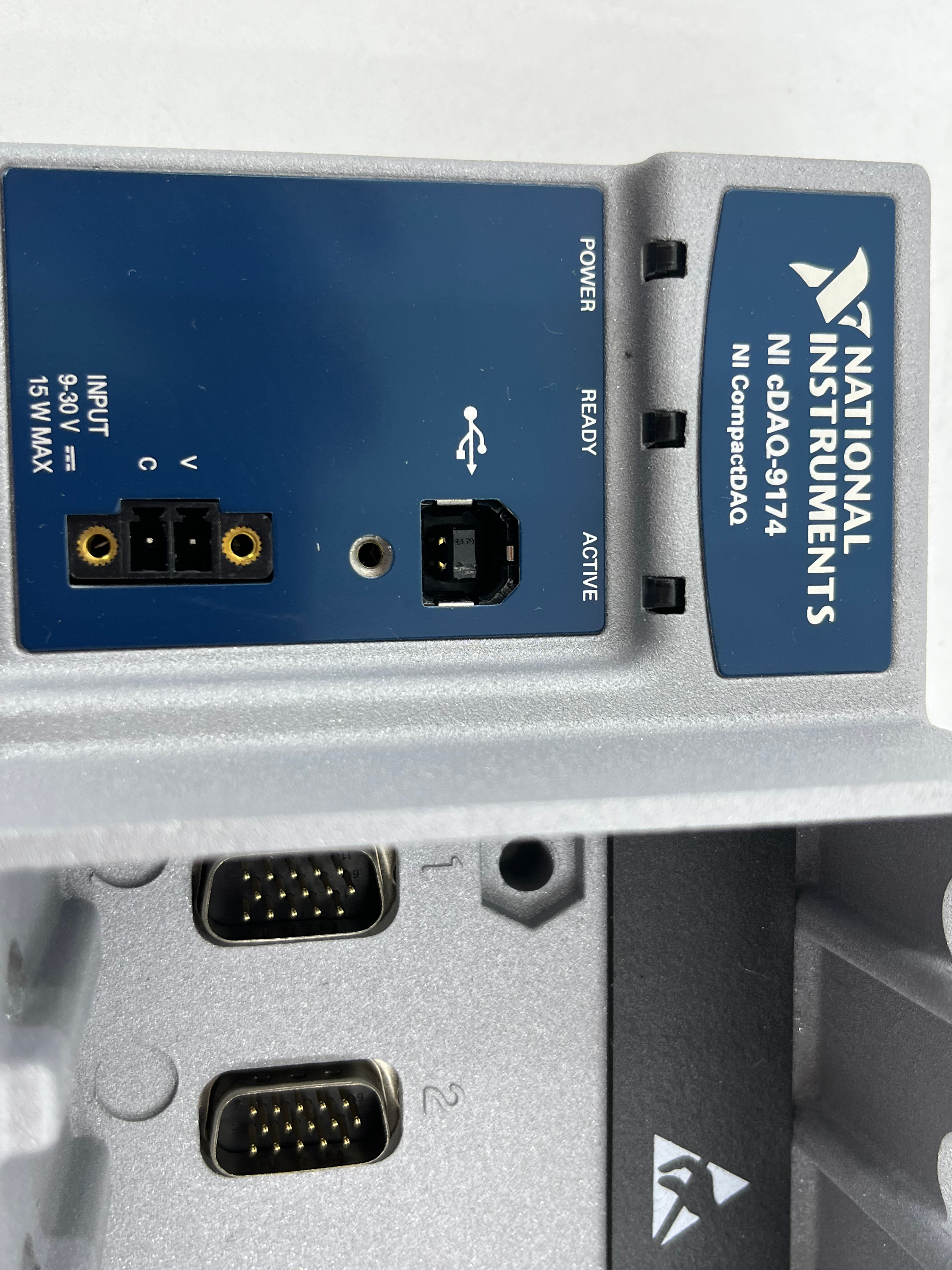

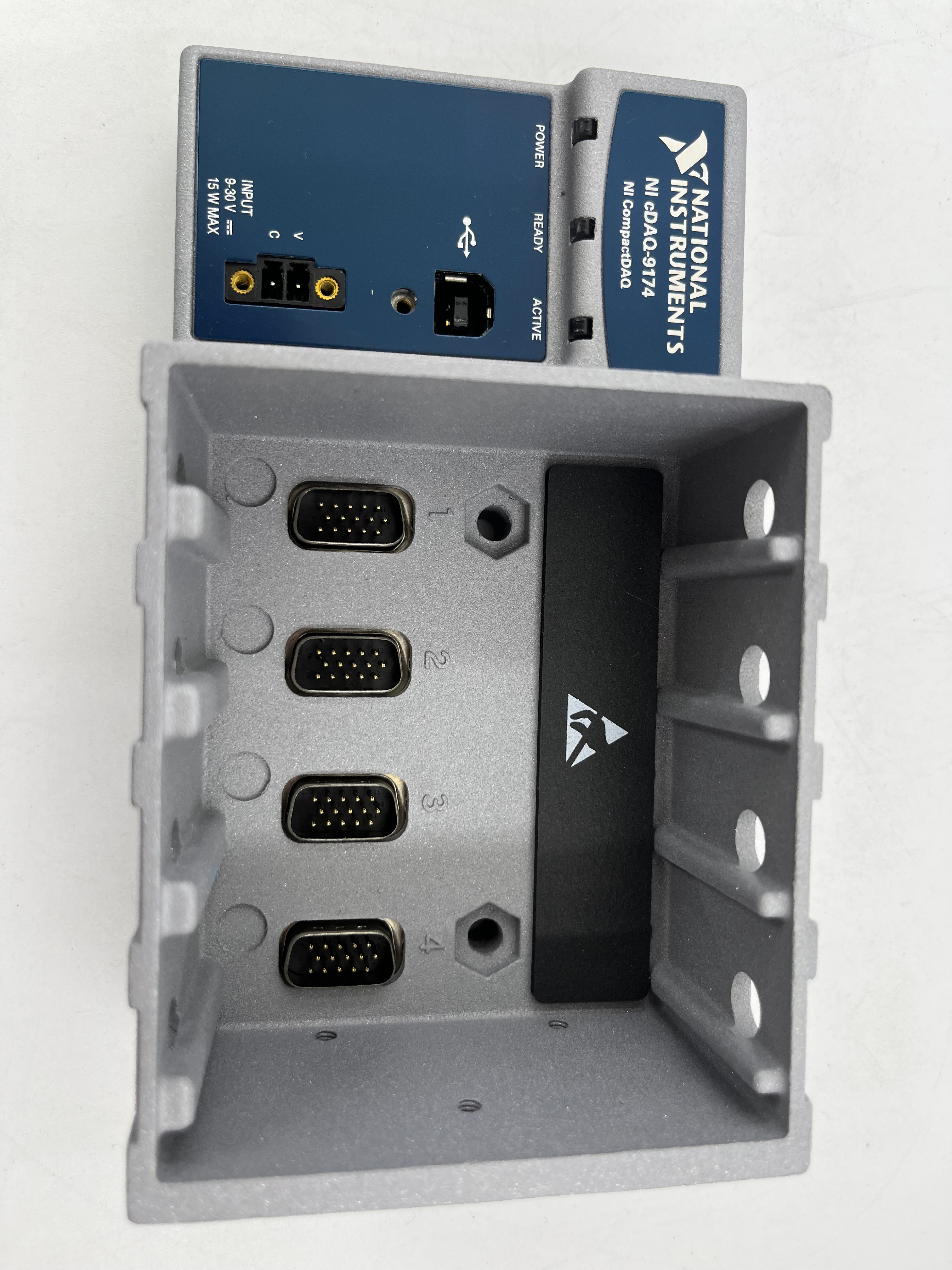

NI cDAQ‑9174 is a compact 4-slot USB 2.0 CompactDAQ chassis for portable small-scale mixed-sensor measurement systems, compatible with all NI C Series signal conditioning I/O modules. It integrates multiple independent timing engines to run 4 parallel hardware-timed tasks and supports 3 separate analog input sampling rates for multi-type sensor synchronous collection. Equipped with four 32-bit general-purpose counters/timers for frequency, pulse and encoder measurement, timing resolution reaches 12.5 ns with 50 ppm timing accuracyNI. Adopting 9–30 VDC external power supply (max 15 W), wide operating temperature range -20 ℃ ~ 55 ℃, lightweight desktop portable design without PFI multi-chassis synchronization ports. Fully supported by NI‑DAQmx, LabVIEW and FlexLogger, widely used for bench temperature, vibration, strain and 4–20mA transmitter testing.

Core Specifications

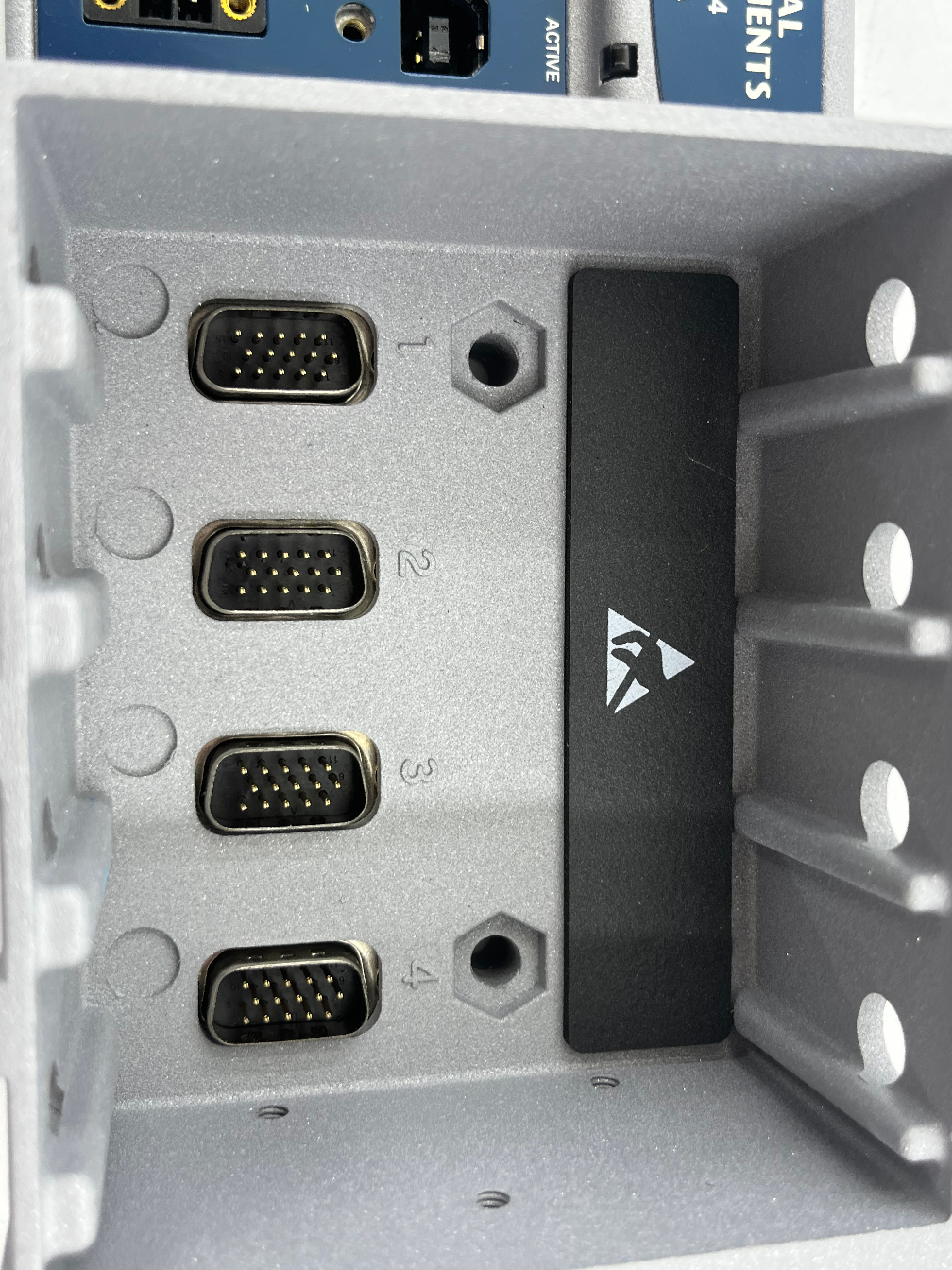

Slot Resource: 4 hot-swappable C Series mixed I/O slots (analog/digital/counter)
Communication Bus: Hi-Speed USB 2.0 plug-and-play connection to PC
Timing Performance: 12.5 ns timing resolution, 50 ppm sampling clock accuracy, 4 parallel hardware-timed tasks
Counter Function: 4-channel 32-bit counter/timer onboard
Power & Env: 9–30 VDC external power, operating temp -20~55℃, storage -40~85℃
Mechanical Size: 159.5 × 88.1 × 58.9 mm, weight 574 g, desktop tilt stand included
Software Compatibility: NI‑DAQmx, LabVIEW, FlexLogger, LabWindows/CVI

Application Scenarios

Portable laboratory multi-sensor bench testing, small machinery vibration monitoring, product thermal cycle screening, low-channel strain & load cell measurement, university basic data acquisition teaching labs.

Standard Package Contents

cDAQ-9174 4-slot USB chassis, desktop power adapter, USB cable, installation guide, safety datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI cDAQ-9174 4-Slot Hi-Speed USB2.0 CompactDAQ C Series Chassis PN:781157-01
