Overview

Official PN：779508-01

NI cDAQ‑9172 is an 8-slot CompactDAQ USB 2.0 chassis compatible with all NI C Series signal conditioning I/O modules for mixed sensor measurement systems. It delivers total chassis throughput up to 3.2 MS/s, supports hardware-timed analog input/output, correlated digital I/O and counter/timer tasks, with front-panel PFI lines for multi-chassis clock and trigger synchronization. Accepts 11–30 VDC external power (15 W rated), built-in USB‑STC2 timing engine offering 50 ns timing resolution and multi independent data streams. Compact desktop design with tilt stand, panel mount optional, seamlessly works with LabVIEW, FlexLogger and NI‑DAQmx drivers, widely deployed for temperature, vibration, strain, voltage and 4–20mA industrial sensor testing.

Core Specifications

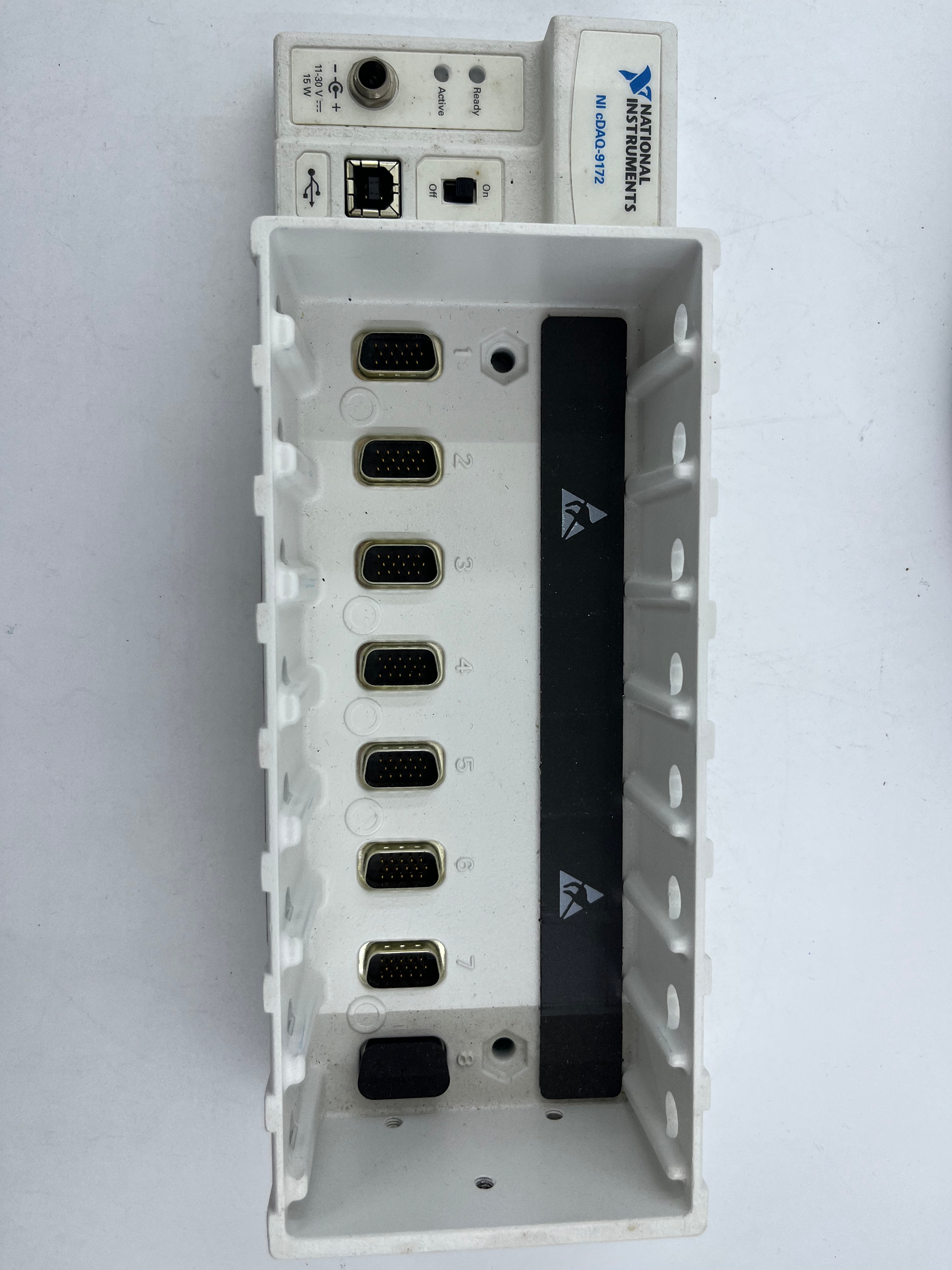

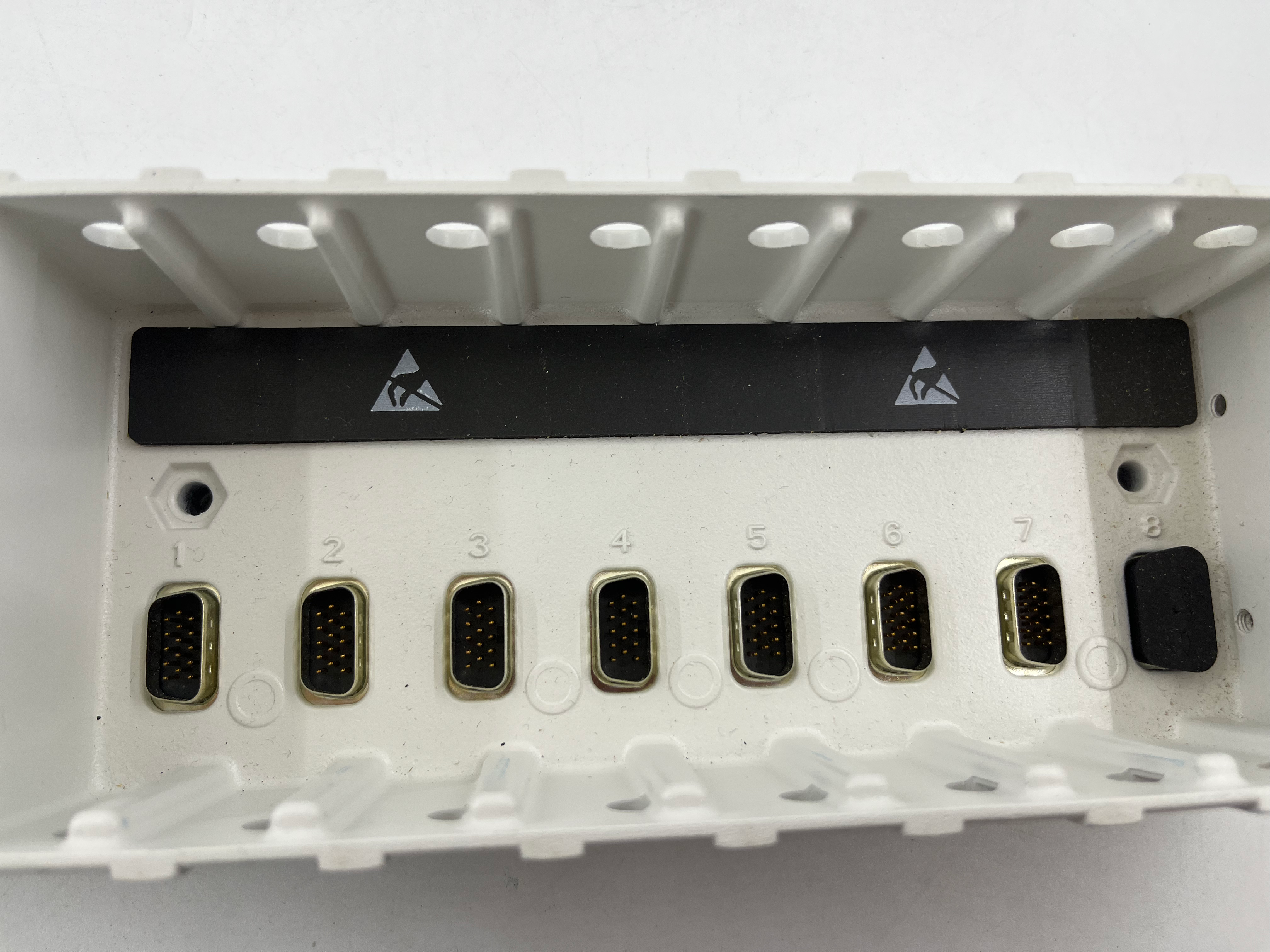

Slot Capacity: 8 slots hot-swappable C Series analog/digital/counter modules
Communication Interface: Hi-Speed USB 2.0 to host PC
Sampling Performance: Aggregate chassis throughput max 3.2 MS/s, timing resolution 50 ns
Synchronization: Front PFI terminals for external trigger, clock sharing between multiple cDAQ units

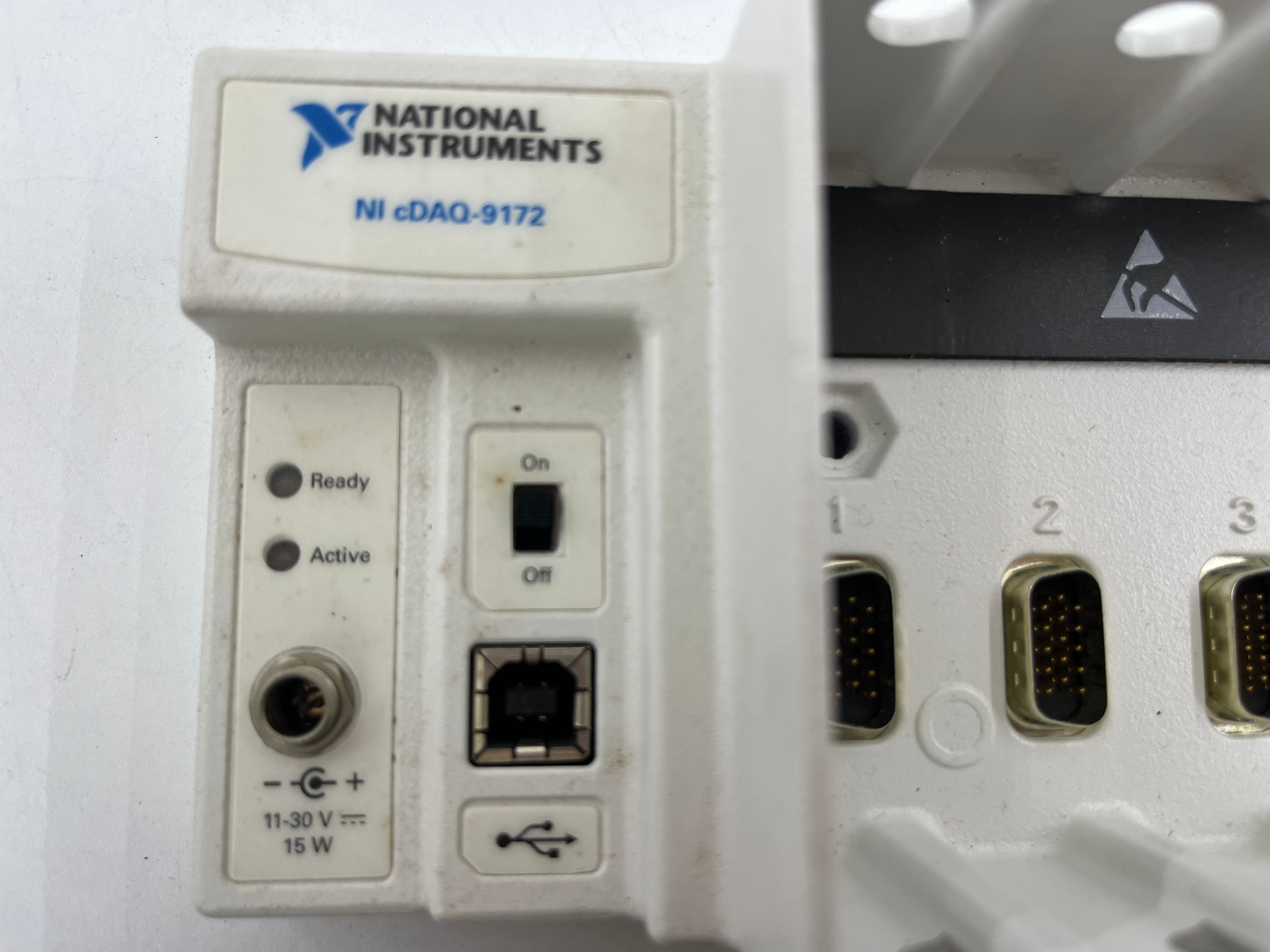

Power Requirement: 11–30 VDC external power supply, 15 W typical consumption
Mechanical Form: Compact desktop tilt base, optional panel mounting bracket kit
Software Compatibility: NI‑DAQmx, LabVIEW, FlexLogger, LabWindows/CVI, Measurement Studio

Application Scenarios

Automotive component multi-sensor bench testing, mechanical vibration & IEPE accelerometer monitoring, industrial process temperature/4–20mA signal logging, structural strain & load cell measurement, university multi-channel mixed signal data acquisition labs.

Standard Package Contents

cDAQ-9172 8-slot USB chassis, power cable, USB data cable, desktop tilt stand, installation guide, safety datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

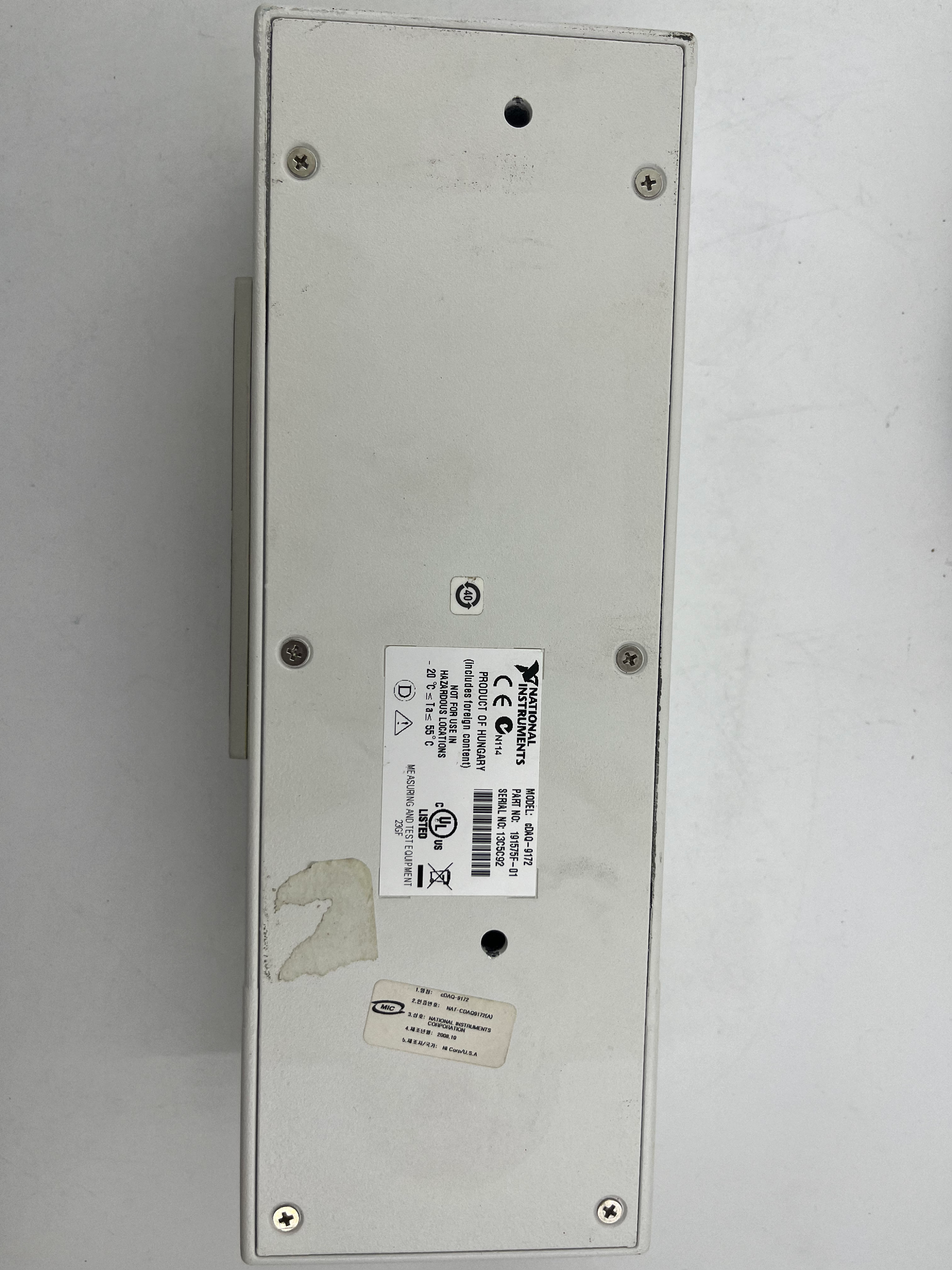

NI cDAQ-9172 8-Slot Hi-Speed USB 2.0 CompactDAQ C Series Chassis PN:779508-01
