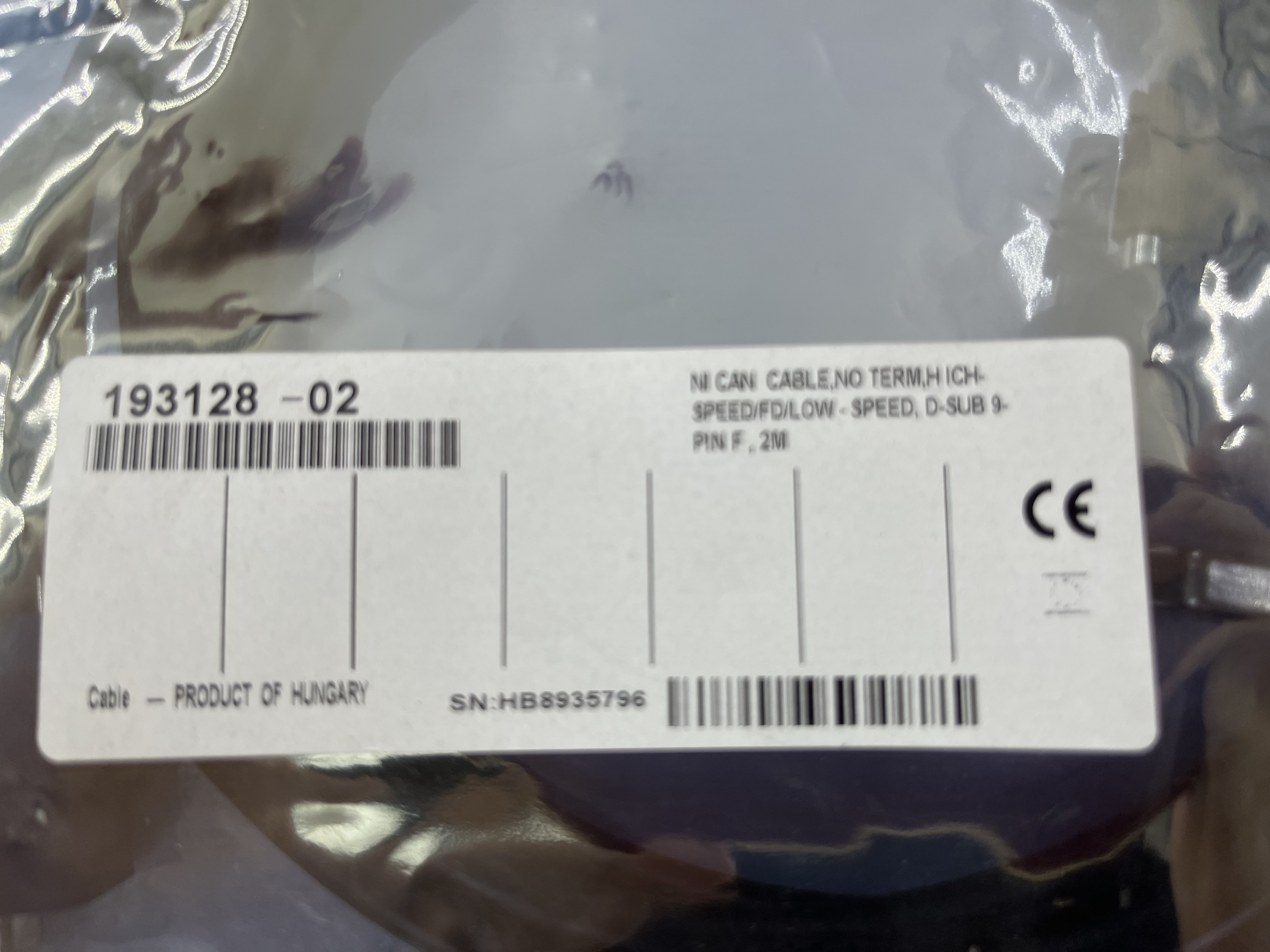

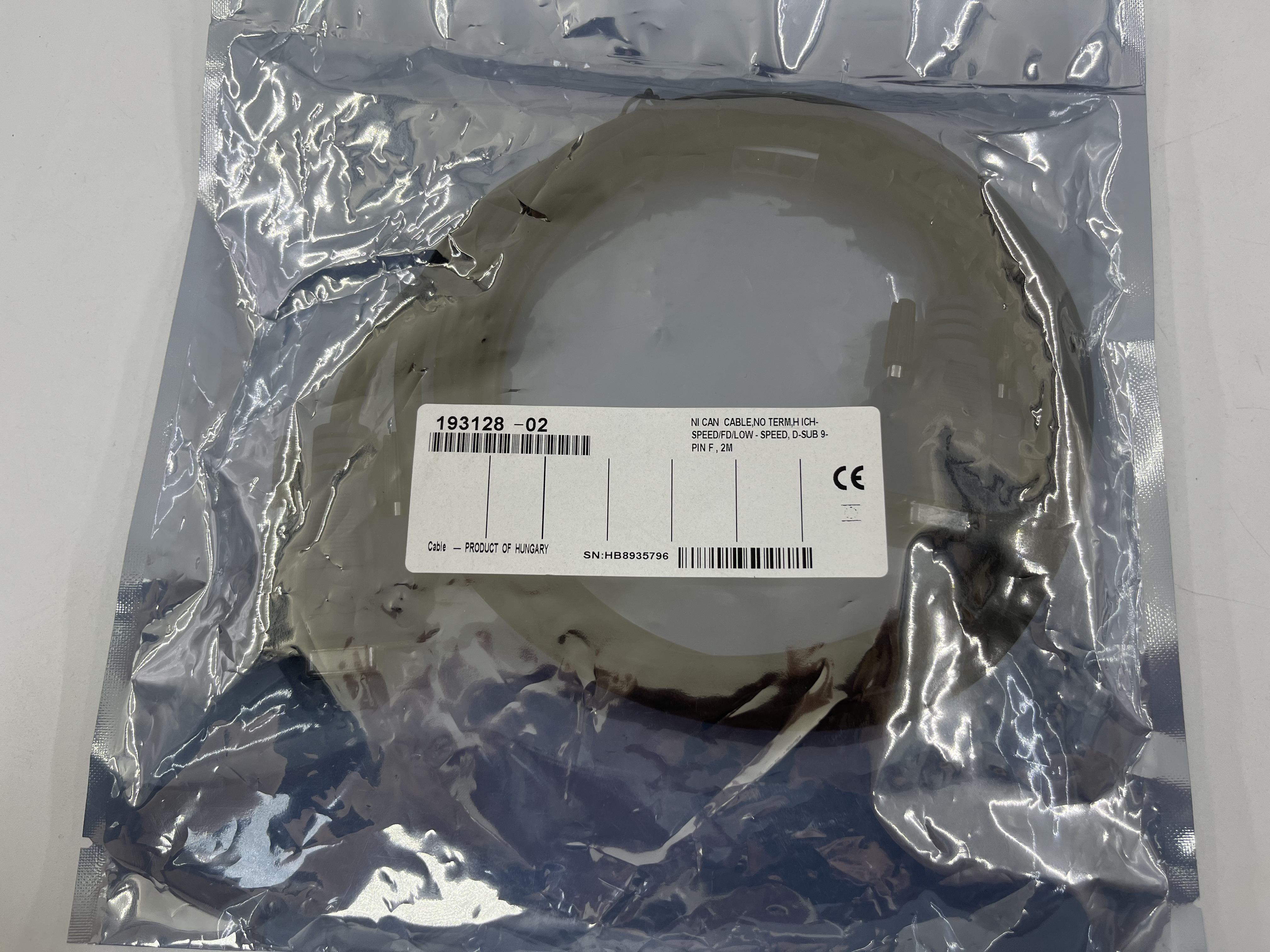

Official PN：193128-02（2 米无终端电阻 DB9 母对母 CAN/LIN 总线线缆总成）

NI 193128-02 is factory assembled unshielded CAN/LIN test cable with dual DB9 female connectors, total length 2 meters, no internal 120Ω terminating resistor. It fully supports High-Speed CAN, CAN FD flexible data rate and fault-tolerant Low-Speed CAN, compatible with all NI CAN/LIN hardware including C Series NI‑9862/NI‑9866 and USB‑8502 multi-protocol interfaces. Designed to connect CAN modules to vehicle ECUs, bus breakout boxes and peripheral test equipment; integrated strain relief at both DB9 ends prevents wire fracture under frequent bending and vibration. RoHS compliant, paired with NI‑XNET driver for automotive bus logging, ECU simulation and production EOL test benches.

Core Specifications

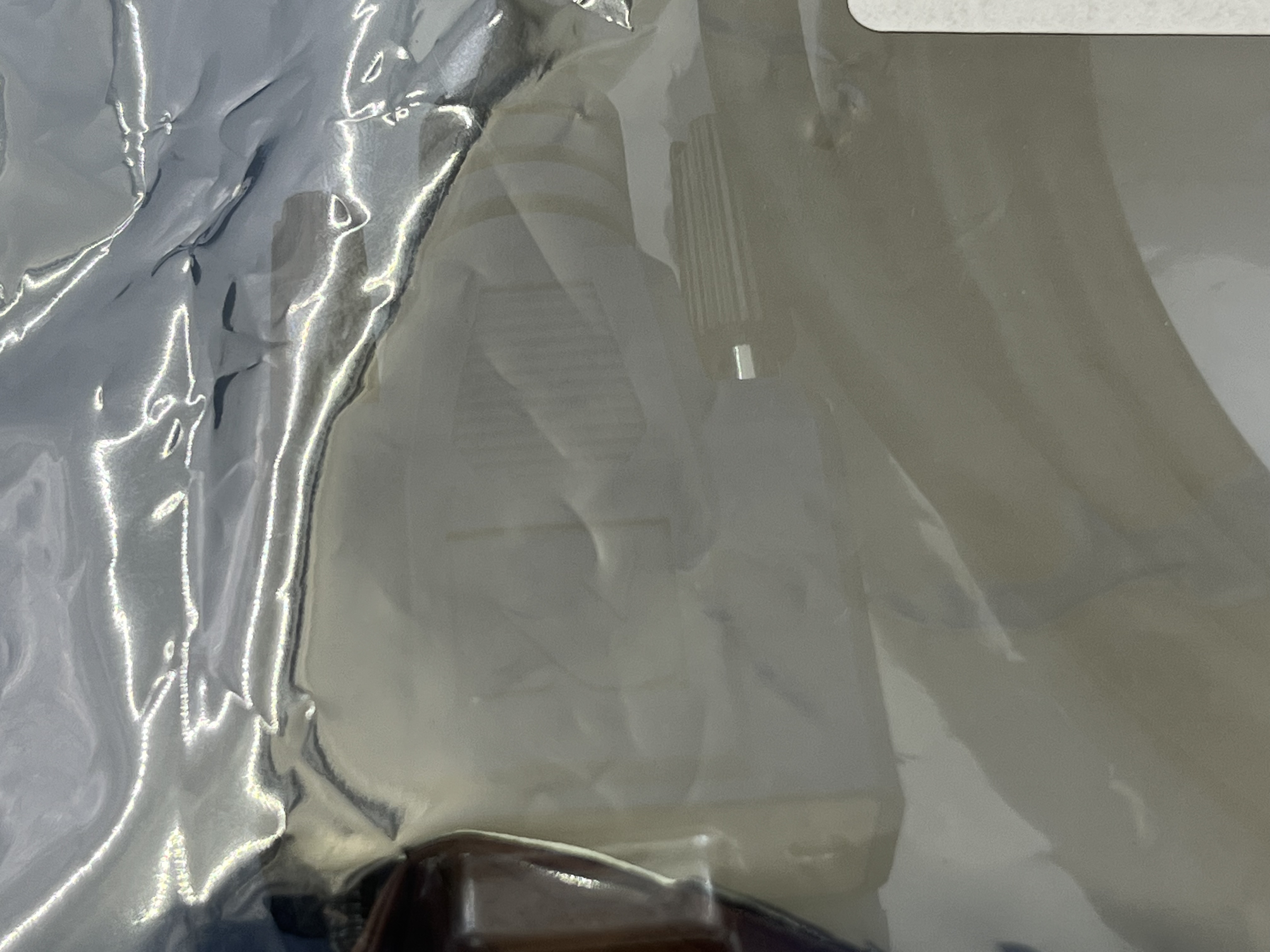

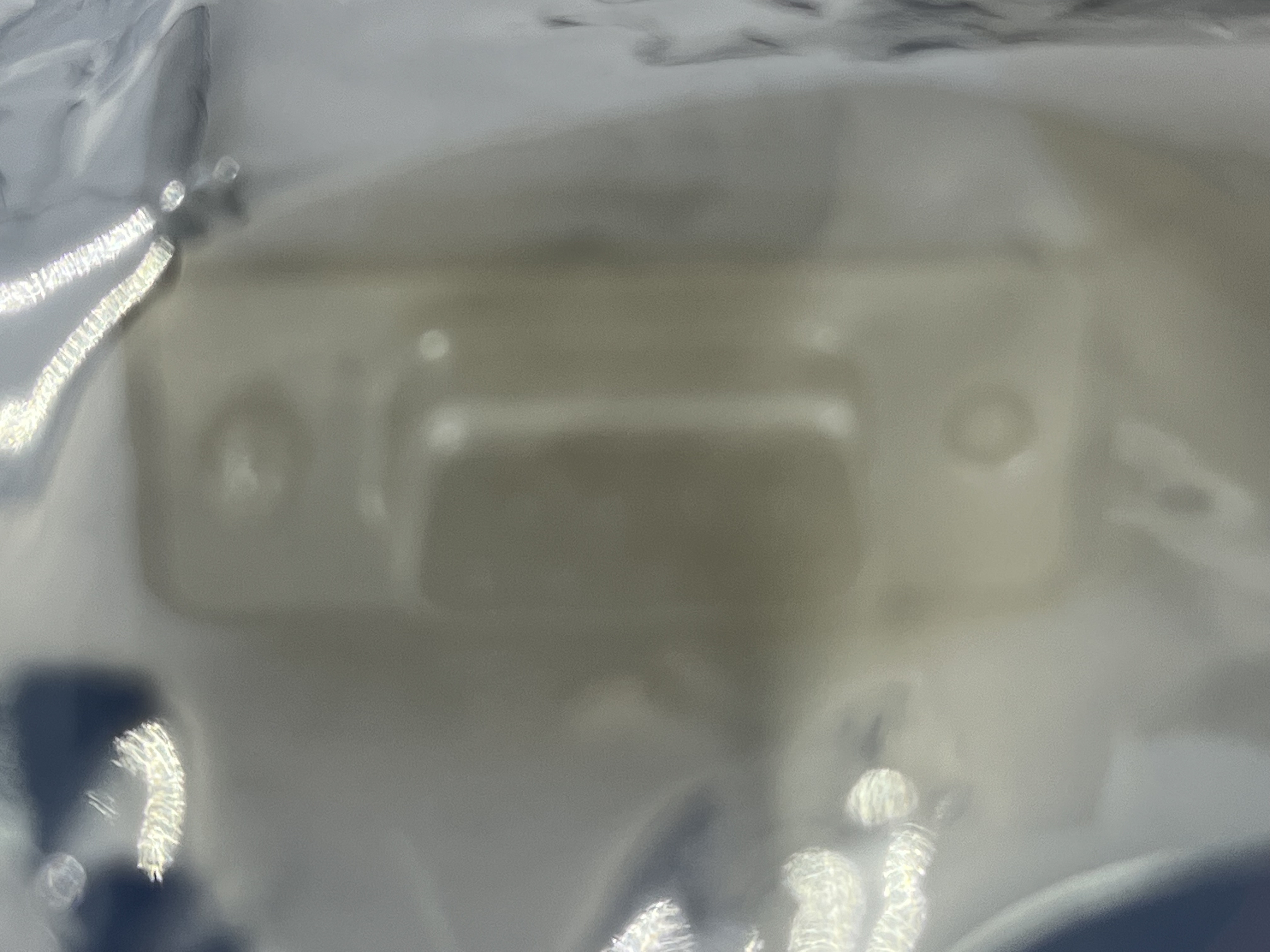

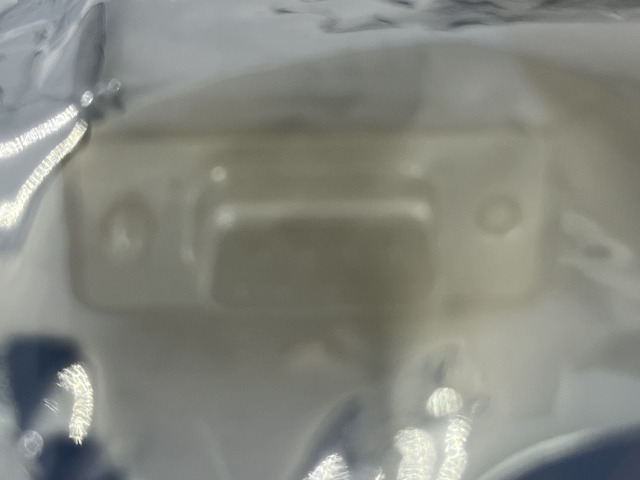

Connector Type: Dual 9-pin DB9 female socket (DB9F-DB9F), full CAN pinout mapping
Cable Length: 2 meters, black unshielded cable, no built-in termination resistor
Supported Protocols: High-Speed CAN, CAN FD, Low-Speed Fault-Tolerant CAN, LIN bus
Compatible Hardware: NI USB‑8502, C Series NI‑9862, NI‑9866, PXI CAN interface modules
Mechanical Feature: Molded strain relief on both connectors, durable for lab frequent plug/unplug
Environmental Compliance: Lead-free RoHS & REACH certified, indoor laboratory use
Bus Matching: For test systems requiring external separate CAN termination resistors

Application Scenarios

Automotive ECU CAN FD communication monitoring, new energy vehicle BMS bus signal logging, vehicle hardware-in-the-loop bus simulation, automotive electronic production line EOL calibration, university automotive network teaching test platforms.

Standard Package Contents

193128-02 CAN cable assembly, cable specification datasheet, DB9 CAN pinout reference guide.
