Overview

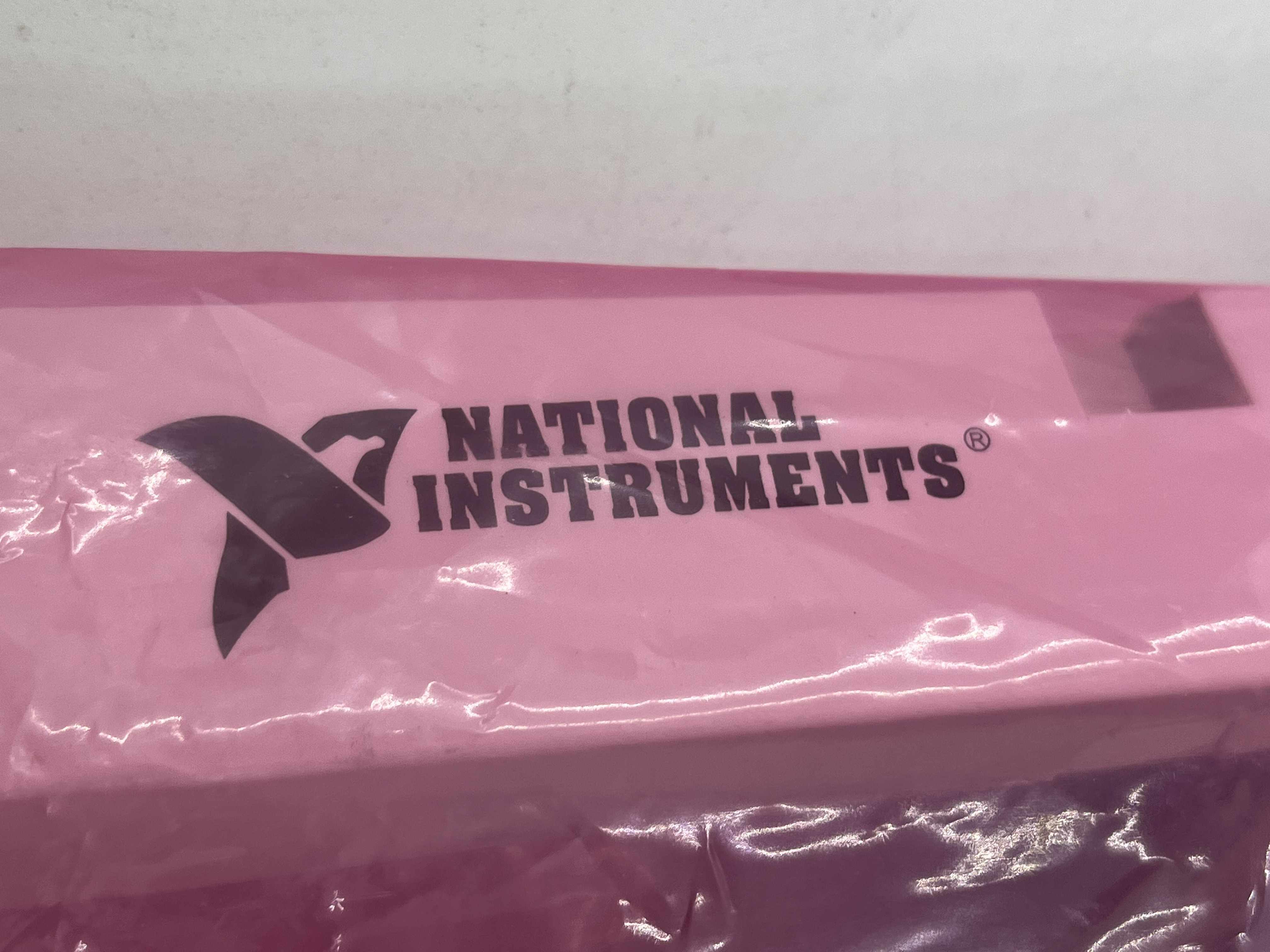

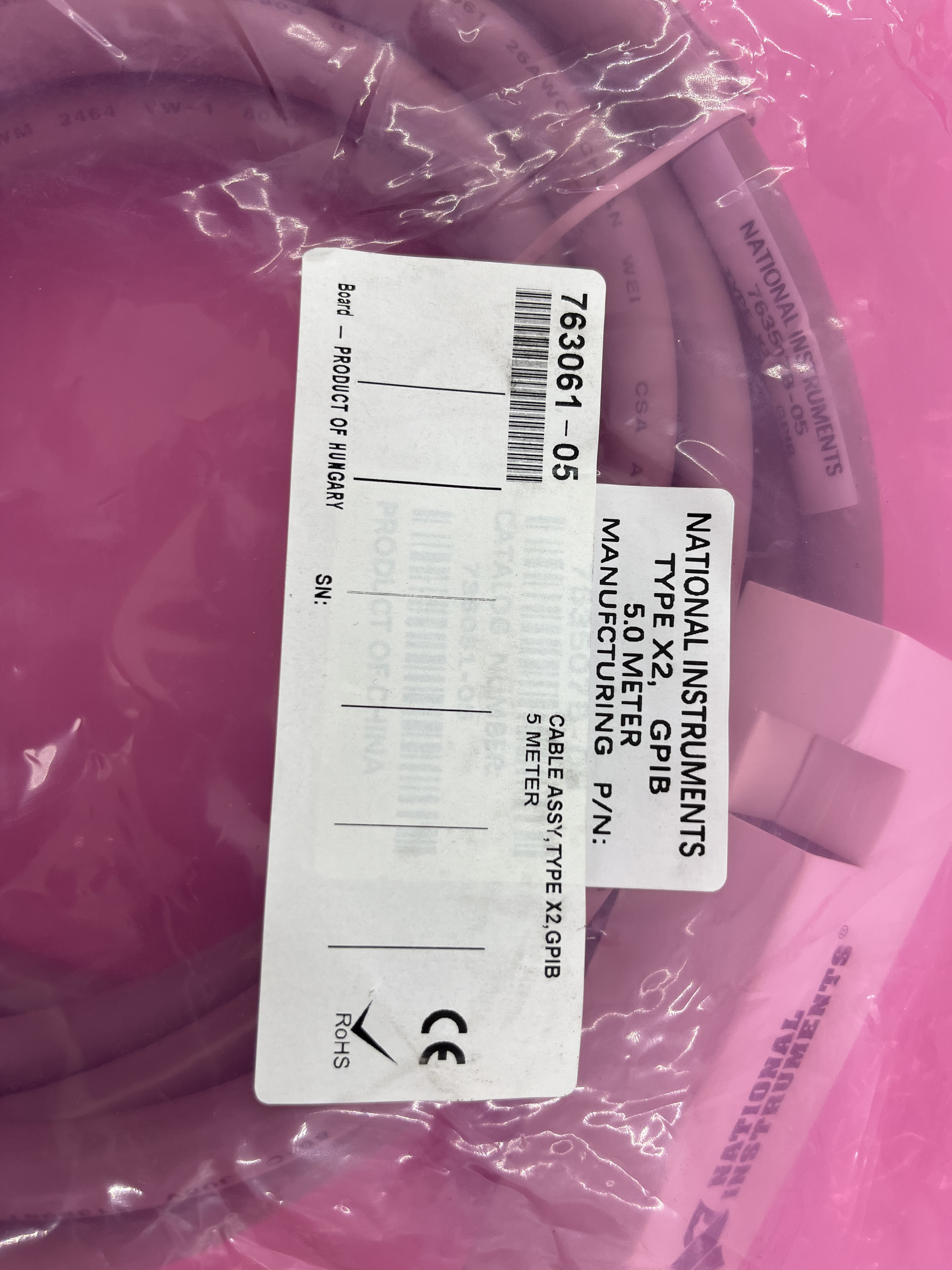

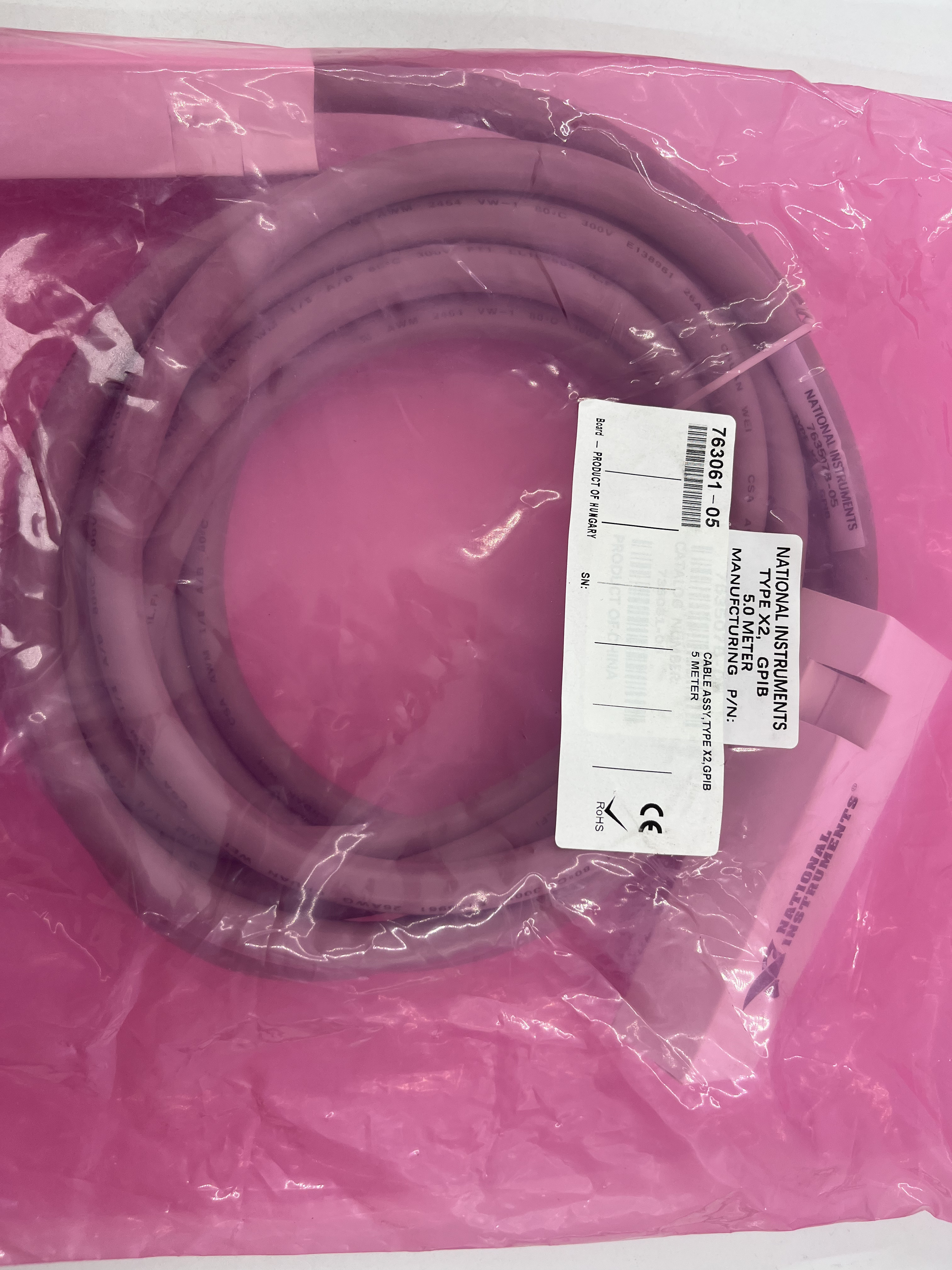

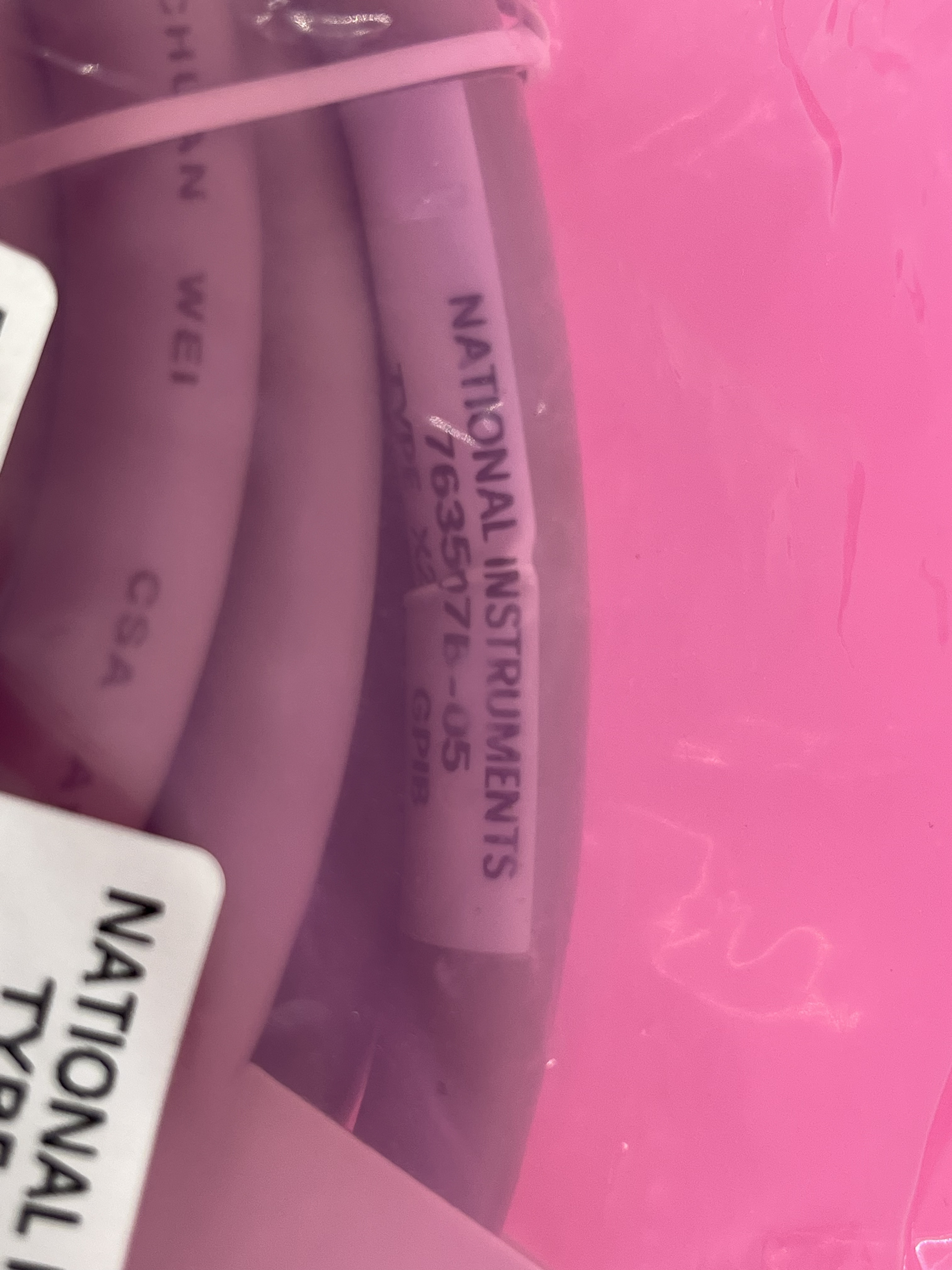

Official PN：763061-05（5 米 X2 型双层屏蔽 GPIB 线缆总成，型号 24M/F-24M/F X2）

NI 763061-05 is factory-assembled X2 series stackable GPIB cable complying with IEEE 488 instrument bus standard, total length 5 meters. Equipped with dual 24-pin male/female hybrid stackable connectors, supporting daisy-chaining oscilloscopes, power supplies, spectrum analyzers without extra adapters. It adopts double-layer foil shielding and full metal shielded plugs to suppress long-distance transmission EMI noise, stable high-speed instrument communication without packet loss. Integrated strain relief at both ends prevents wire breakage from cabinet bending and frequent plugging. Fully compatible with all NI GPIB hardware including USB-GPIB, PCIe-GPIB and Ethernet-GPIB controllers, RoHS compliant, widely used for long-distance multi-instrument automated laboratory test systemsNI.

Core Specifications

Bus Standard: IEEE 488 GPIB general-purpose instrument control bus
Connector Type: 24-pin X2 stackable male/female integrated plug & receptacle
Cable Length: 5 meters, round beige double full shielding structure
Anti-Interference: Double foil shielding + metal shielded connectors, minimal signal distortion for long wiring
Mechanical Design: Built-in strain relief at two terminals, durable for repeated plug/unplug
Hardware Compatibility: NI USB-GPIB, PCIe-GPIB, GPIB-ENET and all GPIB test instruments
Compliance: RoHS & REACH certified, designed for indoor laboratory long-distance wiring

Application Scenarios

Large electronics lab multi-instrument automatic measurement stations, long-distance power supply & signal generator GPIB daisy-chain control, semiconductor component parametric testing, RF analyzer remote bus communication, university instrument control teaching platforms.

Standard Package Contents

763061-05 X2 GPIB cable assembly, cable specification datasheet, pinout reference guide.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

NI Cable Assy 763061-05 X2 Double-Shielded 5m Stackable IEEE488 GPIB Cable PN:763061-05
