Official PN：185095-02（SH100M-100M 2 米屏蔽线缆总成）

NI 185095-02 is a factory-assembled fully shielded 100-pin 0.050 series D-SUB male-to-male flexible DAQ cable, also named SH100M-100-F with total length 2 meters. Double-ended 100-pin male connectors deliver full pin-to-pin signal mapping, built-in integral shielding suppresses EMI interference and inter-channel crosstalk for stable high-speed digital I/O and counter signal transmission. Compatible with NI 100-pin digital DAQ boards (PCI-DIO-96, NI 6509, NI 6624 timer/counter) and SCB-100A 100-position screw terminal breakout box. Flexible flat wire structure supports bending layout inside cabinets, RoHS compliant, widely used for automated test benches, multi-channel digital switching and pulse timing measurement systems.

Core Specifications

Connector Form: Dual 100-pin 0.050 D-SUB male plugs, full 100-conductor one-to-one wiring
Cable Length: 2 meters, flexible flat shielded flex cable construction
Electromagnetic Performance: Overall metal foil shielding, low noise & minimal signal crosstalk
Compatible Hardware: NI 100-pin DIO/counter DAQ cards, SCB-100A 100-channel terminal block
Environmental Compliance: RoHS 3 & REACH certified, no restricted hazardous substances
Mechanical Feature: Bend-resistant flexible cable, integrated strain relief at both connector ends
Application Scope: Industrial digital signal acquisition, encoder pulse & counter timing test systems

Application Scenarios

Multi-channel digital discrete signal automated testing, incremental encoder pulse high-speed capture, industrial relay matrix switch measurement, laboratory counter/timer parametric test, university digital DAQ teaching platforms.

Standard Package Contents

185095-02 shielded DAQ cable assembly, cable specification datasheet, wiring pinout reference guide.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

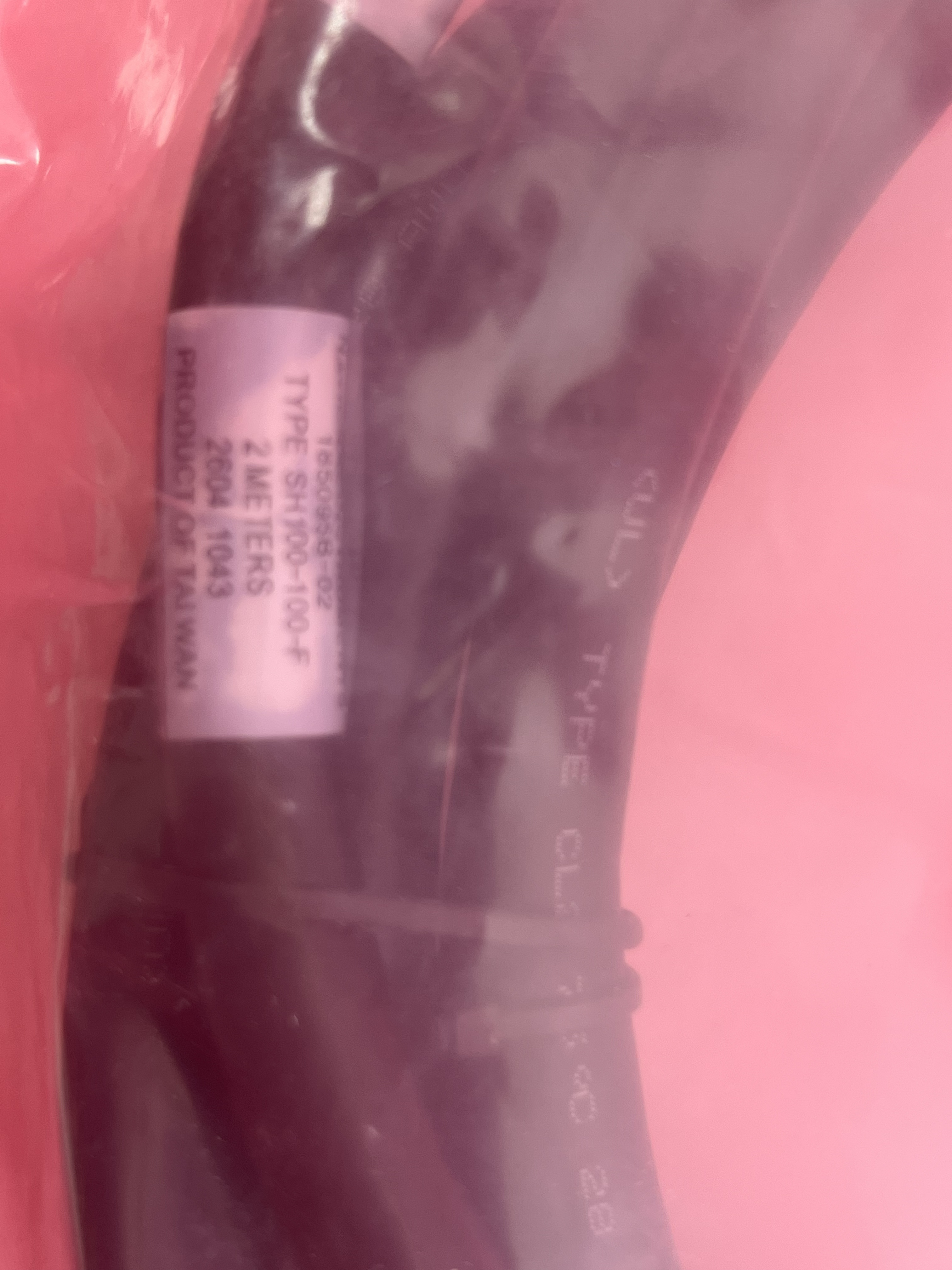

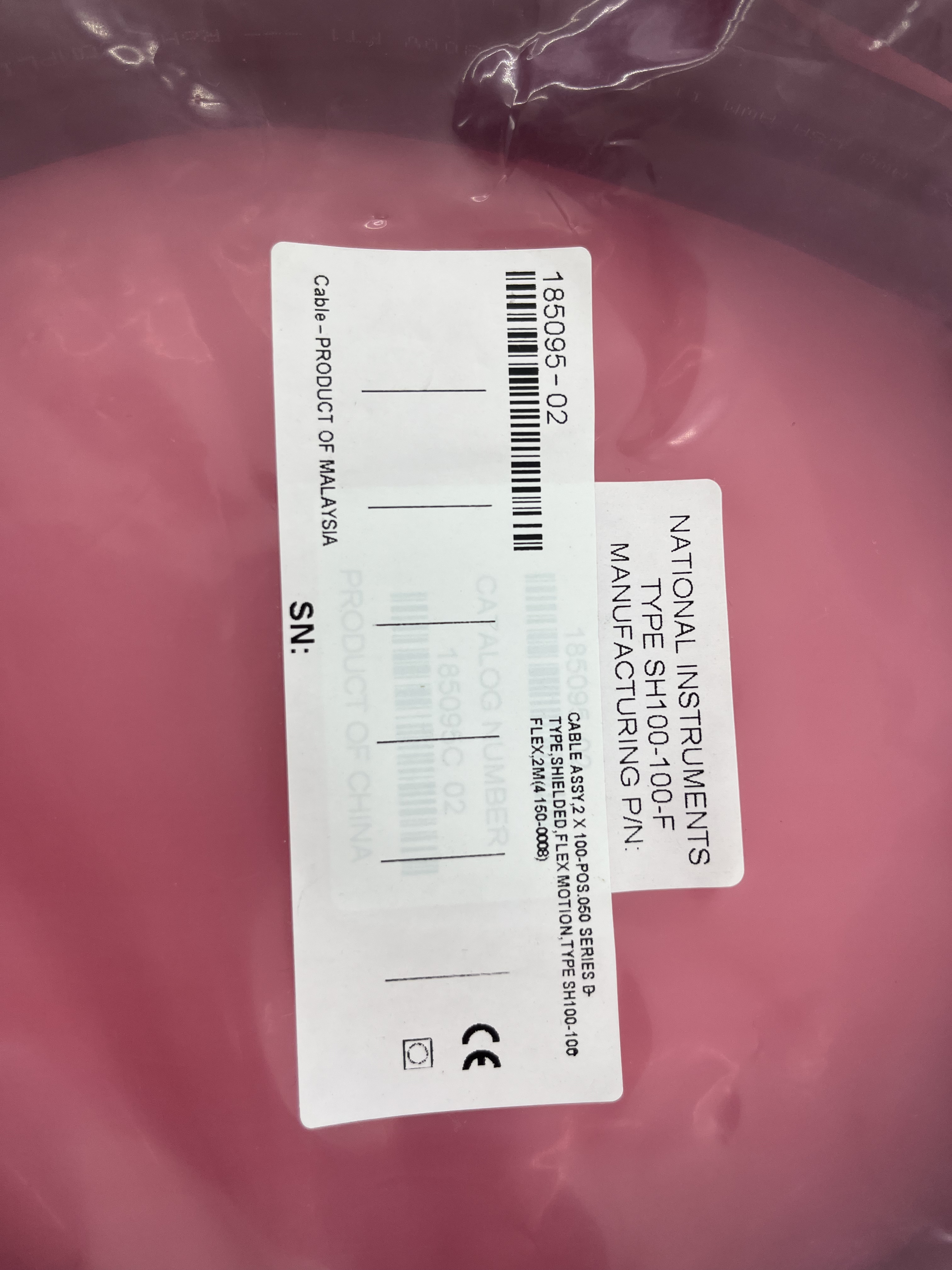

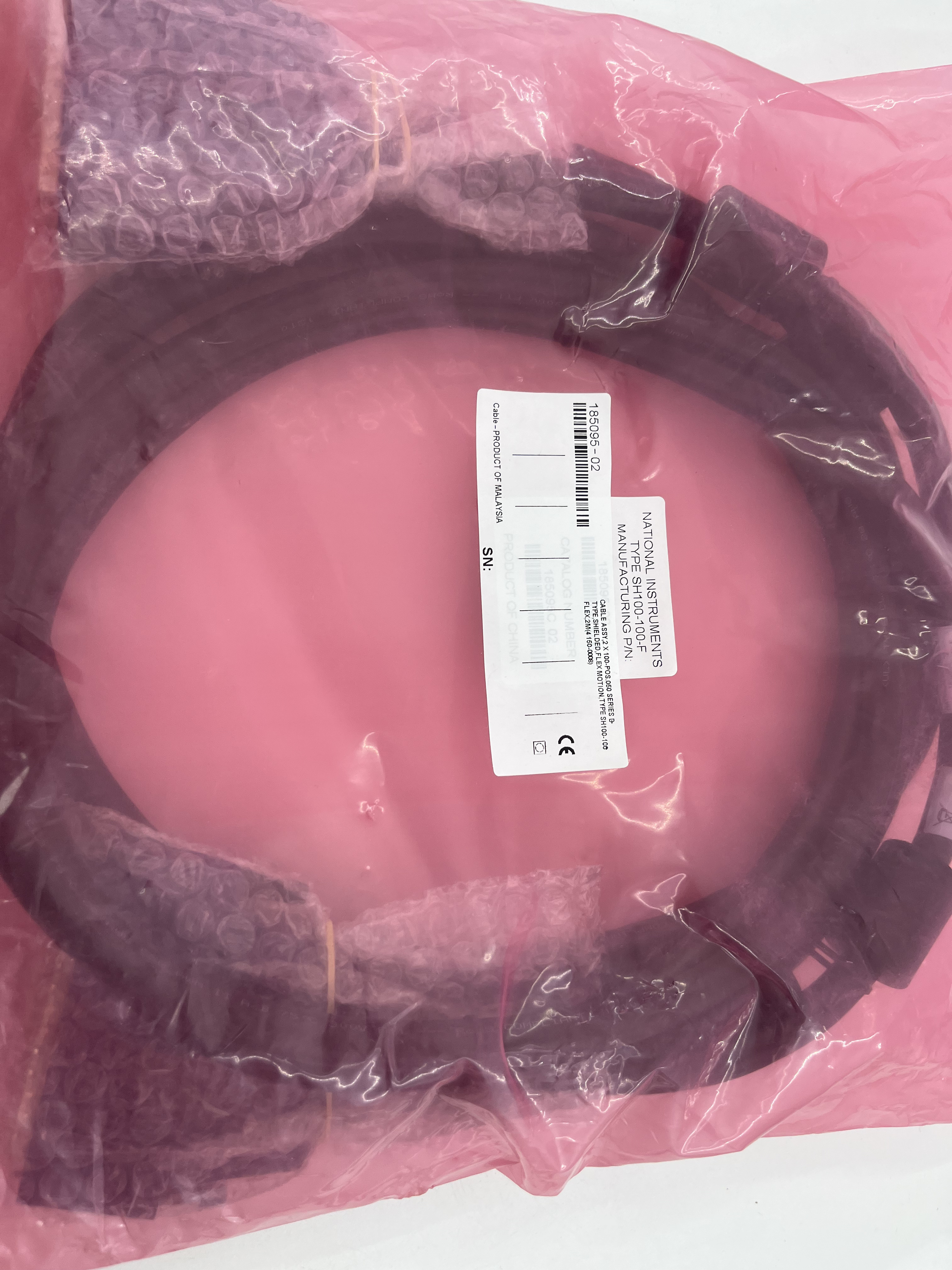

NI Cable Assy 185095-02 SH100M-100M 2m Shielded 100-Pin DAQ Cable PN:185095-02
