Overview

Official PN：182762-02（R100M-50F-50F，2 米一分二扁平线缆总成）

NI 182762-02 is factory-assembled Y-split flat ribbon cable dedicated to NI 100-pin digital DAQ hardware. Single 100-pin male plug connects to PCI/PXI digital I/O & timer/counter boards, internally split into two independent 50-pin female ports to separate two groups of 50-channel signals at once. Unshielded flexible flat design supports cabinet bending layout, built-in strain relief on all three connectors to avoid wire fracture from frequent movement. Compatible with NI PCI-6509, PCI-DIO-96, NI 6624 counter cards and dual SCB-50 terminal blocks, RoHS compliant, widely used for multi-channel digital switching, encoder pulse and parallel signal automated test systems.

Core Specifications

Connector Structure: 1×100pin male to dual 50pin female Y split wiring, full pin mapping for 1–50 / 51–100 channels
Cable Length: Total 2 meters flat ribbon cable
Mechanical Feature: Three ends with integrated strain relief, flexible flat wire for cabinet routing
Compatible Hardware: All NI 100-pin digital DIO, timer/counter DAQ boards, dual 50pin terminal boxes
Signal Characteristic: Low inter-channel crosstalk, stable transmission for digital pulse & parallel logic signals
Compliance: RoHS & REACH certified, indoor laboratory industrial measurement use
Application Form: Split single 100-channel DAQ signal into two independent 50-channel test branches

Application Scenarios

100-channel digital relay matrix split measurement, dual-group encoder pulse synchronous acquisition, multi-channel parallel discrete signal automated testing, laboratory counter/timer parametric test benches, university multi-channel digital DAQ teaching platforms.

Standard Package Contents

182762-02 Y split ribbon cable assembly, cable specification datasheet, channel pinout reference guide.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

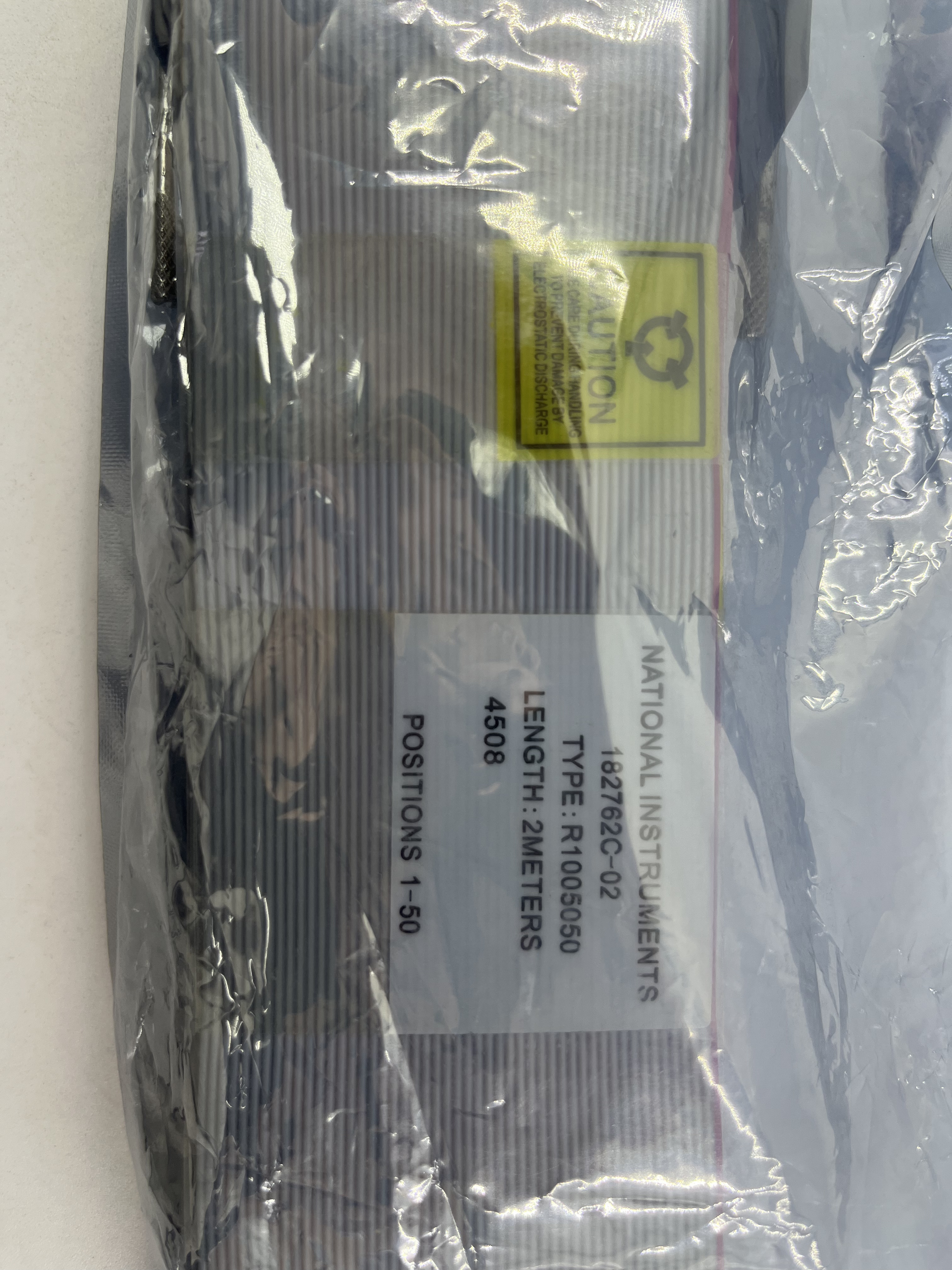

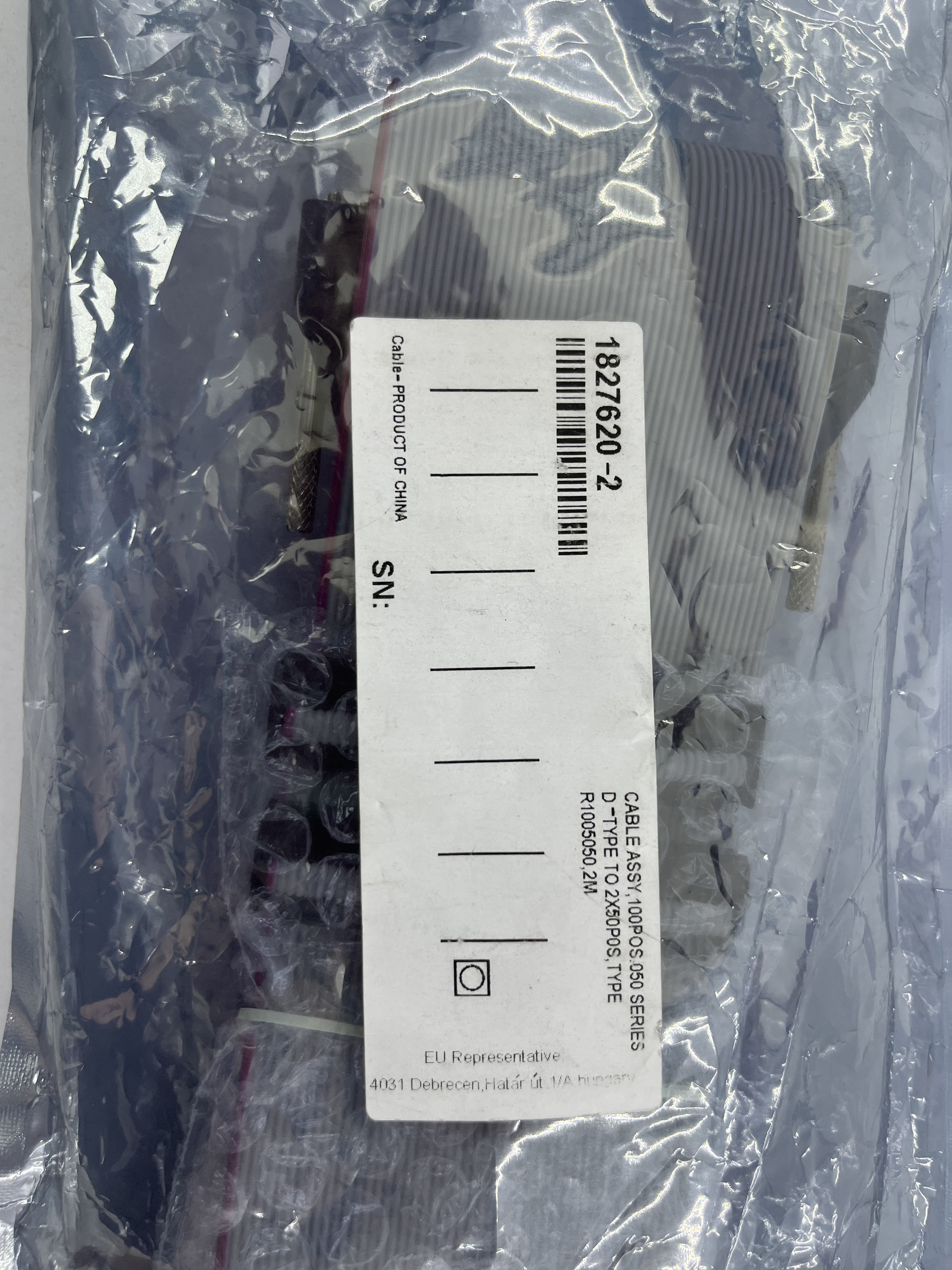

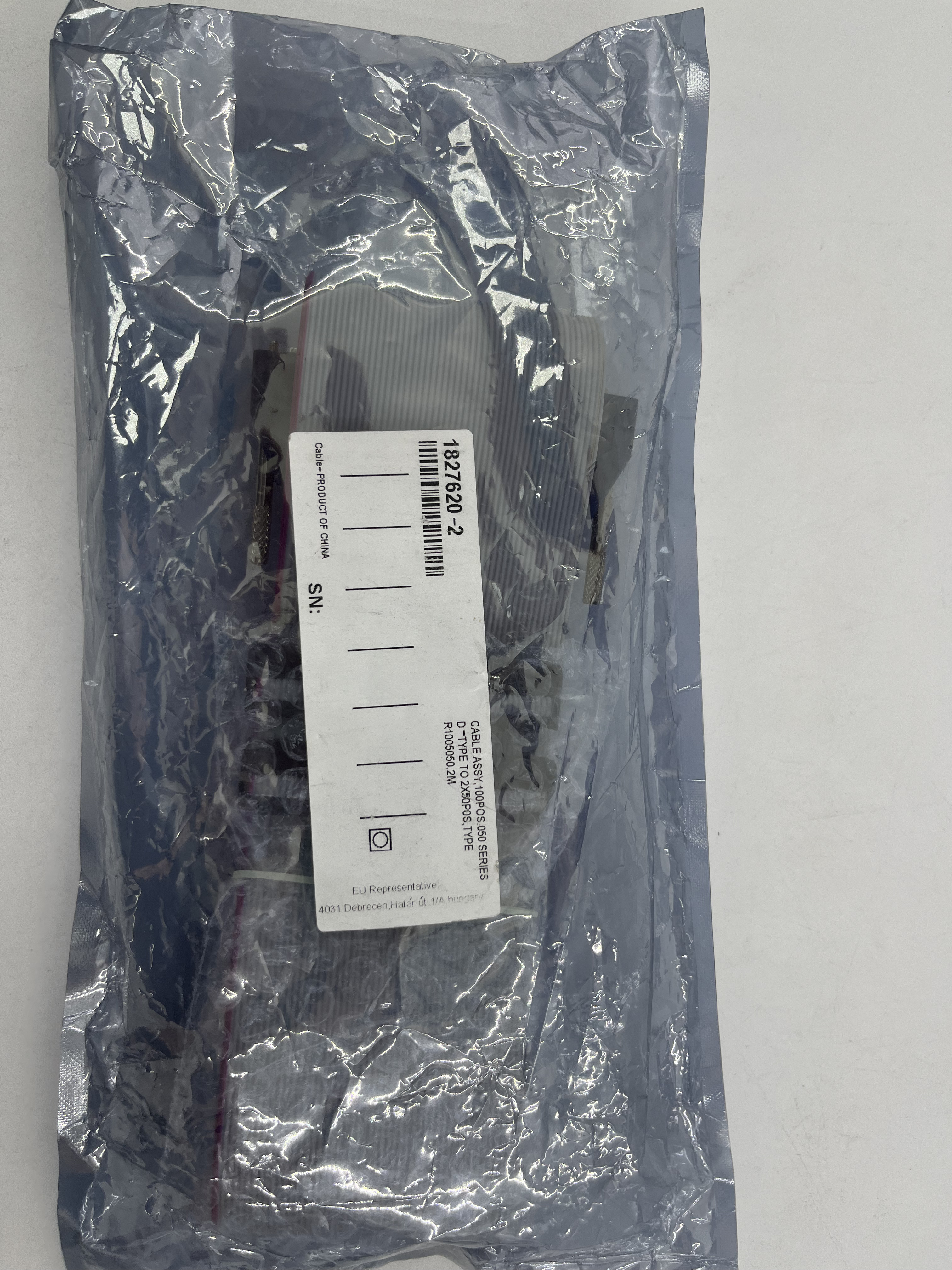

NI Cable Assy 182762-02 Y-Split Ribbon Cable 100M to Dual 50F 2m DAQ Wire PN:182762-02
