Overview

Official PN：781071-01(NI-6585)、784060-01(NI-6585B full FPGA compatible)

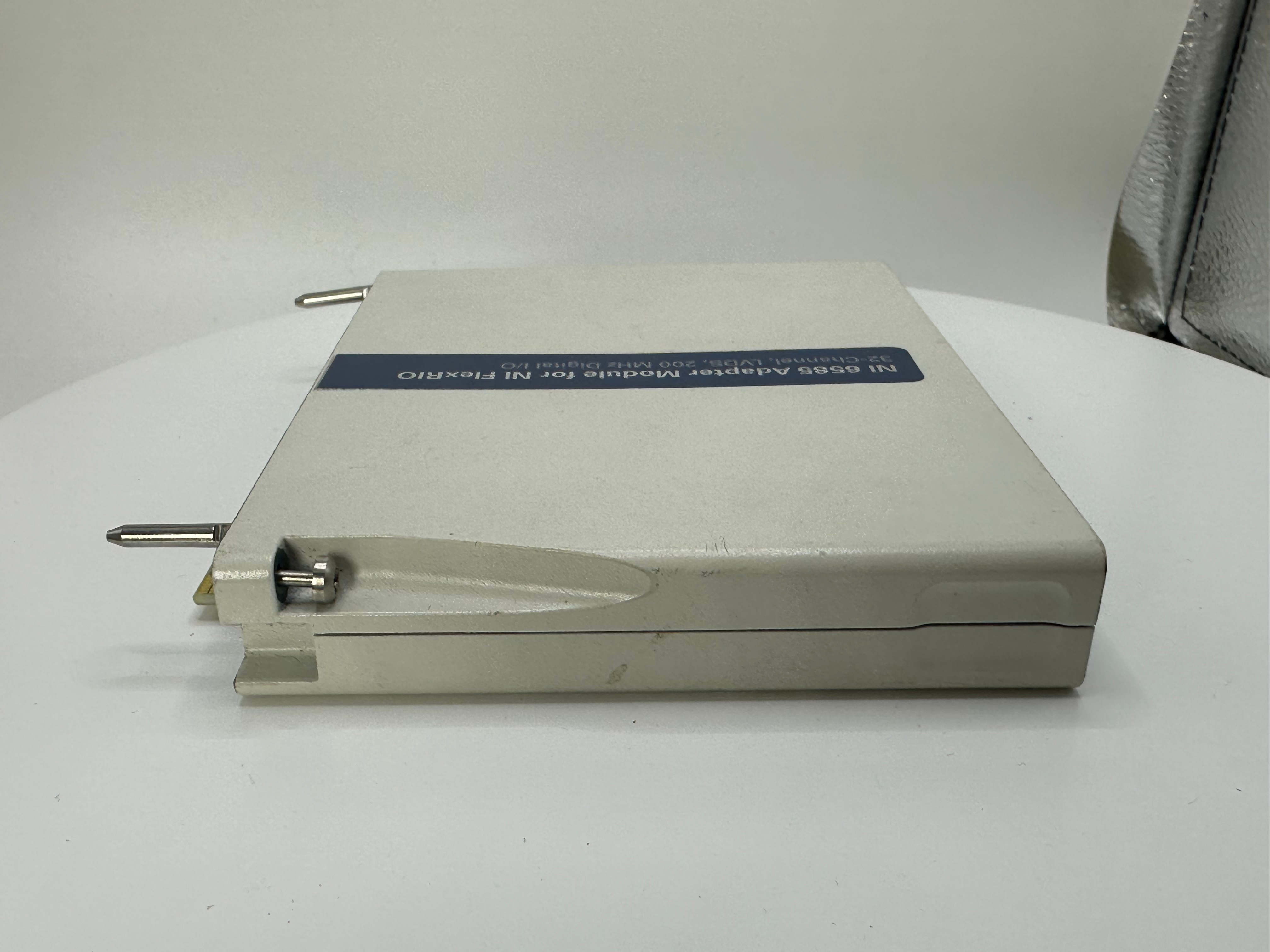

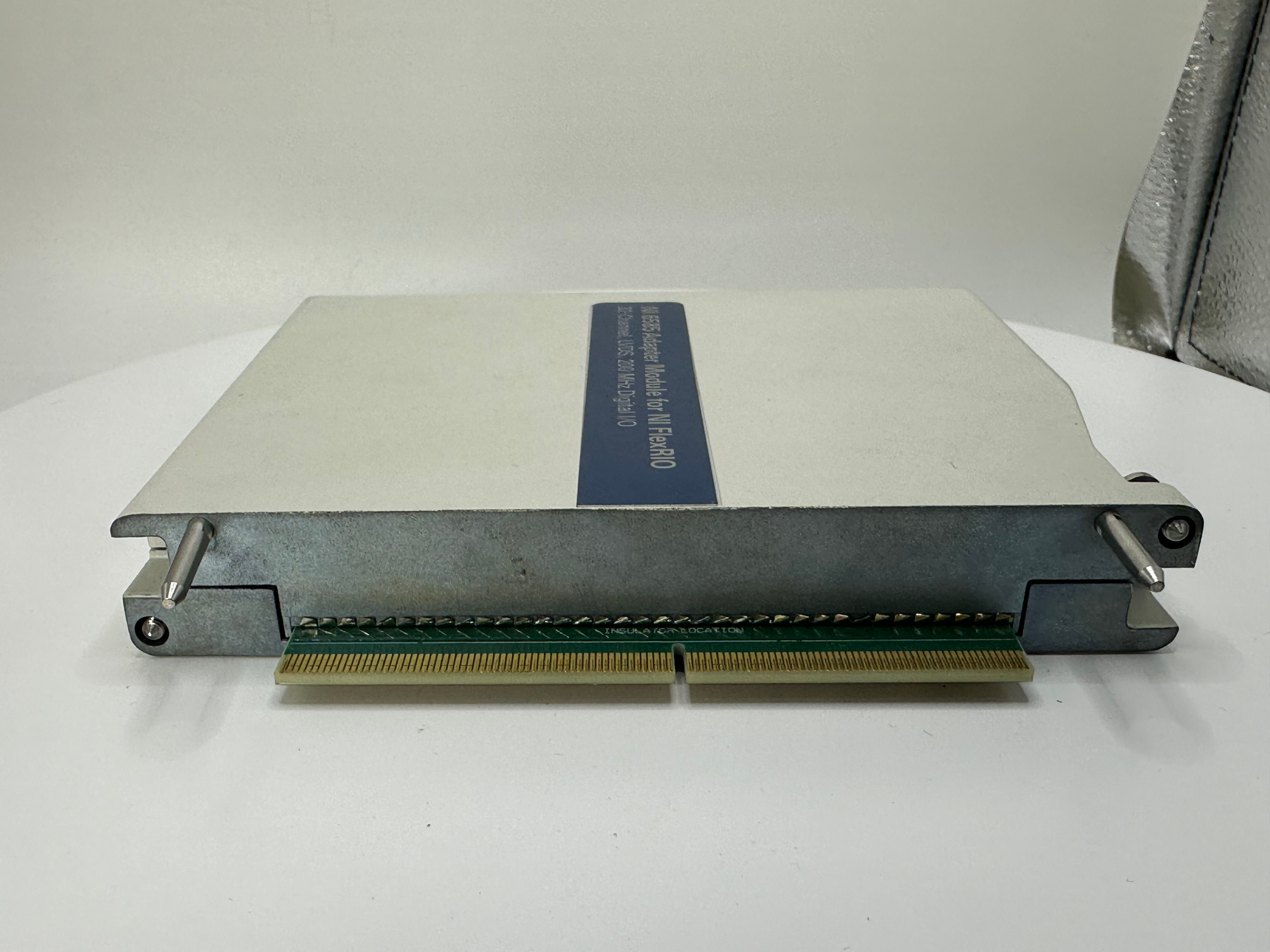

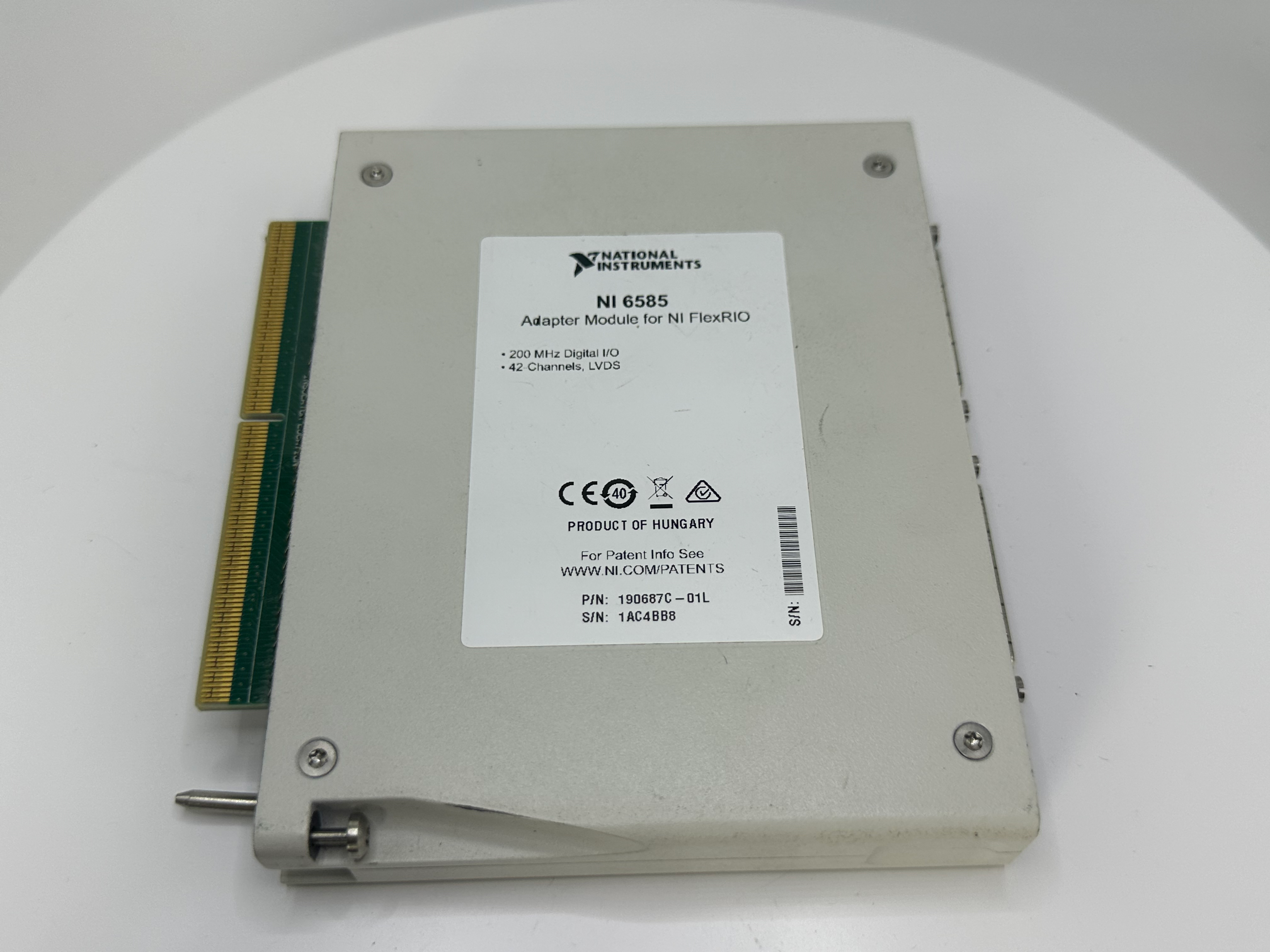

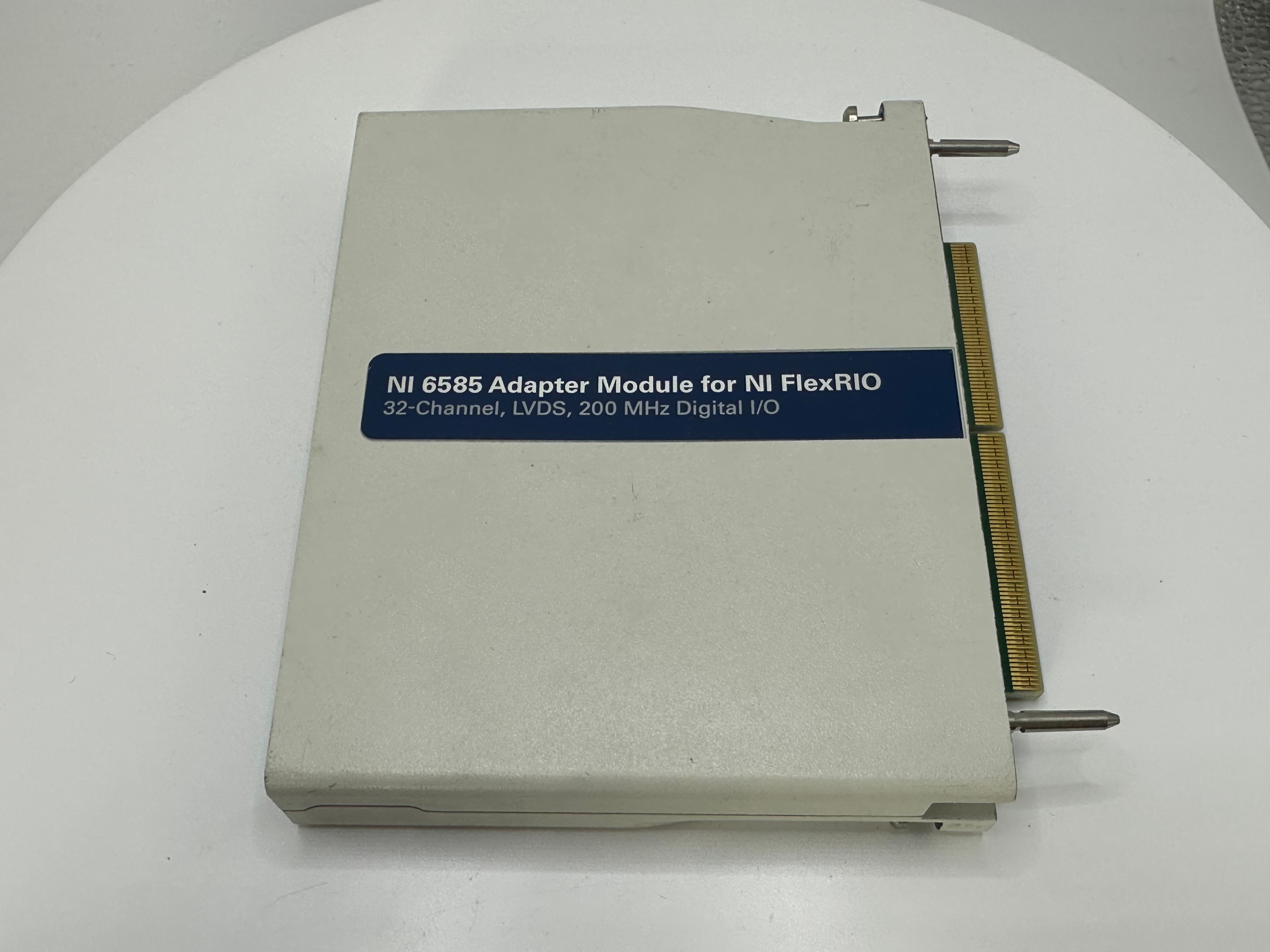

NI‑6585 is a low‑voltage differential LVDS digital I/O adapter exclusively designed for FlexRIO PXIe FPGA modules, used to build customizable high‑speed digital test instrumentsdownload.ni.com. It integrates 32 independent bidirectional LVDS differential channel pairs with built‑in 100 Ω differential termination resistors, supporting maximum 200 MHz system clock and 300 Mbps DDR double‑data‑rate transmission speed. Two 68‑pin VHDCI front connectors output all DIO and PFI synchronization differential signals, equipped with global differential clock output for multi‑card phase alignment. All differential signals directly access FPGA logic fabric to implement hardware‑level custom serial protocol simulation, real‑time pattern generation and high‑speed signal capture without CPU latency. The upgraded NI‑6585B supports all modern FlexRIO controllers, while standard NI‑6585 only matches Virtex‑5 series FPGA boardsdownload.ni.com, widely used for semiconductor chip validation, high‑speed LVDS bus verification and embedded hardware‑in‑the‑loop testing.

Core Specifications

Channel Resources: 32 bidirectional LVDS differential pairs + multi‑pair PFI differential trigger lines
Timing Performance: Max 200 MHz clock; single rate 200 Mbps, DDR up to 300 Mbps per channel
Electrical Signal: Native LVDS differential signaling, ±50 mV differential threshold, onboard 100 Ω matched termination
Physical Interface: Dual 68‑pin female VHDCI connectors for DIO and synchronous clock signals
FPGA Compatibility: NI‑6585 for PXI‑795xR/PXIe‑796xR; NI‑6585B supports all Kintex‑7/Virtex‑5 FlexRIO FPGA hardware
Mechanical & Environment: Single‑slot PXIe form factor, weight 284 g, operating temperature 0~55 ℃
Software Stack: LabVIEW FPGA CLIP IP core, NI‑RIO driver, real‑time OS for custom digital bus development

Application Scenarios

Semiconductor IC high‑speed LVDS interface automated testing, aerospace high‑speed differential communication hardware simulation, automotive embedded chip digital protocol HIL verification, high‑speed serial signal fault injection testing, university FPGA differential digital logic teaching platforms.

Standard Package Contents

NI-6585 LVDS differential digital adapter module, hardware datasheet, quick start installation guide, safety compliance documents.
