Overview

Official PN：781290-01(unterminated half-duplex)、781290-02(terminated half-duplex)、781290-03(full-duplex)

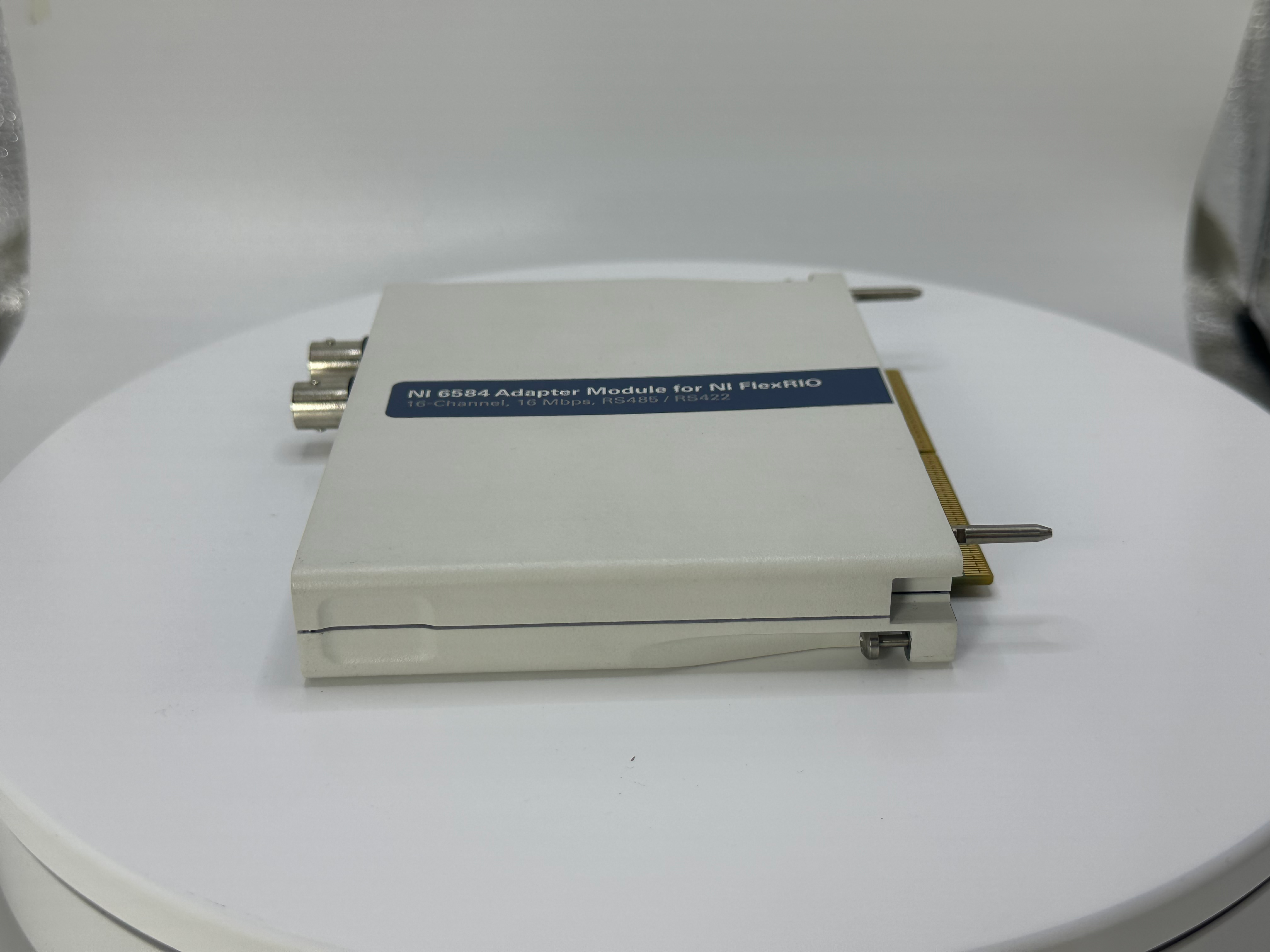

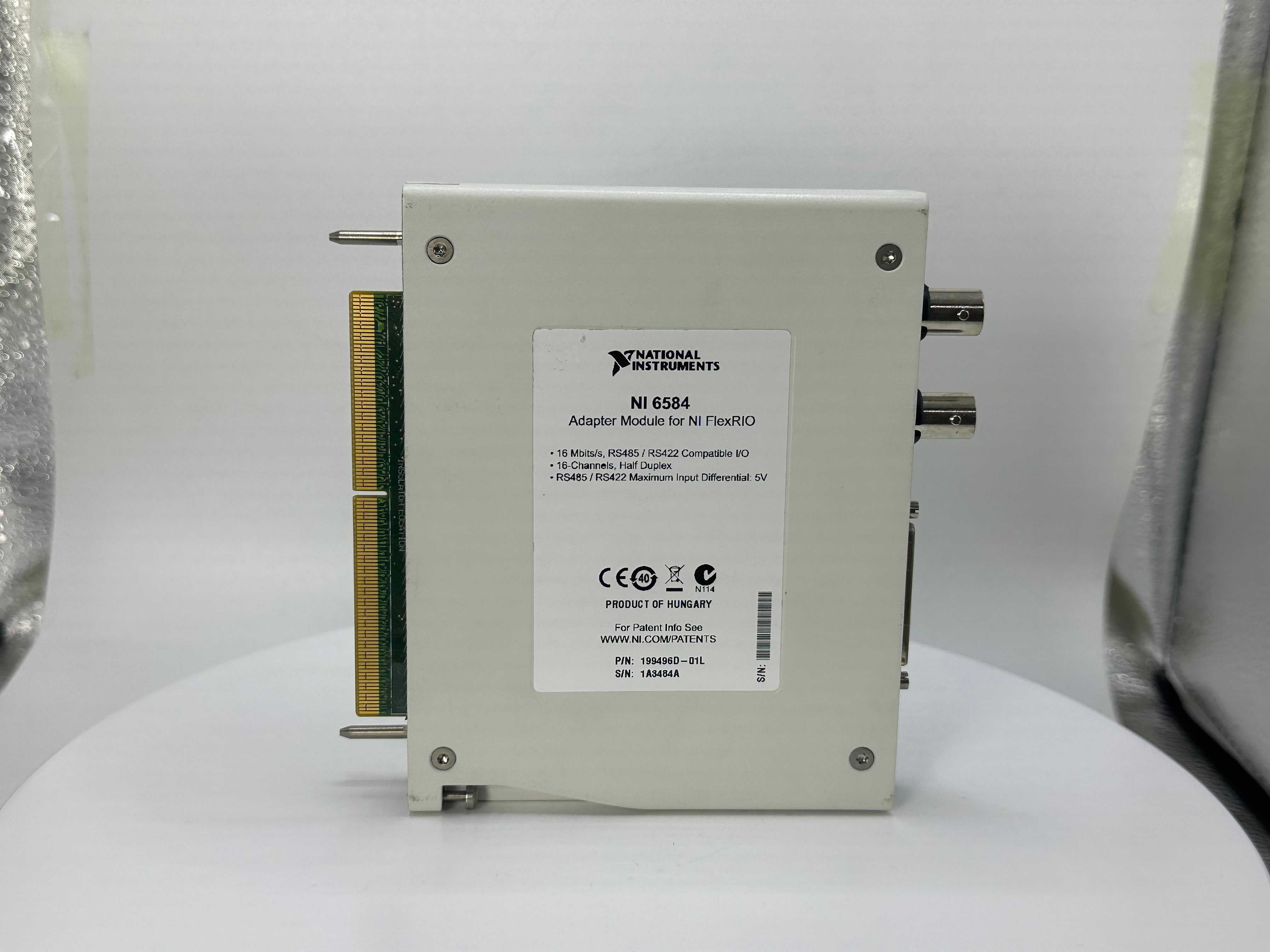

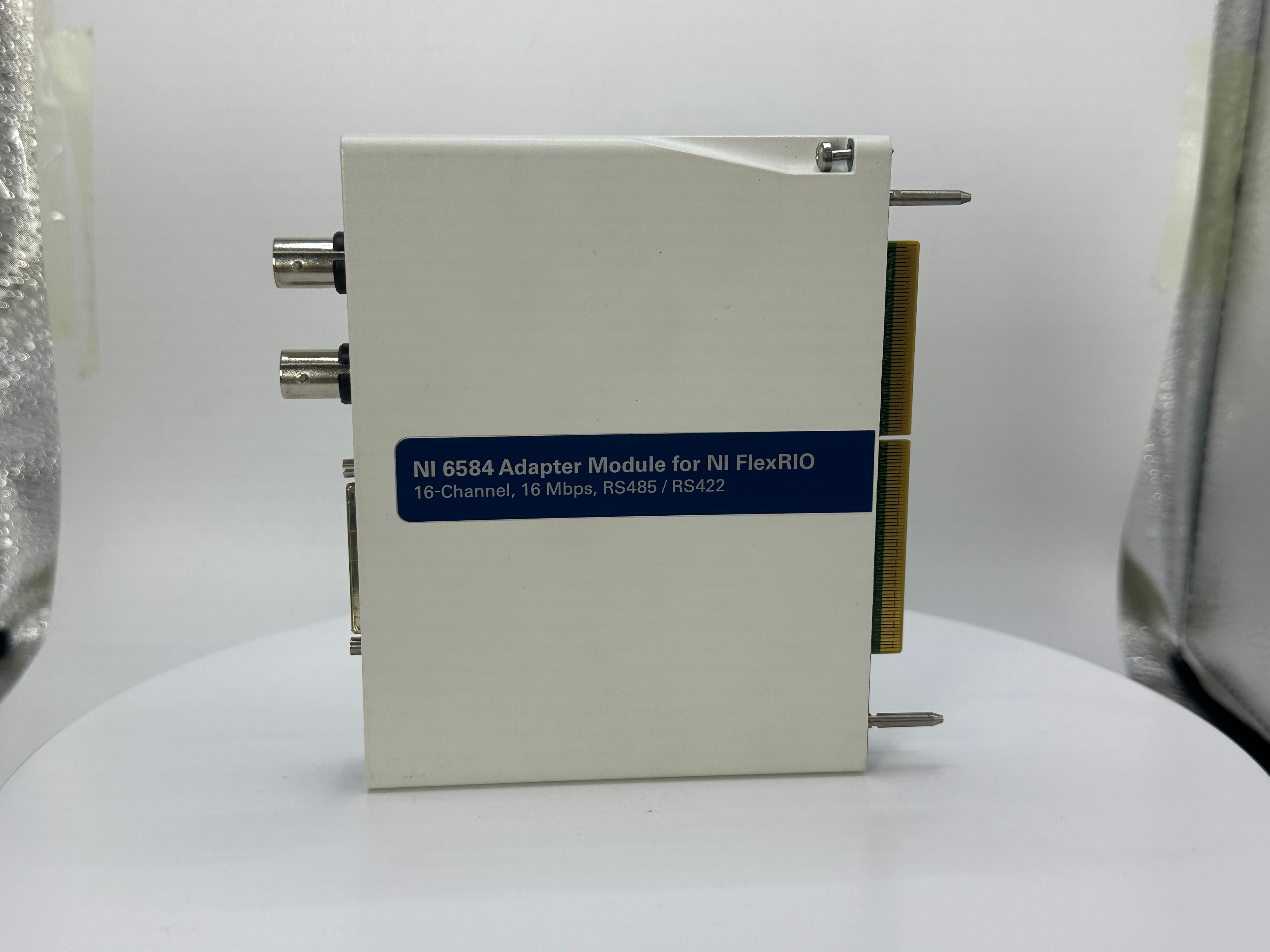

NI‑6584 is a dedicated FlexRIO differential digital I/O adapter designed for RS‑422/RS‑485 serial bus test, paired with PXI FlexRIO FPGA modules to build deterministic real-time communication instruments. It provides 16 independent bidirectional differential channel pairs fully compliant with RS422/485 differential signaling, supporting max 16 MHz clock and 16 Mbps per channel data throughput. Selectable 100 Ω differential termination resistor or open circuit, configurable full/half duplex mode with separate TX/RX enable control per channel. Front panel equipped with 68-pin VHDCI for serial data plus dual BNC for external clock and PFI trigger synchronization. All differential signals directly connect to FPGA logic fabric, enabling hardware-level serial protocol simulation, signal capture and fault injection without CPU latency, widely deployed for automotive CAN/LIN auxiliary bus, industrial Modbus serial equipment and embedded communication HIL systems.

Core Specifications

Channel Resource: 16 differential bidirectional RS422/485 pairs, independent TX/RX enable per channel
Timing Performance: Max 16 MHz system clock, 16 Mbps per channel data rate
Electrical Standard: Native RS‑422/RS‑485 differential signaling, max differential input voltage 5 V, 100 Ω differential impedance
Termination & Duplex: Optional 100Ω onboard termination; half-duplex / full-duplex hardware variants

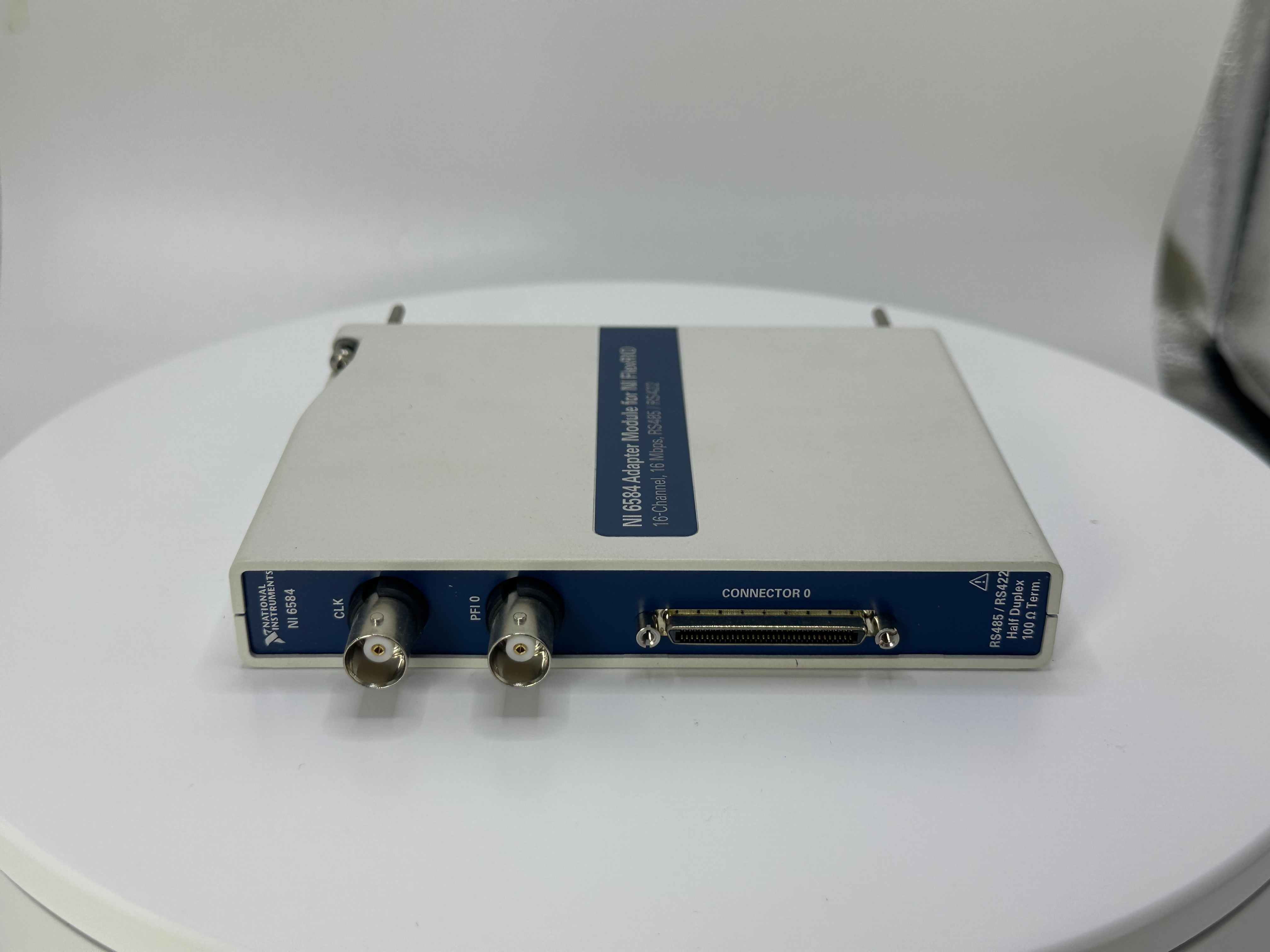

Physical Interfaces: 68-pin VHDCI serial port; 2×BNC for external CLK and PFI trigger
FPGA Compatibility: Matches Virtex‑5, Kintex‑7 FlexRIO PXIe FPGA boards, LabVIEW FPGA CLIP IP supported
Environment & Power: Operating temp 0~55℃; max power draw 2.85 W, single-slot PXIe mechanical form factor
Software Stack: LabVIEW FPGA, NI-RIO driver, real-time OS, custom serial protocol decoding & simulation

Application Scenarios

Automotive ECU RS485 communication hardware-in-the-loop testing, industrial Modbus/Profibus serial device verification, sensor multi-drop bus signal capture, embedded industrial controller communication fault injection, university serial differential bus teaching platforms.

Standard Package Contents

NI-6584 differential serial adapter module, hardware datasheet, quick start guide, safety compliance documents.
