Overview

Official PN：ADAM-6066-D

Advantech ADAM-6066-D is an industrial Ethernet remote I/O module integrating 6 isolated digital input channels and 6 high-power Form A relay output channels, belonging to ADAM-6000 IoT series. It equips 10/100 Mbps RJ45 Ethernet port, multi-protocol stack including Modbus TCP, MQTT TLS, SNMP, RESTful API and ASCII commands, compatible with cloud platforms like Microsoft Azure. Built-in embedded web server for browser-based configuration, Graphic Condition Logic (GCL) and Peer-to-Peer (P2P) I/O mapping enable standalone logic control without PLC. All channels support 2000 VDC optical isolation; DI accepts dry/wet contact signals and works as 3 kHz 32-bit counter, relay supports 100 Hz pulse output. Wide operating temperature -40 ℃ ~ 70 ℃, DIN rail mounting, watchdog timer for communication fault recovery, widely used for factory automation, building control and industrial IoT remote monitoring.

Core Specifications

I/O Resource: 6 isolated DI (dry/wet contact, 3kHz counter), 6 Form A power relay outputs
Relay Rating: Max 250 VAC 5 A / 30 VDC 5 A resistive load, up to 20 switching cycles per minute
Communication: 10/100 Base-TX Ethernet, Modbus TCP, MQTT, SNMP, RESTful API, built-in web UI
Isolation & Safety: 2000 VDC channel isolation, reverse power protection, Class 1 Div 2 hazardous certification
Local Logic: GCL standalone control, P2P inter-module I/O linkage, programmable watchdog timer
Mechanical & Env: DIN rail mount, operating temp -40~70℃, power input 10~30 VDC, typical 2.5 W
Software Compatibility: Advantech Device Manager, SCADA systems, Python/PLC upper computer programs

Application Scenarios

Factory assembly line limit switch & actuator remote control, building lighting/fan/valve automation, energy equipment remote status monitoring, intelligent parking access control, industrial IoT cloud data collection & edge logic control.

Standard Package Contents

ADAM-6066-D Ethernet I/O module, DIN rail mounting clip, terminal wiring label, user manual, safety datasheet.

1.Brand New Items: Comes with 3 Years Official Full Warranty

2. Used & Refurbished Items: Enjoy 2 Years Professional Warranty Service

3. Free Warranty Maintenance: All non‑human quality failures are covered for free repair and maintenance during the warranty period

4. Full Technical Support: Professional technical guidance and exclusive after‑sales repair services are provided for all warranty‑qualified products.

5.Strict Fault Verification: All product failures will be professionally inspected and confirmed to judge warranty eligibility accurately.

6. We strictly inspect damage reasons to confirm warranty eligibility.

• We ship out all orders within 3 business days after payment confirmed.

• Global fast shipping supported by FedEx and UPS Express Delivery.

• Real-time tracking number provided for every order, easy to track delivery status online.

• Every item will go through strict professional testing and full function inspection before shipment.

• We take detailed real photos for each product to confirm appearance, condition and accessories before delivery.

• Premium shockproof and anti-collision packaging to protect goods from damage during transit.

• Safe and smooth customs clearance, shorten delivery time.

• Complete accessories and intact packaging before shipping.

• Professional after-sales logistics support, we help solve all delivery and receiving problems.

• Fast global delivery, safe and reliable transportation guarantee.

PCIe S‑Series

NI S‑Series (61xx family) multifunction DAQ features true simultaneous‑sampling architecture with dedicated ADC per channel . Mostly PCI / PXI form‑factor, few native PCIe variants. It delivers near‑zero phase delay across channels, ideal for transient waveform capture, vibration, acoustic and other timing‑critical measurement tasks. Supported by NI‑DAQmx driver and compatible with LabVIEW, TestStand. Accessories are not interchangeable with X‑Series

PXIe X‑Series

NI PXIe X‑Series are high‑performance multifunction DAQ modules on PXIe bus. Built with STC3 timing engine, they integrate analog input, analog output, bidirectional DIO and four 32‑bit counter‑timers. Leverage PXIe high‑speed backplane for hardware triggering, retriggerable measurements and multi‑module synchronization with VHDCI‑68 connector. Fully compatible with NI‑DAQmx driver, supporting LabVIEW, TestStand, Python, C/C++ and C#. Widely applied for data acquisition, automated ATE and hardware‑in‑the‑loop test systems

NI‑9213 C‑Series Module

NI‑9213 is a high‑density C‑Series thermocouple input module for CompactDAQ and CompactRIO systems. It offers 16‑channel, 24‑bit thermocouple measurement with up to 75 S/s per‑channel sampling rate. Integrated cold‑junction compensation, open‑thermocouple detection and anti‑aliasing filters. 250 Vrms channel‑to‑earth isolation with NIST‑traceable calibration, spring‑terminal connector supporting all standard thermocouple types. Mix‑and‑match with other C‑Series modules, widely used for multi‑channel temperature monitoring, environmental chamber and thermal‑cycle testing

PXIe‑1065 chassis

PXIe‑1065 is NI high‑performance 18‑slot PXIe chassis, supporting mixed PXI and PXIe modules. It features 9 PXI slots, 4 hybrid slots, 3 PXIe peripheral slots and one PXIe system timing slotNI. High‑bandwidth backplane delivers low‑jitter 10 MHz /100 MHz reference clocks, supporting PXIe star trigger and multi‑module synchronization. Field‑replaceable modular power supply shuttle, temperature‑controlled variable‑speed fans, up to 30 W per‑slot cooling and rack‑mount capability. Widely deployed for multi‑channel ATE systems, hardware‑in‑the‑loop, signal acquisition and simulation test benches

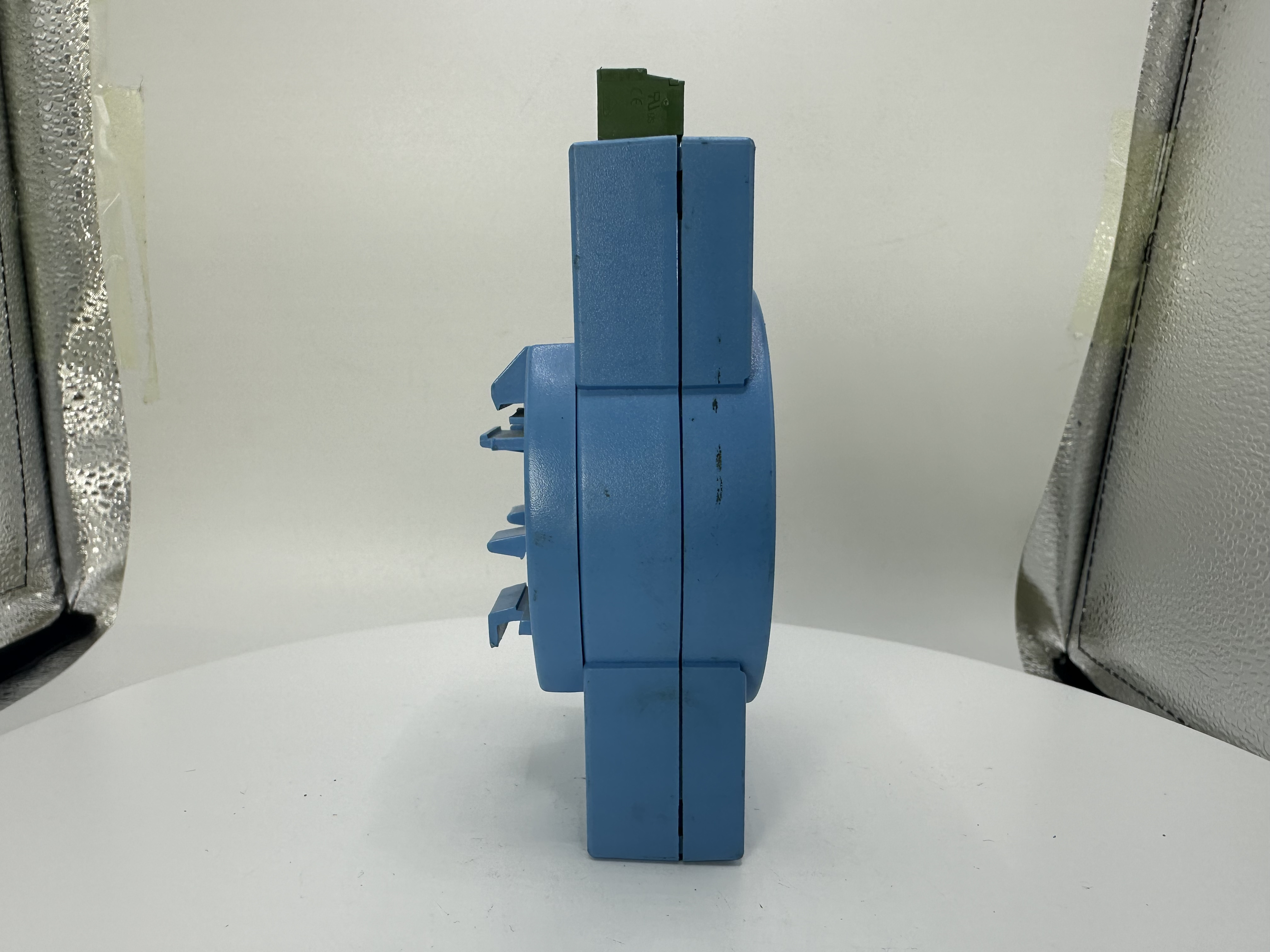

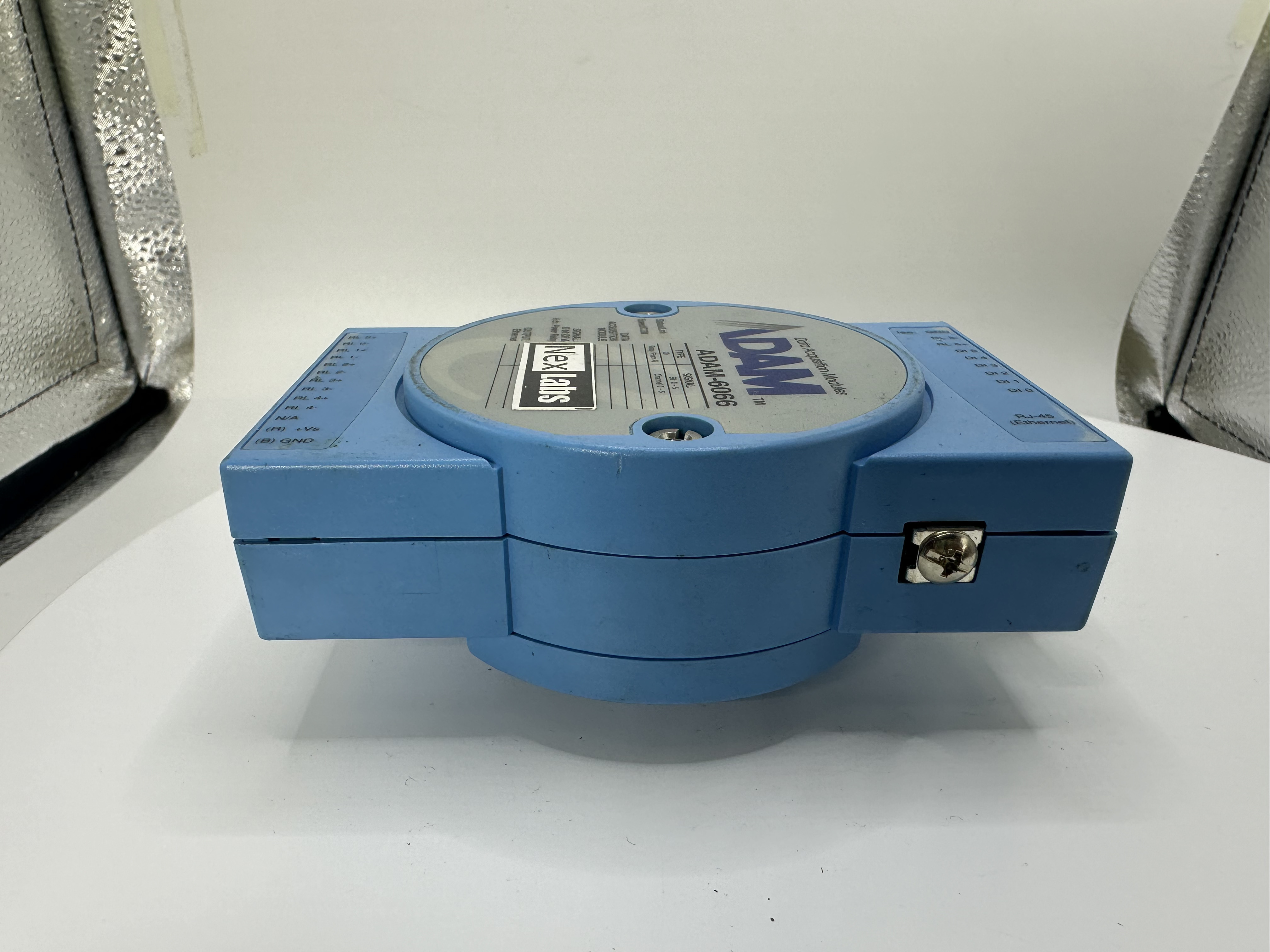

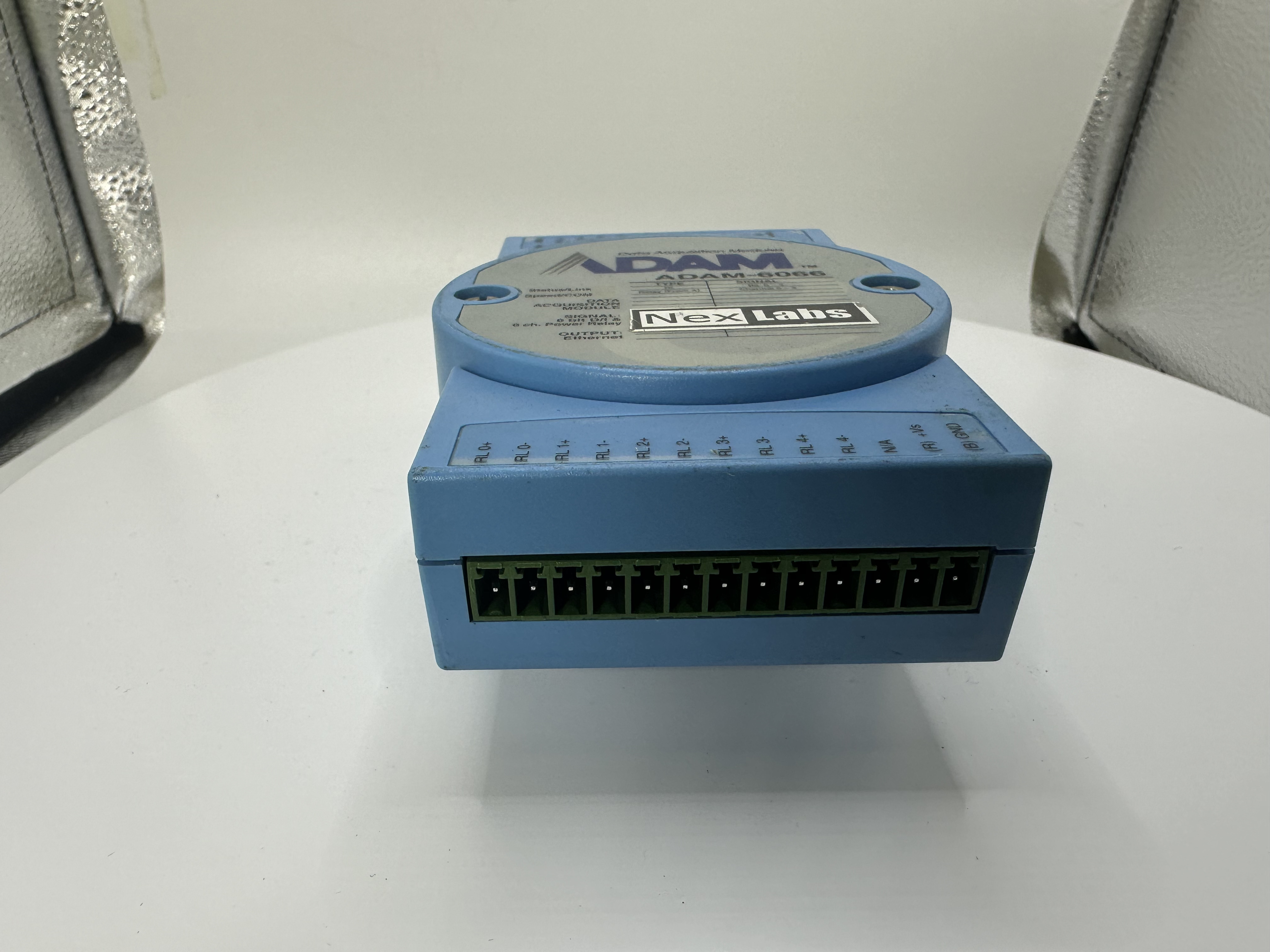

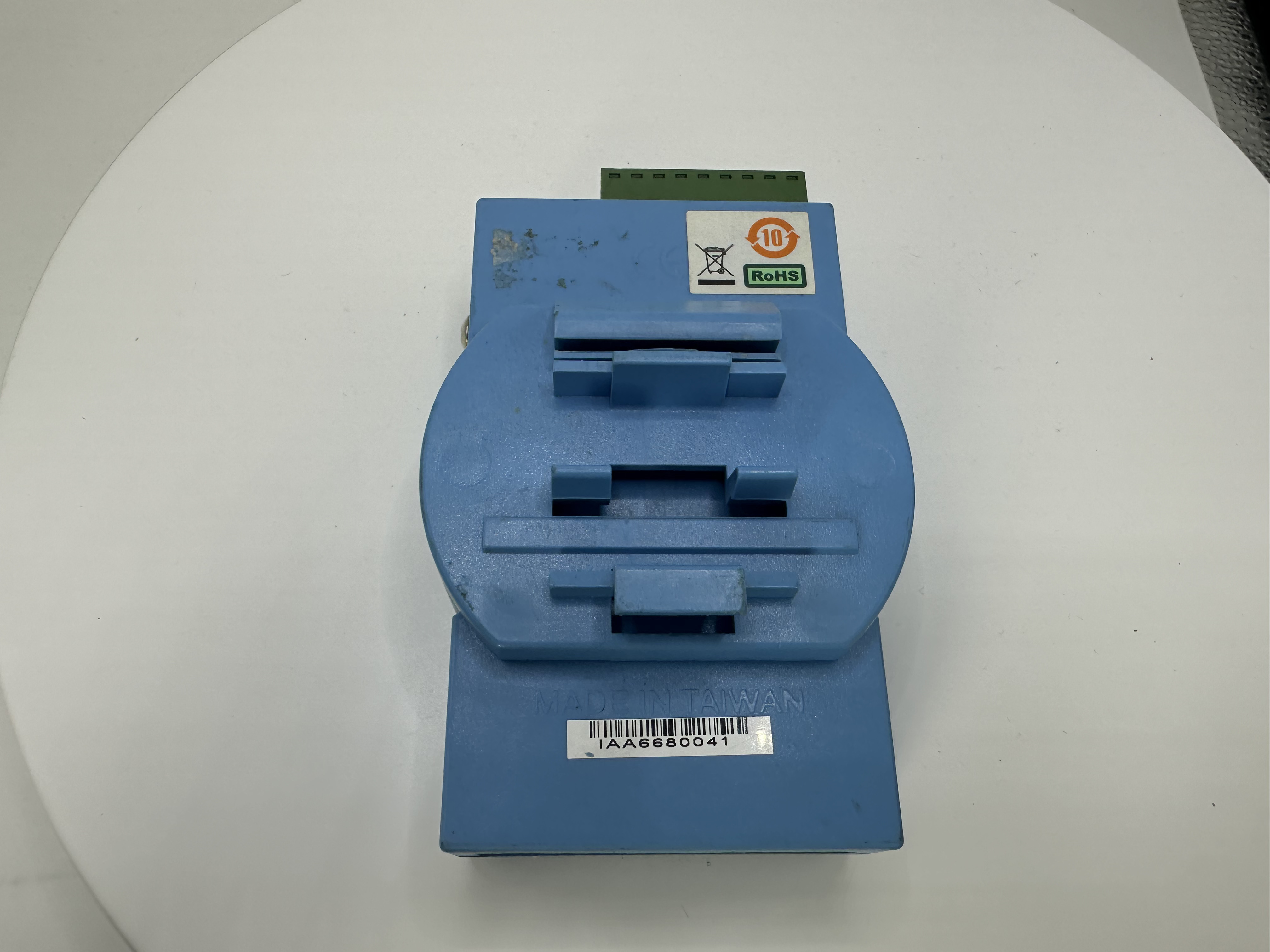

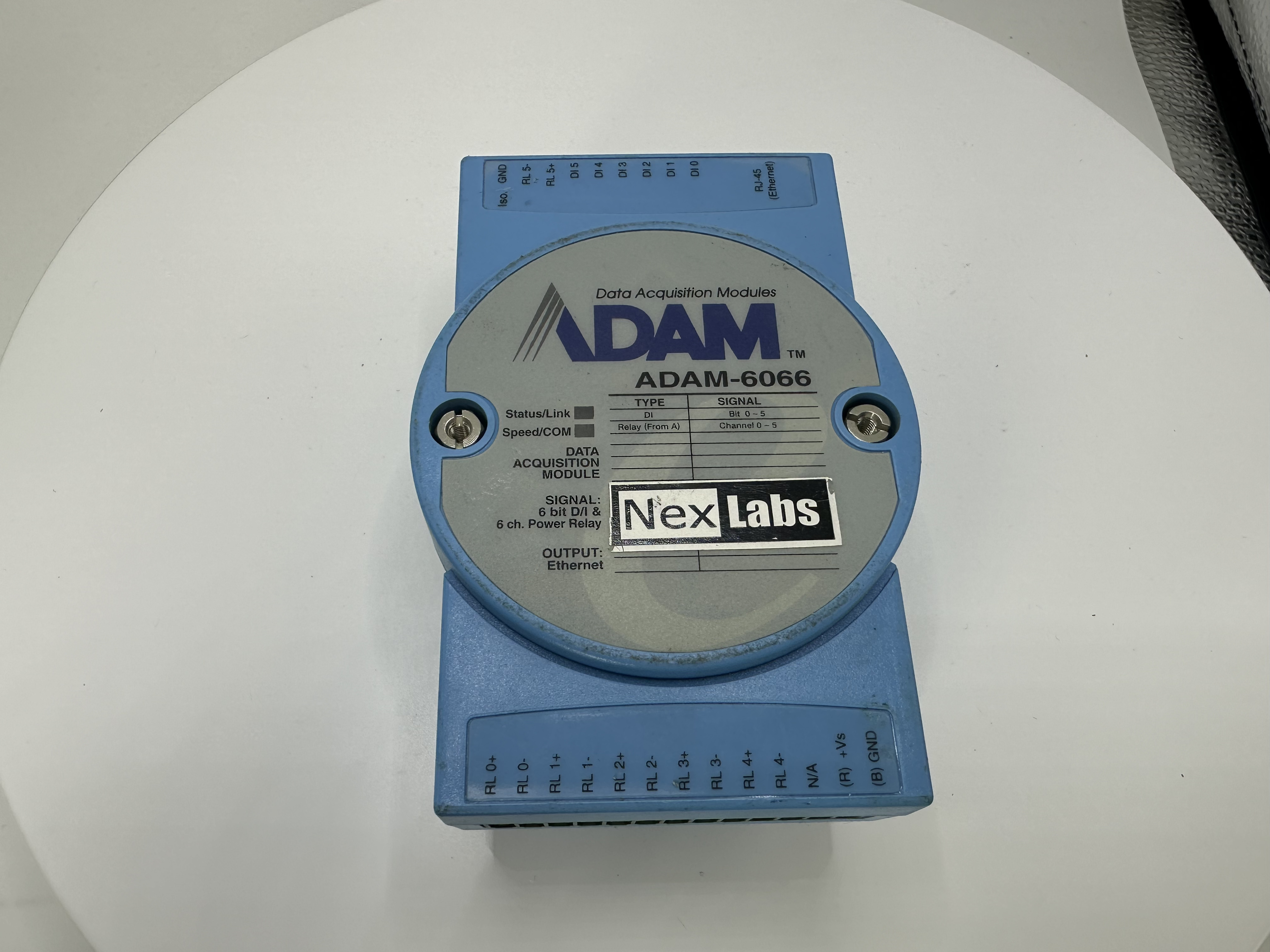

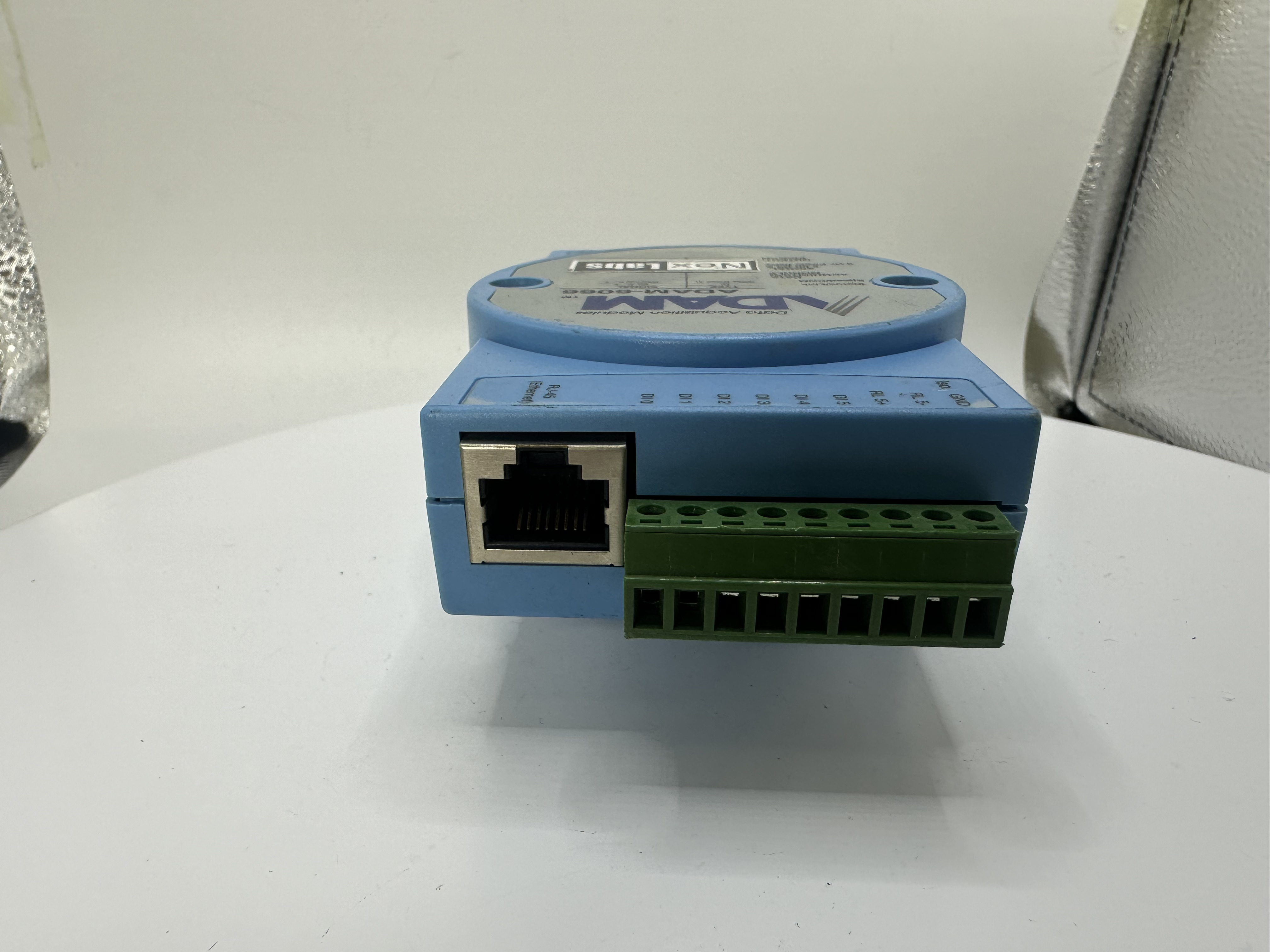

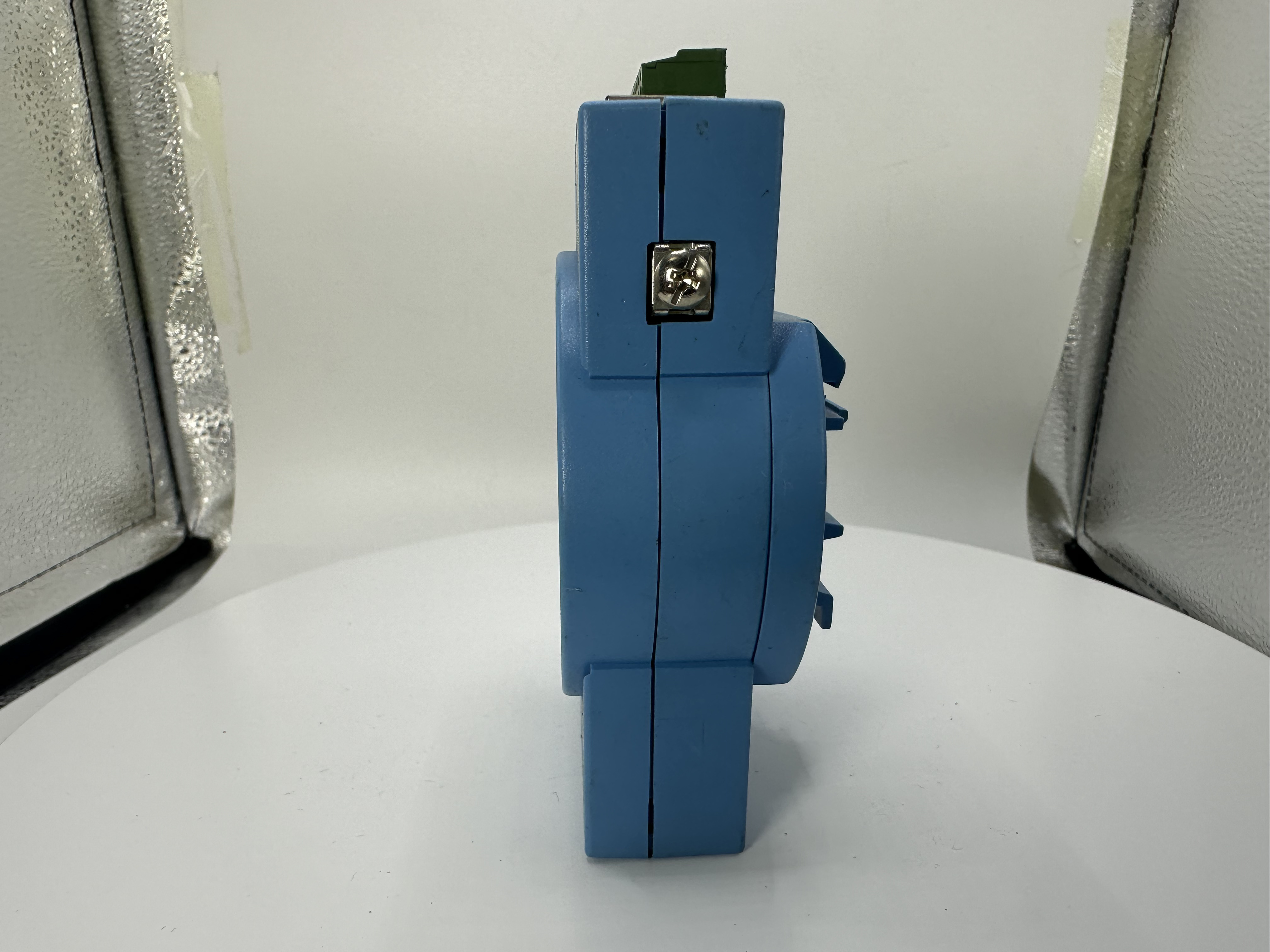

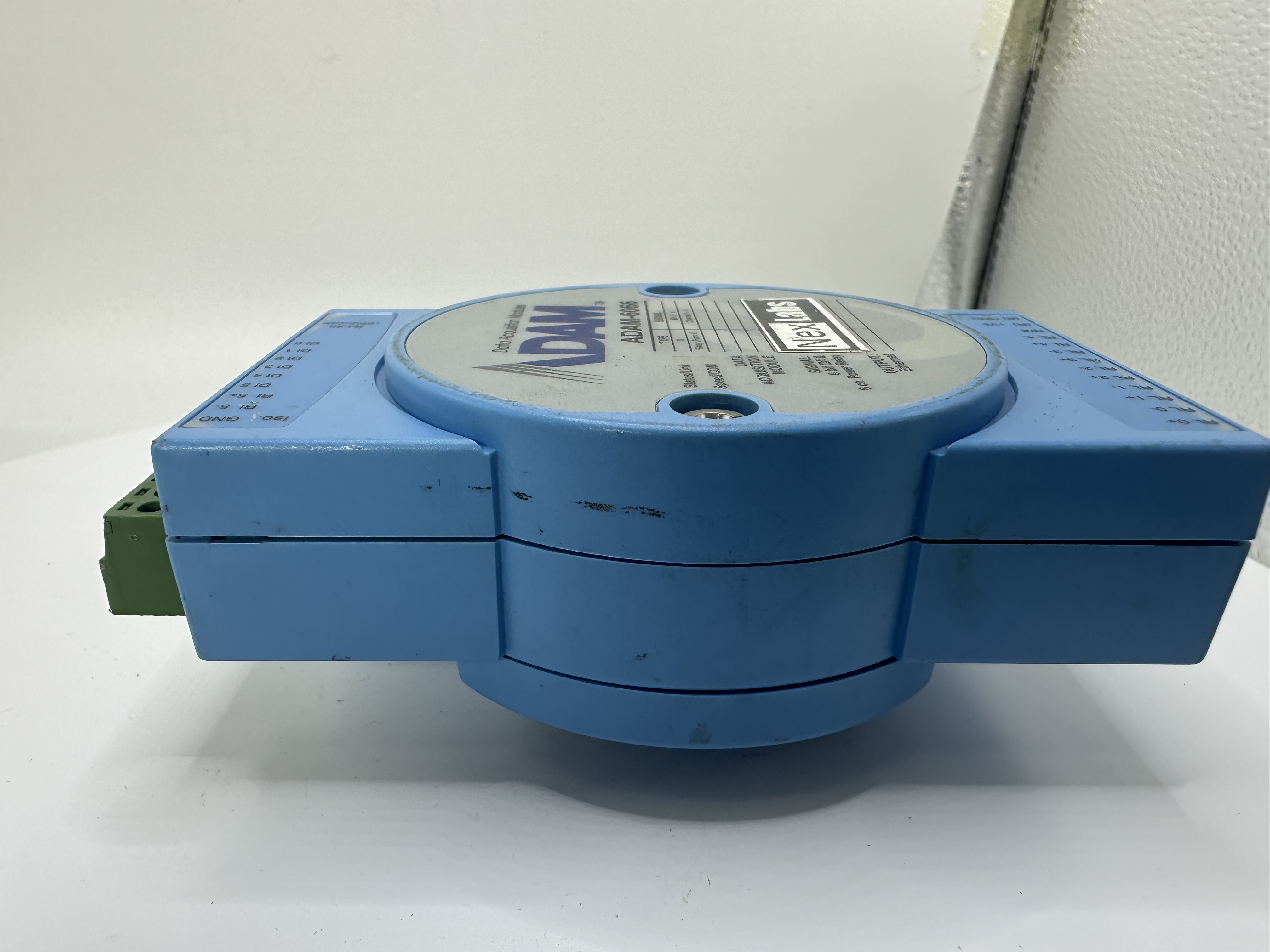

Advantech ADAM-6066-D Ethernet Remote IO 6DI 6 Power Relay Module PN:ADAM-6066-D
